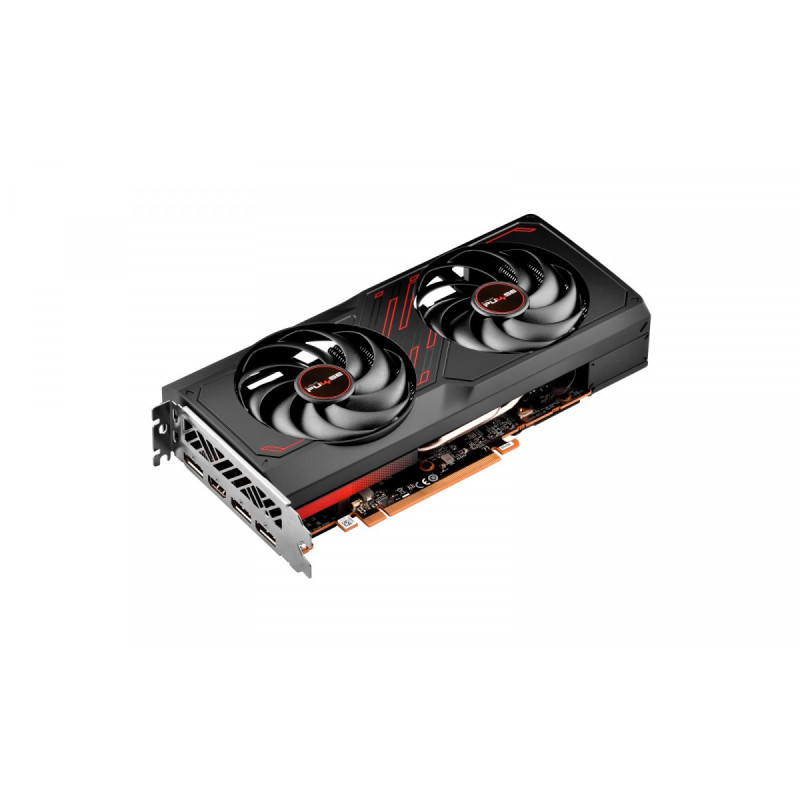

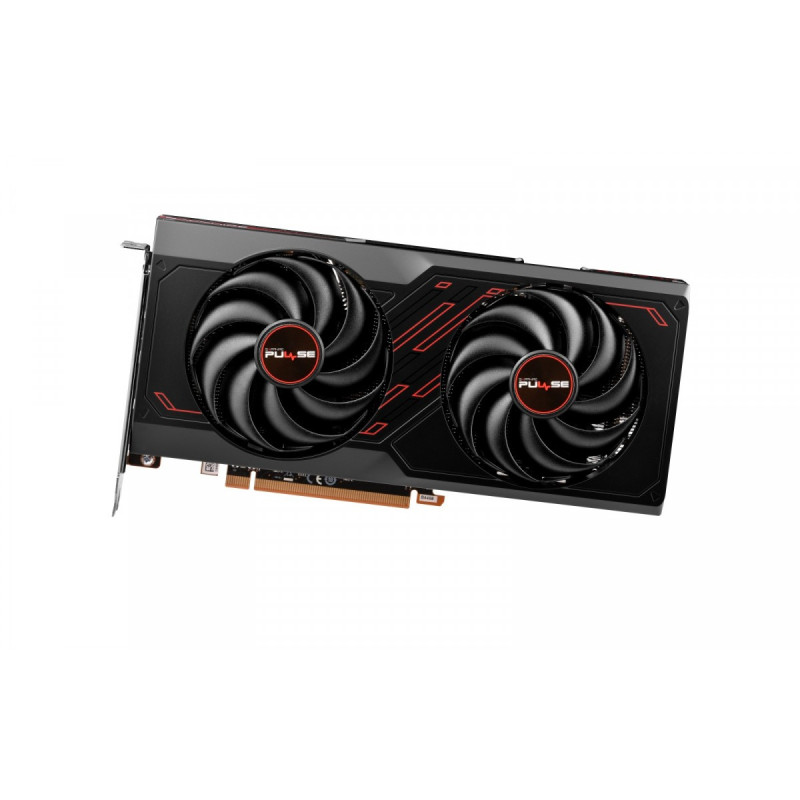

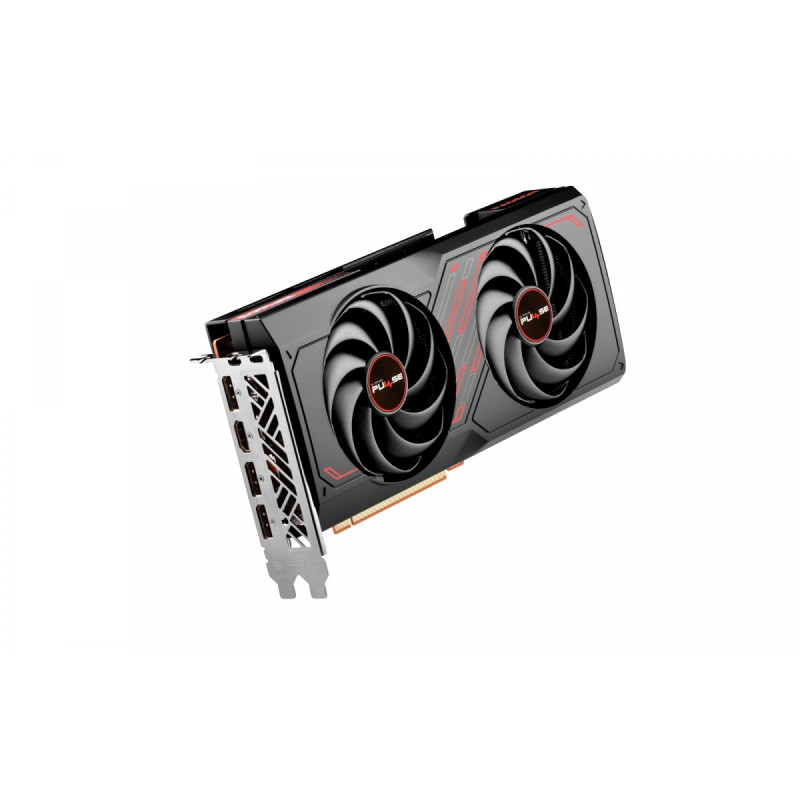

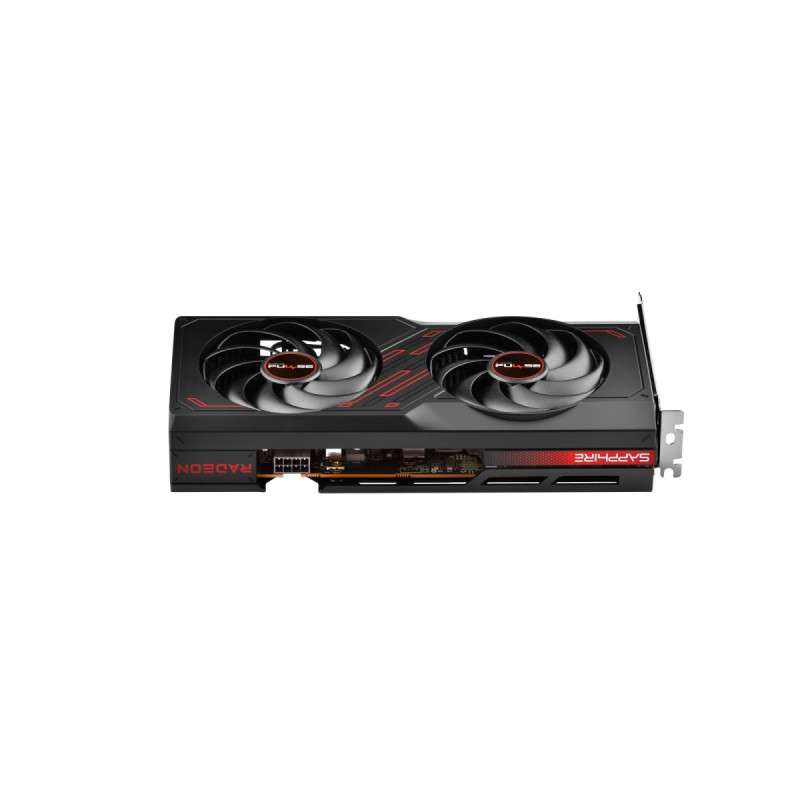

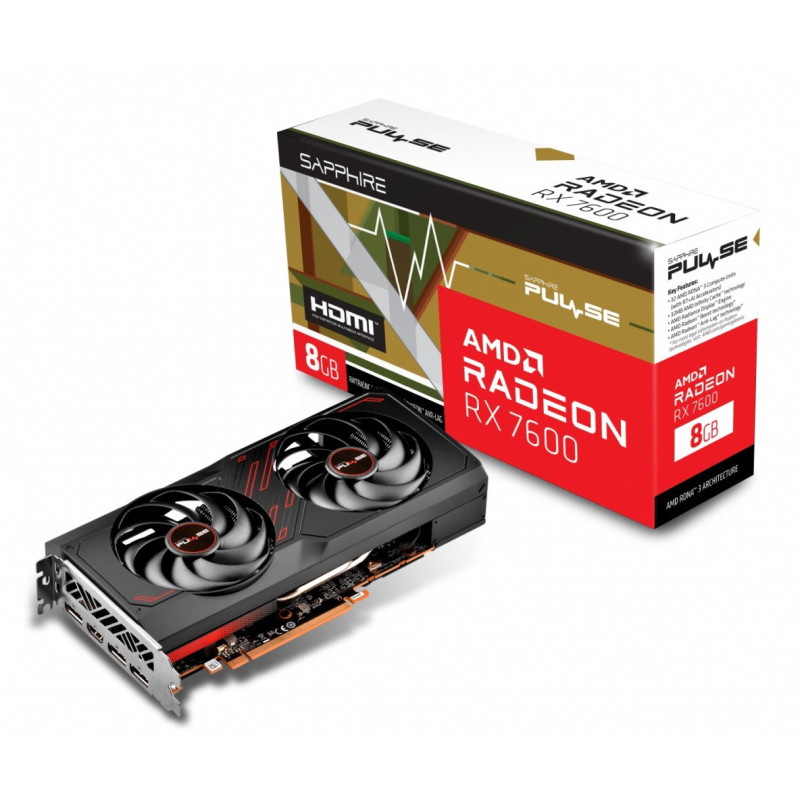

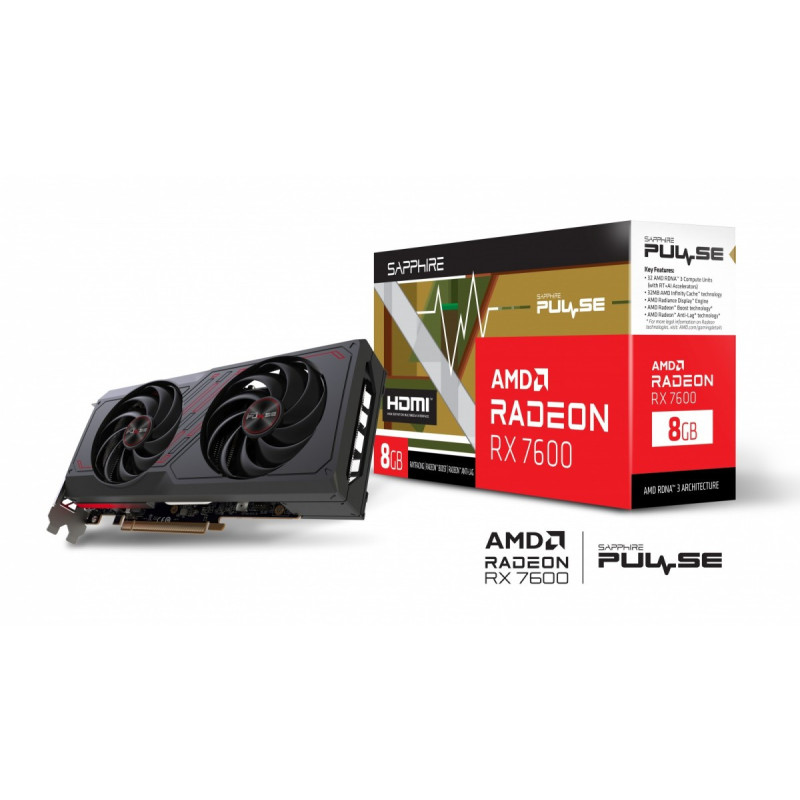

Sapphire PULSE RX 7600/8 GB/GDDR6
Sapphire PULSE RX 7600/8 GB/GDDR6









Sapphire PULSE RX 7600/8 GB/GDDR6
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

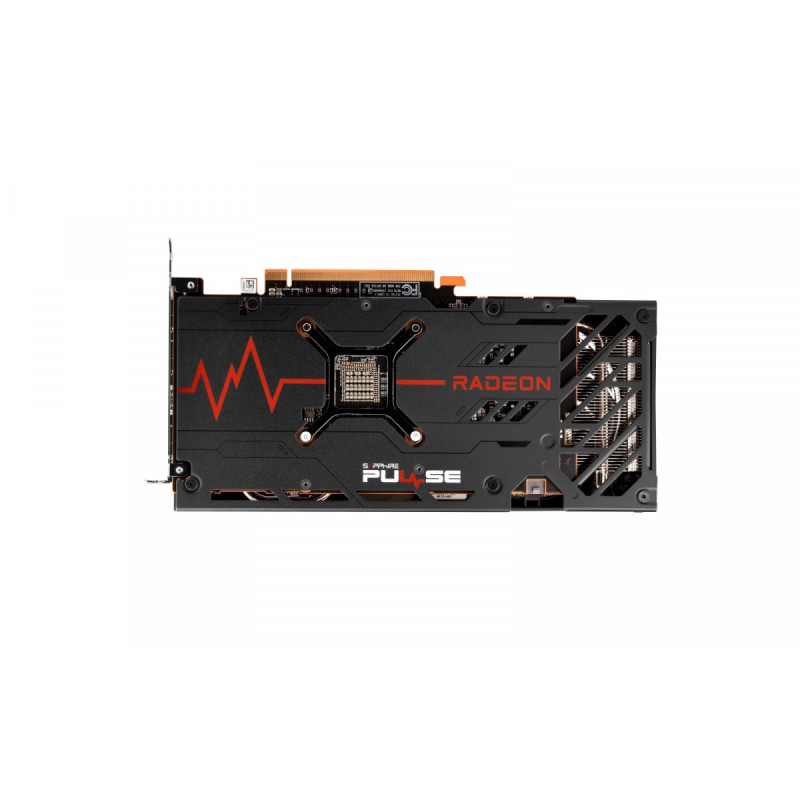

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
| Summary: | Sapphire PULSE 11324-01-20G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s) |
| Vendor Homepage: | https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-7600-8g-gddr6#Specification |
| Category Code: | VGP |
| CnCode: | 84718000 |
| Unit Box Height: | 0.085 |
| Unit Box Length: | 0.285 |
| Unit Box Width: | 0.16 |
| CUDA: | From |
| Graphics processor: | Radeon RX 7600 |
| Graphics processor family: | AMD |
| Infinity cache: | 32MB |
| Maximum displays per video card: | 4 |
| Maximum resolution: | 7680 x 4320pixels |
| Processor boost clock speed: | 2755MHz |
| Processor frequency: | 2355MHz |
| Ray accelerators: | 32 |
| Stream processors: | 2048 |
| Data transfer rate: | 18Gbit/s |
| Discrete graphics card memory: | 8GB |
| Graphics card memory type: | GDDR6 |
| Memory bus: | 128bit |
| DisplayPort version: | 1.4 |
| DisplayPort quantity: | 3 |
| HDMI ports quantity: | 1 |
| Interface type: | PCI Express x8 4.0 |
| AMD FreeSync: | Yes |
| DirectX version: | 12 Ultimate |
| Dual Link DVI: | From |
| TV tuner integrated: | From |
| Cooling technology: | Sapphire Dual-X |
| Cooling type: | Active |
| Number of fans: | 2fan(s) |
| Number of slots: | 2 |
| Minimum system power supply: | 550W |
| Power consumption (typical): | 185W |
| Supplementary power connectors: | 1x 8-pin |
| Linux operating systems supported: | Yes |
| Minimum RAM: | 8192MB |
| Windows operating systems supported: | Windows 10 x64/Windows 11 x64 |
| Depth: | 44.07mm |
| Height: | 107.1mm |
| Length: | 240mm |
| Quick installation guide: | Yes |
| Country of origin: | China |
| Model: | 11324-01-20G |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 10 |
| Unit Calculated Volume: | 0.005192m³ |
| Product Net Weight: | 0.7kg |
| Unit Calculated Weight: | 0.986kg |
