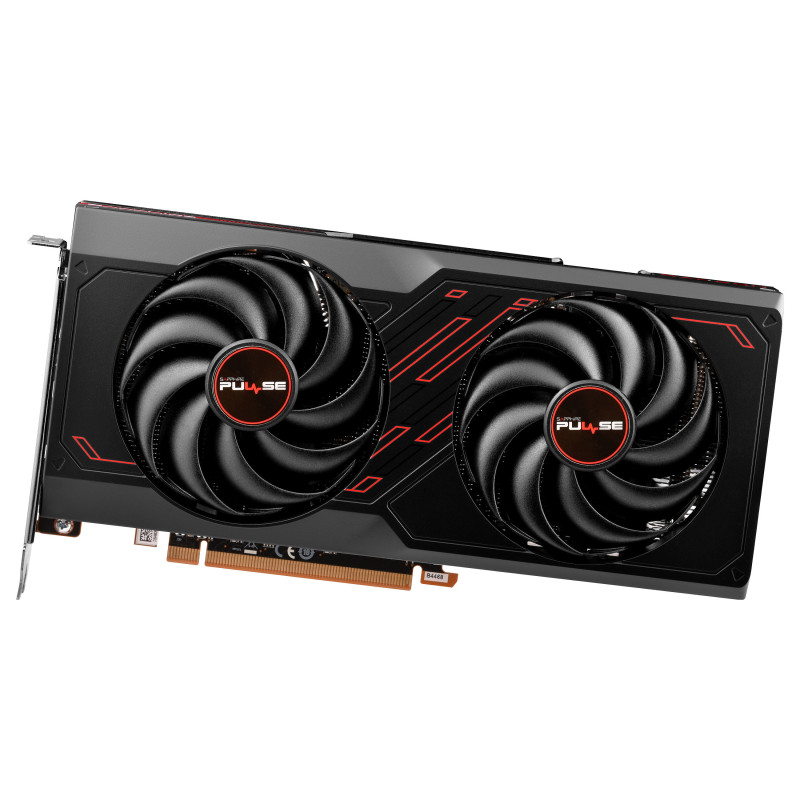

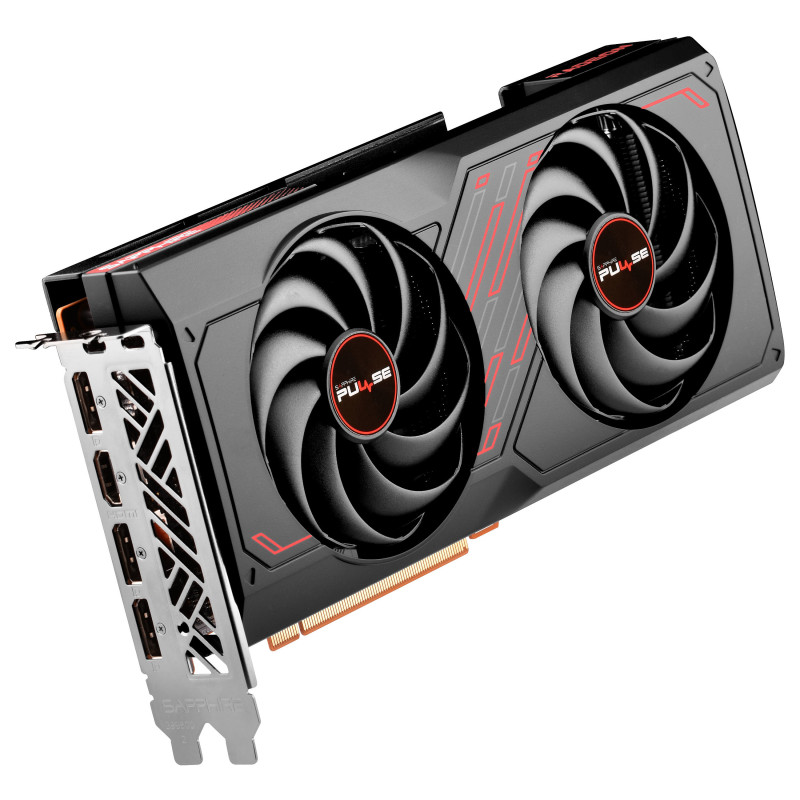

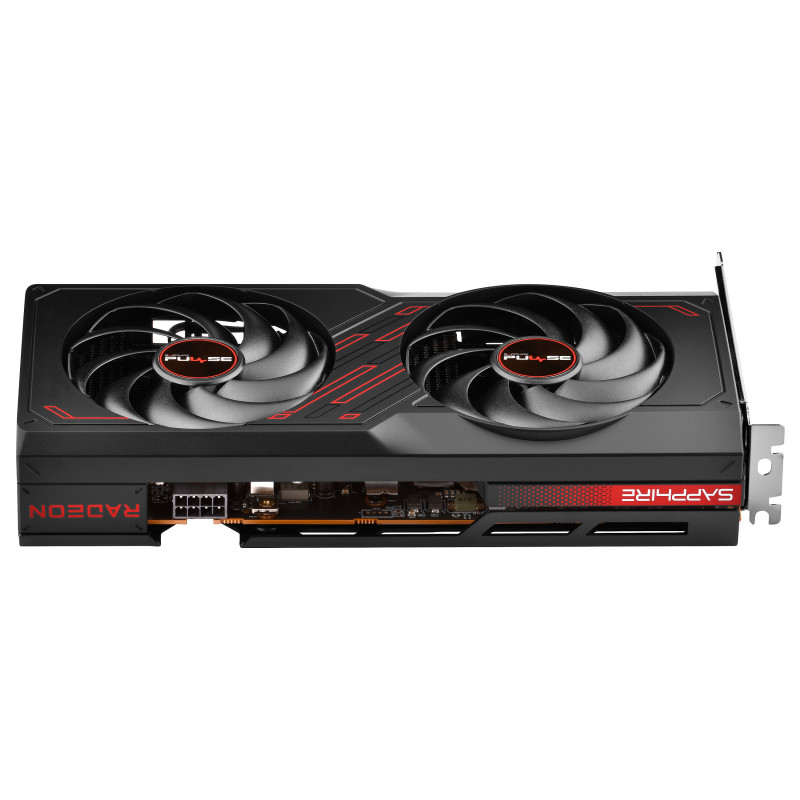

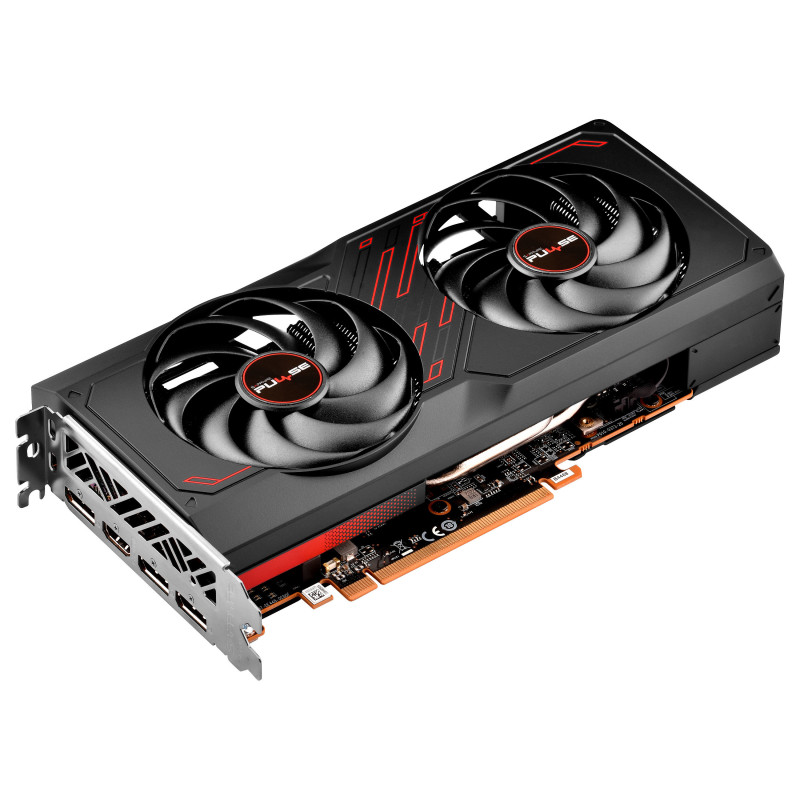

Sapphire PULSE 11324-01-20G graphics card

Sapphire PULSE 11324-01-20G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

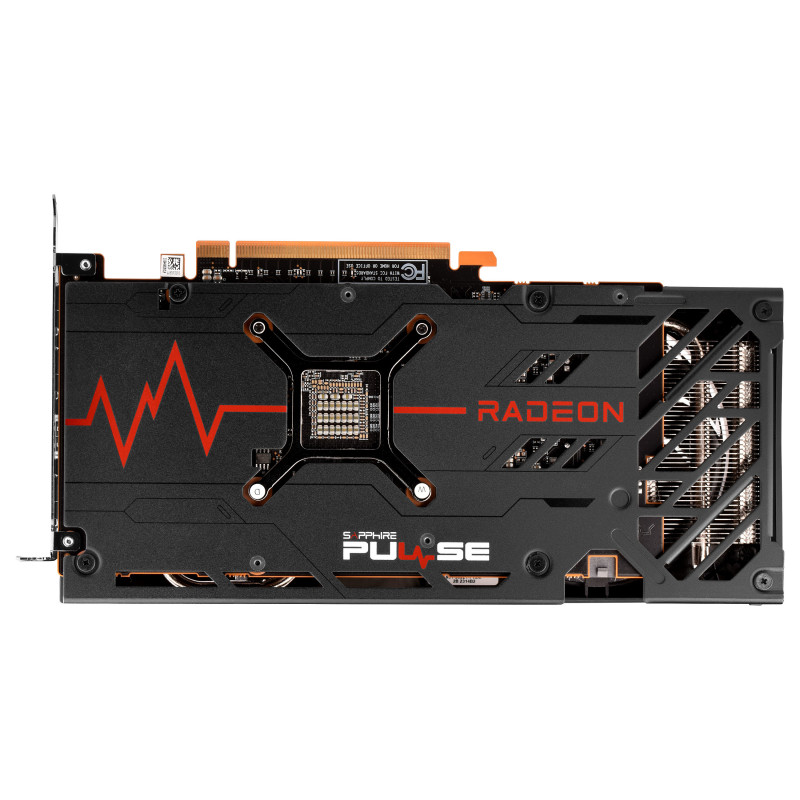

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

Processor

Graphics processor family: AMD
Graphics processor: Radeon RX 7600
Processor frequency: 2355 MHz
Processor boost clock speed: 2755 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 2048
Maximum displays per videocard: 4
Infinity cache: 32 MB
Ray accelerators: 32

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 18 Gbit/s

Ports interfaces

Interface type: PCI Express x8 4.0
HDMI ports quantity: 1
DisplayPorts quantity: 3
DisplayPort version: 1.4

Performance

DirectX version: 12 Ultimate
Feature: AMD FreeSync

Design

Cooling type: Active
Cooling technology: Sapphire Dual-X
Number of fans: 2 fan(s)
Number of slots: 2

Power

Minimum system power supply: 550 W
Power consumption (typical): 185 W
Supplementary power connectors: 1x 8-pin

System requirements

Windows operating systems supported: Windows 10 x64, Windows 11 x64
Linux operating systems supported: Yes
Minimum RAM: 8192 MB

Weight dimensions

Length: 240 mm
Depth: 44.1 mm
Height: 107.1 mm

Packaging content

Feature: Quick installation guide

Logistics data

Country of origin: China
