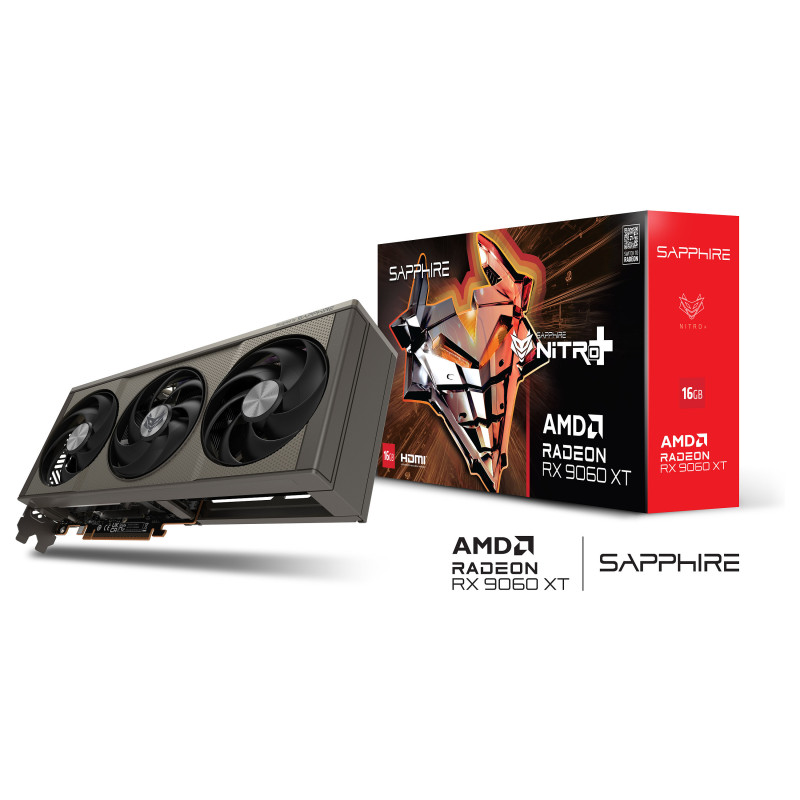

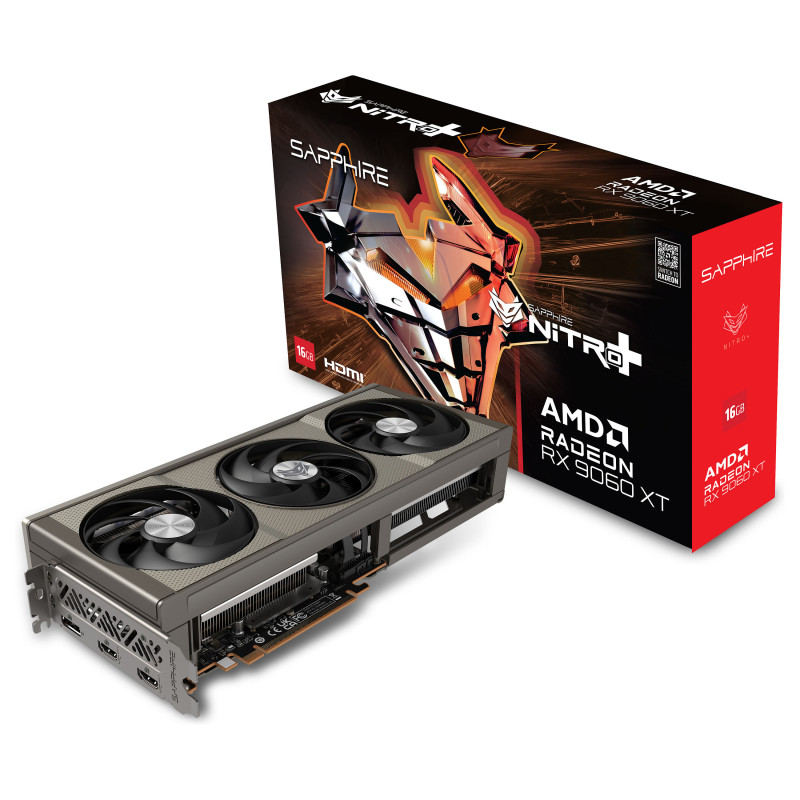

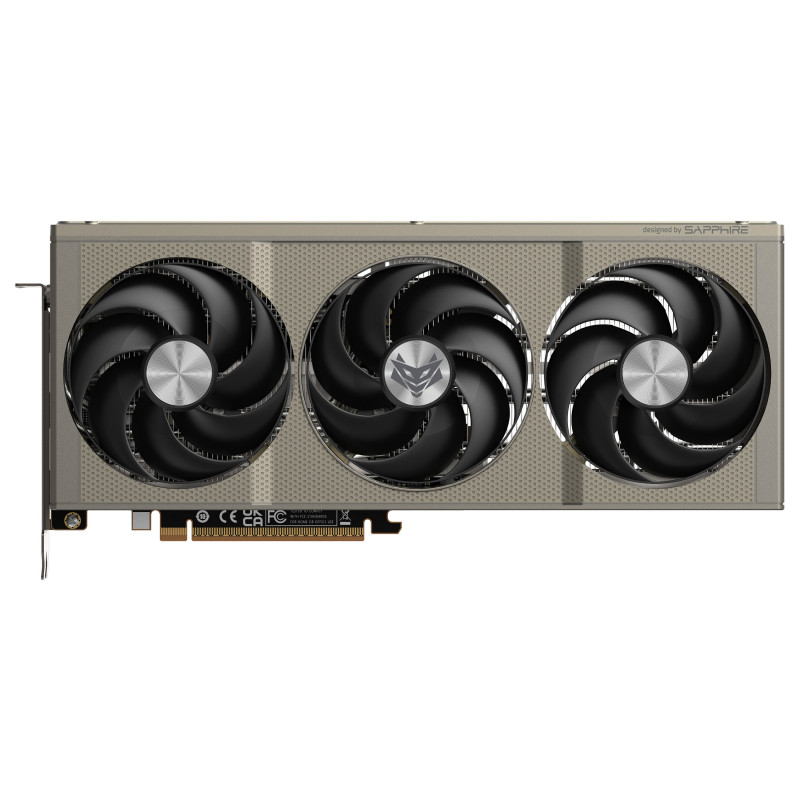

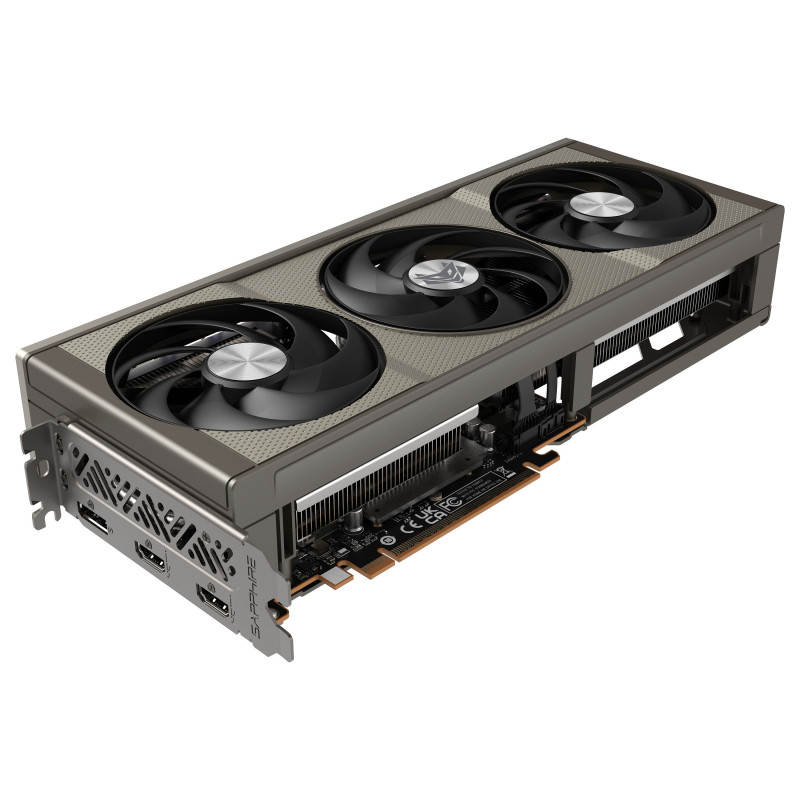

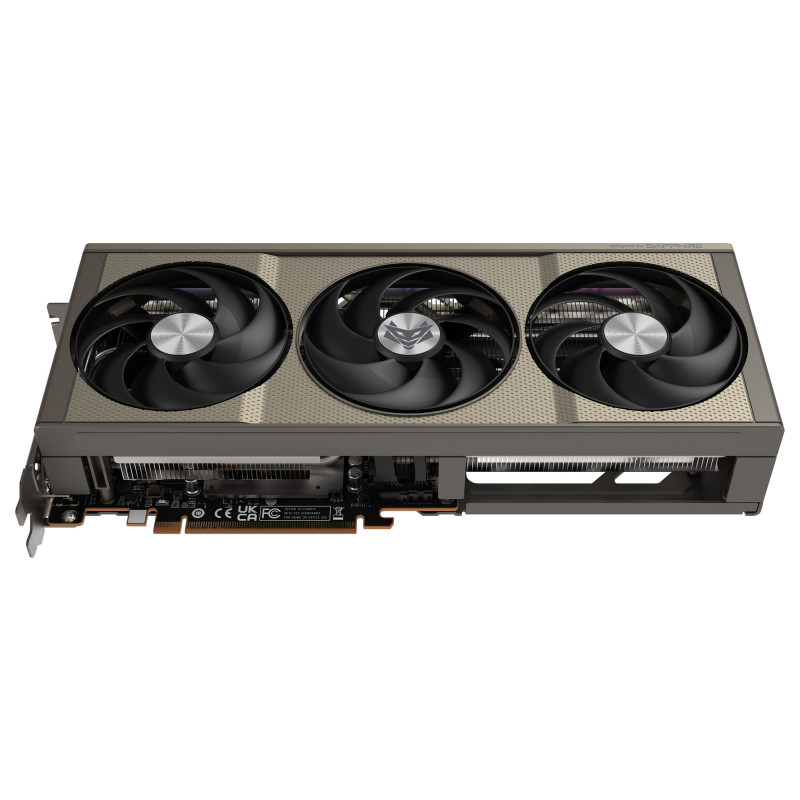

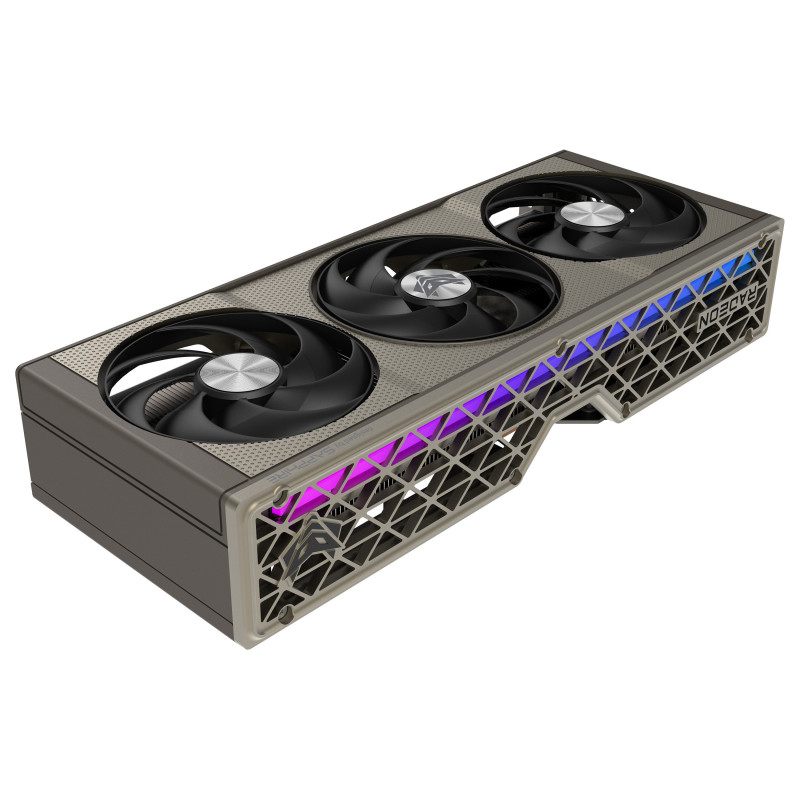

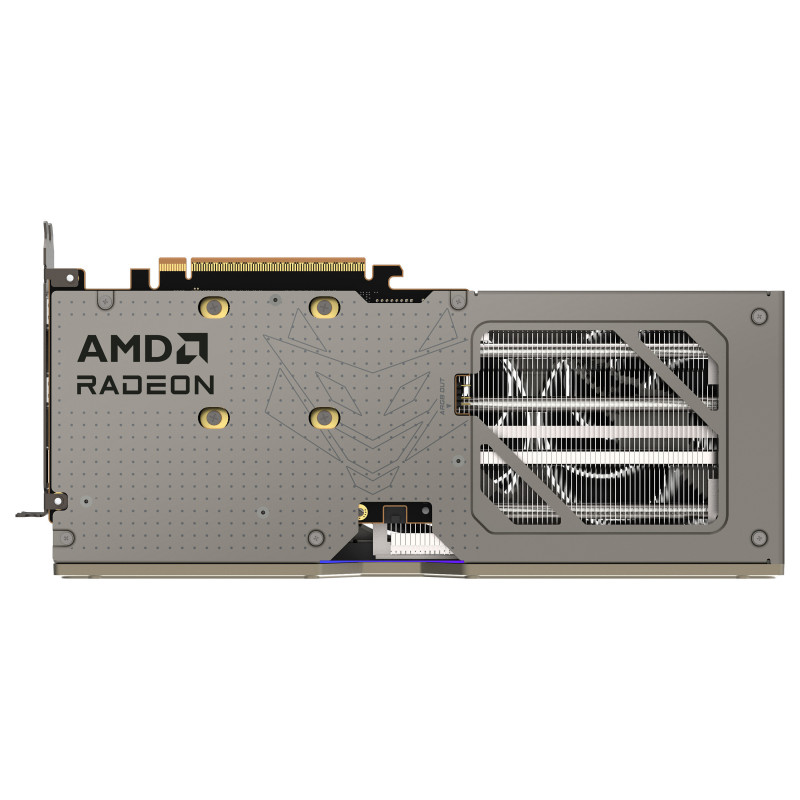

Sapphire NITRO+ AMD Radeon RX 9060 XT GPU

Sapphire NITRO+ AMD Radeon RX 9060 XT GPU. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s)

Processor

Compute units: 32
Graphics processor family: AMD
Graphics processor: Radeon RX 9060 XT
Processor boost clock speed: 3320 MHz
Processor boost clock speed (Gaming mode): 2780 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 2048
Maximum displays per videocard: 3
Ray accelerators: 32
AI accelerators: 64

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 20 Gbit/s

Ports & interfaces

Interface type: PCI Express x16 5.0
HDMI ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 2.1a

Performance

DirectX version: 12.0
OpenGL version: 4.6
Feature: AMD FreeSync

Design

Cooling type: Active
Cooling technology: Sapphire Tri-X
Number of fans: 3 fan(s)
Number of slots: 2
Product colour: Grey

Power

Minimum system power supply: 450 W
Power consumption (typical): 182 W
Supplementary power connectors: 1x 8-pin

System requirements

Windows operating systems supported: Windows 10 x64, Windows 11 x64
Linux operating systems supported: Yes

Weight & dimensions

Length: 300 mm
Depth: 131 mm
Height: 55 mm

Packaging data

Package type: Box
