Zotac GeForce RTX 3060 Twin Edge

Zotac GeForce RTX 3060 Twin Edge. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)

RAY TRACING
Ray tracing is the holy grail of gaming graphics, simulating the physical behavior of light to bring real-time, cinematic-quality rendering to even the most visually intense games.

DLSS AI ACCELERATION
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates by 1.5X or more with uncompromised image quality using the dedicated AI processing Tensor cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.

BRING DOWN THE MERCURY
ADVANCED COOLING
A more refined IceStorm 2.0 cooling system is purpose-built for wider coverage to keep the GPU cooler and running stronger, with enhancements in the visible and in what lies underneath.

MORE RESILIENT

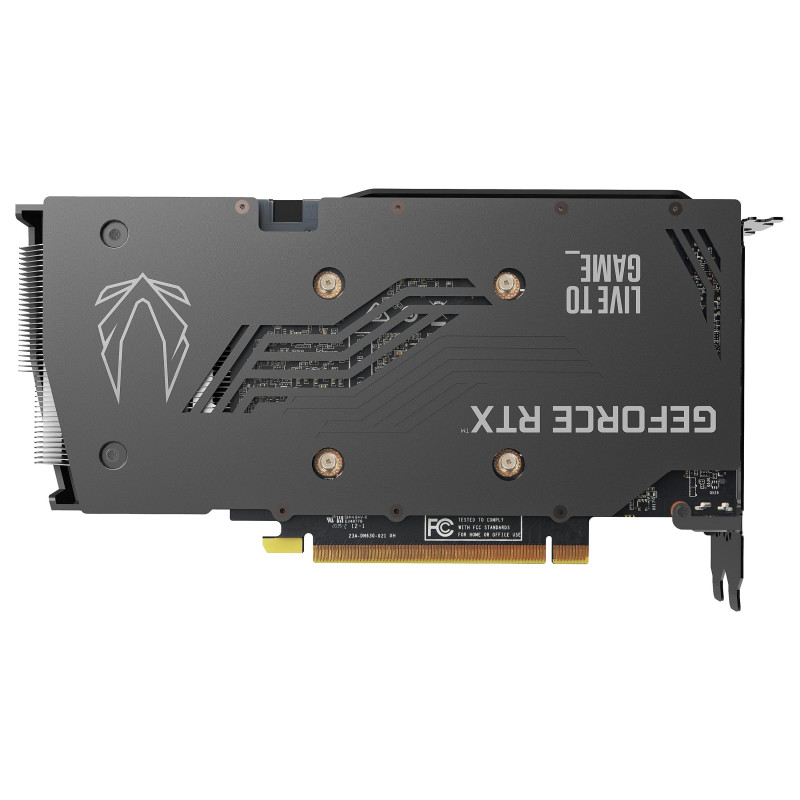

The design underlines durability with a metal backplate to increase the overall card rigidity.

TAKE CONTROL
With a simple and intuitive minimal interface, the ZOTAC GAMING FireStorm Utility provides simple tools to transform fine-tuning your GPU into a simple task. Monitor your GPU, control the fan speed, and many more options.

Processor

Feature: CUDA
CUDA cores: 3584
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 3060
Processor boost clock speed: 1777 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 12 GB
Graphics card memory type: GDDR6
Memory bus: 192 bit
Data transfer rate: 15 Gbit/s

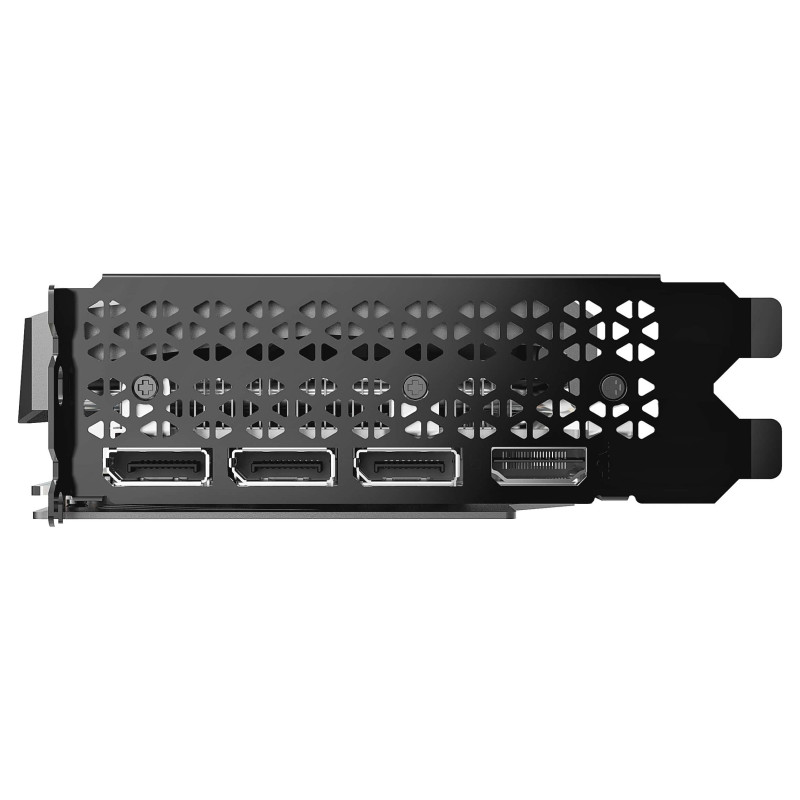

Ports & interfaces

Interface type: PCI Express x16 4.0
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 3
DisplayPort version: 1.4a

Performance

DirectX version: 12.0
OpenGL version: 4.6
Feature: Virtual Reality (VR) ready
Feature: HDCP
Feature: NVIDIA G-SYNC

Design

Cooling type: Active
Cooling technology: Zotac IceStorm 2.0
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Number of slots: 2
Product colour: Black

Power

Minimum system power supply: 600 W
Power consumption (typical): 170 W
Supplementary power connectors: 1x 8-pin

System requirements

Windows operating systems supported: Windows 10 x64

Weight & dimensions

Length: 224.1 mm
Depth: 39.2 mm
Height: 116.3 mm

Packaging data

Package width: 218 mm
Package depth: 83 mm
Package height: 283 mm
Package type: Box

Packaging content

Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
