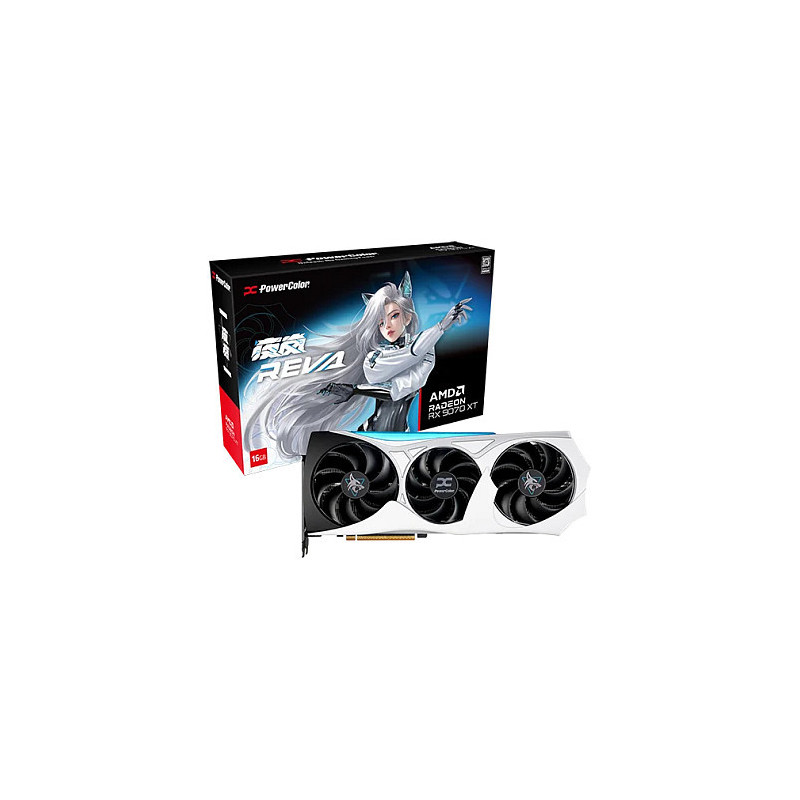

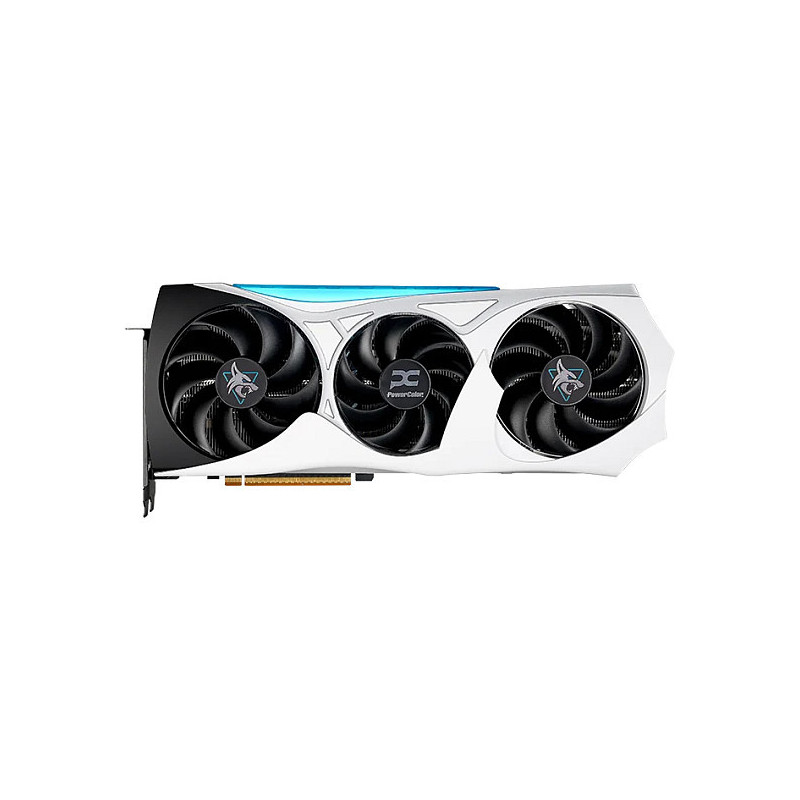

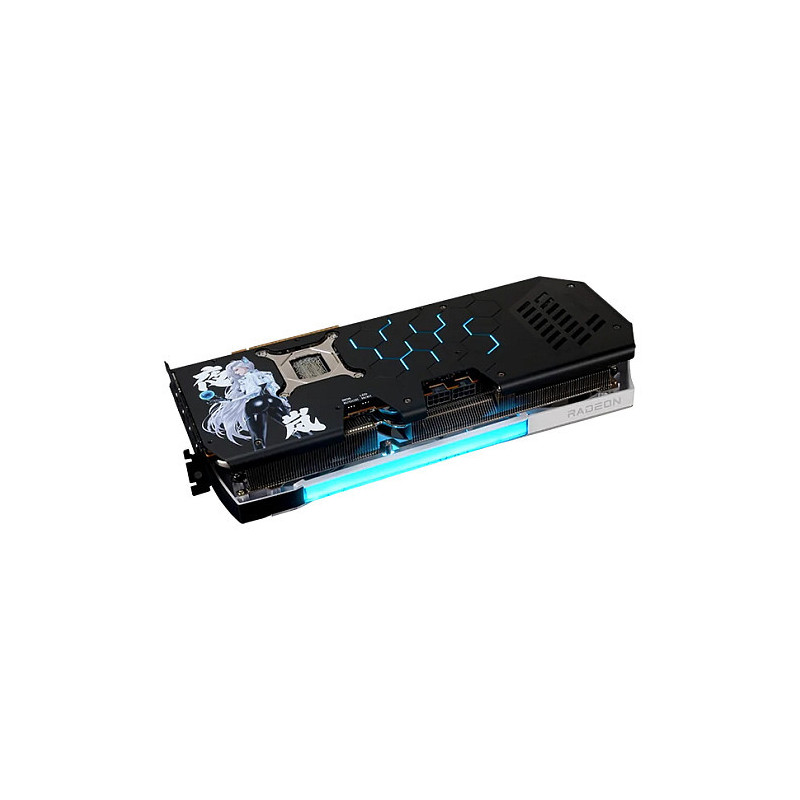

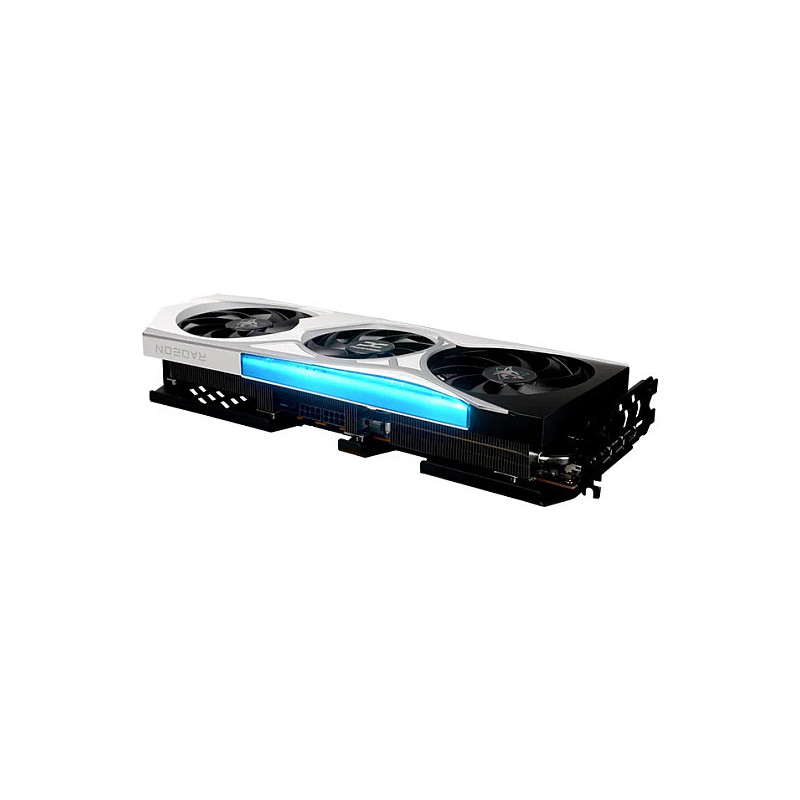

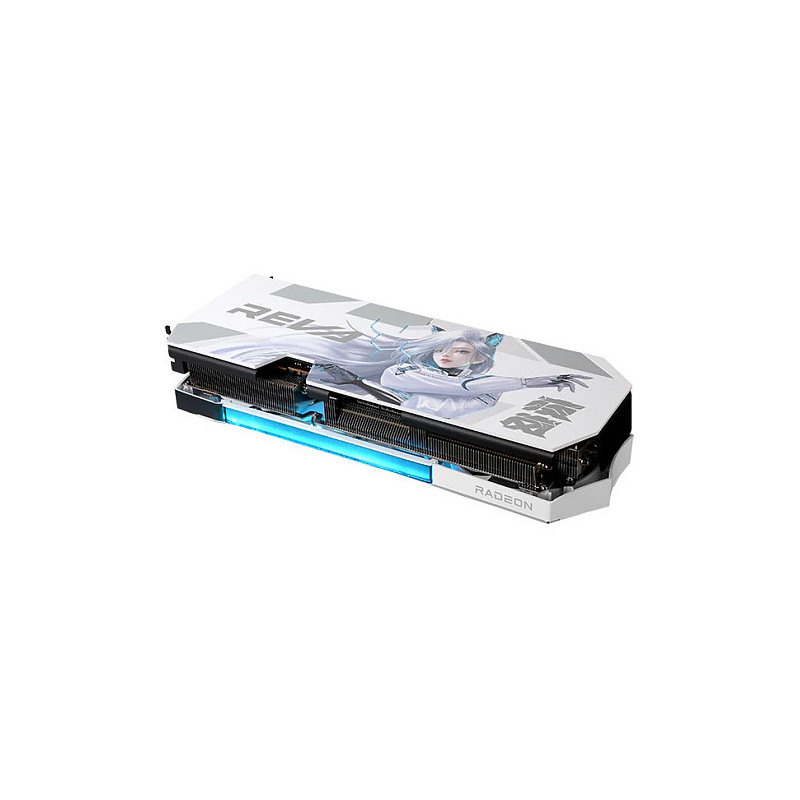

PowerColor RX 9070 XT Hellhound REVA

PowerColor RX 9070 XT Hellhound REVA. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT, Processor frequency: 2400 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)

Dual BIOS
Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.

Intelligent Fan Control
Precise Temperature Sensor
Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.

Optimum Heatpipe Arrangement
Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.

Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.

Experience Cutting-Edge Graphics Card for Gamers
High-Efficiency DrMOS Power Module
Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 10+1 phase power design, along with a dedicated 3+2 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.

Premium-Quality PCB
Enhanced Signal Stability for Uninterrupted Performance
Crafted with 12-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.

Engineered for Rapid Cooling
Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.

Honeywell PTM7950
Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.

Optimum Heatpipe Arrangement
Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.

Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.

Exterior Design

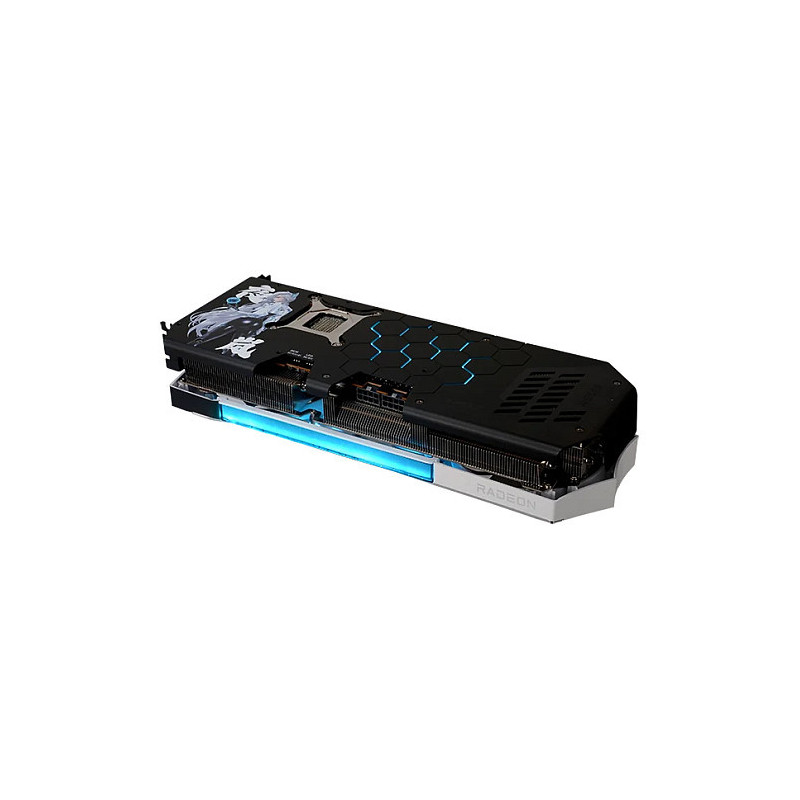

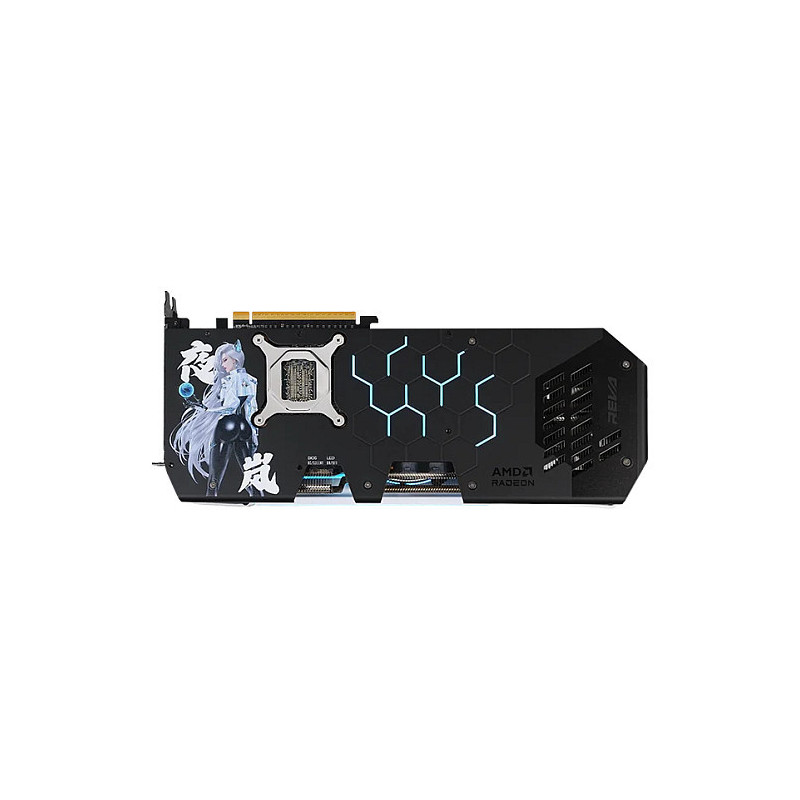

Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.

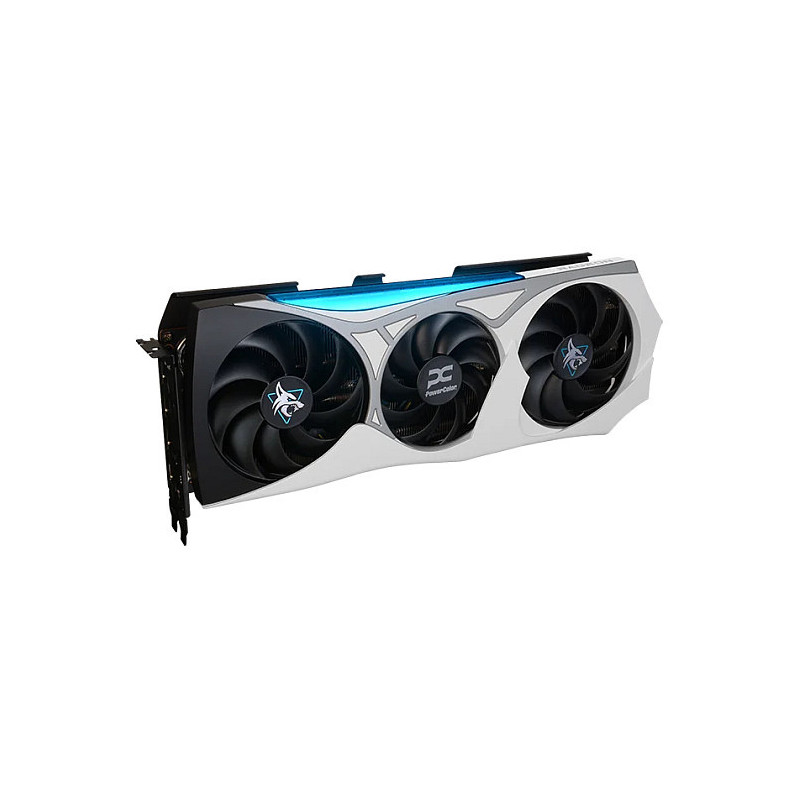

Arctic Blue Glow
Sleek and elegant with Blue LED lighting, easily controlled by a physical switch

Processor

Graphics processor family: AMD
Graphics processor: Radeon RX 9070 XT
Processor frequency: 2400 MHz
Processor boost clock speed: 2970 MHz
Processor boost clock speed (OC mode): 3010 MHz
Processor boost clock speed (Gaming mode): 2460 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 4096

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 256 bit
Memory bandwidth (max): 20 GB/s

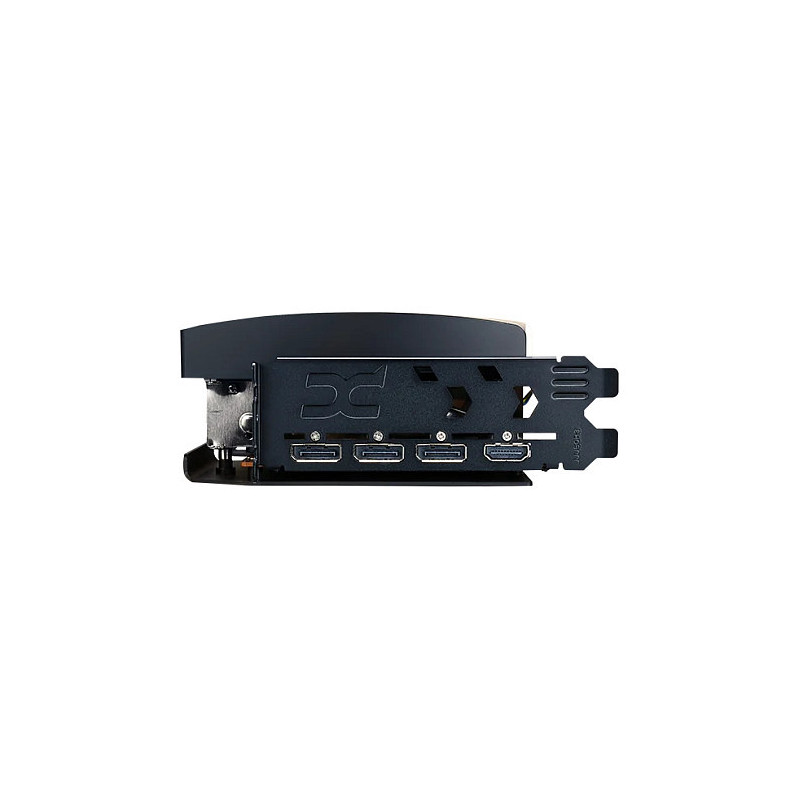

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1a

Performance

DirectX version: 12.0
OpenGL version: 4.6
Feature: AMD FreeSync

Design

Cooling type: Active
Number of fans: 3 fan(s)

Power

Minimum system power supply: 800 W
Supplementary power connectors: 2x 8-pin

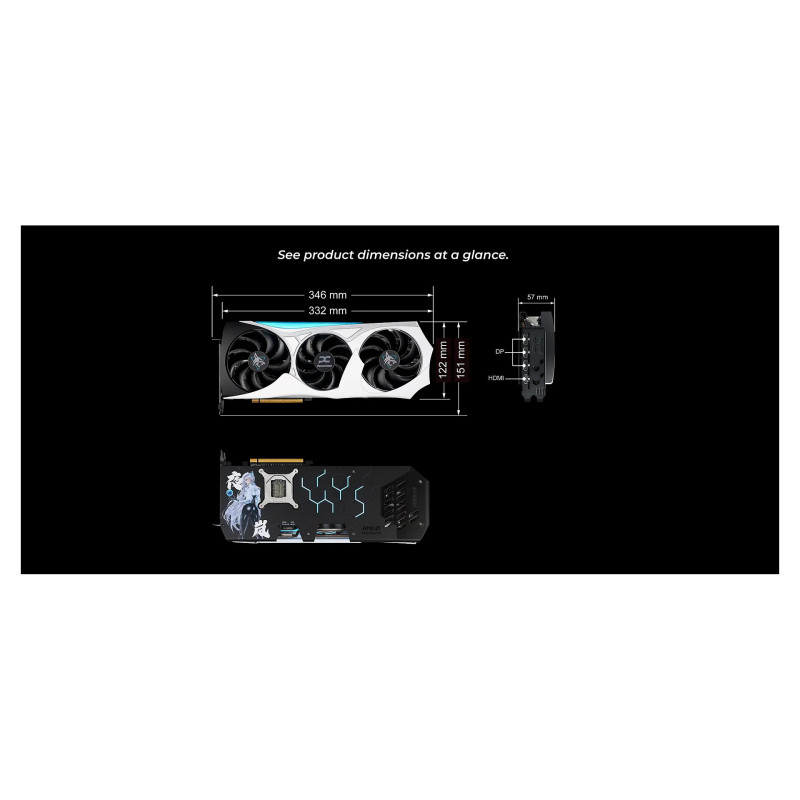

Weight & dimensions

Length: 332 mm
Depth: 122 mm
Height: 57 mm
