PowerColor Hellhound AMD Radeon RX 9070 GRE 12GB GDDR6

PowerColor Hellhound AMD Radeon RX 9070 GRE 12GB GDDR6. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 GRE. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Premium Quality PCB
Enhanced Signal Stability for Uninterrupted Performance
Crafted with 12-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.
High-Efficiency DrMOS Power Module
Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 8+1 phase power design, along with a dedicated 2+1 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Dual BIOS
Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.
Intelligent Fan Control
Precise Temperature Sensor
Fan cooling ensures GPU to operate within optimal temperature. The fans kick in at 60°C and stop below 50°C.
Reverse-Rotation Fan Design
Minimizes Air Turbulence for Efficient Cooling.
This design enhances airflow and reduces noise for a better gaming experience.
Dual Ball Bearings
Durable and Reliable
Premium Japanese dual ball bearings to reduce rotational friction, and extend fan lifespan.
Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.
Honeywell PTM7950
Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement
Rapid Efficient Heat Transfer
Four 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.

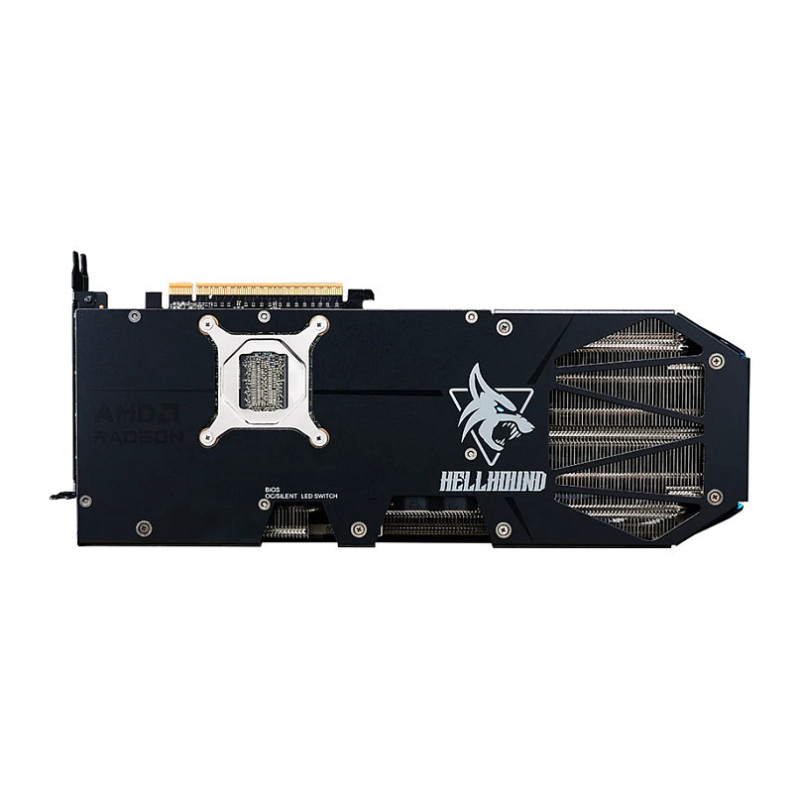

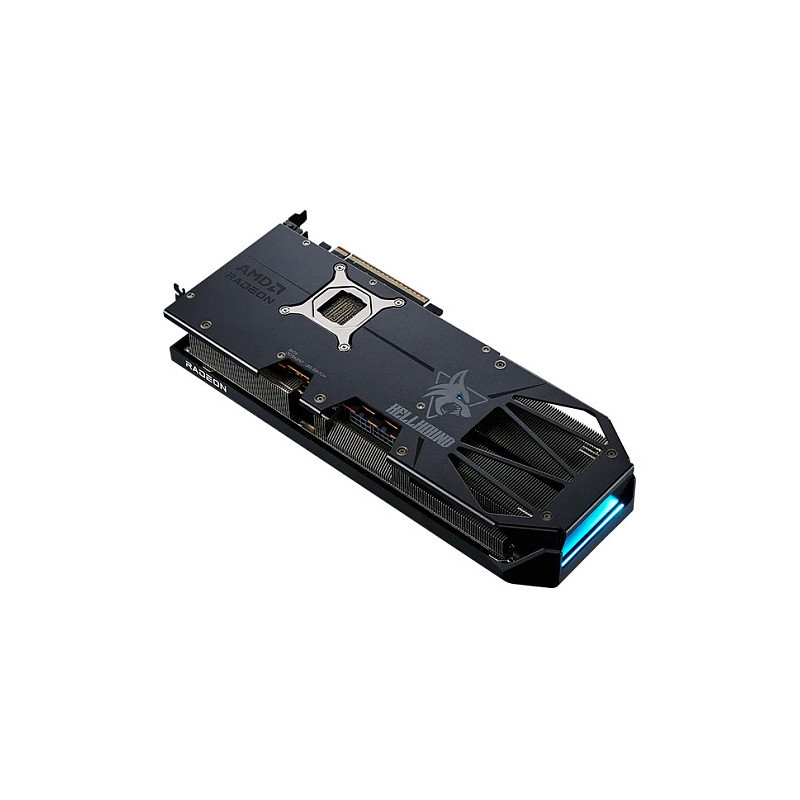

Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.
Arctic Blue Glow
Sleek and elegant with Blue LED lighting, easily controlled by a physical switch.

Processor

Graphics processor family: AMD
Graphics processor: Radeon RX 9070 GRE
Processor frequency (OC mode): 2280 MHz
Processor boost clock speed (OC mode): 2860 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 3072

Memory

Discrete graphics card memory: 12 GB
Graphics card memory type: GDDR6
Memory bus: 192 bit
Data transfer rate: 18 Gbit/s

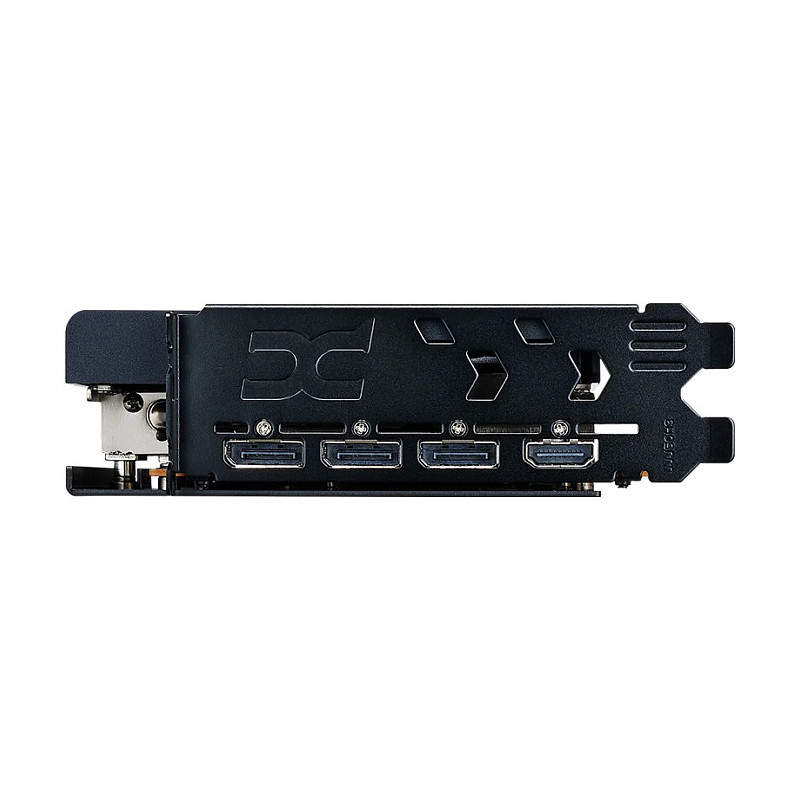

Ports interfaces

Interface type: PCI Express x16 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1a

Performance

DirectX version: 12.0
OpenGL version: 4.6

Design

Cooling type: Active
Number of fans: 3 fan(s)
Number of slots: 2
Product colour: Black, Red

Power

Minimum system power supply: 700 W
Supplementary power connectors: 2x 8-pin

Weight dimensions

Length: 327 mm
Depth: 41 mm
Height: 128 mm
