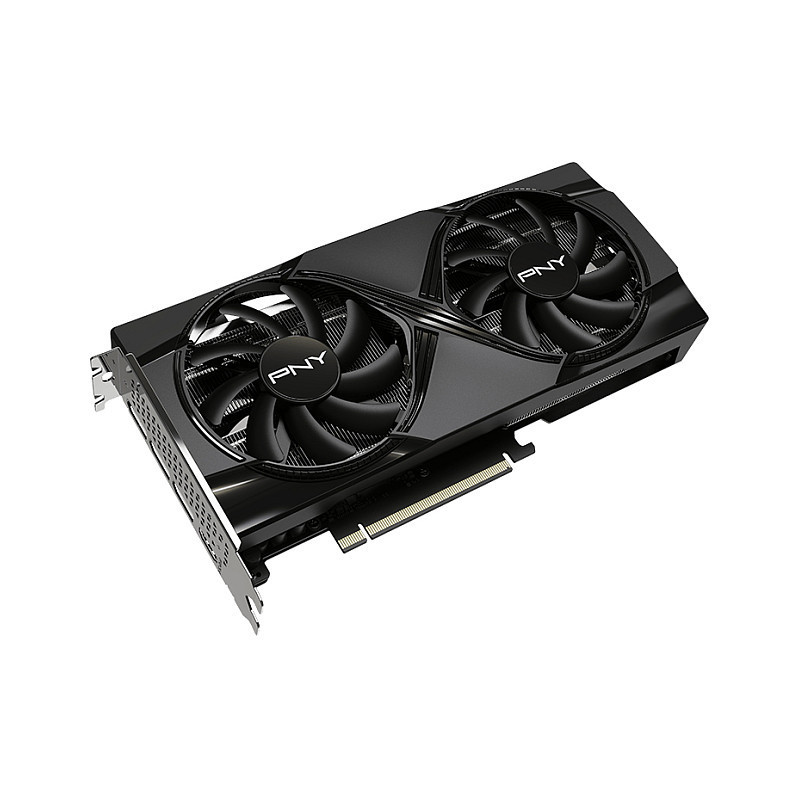

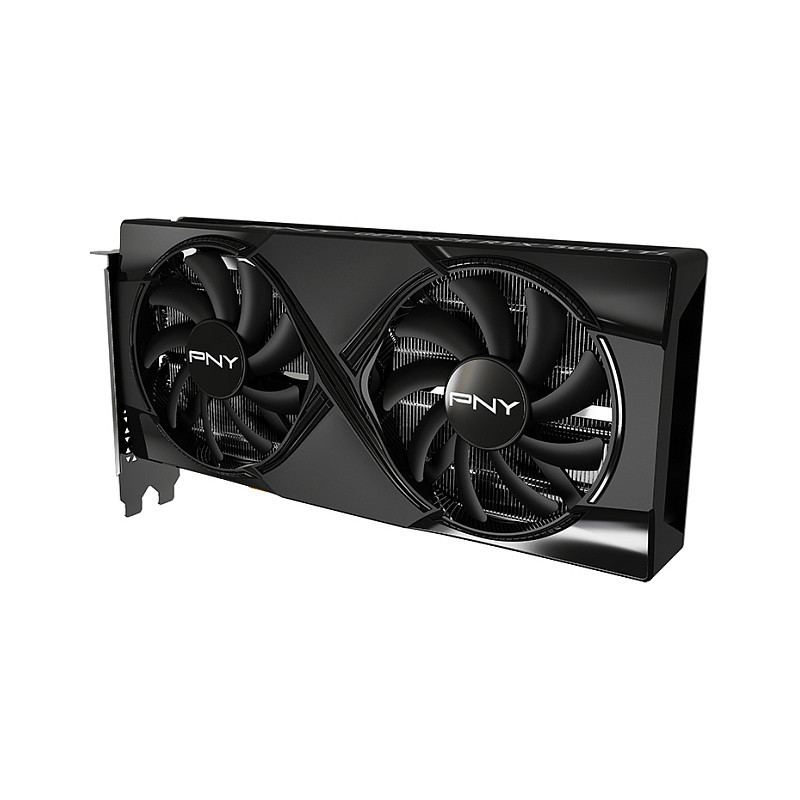

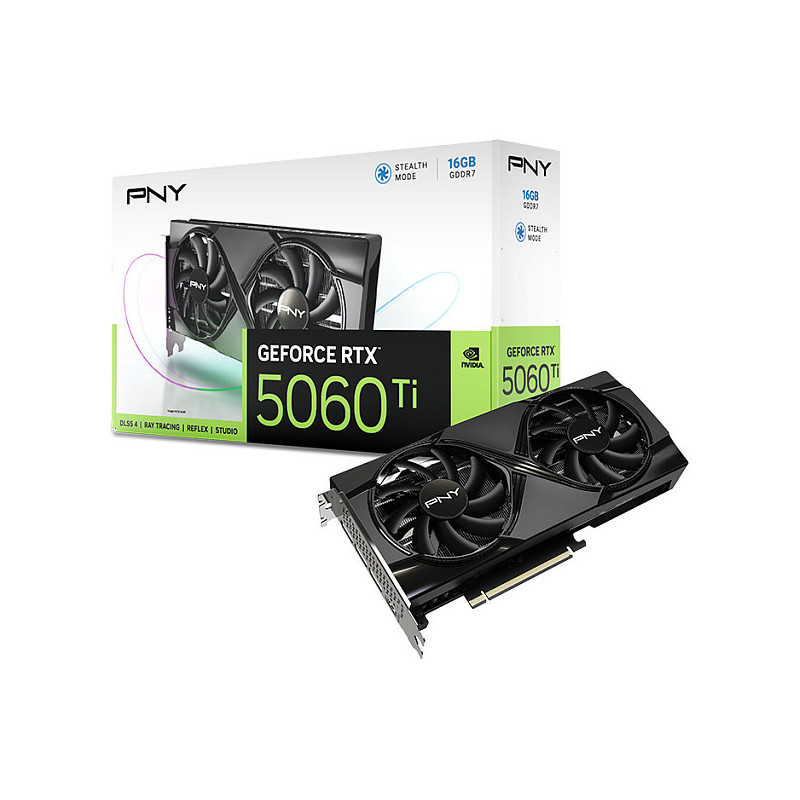

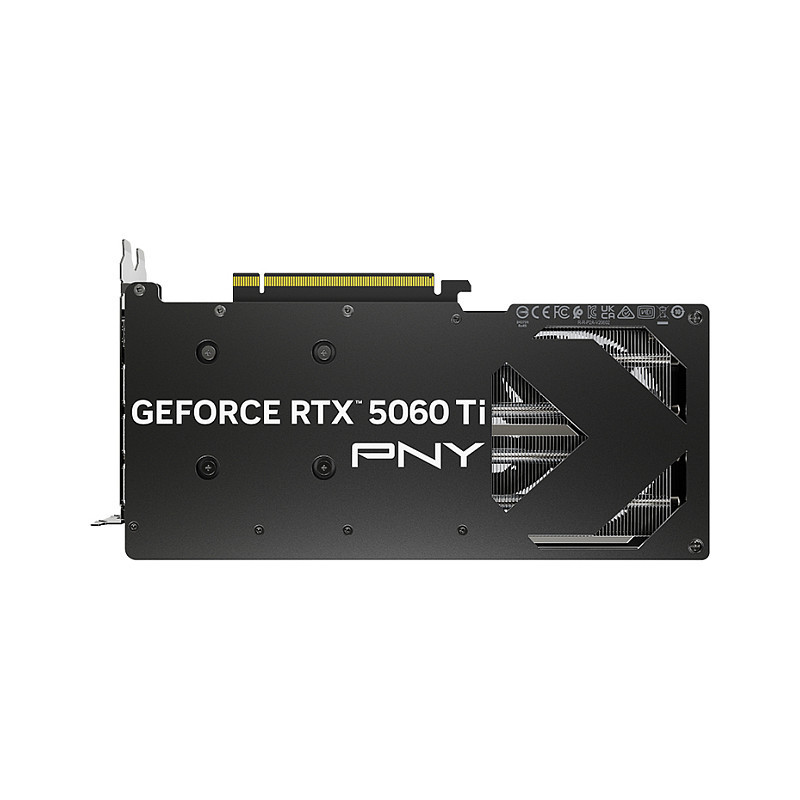

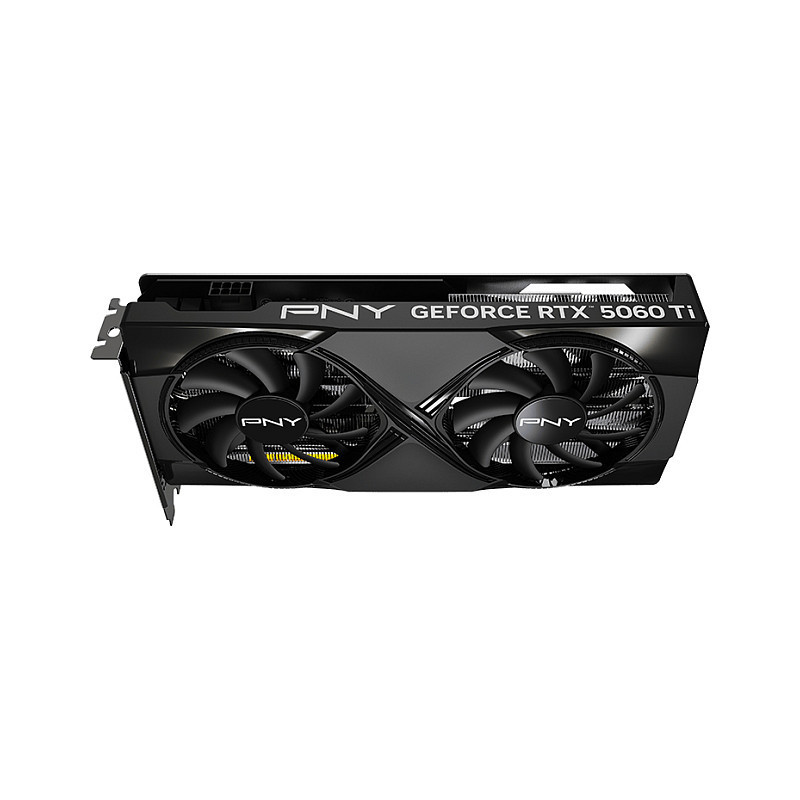

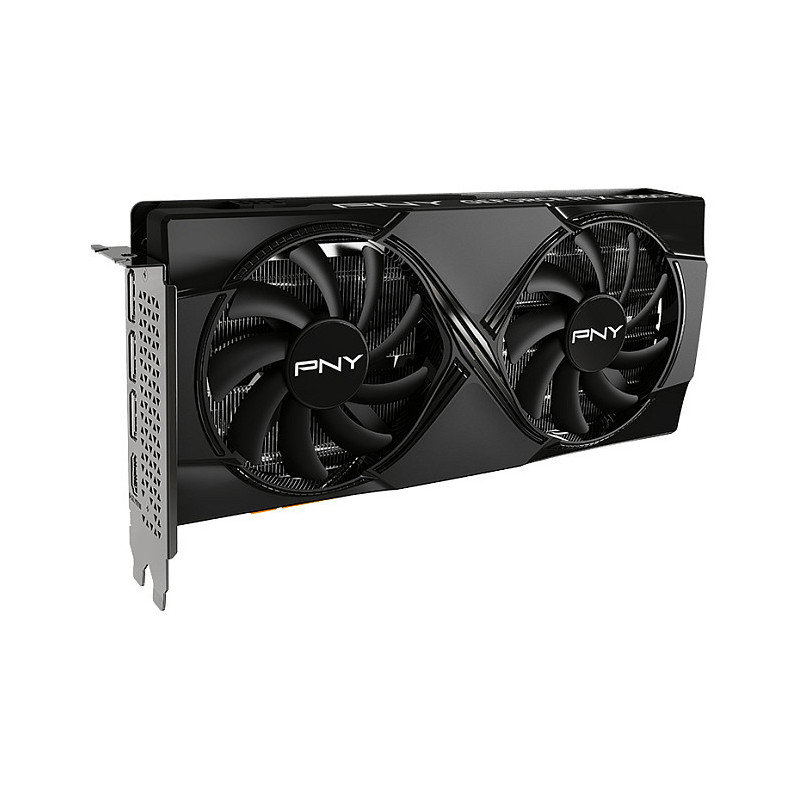

PNY GeForce RTX 5060 Ti

PNY GeForce RTX 5060 Ti. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti, Processor frequency: 2407 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 5.0. Cooling type: Active, Number of fans: 2 fan(s)

Get game-changing performance with the PNY GeForce RTX™ 5060 Ti, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

Processor

Feature: CUDA
CUDA cores: 4608
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5060 Ti
Processor frequency: 2407 MHz
Processor boost clock speed: 2572 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR7
Memory bus: 128 bit
Data transfer rate: 28 Gbit/s
Memory bandwidth (max): 448 GB/s

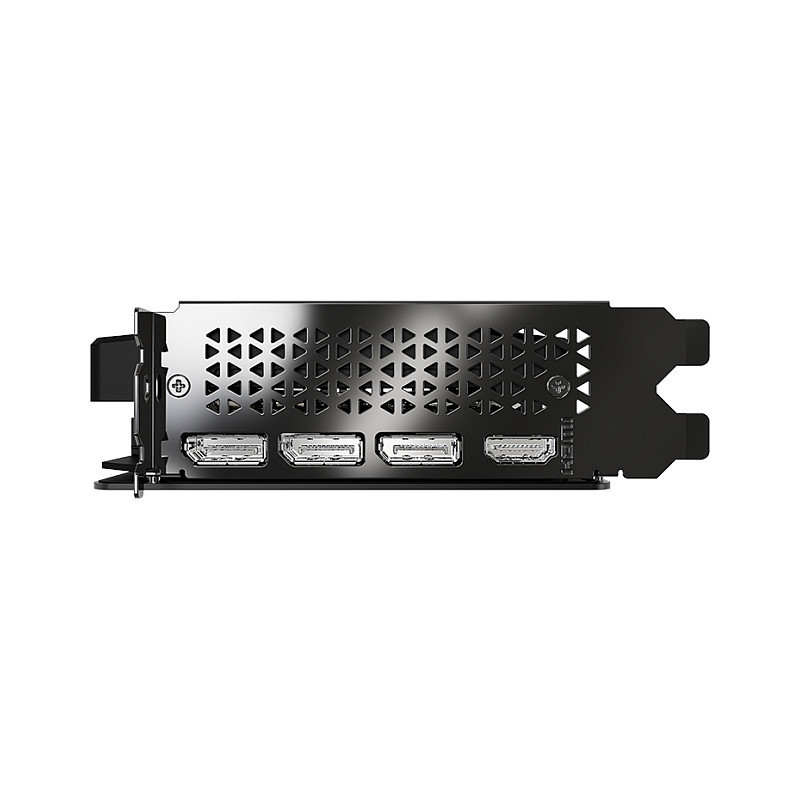

Ports & interfaces

Interface type: PCI Express x8 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: Virtual Reality (VR) ready
Feature: HDCP
HDCP version: 2.3
Feature: NVIDIA G-SYNC
Feature: NVIDIA Ansel

Design

Cooling type: Active
Number of fans: 2 fan(s)
Number of slots: 2
Product colour: Black

Power

Minimum system power supply: 600 W

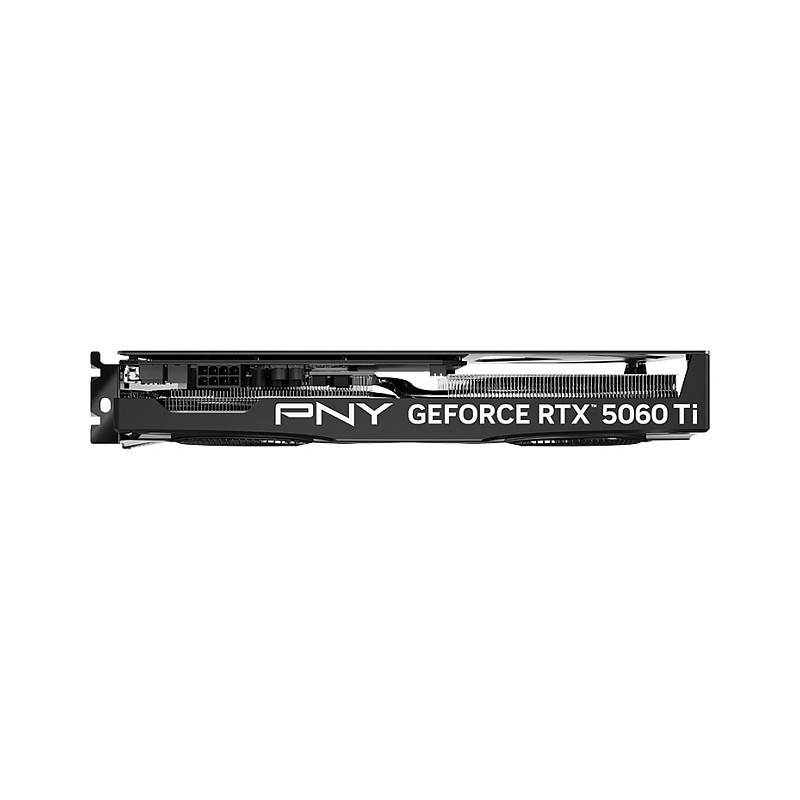

Supplementary power connectors: 1x 8-pin
Thermal Design Power (TDP): 180 W

System requirements

Windows operating systems supported: Windows 10 x64, Windows 11 x64
Linux operating systems supported: Yes

Weight & dimensions

Length: 245 mm
Depth: 39.9 mm
Height: 120 mm

Packaging data

Package width: 322 mm
Package depth: 70 mm
Package height: 179 mm
Package type: Box

Packaging content

Feature: Quick installation guide
