MSI V809-2825R

MSI GeForce GT 1030 2GHD4 LP OC. Graphics processor family: NVIDIA, Graphics processor: GeForce GT 1030, Processor frequency: 1189 MHz. Discrete graphics card memory: 2 GB, Graphics card memory type: GDDR4, Memory bus: 64 bit, Memory clock speed: 2100 MHz. DirectX version: 12.0, OpenGL version: 4.5. Interface type: PCI Express x16 3.0. Cooling type: Passive, Number of fans: 0 fan(s)

STEP UP TO BRILLIANT PC GRAPHICS

Accelerate your entire PC experience with the fast, powerful NVIDIA® GeForce® GT 1030 graphics card. Gaming. HD video and picture editing. The GT 1030's award-winning NVIDIA Pascal™ architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today's most demanding PC applications.

THE LATEST GAMING TECHNOLOGIES

Pascal is built to meet the demands of next generation displays. It features NVIDIA GameWorks™ technologies for extremely smooth gameplay and cinematic experiences.

PERFORMANCE

Pascal-powered graphics cards give you superior performance and power efficiency, built using ultra-fast FinFET and supporting DirectX™ 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences.

GEFORCE EXPERIENCE

The easiest way to optimize your games and keep your drivers up to date, the GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you'll be able to update the driver directly, without leaving your desktop.

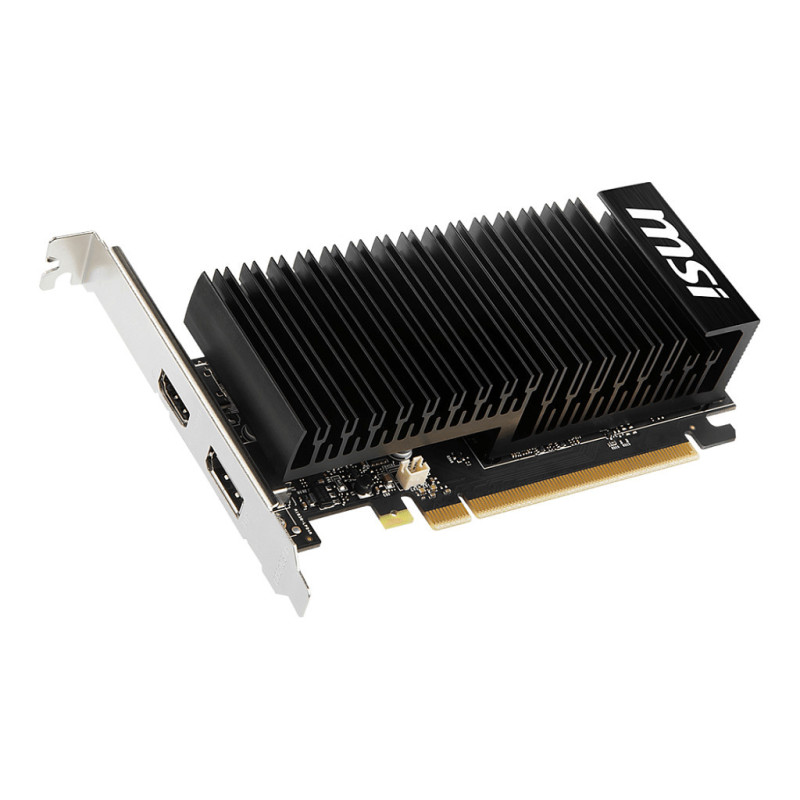

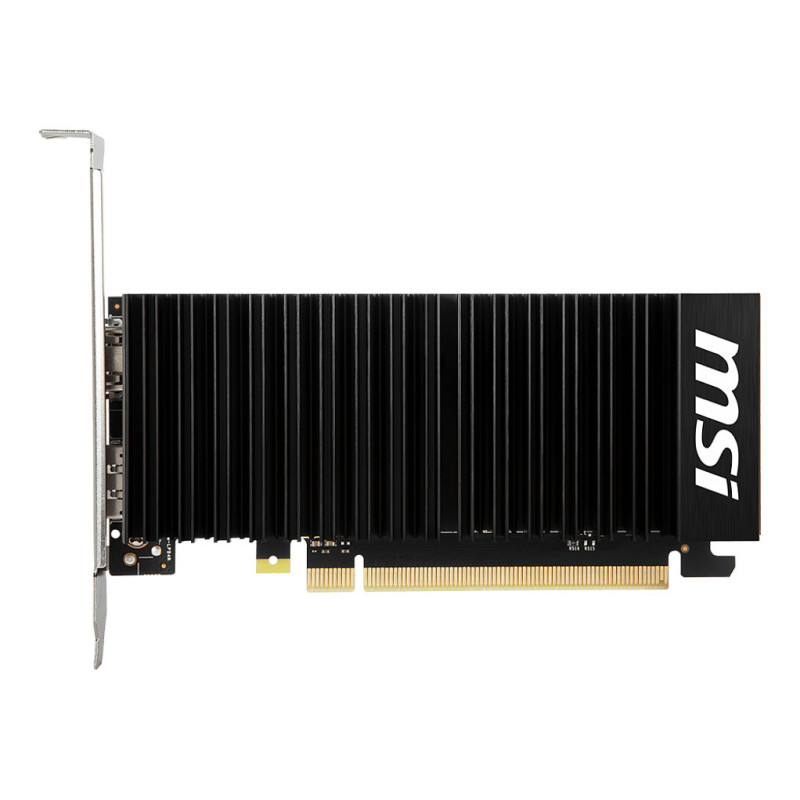

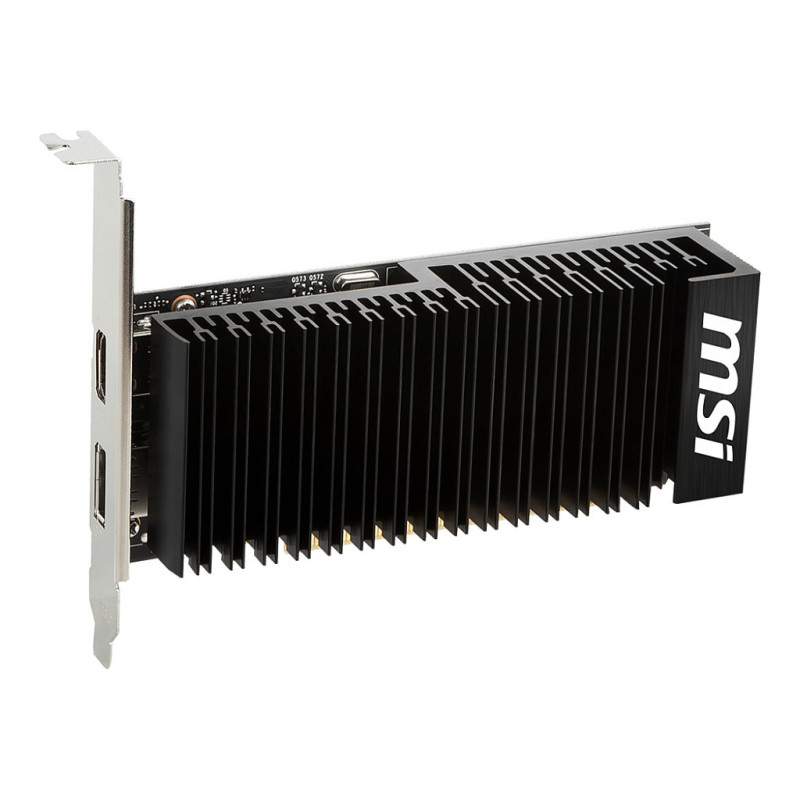

LOW PROFILE DESIGN

Low profile design saves more spaces and can build slim or smaller system easier.

MILITARY CLASS 4 COMPONENTS

One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for graphics cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.

AFTERBURNER

MSI Afterburner is the world's most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.

Processor

Feature: CUDA
CUDA cores: 384
Graphics processor family: NVIDIA
Graphics processor: GeForce GT 1030
Processor frequency: 1189 MHz
Processor boost clock speed: 1430 MHz
Parallel processing technology support: Not supported
Maximum displays per videocard: 2

Memory

Discrete graphics card memory: 2 GB
Graphics card memory type: GDDR4
Memory bus: 64 bit
Memory clock speed: 2100 MHz

Ports & interfaces

Interface type: PCI Express x16 3.0

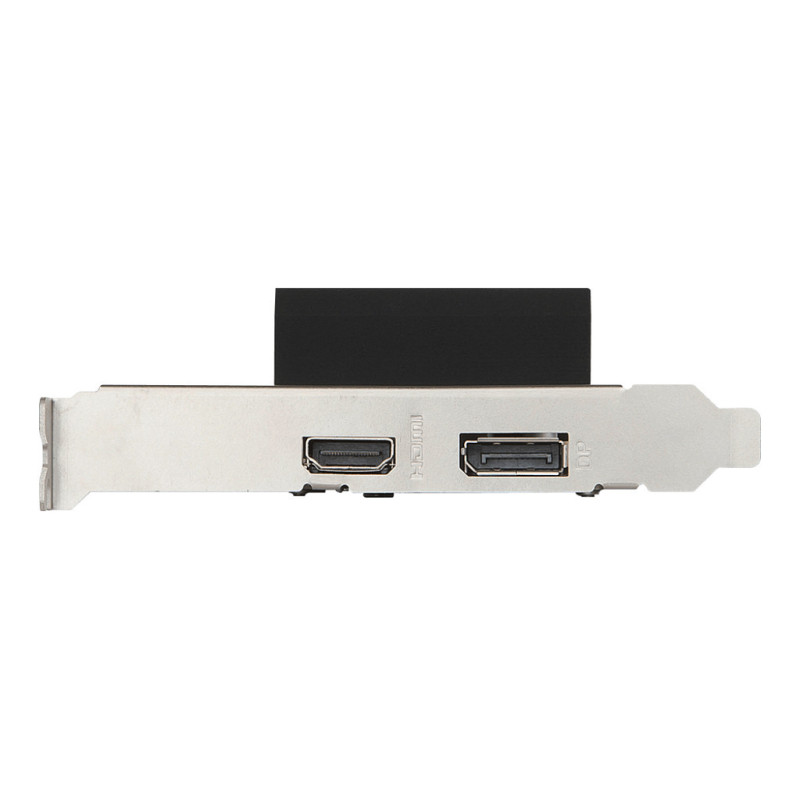

HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 1
DisplayPort version: 1.4a

Performance

Feature: PhysX
DirectX version: 12.0
OpenGL version: 4.5
Feature: HDCP
Feature: Full HD
Feature: Overclocked (OC) edition

Design

Cooling type: Passive
Number of fans: 0 fan(s)
Form factor: Half-Height/Half-Length (HH/HL)
Bracket height: Low-Profile (LP)
Number of slots: 1
Product colour: Black

Power

Minimum system power supply: 300 W
Power consumption (typical): 20 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Weight: 304 g
Length: 150 mm
Depth: 38 mm
Height: 69 mm

Packaging data

Package weight: 544 g
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
