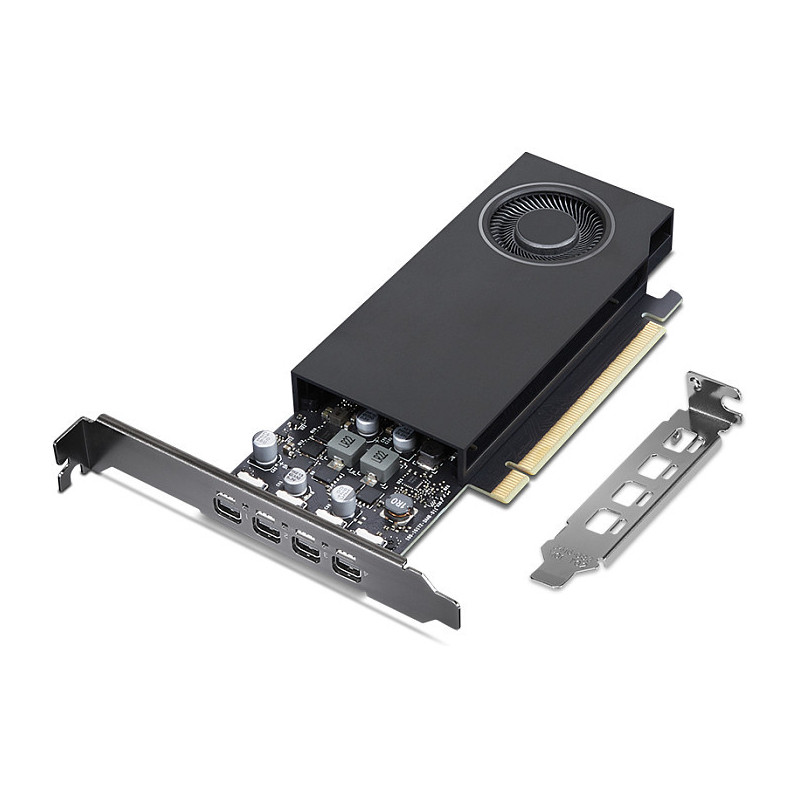

Lenovo 4X61Q73041 graphics card

Lenovo 4X61Q73041. Graphics processor family: NVIDIA, Graphics processor: RTX A1000. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 1 fan(s)

NVIDIA RTX A1000 8GB mini-DP*4 GDDR6 Graphics Card is a single-slot, 6.6" PCl Express Gen4 graphics solution based on the state-of-the-art NVlDlA Ampere architecture. It is an actively cooled product capable of 50 W maximum graphics power using a PCle edge connector. This NVIDIA RTX A1000 GPU delivers hardware-accelerated ray tracing, revolutionary Al features, advanced shading and powerful simulation capabilities to creative professionals. With the industry's most expansive graphics memory footprint consisted of 8 GB of GDDR6 memory with ECC for data protection, NVIDIA RTX A1000 enables the most graphics-intensive applications run with the highest level of user experience, with sizable data sets.

Processor

Feature: CUDA
CUDA cores: 2304
Graphics processor family: NVIDIA
Graphics processor: RTX A1000
Maximum resolution: 7680 x 4320 pixels
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Memory bandwidth (max): 192 GB/s

Ports & interfaces

Interface type: PCI Express x8 4.0
Mini DisplayPorts quantity: 4
DisplayPort version: 1.4a

Performance

DirectX version: 12.0
Shader model version: 6.6
OpenGL version: 4.6

Design

Cooling type: Active
Number of fans: 1 fan(s)
Form factor: Half-Height/Half-Length (HH/HL)
Number of slots: 1
Product colour: Black

Power

Power consumption (typical): 50 W
Supplementary power connectors: 1x 16-pin
Power consumption (max): 66 W

Operational conditions

Operating relative humidity (H-H): 5 - 85%

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 7

Weight & dimensions

Weight: 250 g
Length: 164.2 mm
Height: 105.8 mm

Packaging data

Package width: 243 mm
Package depth: 148 mm
Package height: 54 mm
Package weight: 275 g
Package type: Box
