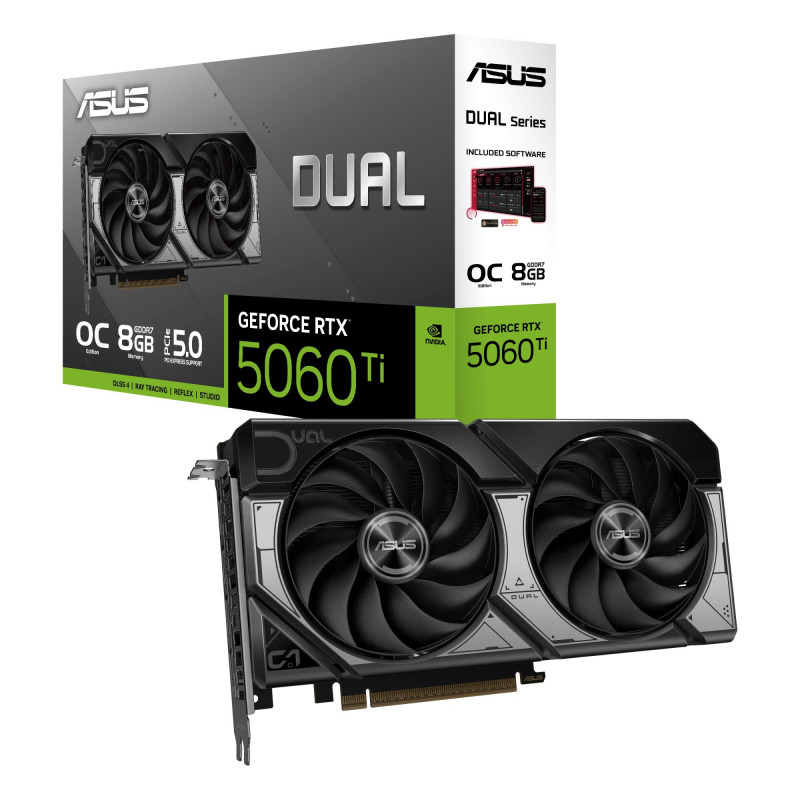

DUAL GEFORCE RTX™ 5060 Ti
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

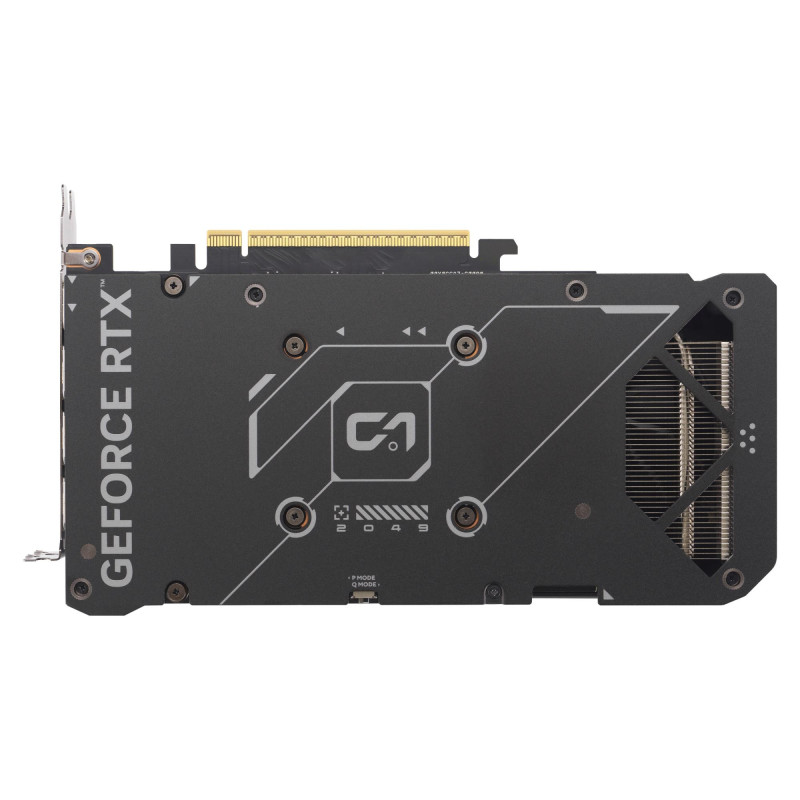

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
| Atminties magistralė | 128 bitai |
| Aukštis | 120 mm |
| Aušinimo technologija | ASUS Axial-tech |
| Aušinimo tipas | Aktyvus |
| Bruto svoris | 1.25 kg |
| CUDA | Taip |
| CUDA šerdys | 4608 |
| Diskrečiojo grafikos adapterio atmintis | 8 GB |
| Duomenų perdavimo sparta | 28 Gbit/s |
| Grafikos adapterio atminties tipas | GDDR7 |
| Grafikos procesoriaus šeima | NVIDIA |
| Grafikos procesorius | GeForce RTX 5060 Ti |
| HDCP | Taip |
| HDCP versija | 2.3 |
| HDMI portų kiekis | 1 |
| HDMI versija | 2.1b |
| Ilgis | 50 mm, 229 mm |
| Instrukcija | Taip |
| Integruotas TV tiuneris | Ne |
| Lizdų skaičius | 2.5 |
| Maksimali rezoliucija | 7680 x 4320 pikseliai |
| Maksimalus ekranų skaičius kiekvienai vienai vaizdo plokštei | 4 |
| Minimalus sistemos maitinimas | 550 W |
| Model | DUAL-RTX5060TI-O8G |
| Model name | DUAL-RTX5060TI-O8G |
| Neto svoris | 0.6 kg |
| NPU sparta iki | 759 TOPs |
| OpenGL versija | 4.6 |
| Padidintos spartos (OC) leidimas | Taip |
| Paketo svoris | 1116 g |
| Pakuotės aukštis | 67 mm |
| Pakuotės gylis | 219 mm |
| Pakuotės plotis | 364 mm |
| Pakuotės tipas | "Box" |
| Papildomos maitinimo jungtys | 1x 8-pin |
| Paralelinio apdorojimo technologijos parama | Nepalaikomas |
| Procesoriaus dažnis (OC režimas) | 2632 MHz |
| Procesoriaus laikrodžio greičio padidinimas | 2602 MHz |
| Produkto spalva | Juoda/Pilka |
| Shipping Box Depth | 57 cm |
| Shipping Box Height | 25 cm |
| Shipping Box Weight | 10 kg |
| Shipping Box Width | 38.5 cm |
| Suderinama su SFF standartu | Taip |
| Summary | ASUS Dual -RTX5060TI-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| Svoris | 656 g |
| Sąsajos tipas | PCI Express 5.0 |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.22 |
| Unit Brutto Volume | 0.006858 cubm |
| Vendor Homepage | https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060ti-o8g/ |
| Ventiliatorių skaičius | 2 ventiliatorius(iai / ių) |
| Vieneto aukštis | 7.5 cm |
| Vieneto gylis | 37 cm |
| Vieneto plotis | 22 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 8 |
| "DisplayPort" kiekis | 3 |
| "DisplayPort" versija | 2.1b |
