Game TUF. Built to Last.

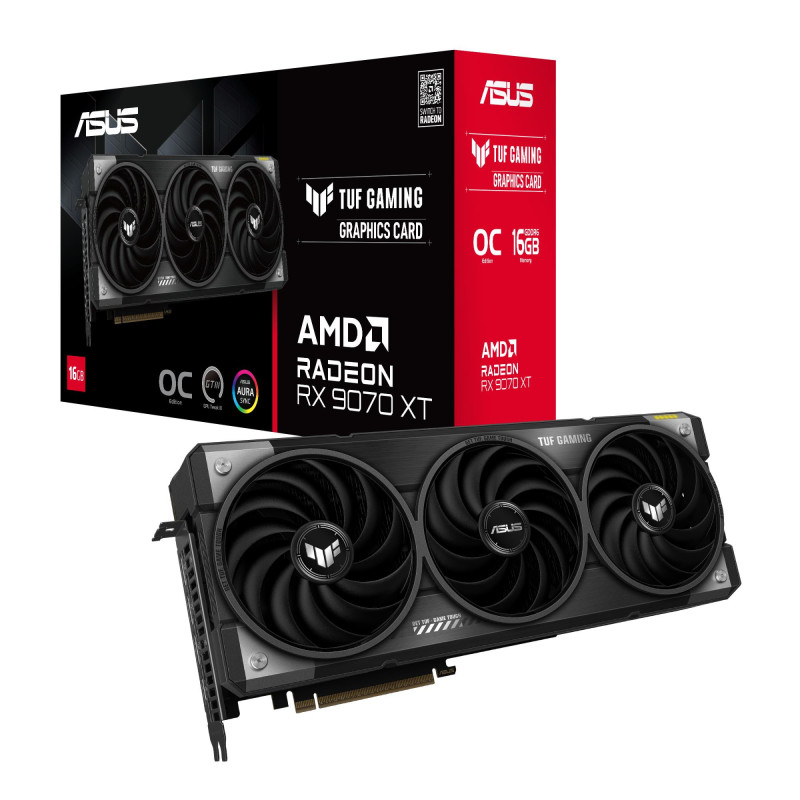

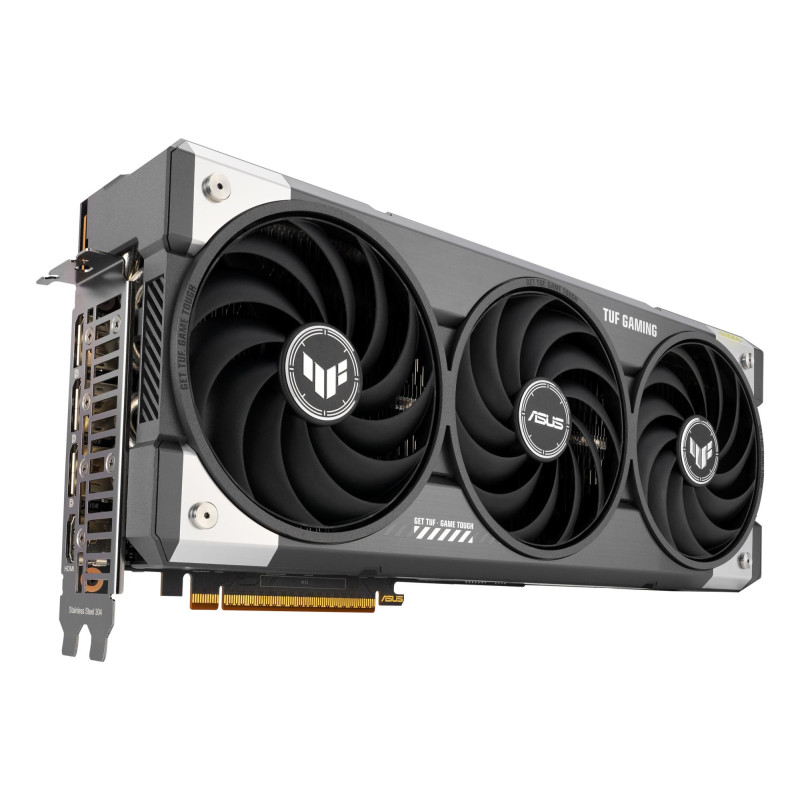

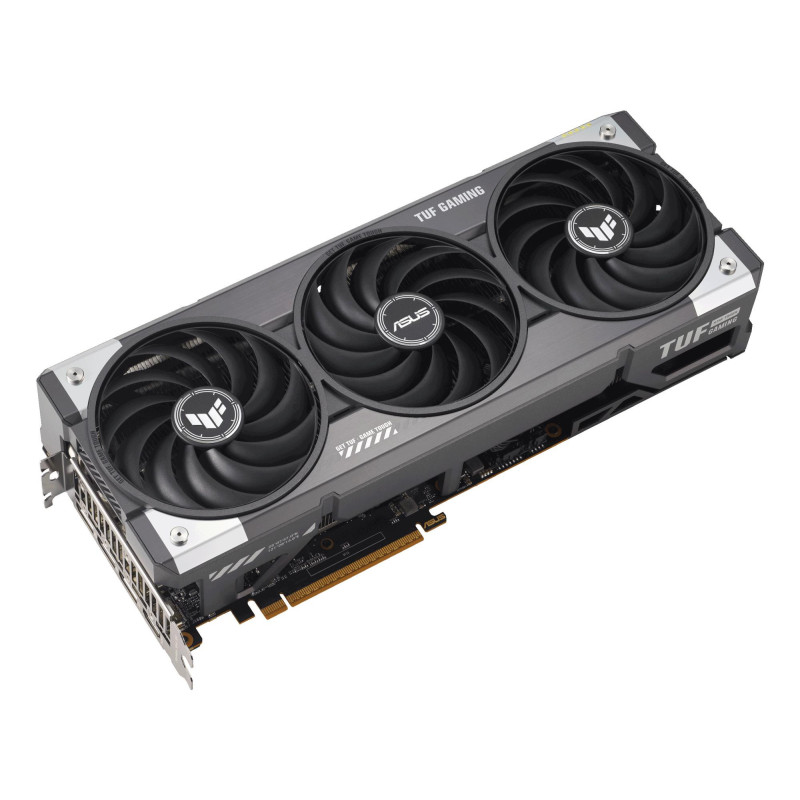

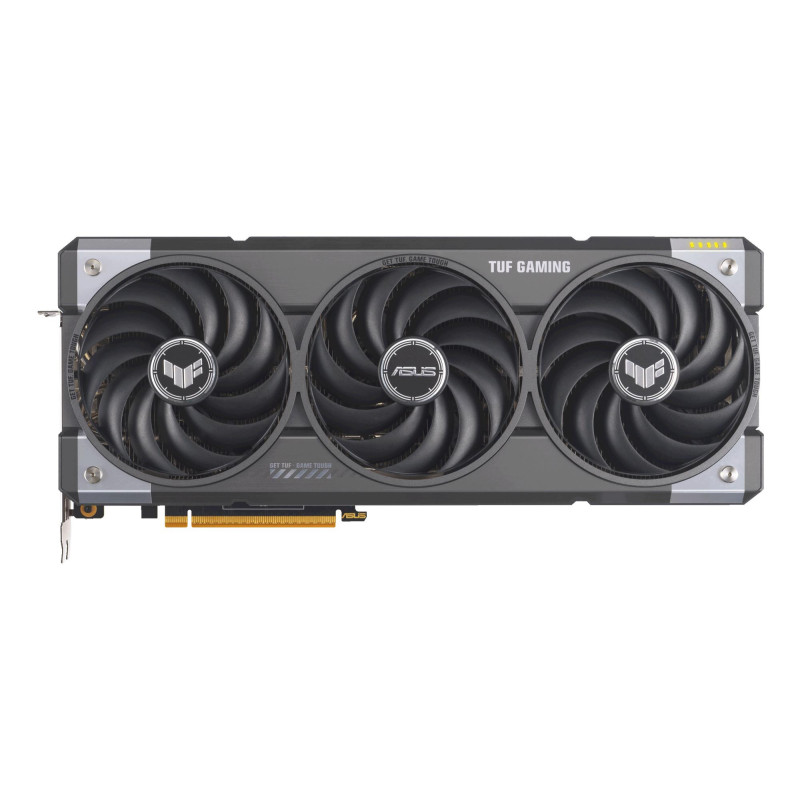

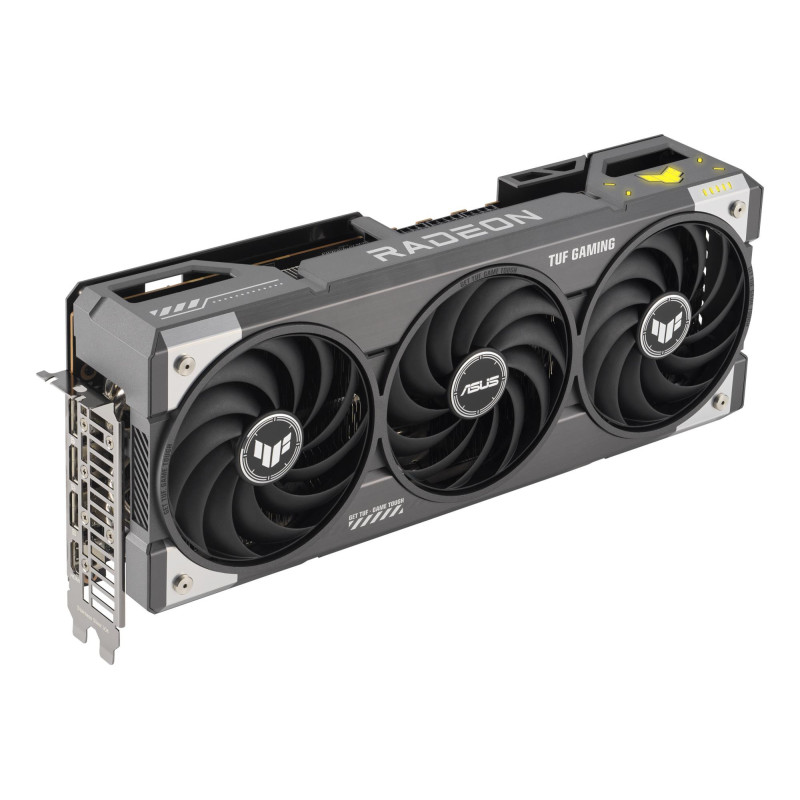

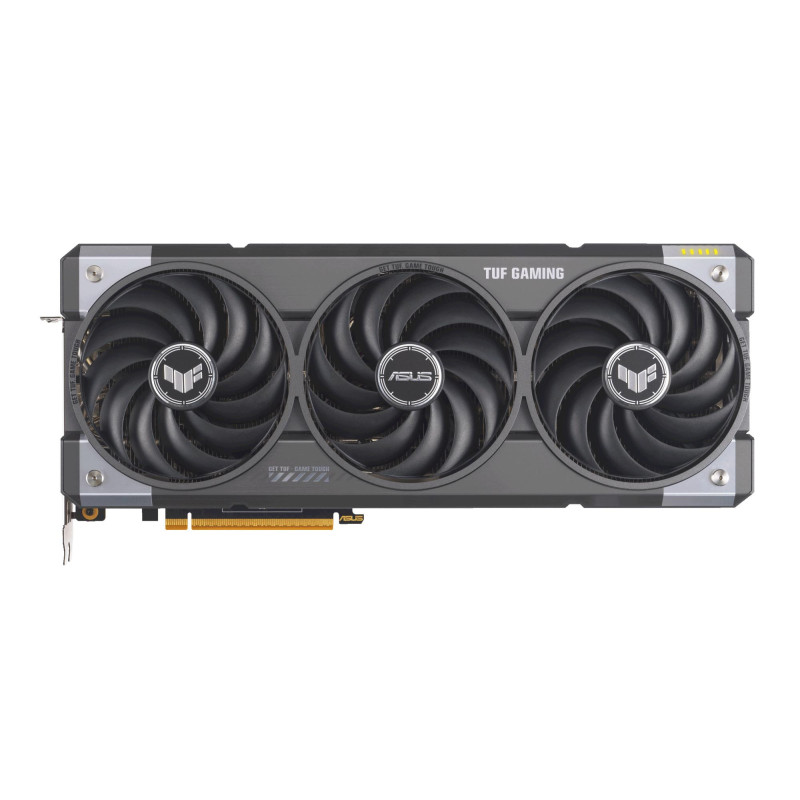

ASUS TUF Gaming Radeon™ RX 9070 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Premium Durability
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

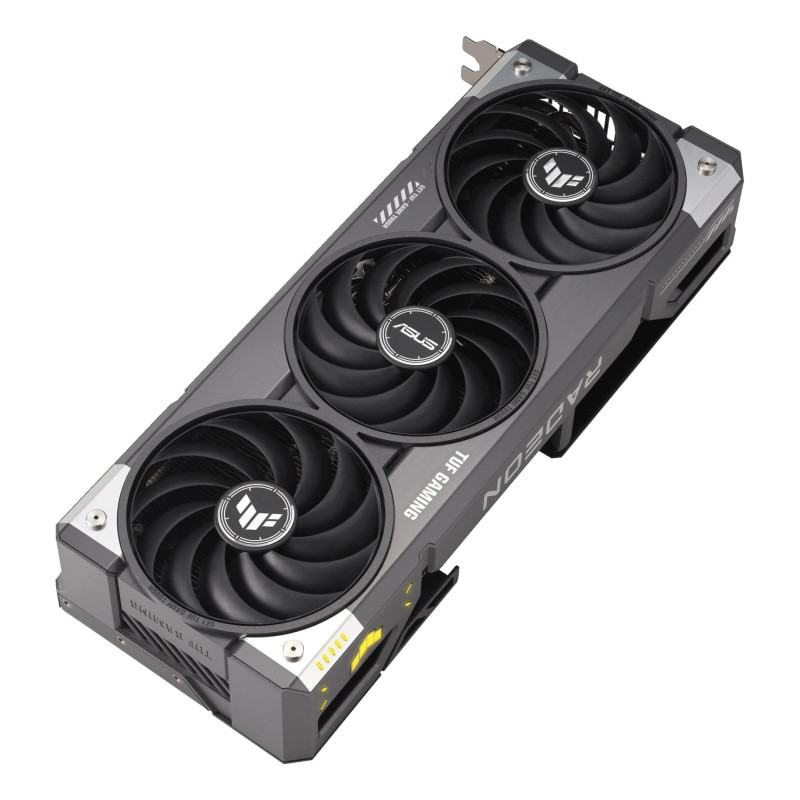

Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.
Vented Exoskeleton

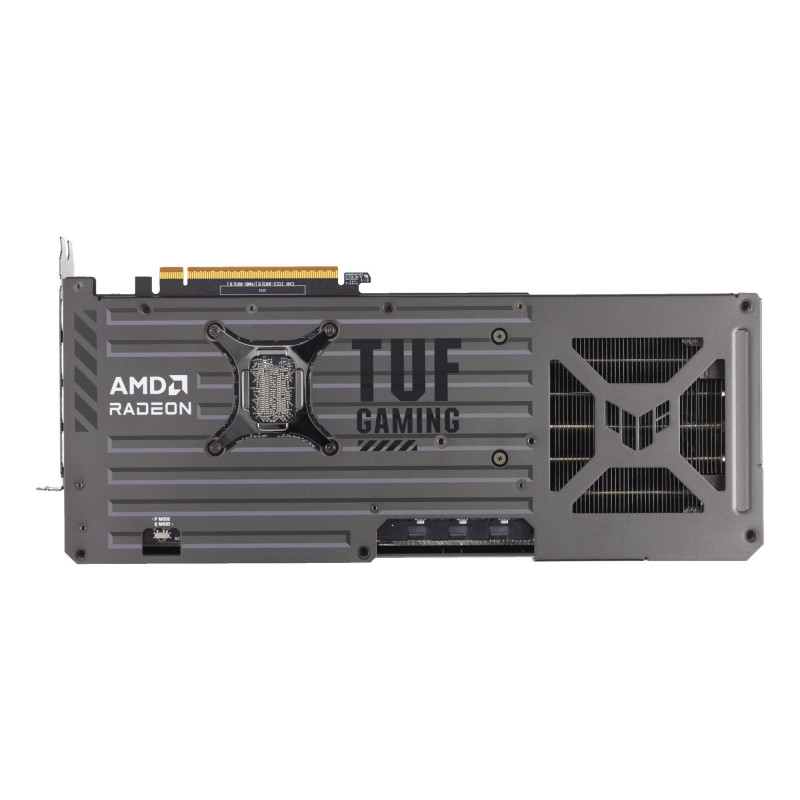

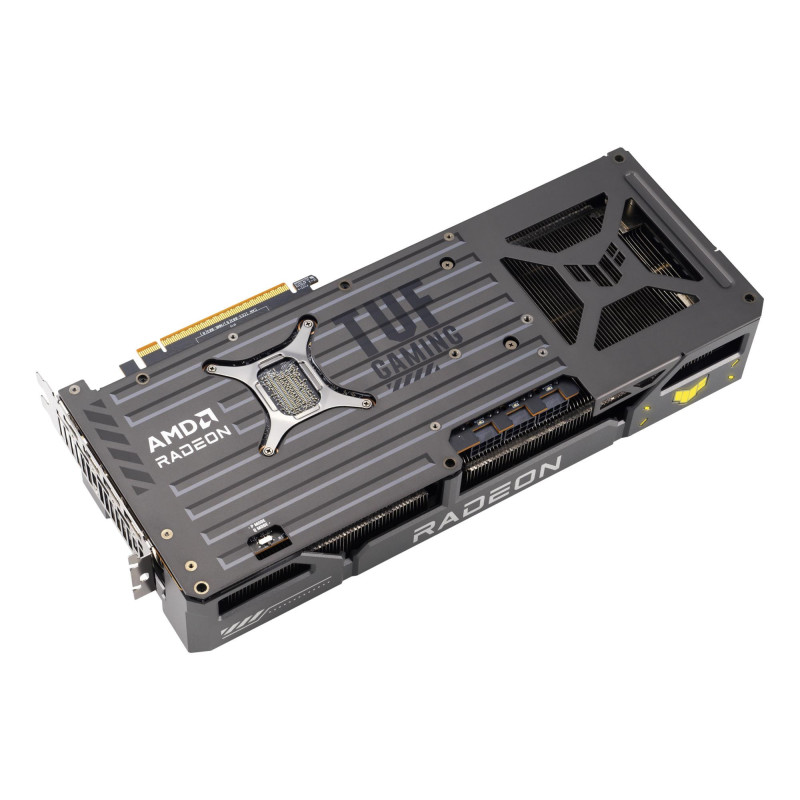

A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.
The Perfect PSU for the TUF Gaming Radeon™ RX 9000 Series
The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.
Reliability
ASUS GPU Guard & Bracket

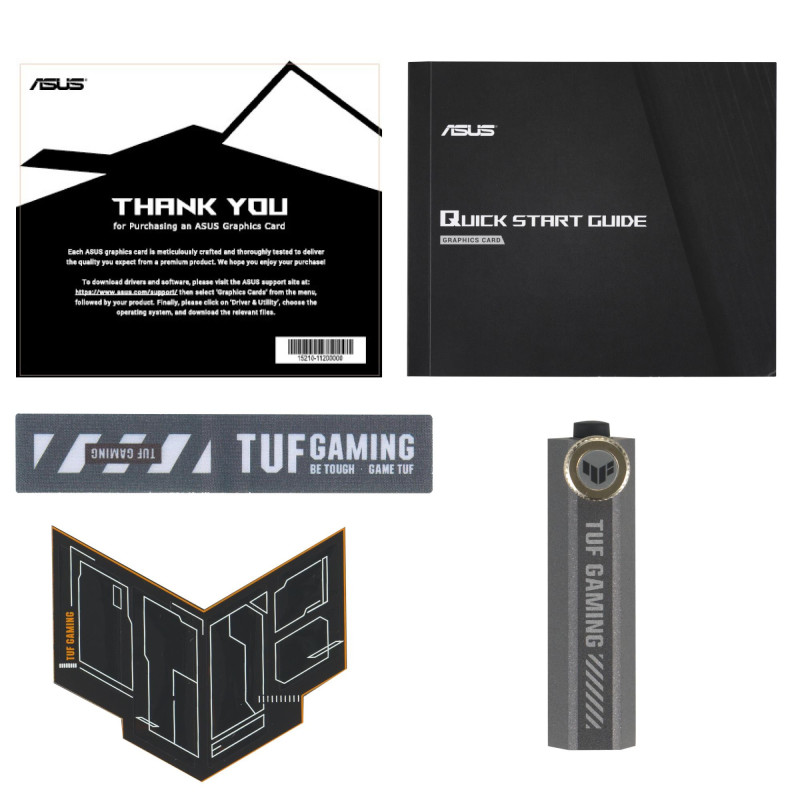

ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
| Apšvietimo spalva | Daugybė |
| Atminties magistralė | 256 bitai |
| Aukštis | 140 mm |
| Aušinimo technologija | ASUS Axial-tech |
| Aušinimo tipas | Aktyvus |
| Bruto svoris | 2.83 kg |
| CUDA | Ne |
| Diskrečiojo grafikos adapterio atmintis | 16 GB |
| Duomenų perdavimo sparta | 20 Gbit/s |
| Dvi DVI išvestys | Ne |
| Forma | Full-Height/Full-Length (FH/FL) |
| Grafikos adapterio atminties tipas | GDDR6 |
| Grafikos procesoriaus šeima | AMD |
| Grafikos procesorius | Radeon RX 9070 XT |
| HDCP | Taip |
| HDCP versija | 2.3 |
| HDMI portų kiekis | 1 |
| HDMI versija | 2.1b |
| Ilgis | 62.5 mm, 330 mm |
| Iliuminacija | Taip |
| Integruotas TV tiuneris | Ne |
| Laikiklio aukštis | Full-Height (FH) |
| Lizdų skaičius | 3.125 |
| Maksimali rezoliucija | 7680 x 4320 pikseliai |
| Maksimalus ekranų skaičius kiekvienai vienai vaizdo plokštei | 4 |
| Minimalus sistemos maitinimas | 850 W |
| Model | TUF-RX9070XT-O16G-GAMING |
| Model name | TUF-RX9070XT-O16G-GAMING |
| Naudojimo žinynas | Taip |
| Neto svoris | 0.7 kg |
| OpenGL versija | 4.6 |
| Padidintos spartos (OC) leidimas | Taip |
| Paketo svoris | 2560 g |
| Pakuotės aukštis | 126 mm |
| Pakuotės gylis | 226 mm |
| Pakuotės plotis | 420 mm |
| Pakuotės tipas | "Box" |
| Papildomos maitinimo jungtys | 3x 8-pin |
| Paralelinio apdorojimo technologijos parama | Nepalaikomas |
| Procesoriaus laikrodžio greičio padidinimas | 3060 MHz |
| Produkto spalva | Juoda/Sidabras |
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 26 cm |
| Shipping Box Weight | 11.3 kg |
| Shipping Box Width | 43.5 cm |
| Srauto procesoriai | 4096 |
| Summary | ASUS TUF Gaming TUF-RX9070XT-O16G-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi |
| Svoris | 1480 g |
| Sąsajos tipas | PCI Express 5.0 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.425 |
| Unit Box Width | 0.23 |
| Unit Brutto Volume | 0.01499 cubm |
| Vendor Homepage | https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx9070xt-o16g-gaming/ |
| Ventiliatorių skaičius | 3 ventiliatorius(iai / ių) |
| Vieneto aukštis | 13 cm |
| Vieneto gylis | 42.5 cm |
| Vieneto plotis | 23 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 4 |
| "DirectX" versija | 12 Ultimate |

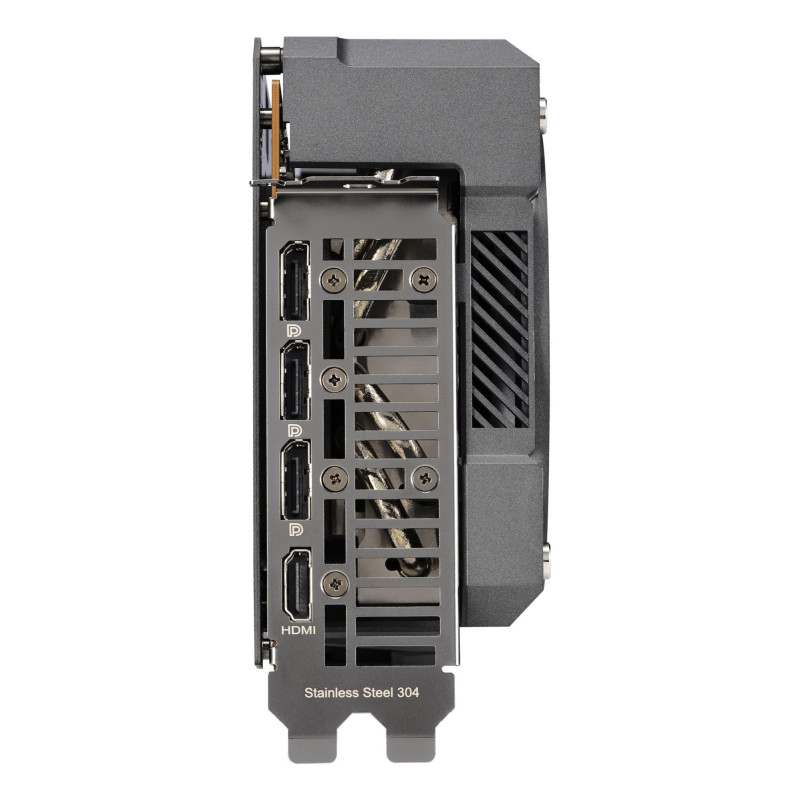

| "DisplayPort" kiekis | 3 |
| "DisplayPort" versija | 2.1a |
