Graphics Card, ASROCK, Intel Arc B570, 10 GB, GDDR6, 160 bit, PCIE 4.0 8x, GPU 2610 MHz, Dual Slot Fansink, 1xHDMI, 3xDi
Product reference: 2-4711581490048

Graphics Card, ASROCK, Intel Arc B570, 10 GB, GDDR6, 160 bit, PCIE 4.0 8x, GPU 2610 MHz, Dual Slot Fansink, 1xHDMI, 3xDi

Product reference: 2-4711581490048
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
384,01 €
451,78 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Dual Fan Design Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

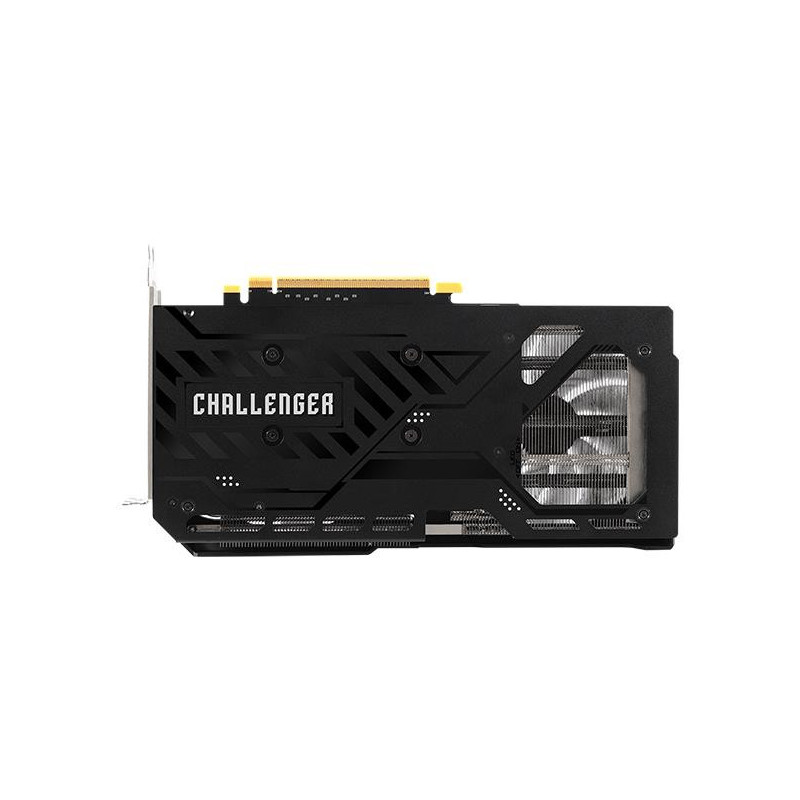

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

Striped Axial Fan Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

LED Indicator More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

LED Switch Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.

Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Precise Screw Torque Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.

SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.

Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

  • Dual Fan Design
  • Stylish Metal Backplate
  • Striped Axial Fan
  • LED Indicator
  • 0dB Silent Cooling
  • Super Alloy Graphics Card

Apšvietimo spalva Daugybė
Atitikties sertifikatai CE/Federalinė ryšių komisija (FCC)/UKCA
Atminties magistralė 160 bitai
Aukštis 132 mm
Aušinimo technologija Asrock Striped Axial Fan
Aušinimo tipas Aktyvus
Bruto svoris 1.2 kg
CUDA Ne
Diskrečiojo grafikos adapterio atmintis 10 GB
Duomenų perdavimo sparta 19 Gbit/s
Dvi DVI išvestys Ne
Forma Full-Height/Half-Length (FH/HL)
Grafikos adapterio atminties tipas GDDR6
Grafikos procesoriaus šeima Intel
Grafikos procesorius Arc B570
Greito diegimo vadovas Taip
HDCP Taip
HDMI portų kiekis 1
HDMI versija 2.1a
Ilgis 41 mm,
249 mm
Iliuminacija Taip
Integruotas TV tiuneris Ne
Lizdų skaičius 2
Maitinimo šaltinio vieta Viršus
Maksimali rezoliucija 7680 x 4320 pikseliai
Maksimalus ekranų skaičius kiekvienai vienai vaizdo plokštei 4
Minimalus sistemos maitinimas 600 W
Model B570 CL 10GO
Neto svoris 0.72 kg
OpenGL versija 4.6
Pakuotės tipas "Box"
Papildomos maitinimo jungtys 1x 8-pin
Procesoriaus dažnis 2600 MHz
Produkto spalva Juoda
Shipping Box Depth 70 cm
Shipping Box Height 24 cm
Shipping Box Weight 11.97 kg
Shipping Box Width 38 cm
Summary Asrock Challenger Intel Arc B570 10GB OC. Graphics processor family: Intel, Graphics processor: Arc B570, Processor frequency: 2600 MHz. Discrete graphics card memory: 10 GB, Graphics card memory type: GDDR6, Memory bus: 160 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s), Illumination colour: Multi
Svoris 720 g
Sąsajos tipas PCI Express x8 4.0
Unit Box Height 0.065
Unit Box Length 0.36
Unit Box Width 0.22
Unit Brutto Volume 0.006384 cubm
Vendor Homepage https://www.asrock.com/Graphics-Card/Intel/Intel%20Arc%20B570%20Challenger%2010GB%20OC/#Overview
Ventiliatorių skaičius 2 ventiliatorius(iai / ių)
Vieneto aukštis 6.5 cm
Vieneto gylis 36 cm
Vieneto plotis 22 cm
Vienetų skaičius vienoje siuntimo dėžėje 10
"DirectX" versija 12 Ultimate
"DisplayPort" kiekis 3
"DisplayPort" versija 2.1
"Intel® Xe Matrix Extensions" ("Intel® XMX") sistemos 144
