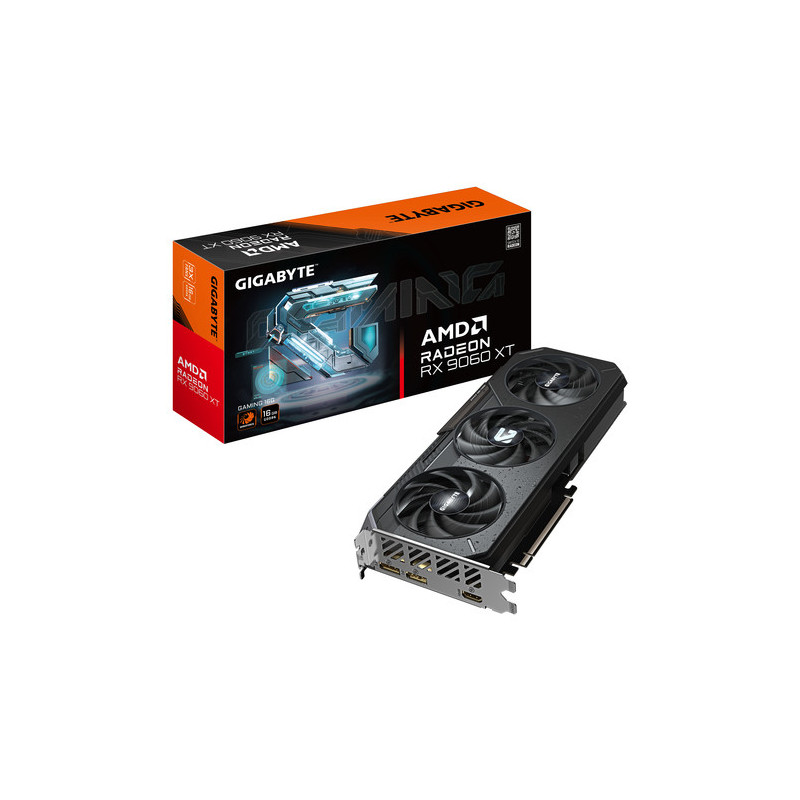

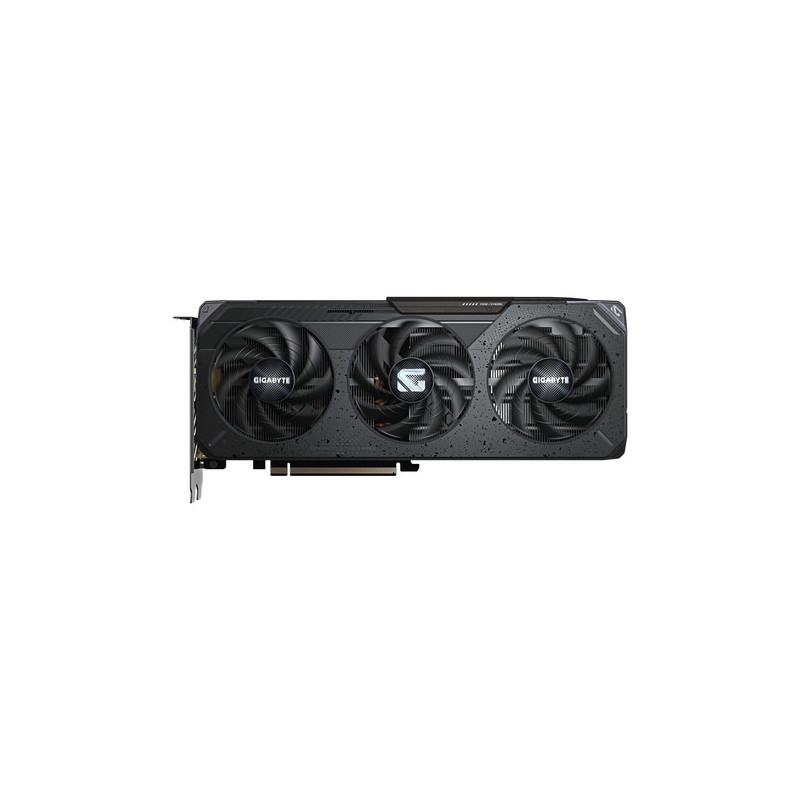

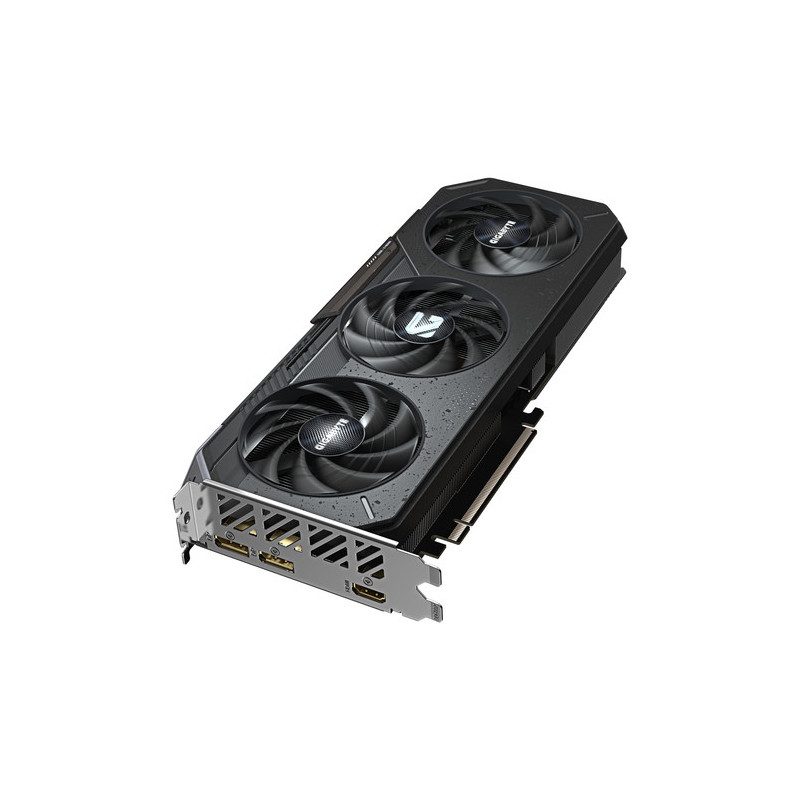

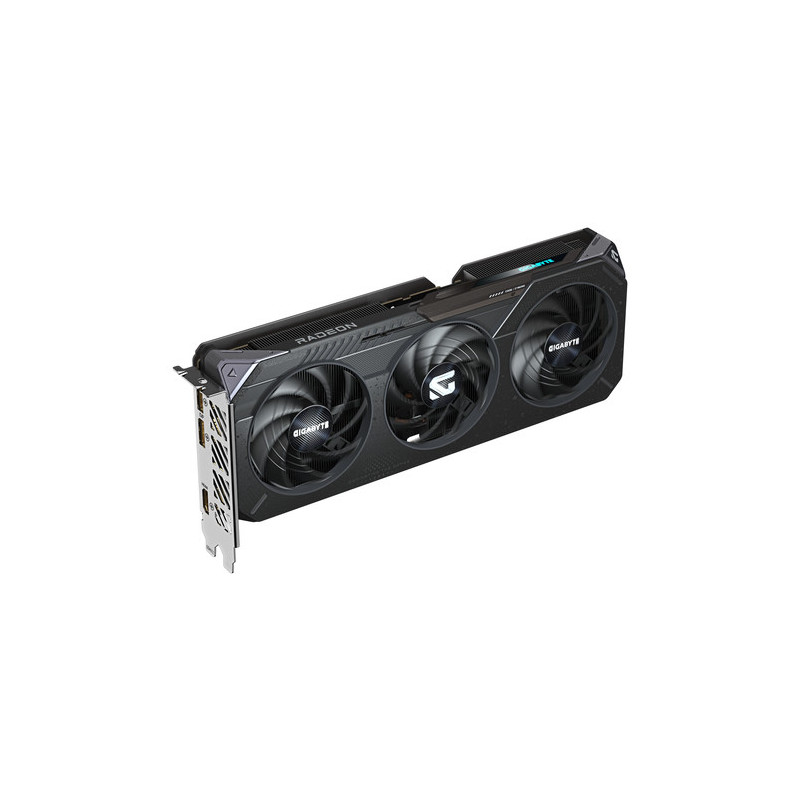

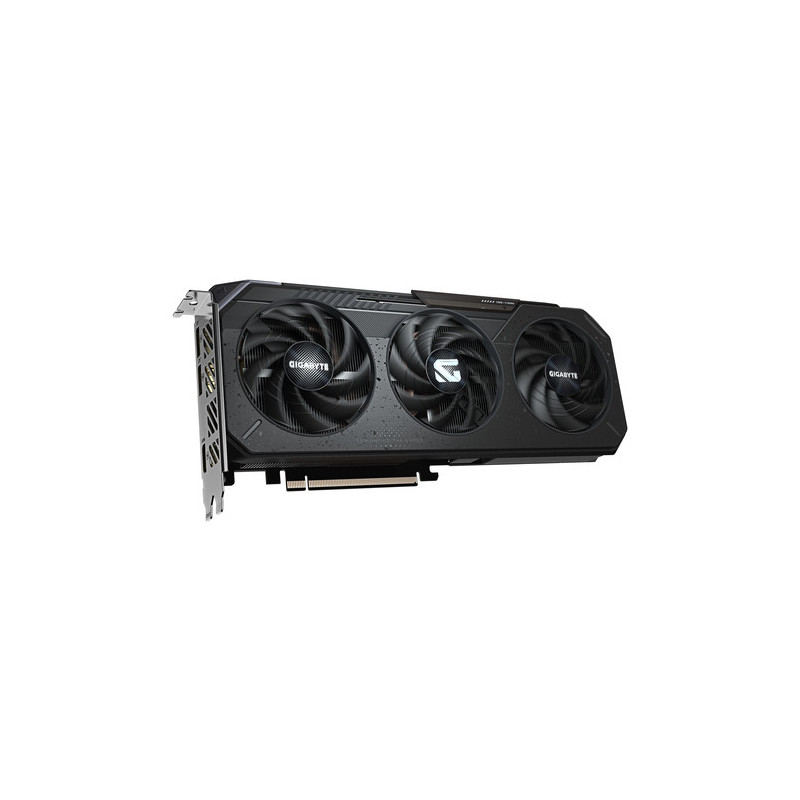

Gigabyte Radeon RX 9060 XT Graphics card 16GB GDDR6

The GIGABYTE Radeon RX 9060 XT GAMING 16GD is a high-performance gaming graphics card designed for 1080p and 1440p play. Equipped with 16 GB of GDDR6 memory, it delivers excellent texture performance and future-proof memory capacity. It features the WINDFORCE cooling system with triple fans and alternate spinning to reduce turbulence. The card supports AMD features like Smart Access Memory, ray tracing, and Infinity Cache for increased bandwidth efficiency. With PCIe 5.0 support, it is ready for modern platform compatibility. The card offers a balance of performance, cooling, and aesthetic for gaming builds.

Technical Specifications (EN):

•


  GPU Architecture: RDNA 4 (Navi 44)





•


  Compute Units: 32





•


  Stream Processors: 2,048





•


  Boost Clock: Up to ~3,130 MHz (typical for 16 GB variant) AMD +2 Tom's Hardware +2





•


  Video Memory: 16 GB GDDR6





•


  Memory Interface: 128-bit





•


  Memory Speed: 20 Gbps (effective) Accelerator +2 Tom's Hardware +2





•


  Memory Bandwidth: ~320 GB/s





•


  Infinity Cache / L2 Cache: 32 MB AMD +1





•


  Texture Mapping Units: 128





•


  Render Output Units (ROPs): 64





•


  Ray Accelerators: 32





•


  TBP / Board Power: ~160 W (for 16GB variant)





•


  Interface: PCIe 5.0 ×16





•


  Display Outputs: HDMI 2.1b, DisplayPort 2.1a (likely)





•


  Cooling: WINDFORCE triple-fan, alternate spinning, heat pipes





•


  Protection / Features: Smart Access Memory, ray tracing, various clock / thermal controls





•


  Dimensions: (typical GIGABYTE GAMING series) ~ 320 × 130 × 59 mm (this is an estimate based on typical models)





•


  Weight: ~1.2 kg (estimate)
