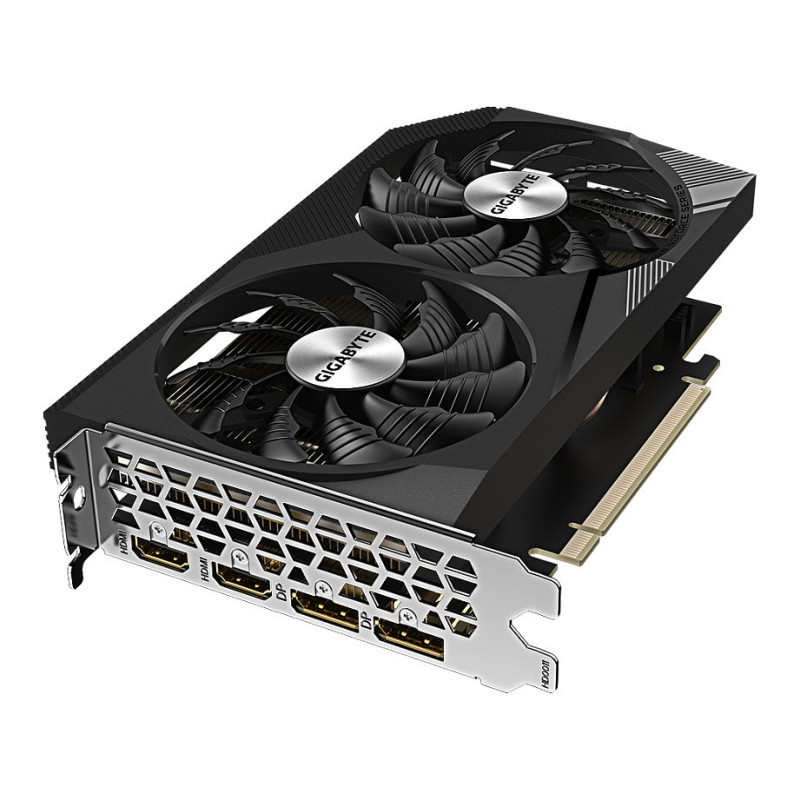

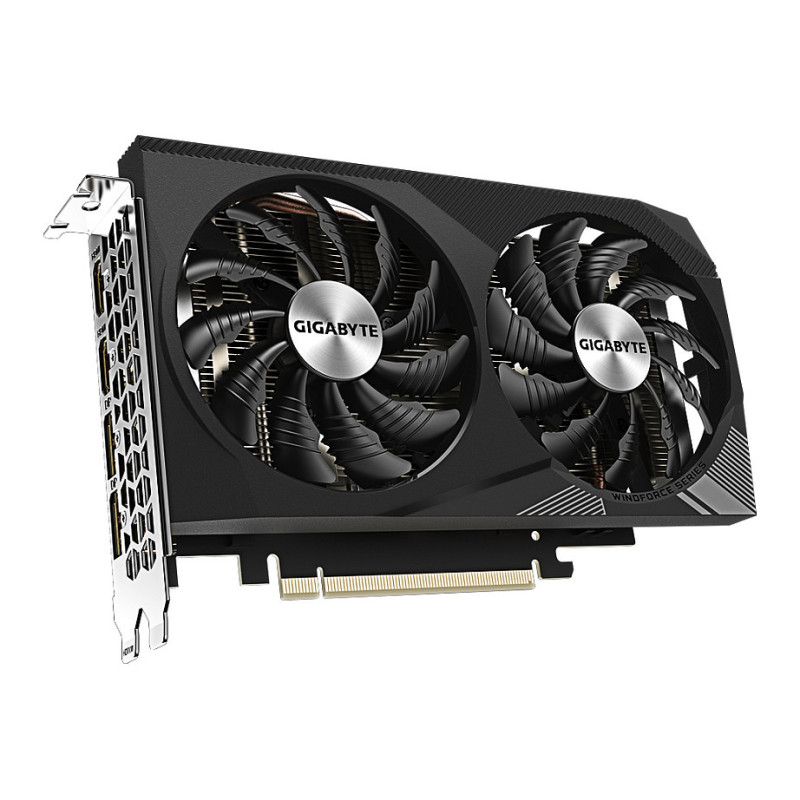

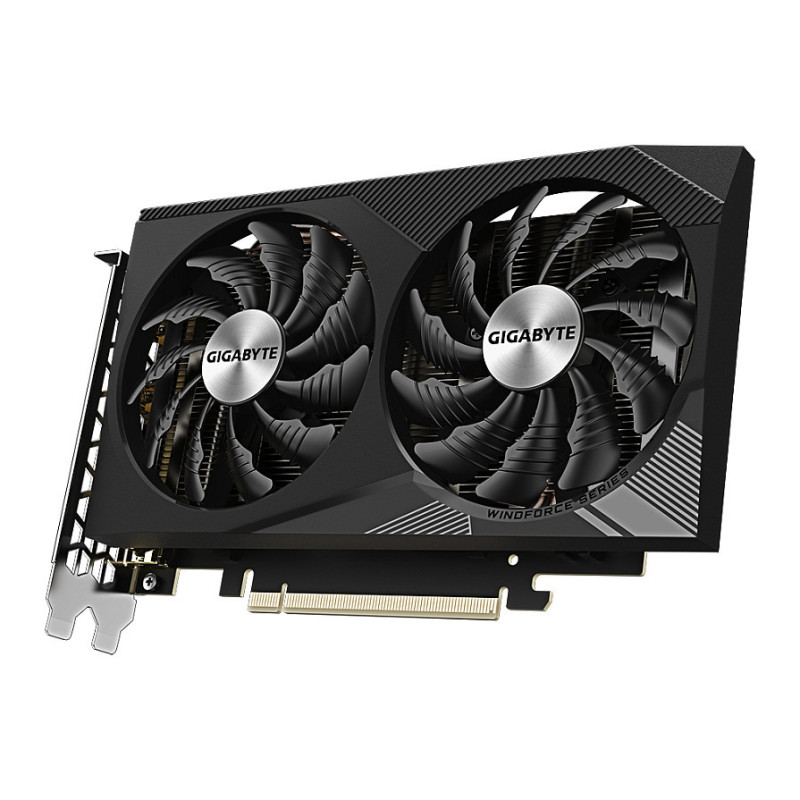

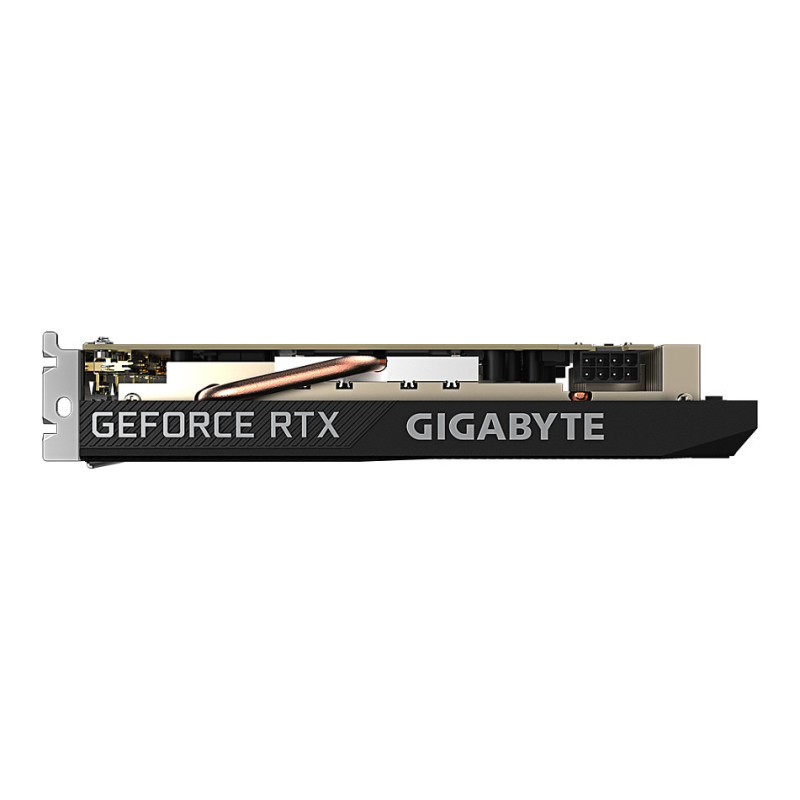

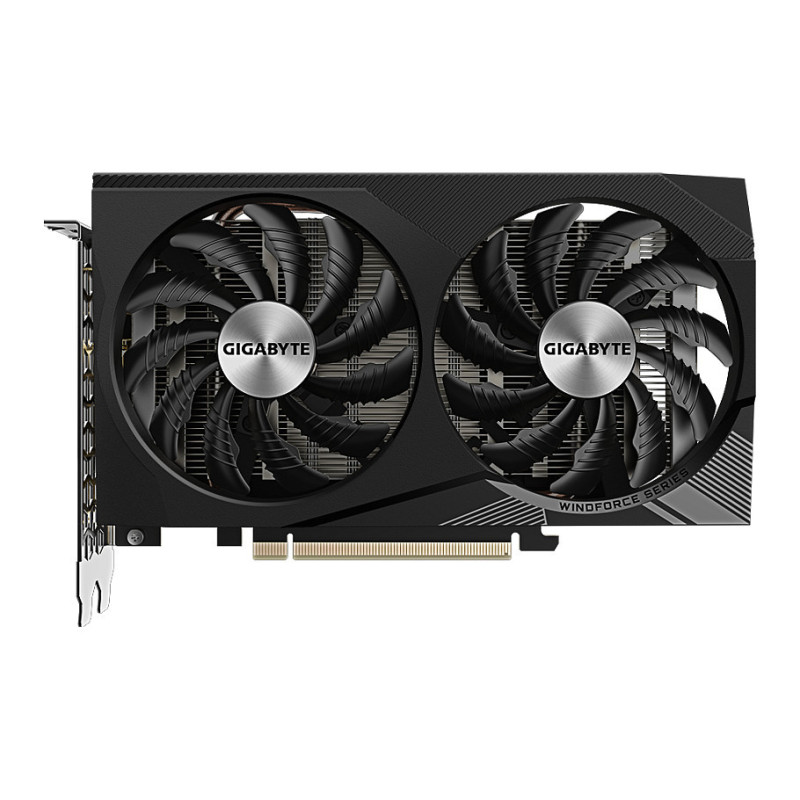

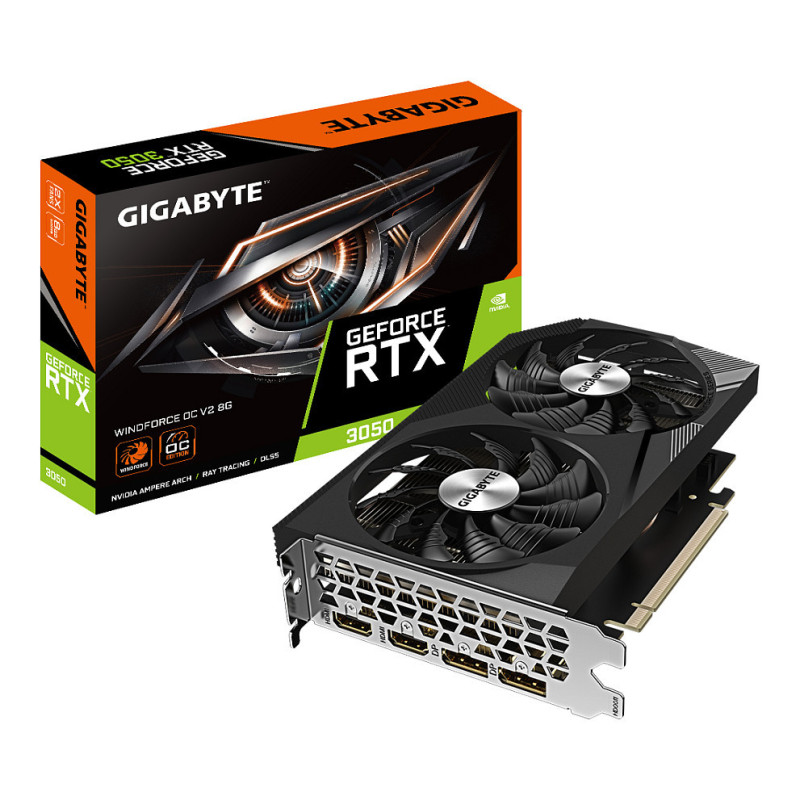

GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 8G

GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050, Processor frequency: 1792 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6, Dual Link DVI. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE Cooling System
90mm unique blade fan

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE
ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Processor

Feature: CUDA
CUDA cores: 2560
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 3050
Processor frequency: 1792 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Memory clock speed: 14000 MHz

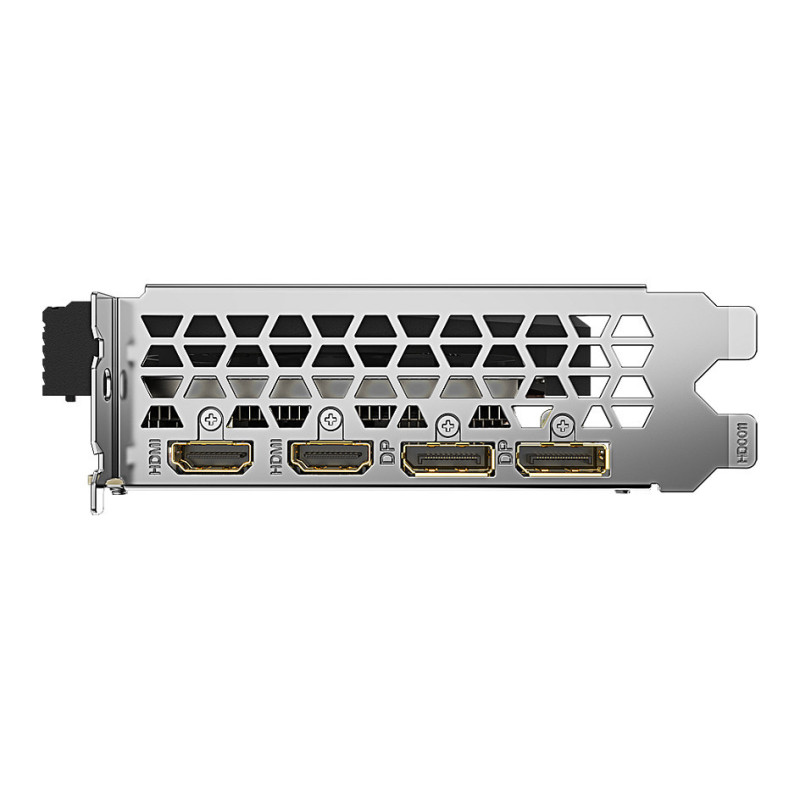

Ports & interfaces

Interface type: PCI Express 4.0
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4a

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: Dual Link DVI
Feature: NVIDIA G-SYNC

Design

Cooling type: Active
Cooling technology: GIGABYTE WINDFORCE 2X
Number of fans: 2 fan(s)
Product colour: Black, Silver

Power

Minimum system power supply: 450 W
Supplementary power connectors: 1x 8-pin

System requirements

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Weight & dimensions

Length: 198.1 mm
Depth: 39 mm
Height: 120.6 mm

Packaging data

Package type: Box

Packaging content

Feature: User guide
