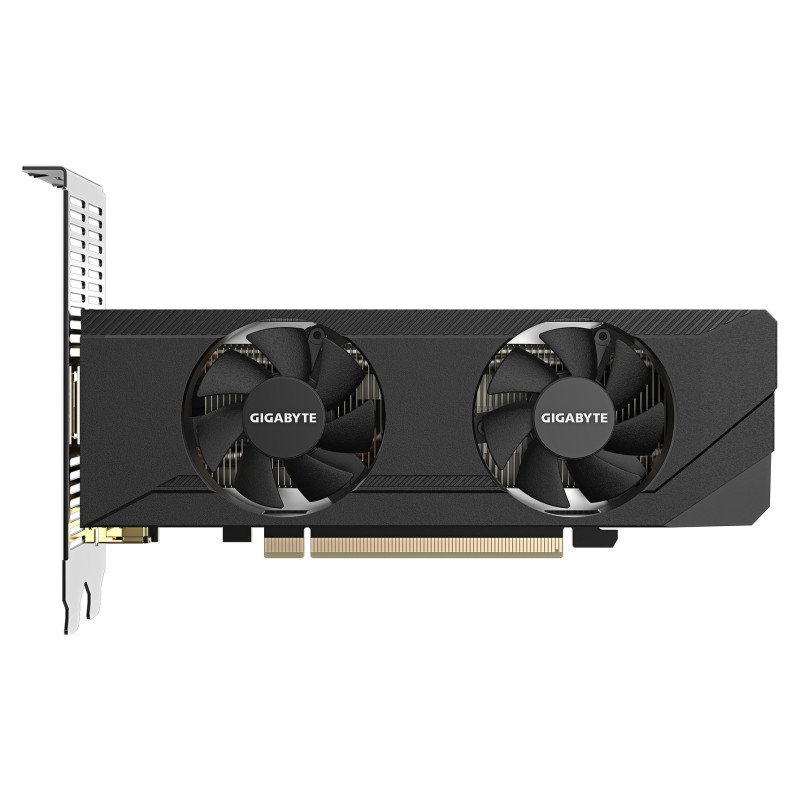

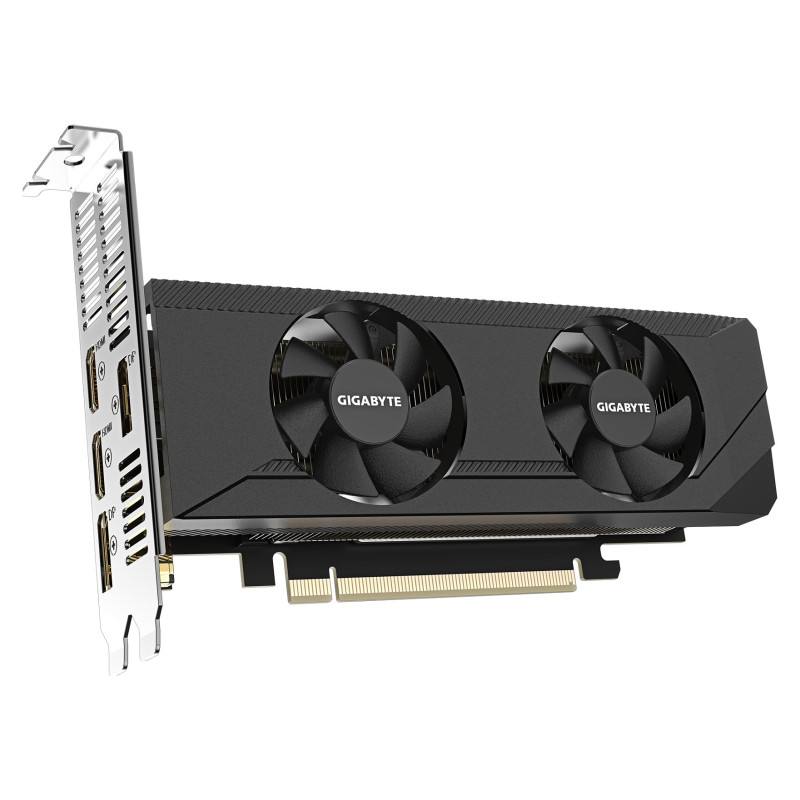

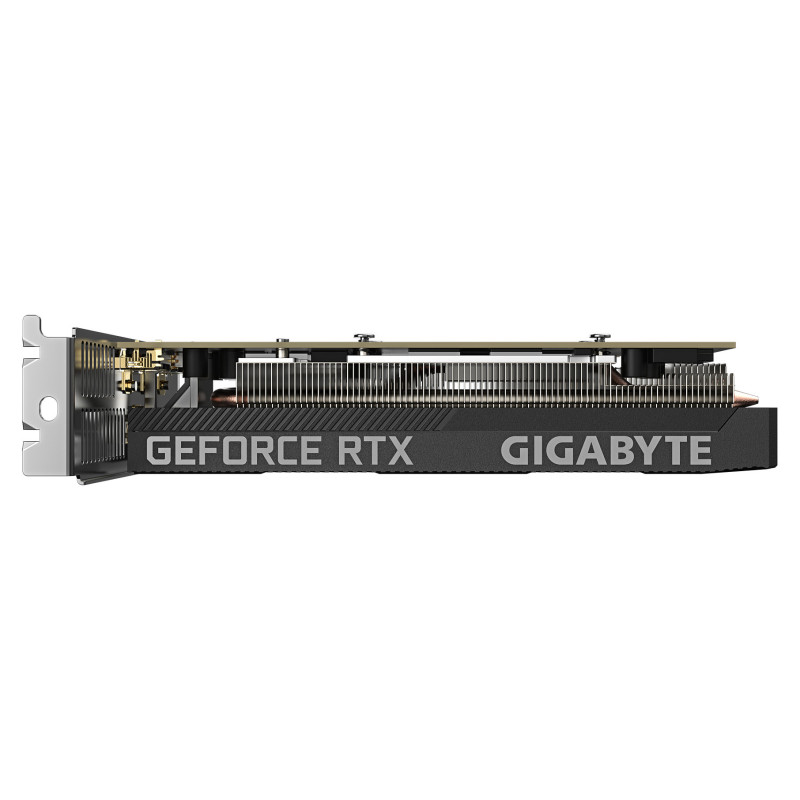

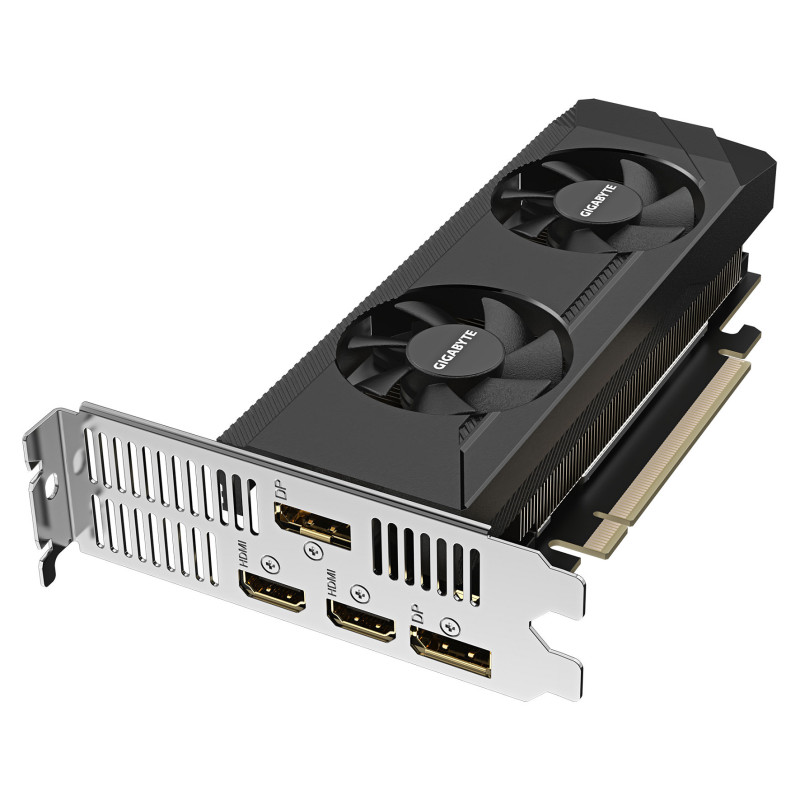

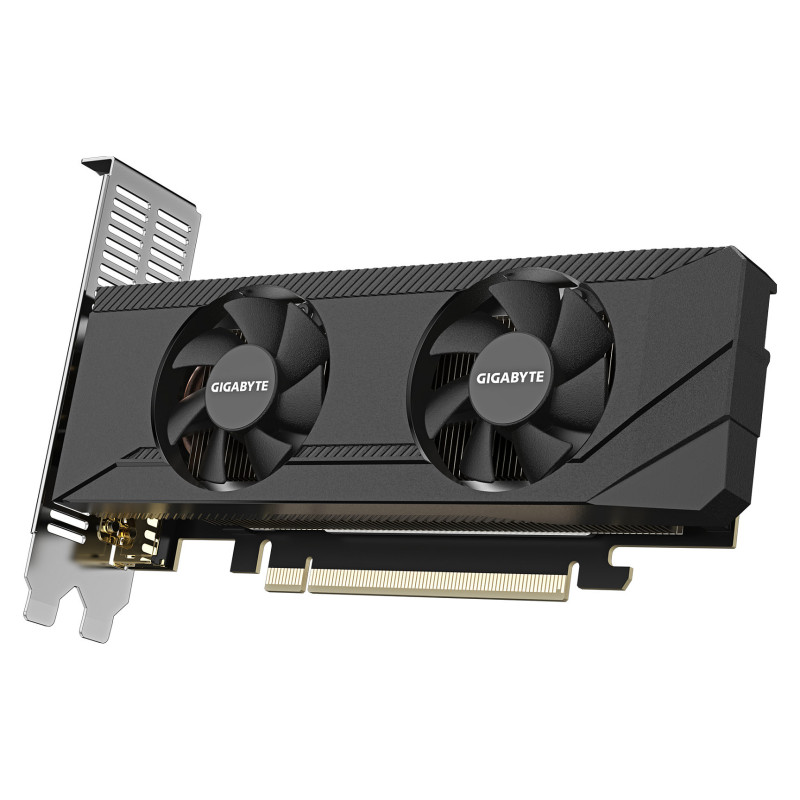

GIGABYTE GeForce RTX 3050 OC Low Profile 6G

GIGABYTE GeForce RTX 3050 OC Low Profile 6G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050, Processor frequency: 1477 MHz. Discrete graphics card memory: 6 GB, Graphics card memory type: GDDR6, Memory bus: 96 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

GIGABYTE
CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system delivers effective heat dissipation capacity, featuring copper heat pipe that makes direct contact with the GPU. This facilitates enhanced heat transfer to the heatsink, allowing for higher performance at lower temperatures.

LOW PROFILE DESIGN
At just 181mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

AMPLE CONNECTIVITY

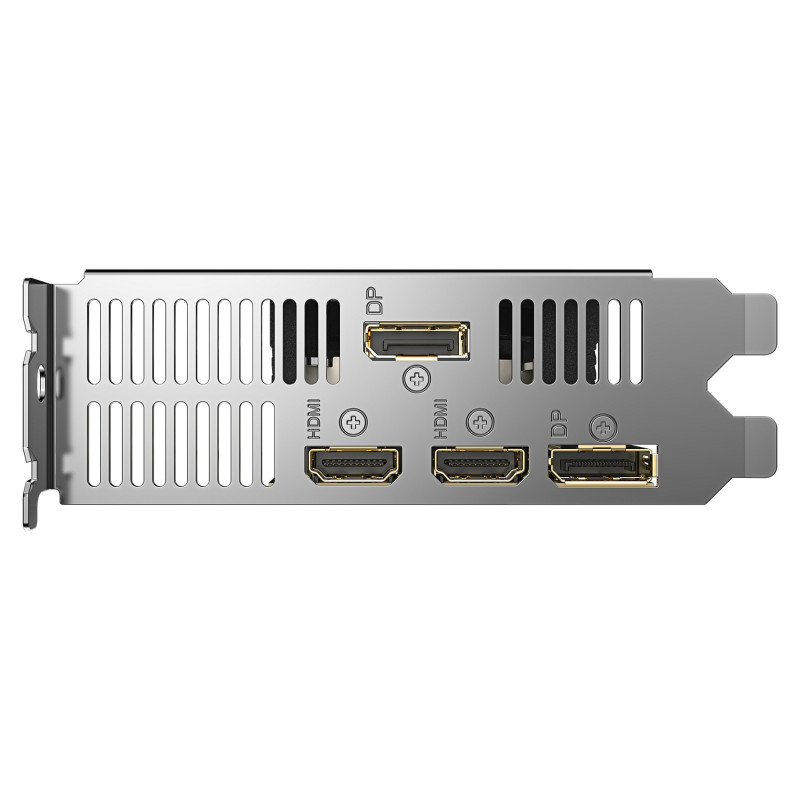

Enjoy versatile display options with two DisplayPort and two HDMI ports, supporting up to 4 displays simultaneously.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Processor

Feature: CUDA
CUDA cores: 2304
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 3050
Processor frequency: 1477 MHz
Maximum resolution: 7680 x 4320 pixels
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 6 GB
Graphics card memory type: GDDR6
Memory bus: 96 bit
Memory clock speed: 14000 MHz

Ports & interfaces

Interface type: PCI Express 4.0
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4a

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6

Design

Cooling type: Active
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Product colour: Black

Power

Minimum system power supply: 300 W

Weight & dimensions

Length: 181 mm
Depth: 36 mm
Height: 69 mm

Packaging data

Package type: Box

Packaging content

Feature: Quick installation guide
Feature: User guide
