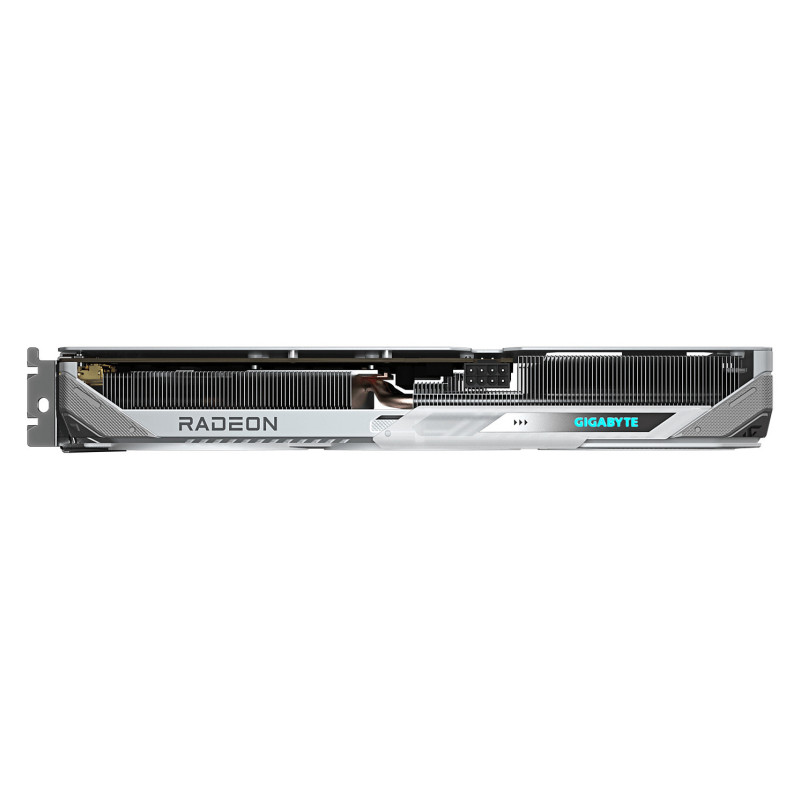

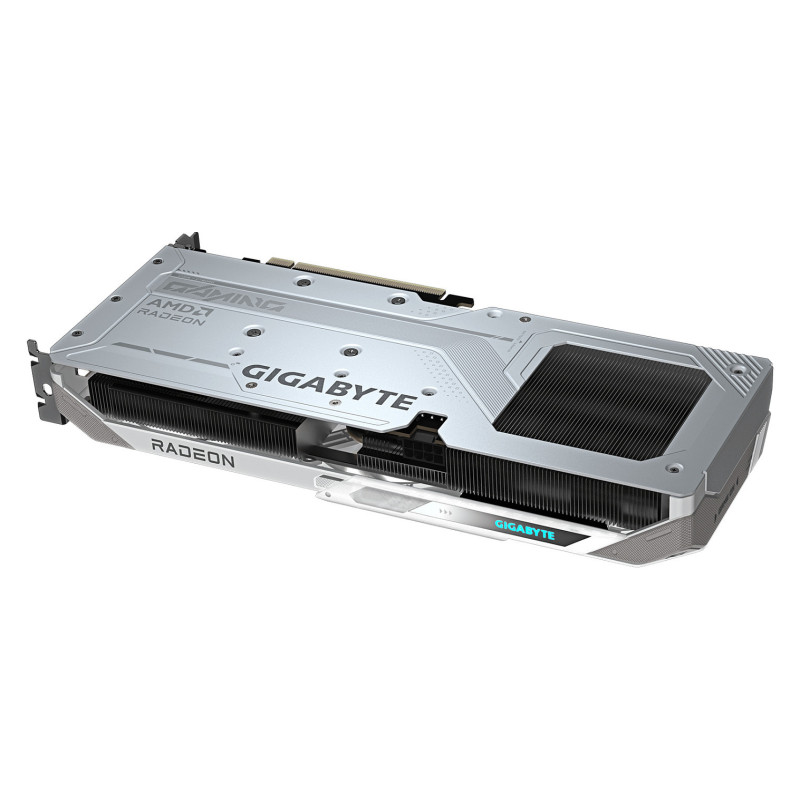

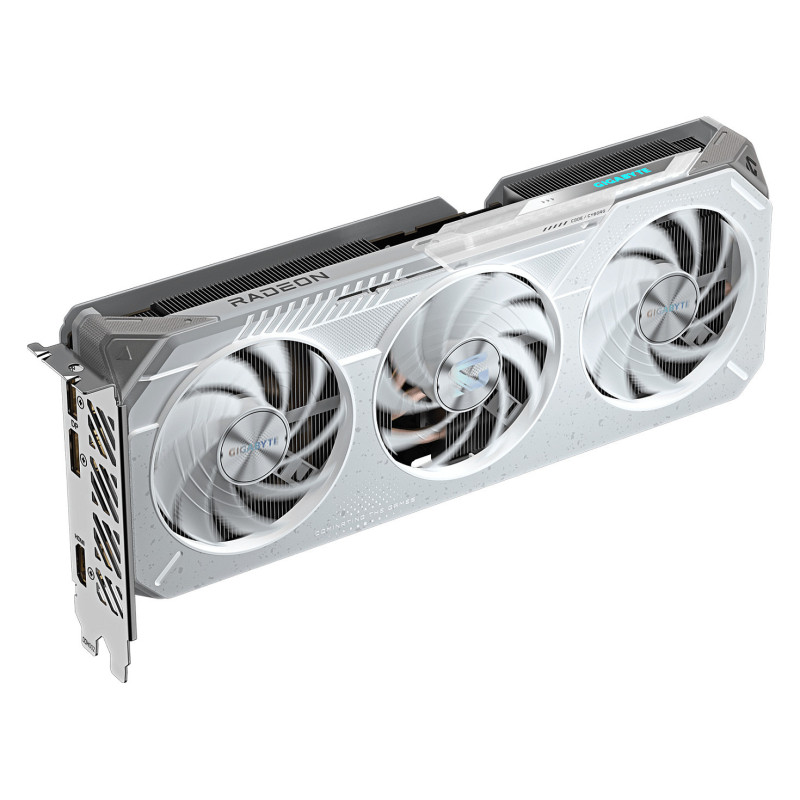

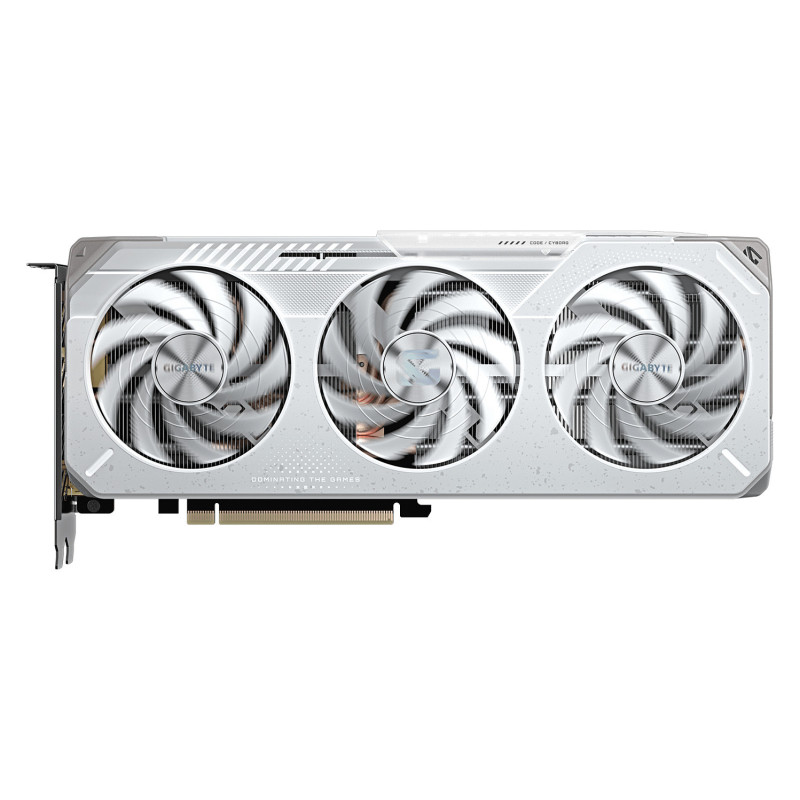

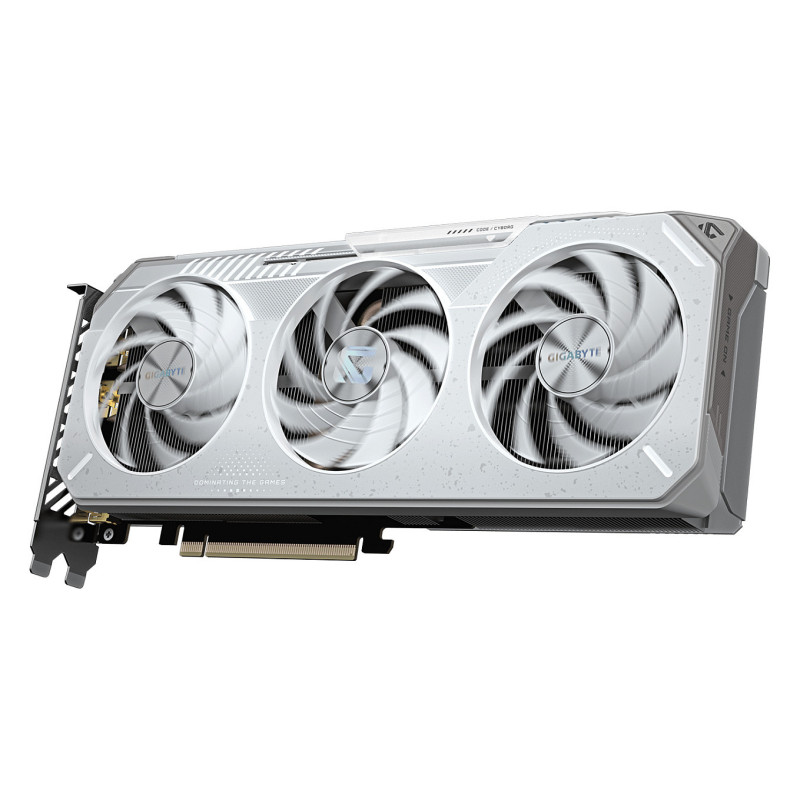

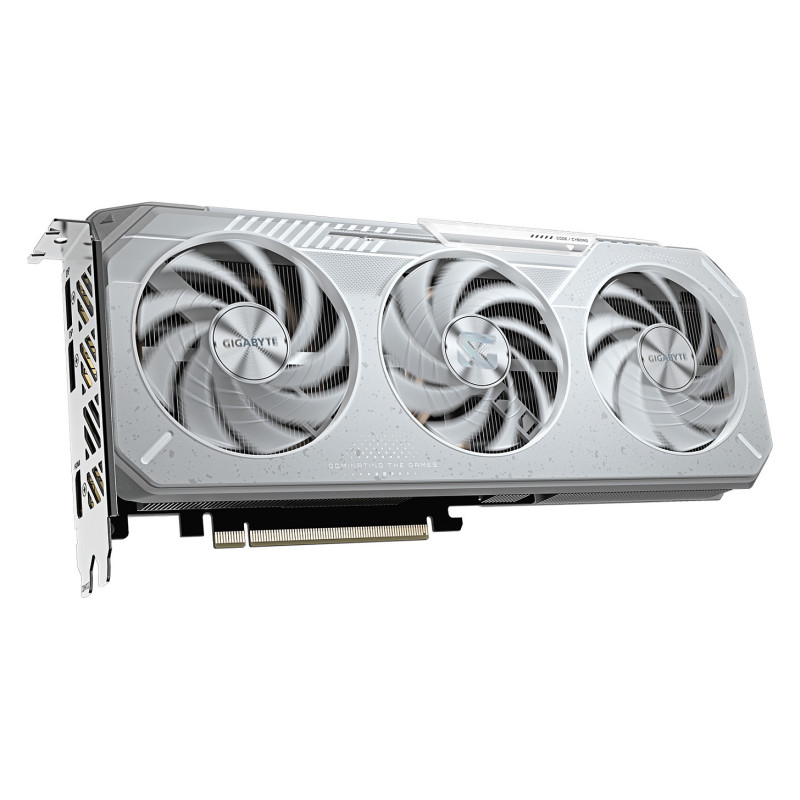

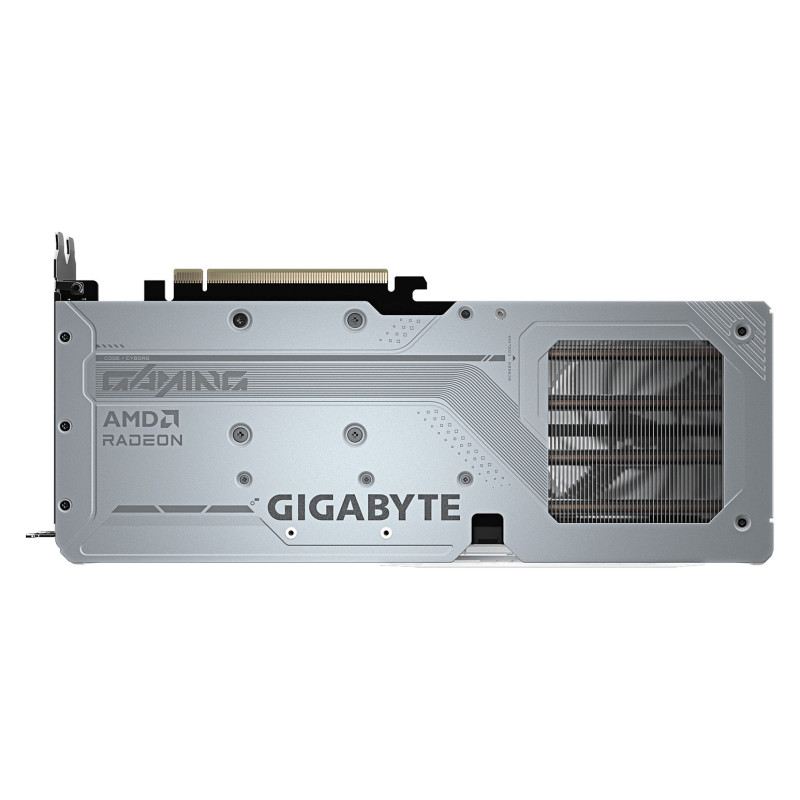

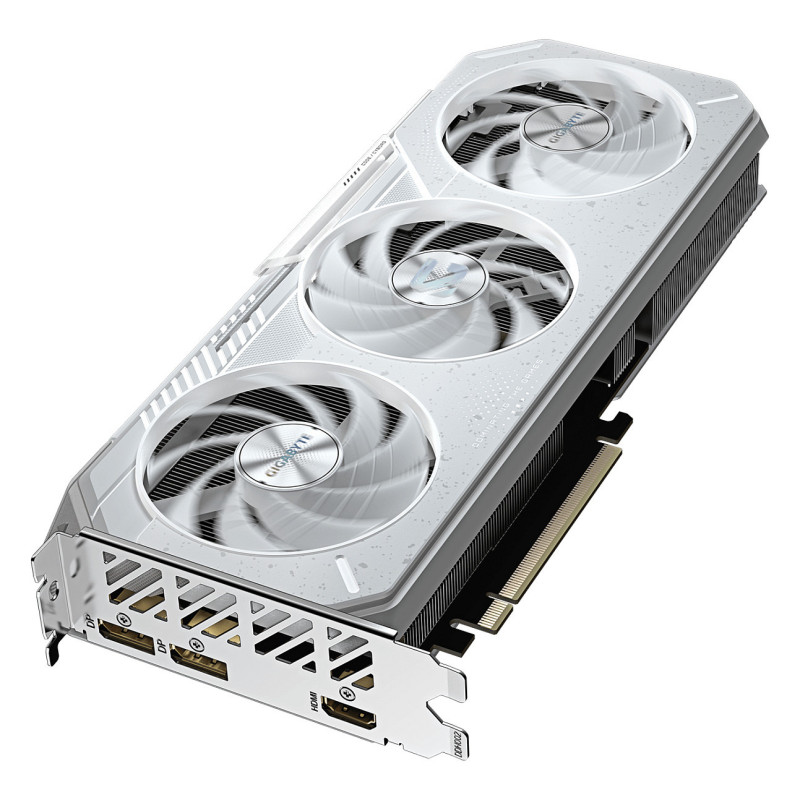

GIGABYTE GAMING Radeon RX 9060 XT OC ICE 16G

GIGABYTE GAMING Radeon RX 9060 XT OC ICE 16G Graphics Card. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.

Processor

Graphics processor family: AMD
Graphics processor: Radeon RX 9060 XT
Processor boost clock speed: 3320 MHz
Processor boost clock speed (Gaming mode): 2780 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Stream processors: 2048
Maximum displays per videocard: 3

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Memory clock speed: 20000 MHz
Data transfer rate: 20 Gbit/s

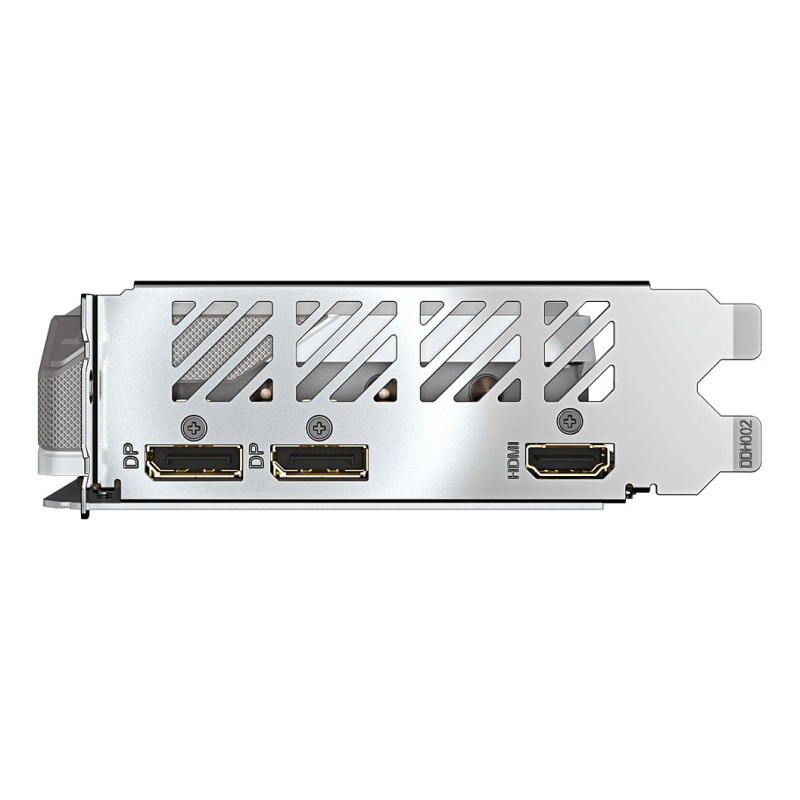

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 2
DisplayPort version: 2.1a

Performance

DirectX version: 12.0
OpenGL version: 4.6
Feature: Overclocked (OC) edition
Warranty period: 3 year(s)

Design

Cooling type: Active
Cooling technology: GIGABYTE WINDFORCE 3X
Number of fans: 3 fan(s)
Form factor: Full-Height/Full-Length (FH/FL)
Bracket height: Full-Height (FH)
Number of slots: 2
Feature: Illumination
Illumination colour: Multi
Product colour: Silver

Power

Minimum system power supply: 450 W
Supplementary power connectors: 1x 8-pin

System requirements
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Weight & dimensions

Weight: 840 g
Length: 281 mm
Depth: 40 mm
Height: 118 mm

Packaging data

Package width: 182.5 mm
Package depth: 354 mm
Package height: 75 mm
Package weight: 1.29 kg
Package type: Box

Packaging content

Feature: Manual
