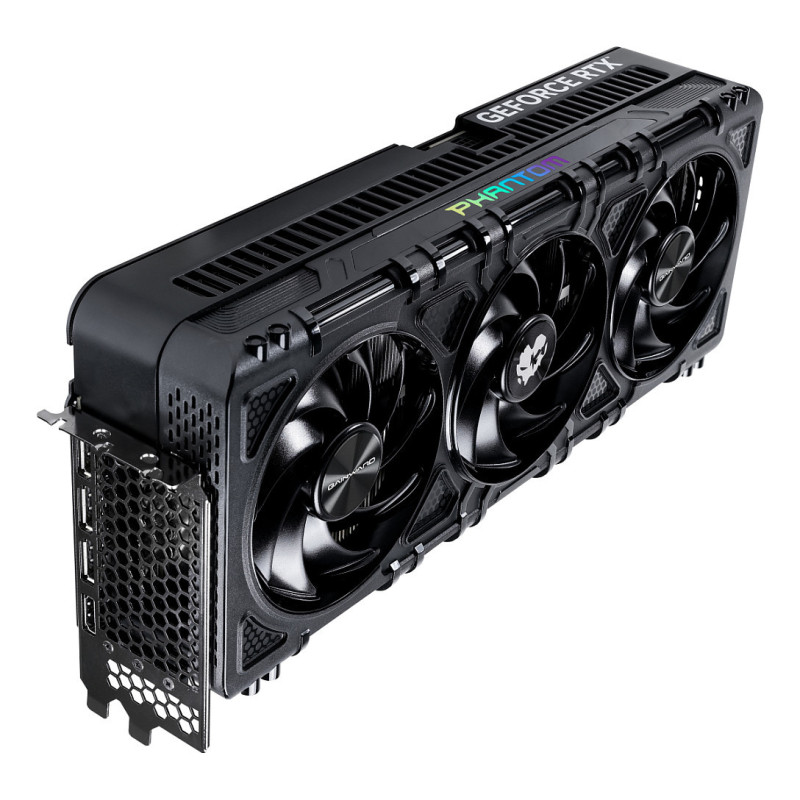

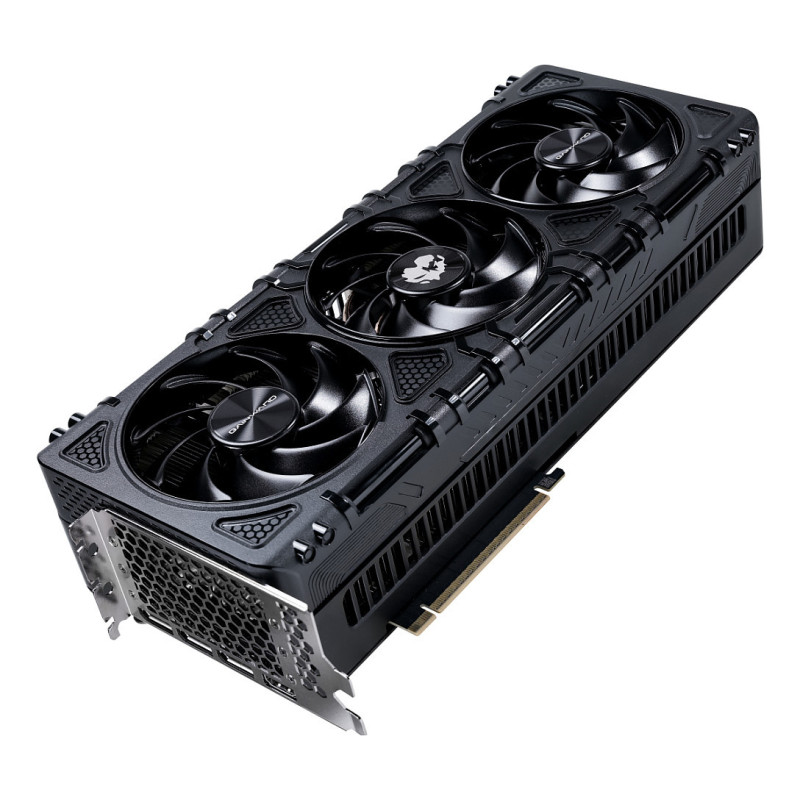

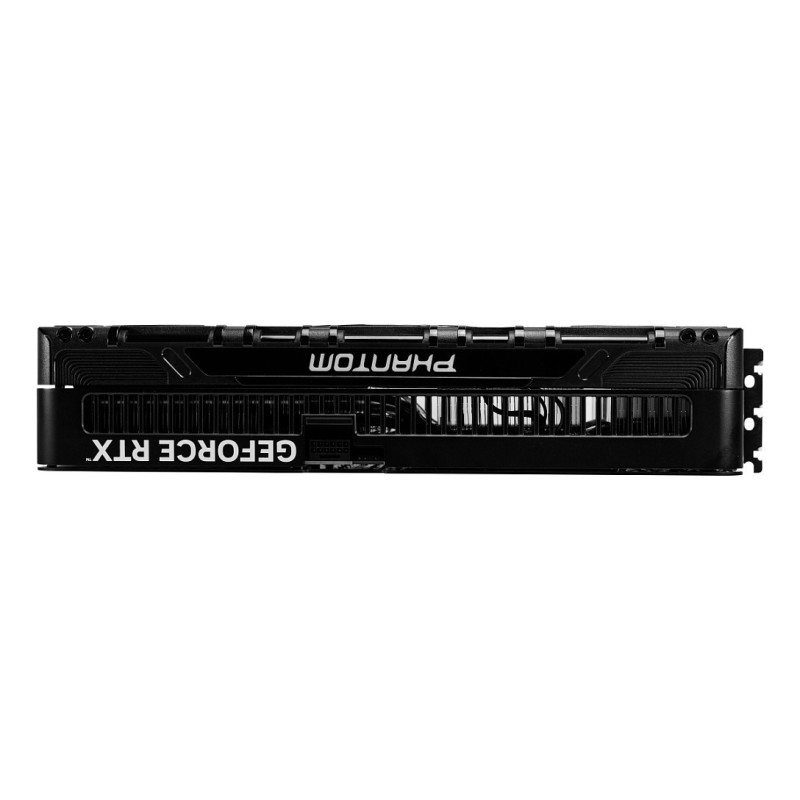

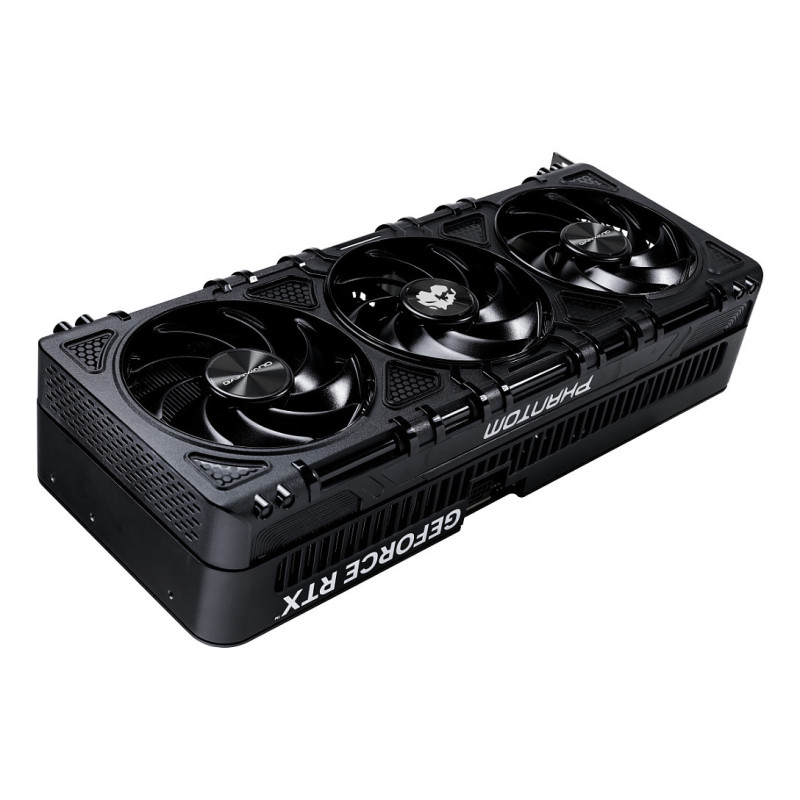

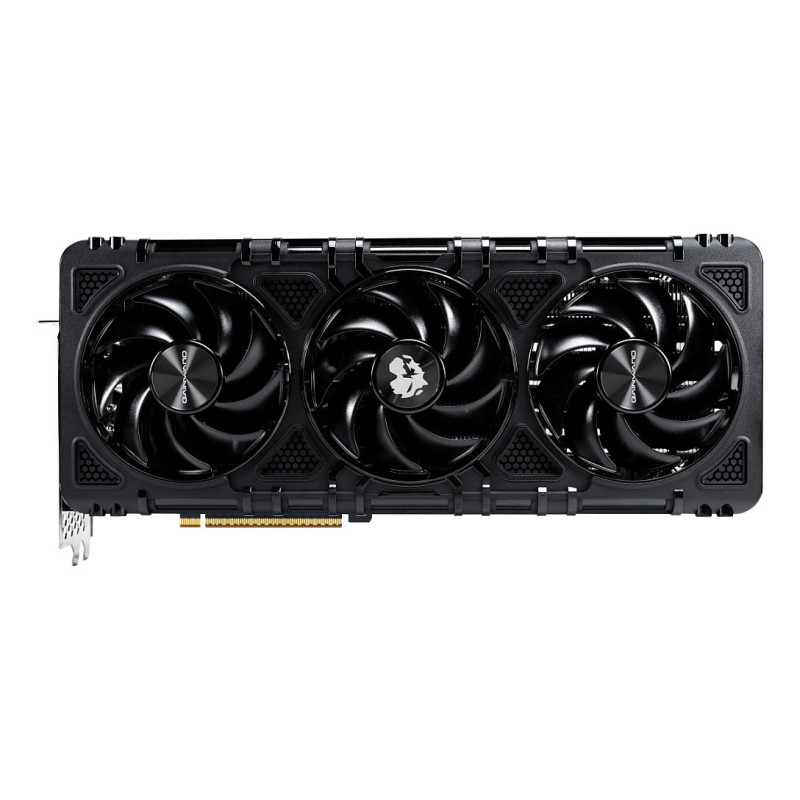

Gainward GeForce RTX 5090 Phantom GS

Gainward GeForce RTX 5090 Phantom GS. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5090. Discrete graphics card memory: 32 GB, Graphics card memory type: GDDR7, Memory bus: 512 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
The Phantom Series embodies sleek sophistication with its all-black design, balancing elegance with high performance.
Beyond its stealthy exterior, the Phantom delivers advanced thermal solutions engineered to tackle the most demanding gaming and AI tasks.
Dual BIOS
The Dual BIOS technology provides automatic protection and performance flexibility.
- Performance Mode
- Silent Mode
Auto Sync 2.0
The universal 5V ARGB connector makes lighting synchronization effortless. Simply plug and play to sync your board's lighting with the rest of your PC—no additional software needed.

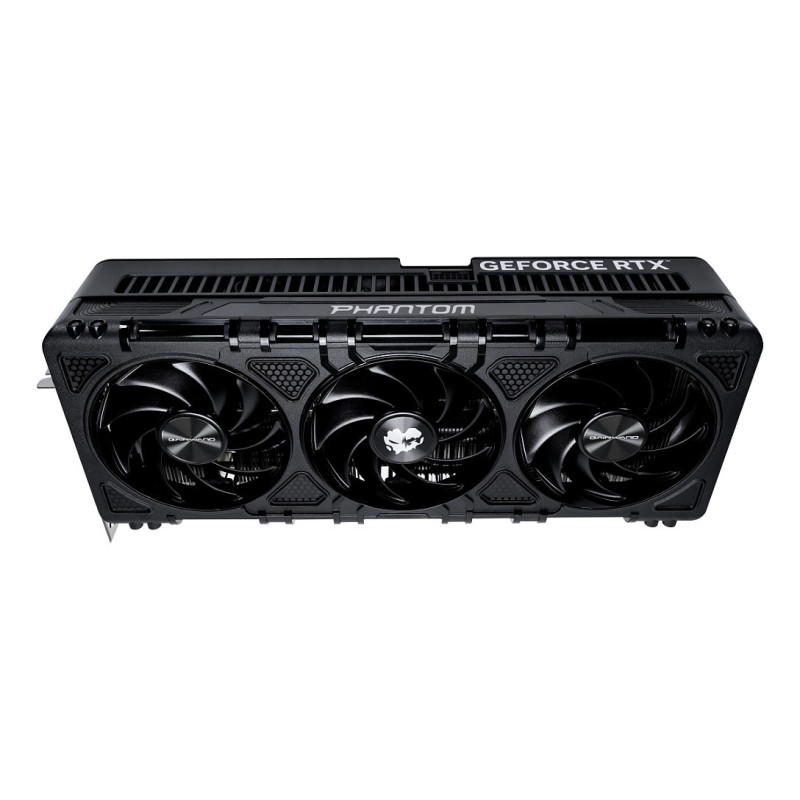

Cyclone Fan
The wing tip on fan tail converges the air current, collecting maximized airflow into the cooling system. The claw marks engraved on the blade backs further smooth the airflow and lead the air to the heat sink steadily.
Diffuser Fins
The angular fins largely extend the contact surface of the air and the fins, enabling the air current to transmit in the steadiest way.
Vapor Chamber
The Vapor Chamber with antioxidant capacity is designed to spread the heat more evenly across the hot spots, and transfer it to the heat pipes more effectively.
Composite Heat Pipes
The Composite Heat Pipe leverages two advanced techniques- grooved and sintered powder structures, ensuring your GPU maintains peak performance even under high-power scenarios.

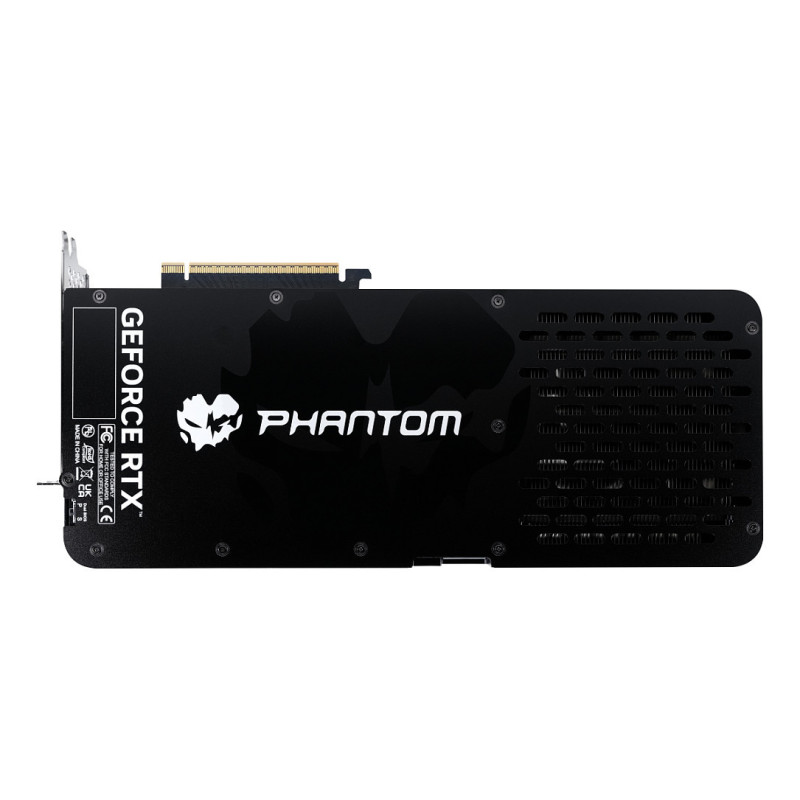

Ultra-Dense Protection Plate
The Ultra-Dense Protection Plate offers extra protection to the graphics card, keeping the board in the sturdy shape.
Two Ball Bearing
Two-ball bearing to bring longer life span for the fan.
- IP5X dust resistant technology
- Lower fan vibration
- 2X Prolonged fan life expectancy
ARGB Lighting
Addressable RGB allows gamers to customize each LED color.
You can personalize the lighting effects with GAINWARD Expertool Utility
ZERO RPM FAN
The fans stay idle during light tasks for silent operation, activating only when necessary. This ensures quiet efficiency during low-load tasks and powerful cooling when performance demands rise.

Processor

Feature: CUDA
CUDA cores: 21760
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5090
Processor boost clock speed: 2527 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported

Memory

Discrete graphics card memory: 32 GB
Graphics card memory type: GDDR7
Memory bus: 512 bit
Memory clock speed: 14000 MHz
Data transfer rate: 28 Gbit/s
Memory bandwidth (max): 1792 GB/s

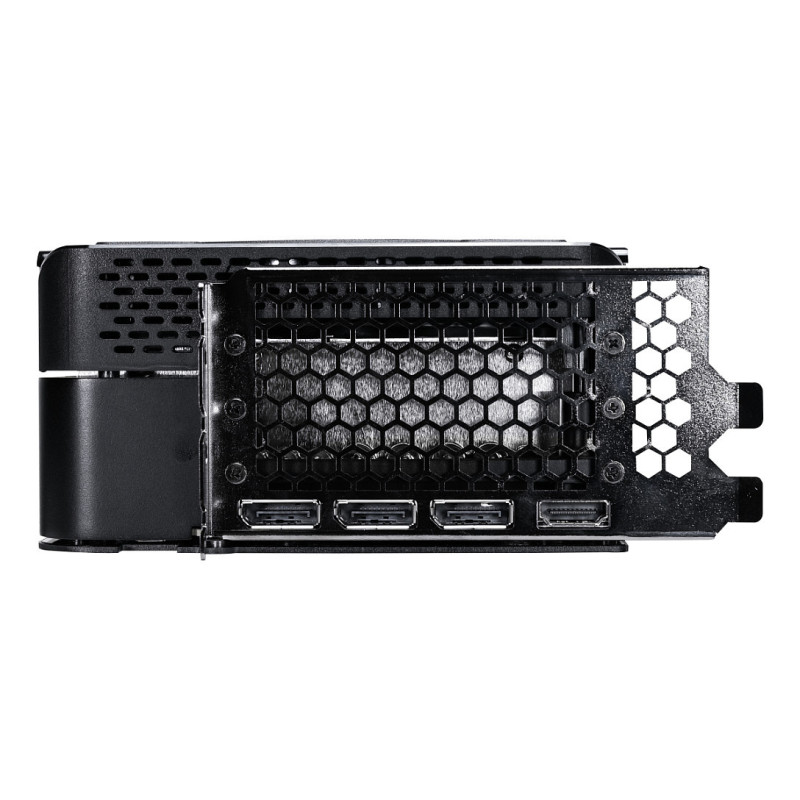

Ports interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b

Performance

DirectX version: 12 Ultimate
Feature: Virtual Reality (VR) ready
Feature: HDCP
Feature: NVIDIA G-SYNC

Design

Cooling type: Active
Number of fans: 3 fan(s)
Form factor: Full-Height/Full-Length (FH/FL)
Bracket height: Full-Height (FH)
Number of slots: 3.5
Feature: Illumination
Illumination colour: Multi
Product colour: Black

Power

Supplementary power connectors: 1x 16-pin

Weight dimensions

Length: 331.9 mm
Depth: 69.9 mm
Height: 145.6 mm

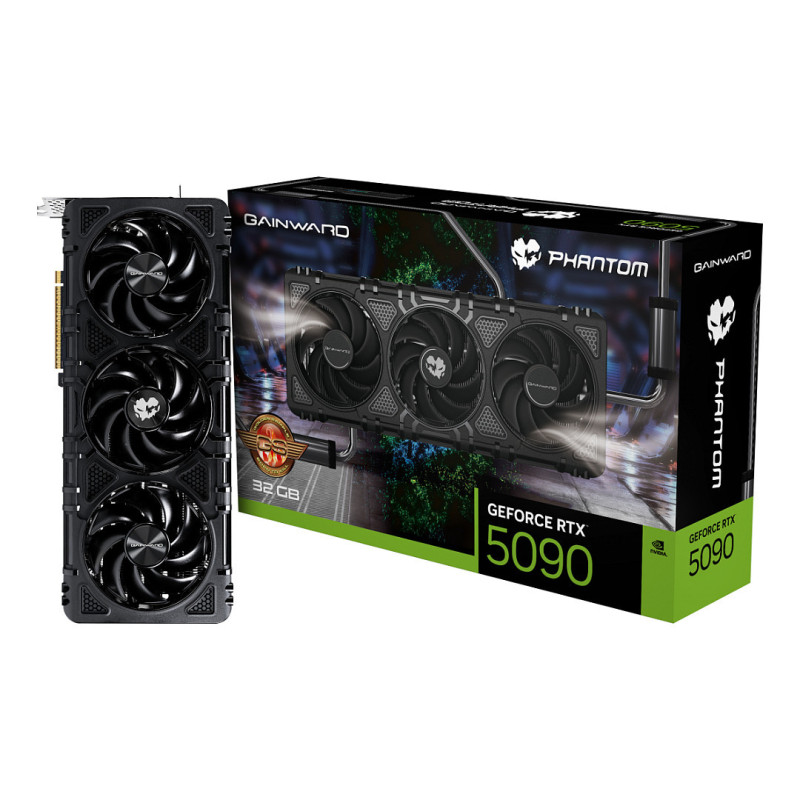

Packaging data

Package type: Box
