ASUS Turbo -AI-PRO-R9700-32G

ASUS Turbo -AI-PRO-R9700-32G. Graphics processor family: AMD, Graphics processor: Radeon AI PRO R9700. Discrete graphics card memory: 32 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 1 fan(s)

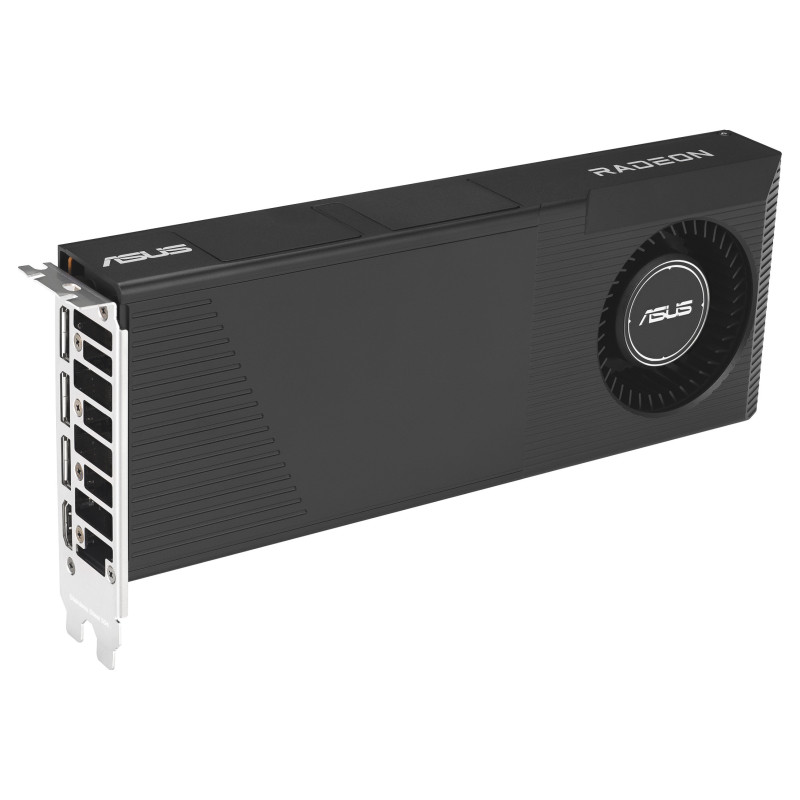

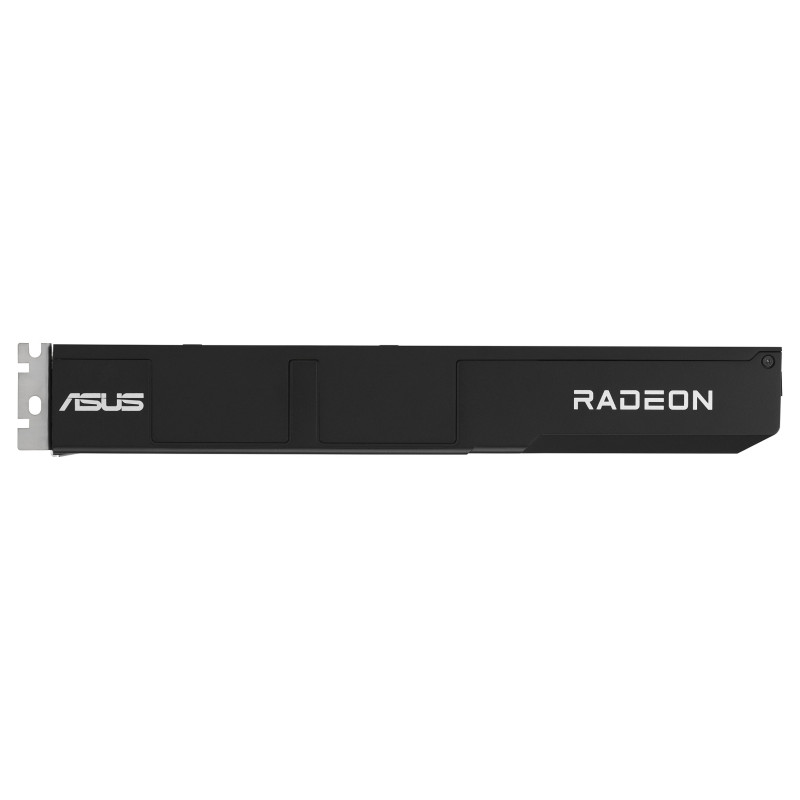

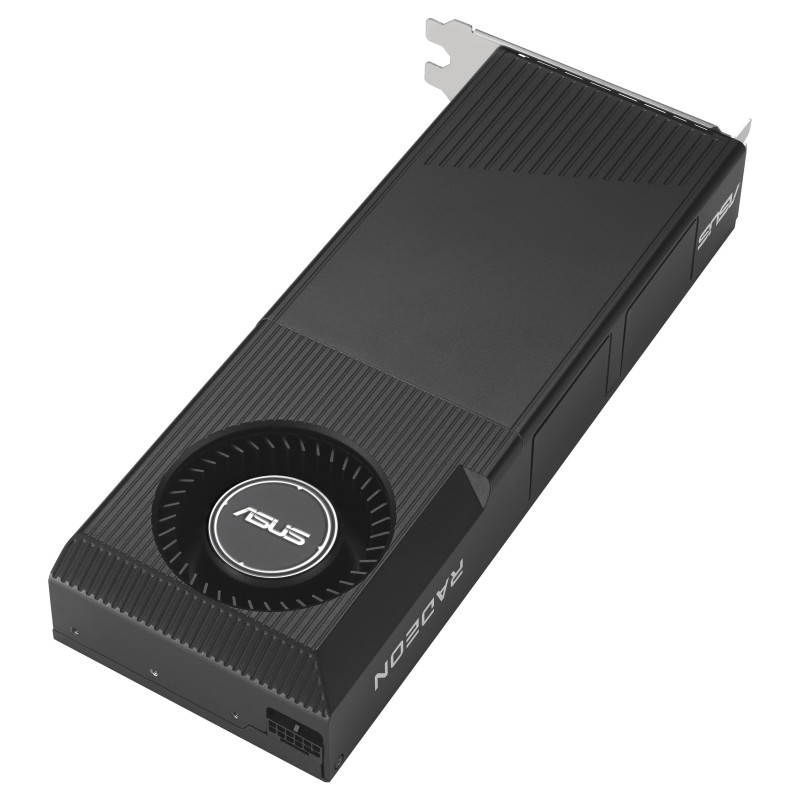

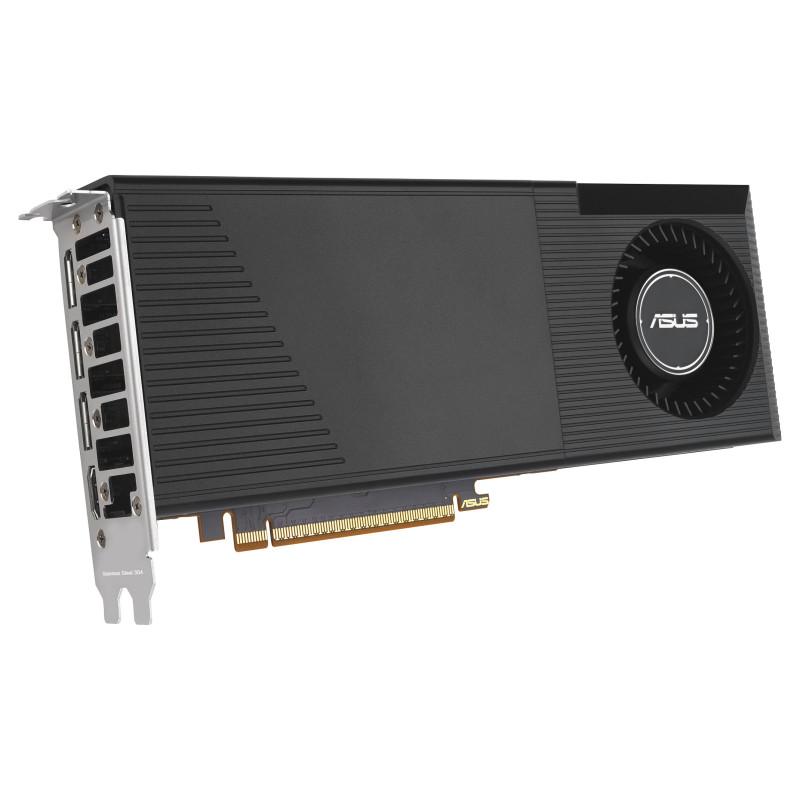

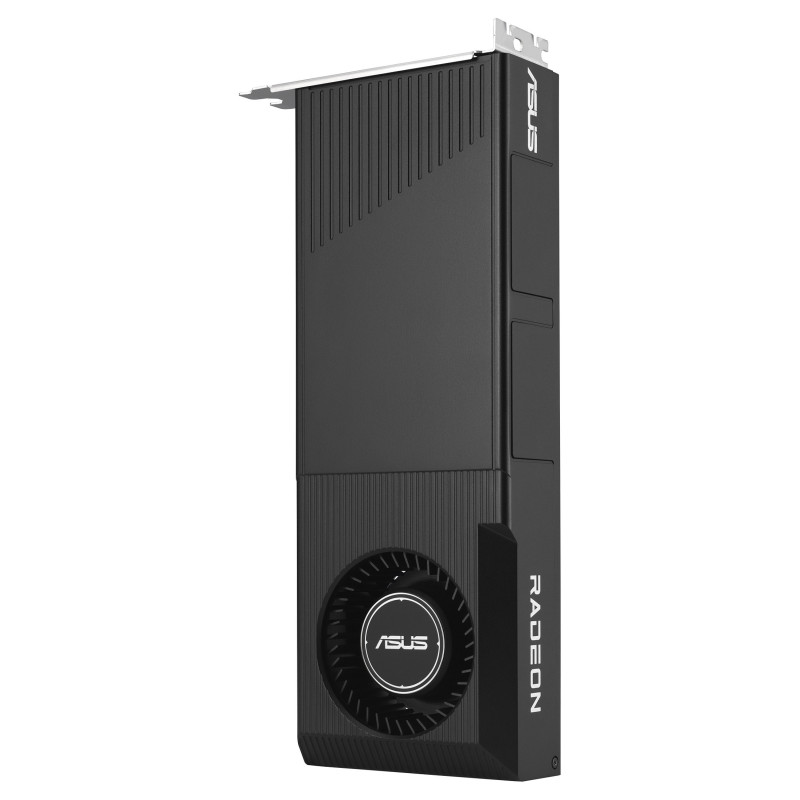

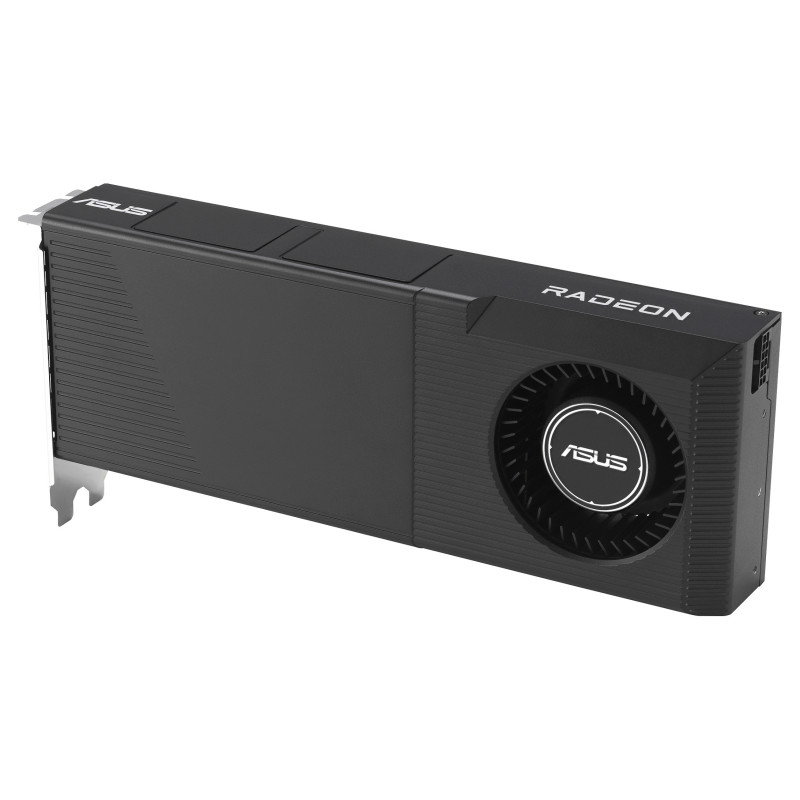

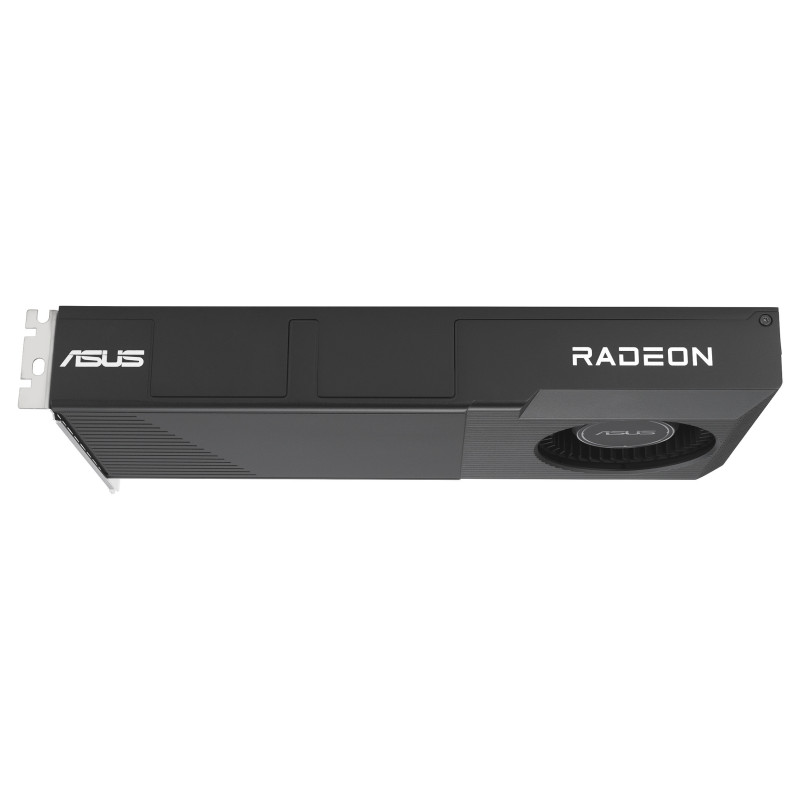

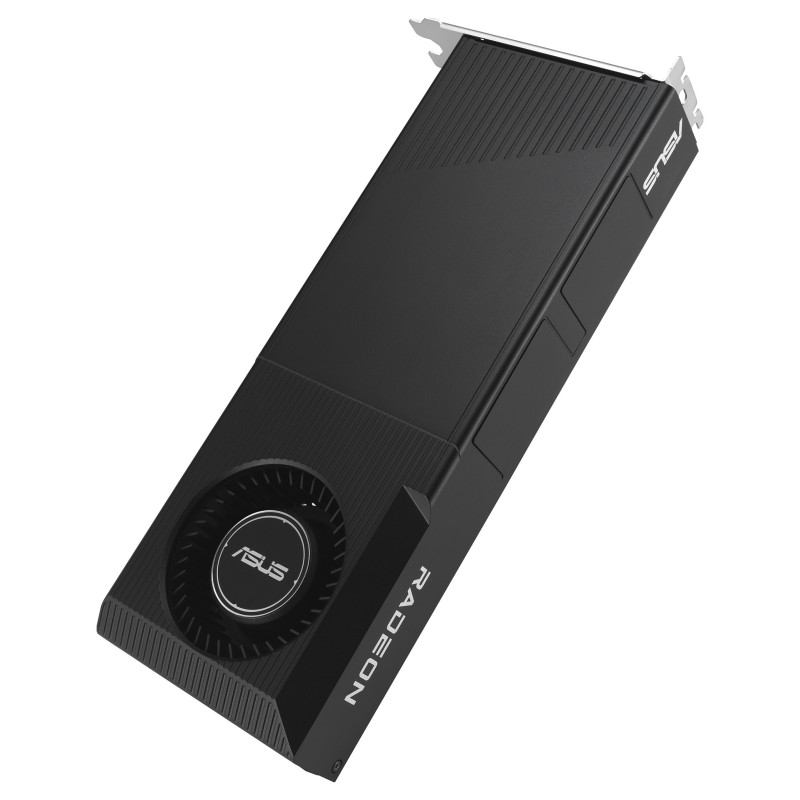

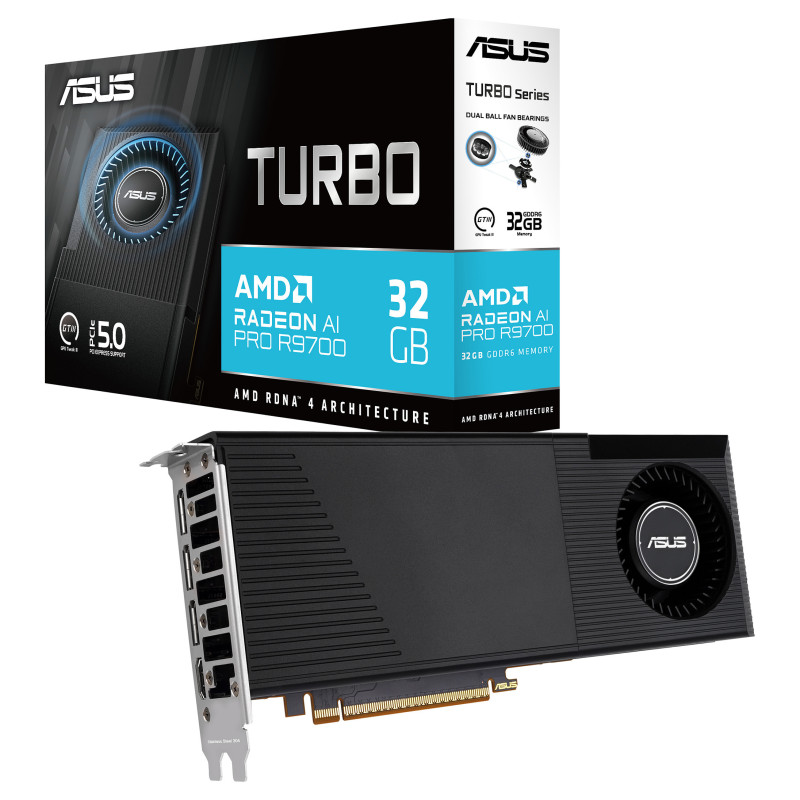

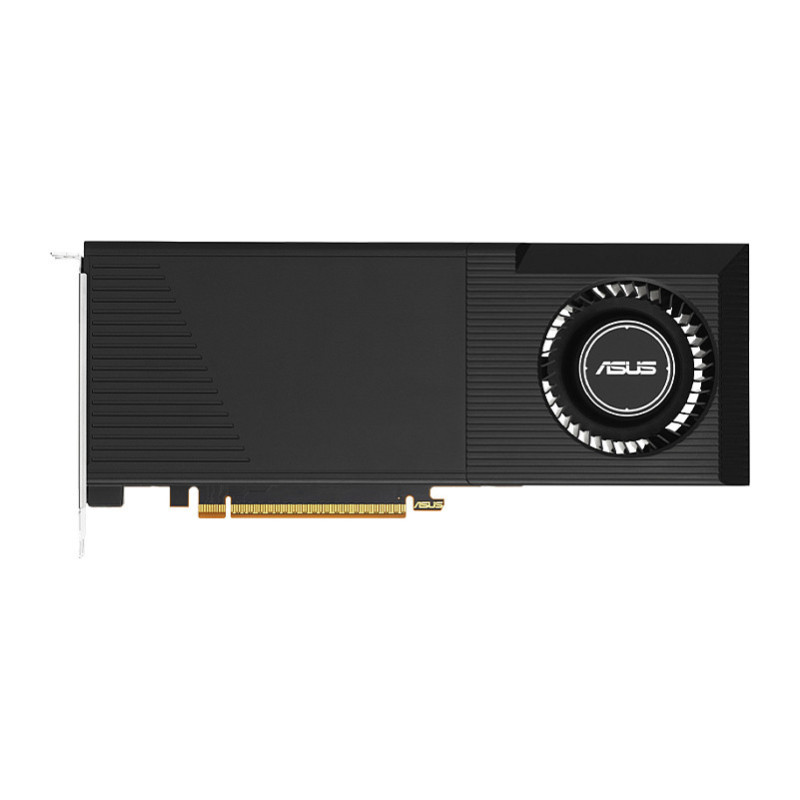

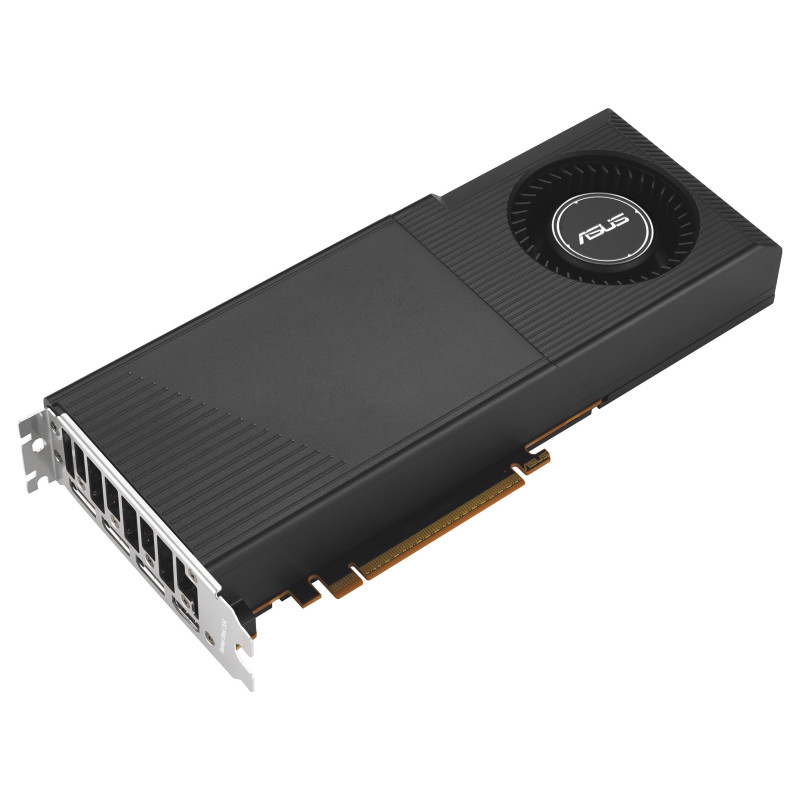

ASUS Turbo Radeon™ AI Pro R9700
TURBOCHARGED FOR AI
The ASUS Turbo Radeon™ AI Pro R9700 32GB is built for compact workstations tackling AI and professional workloads. Its blower-style cooler, die-cast shroud, and reinforced backplate ensure efficient heat dissipation and long-term reliability—even in the tightest spaces.

Cooling

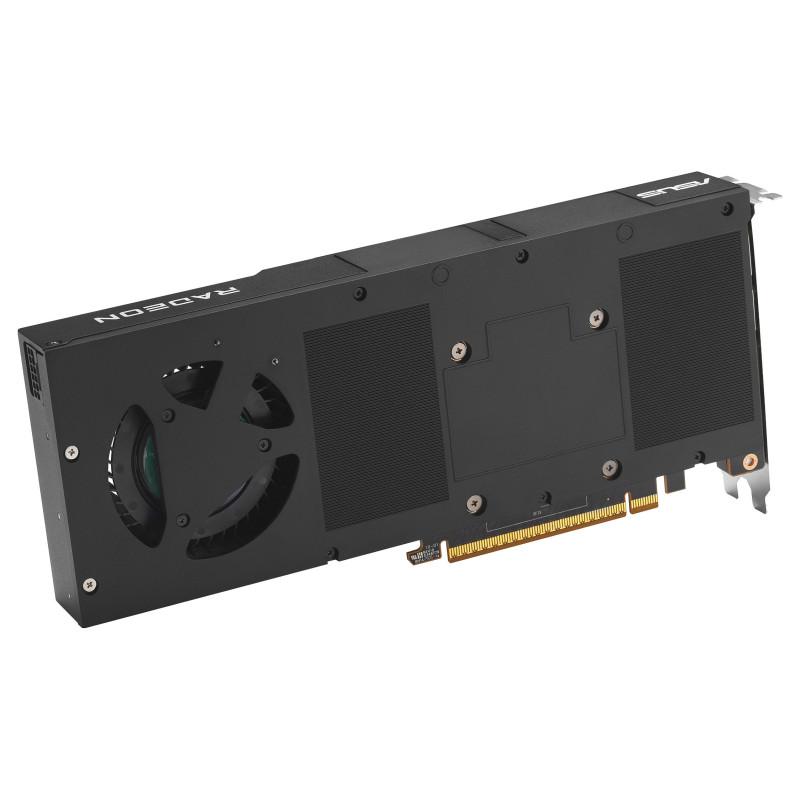

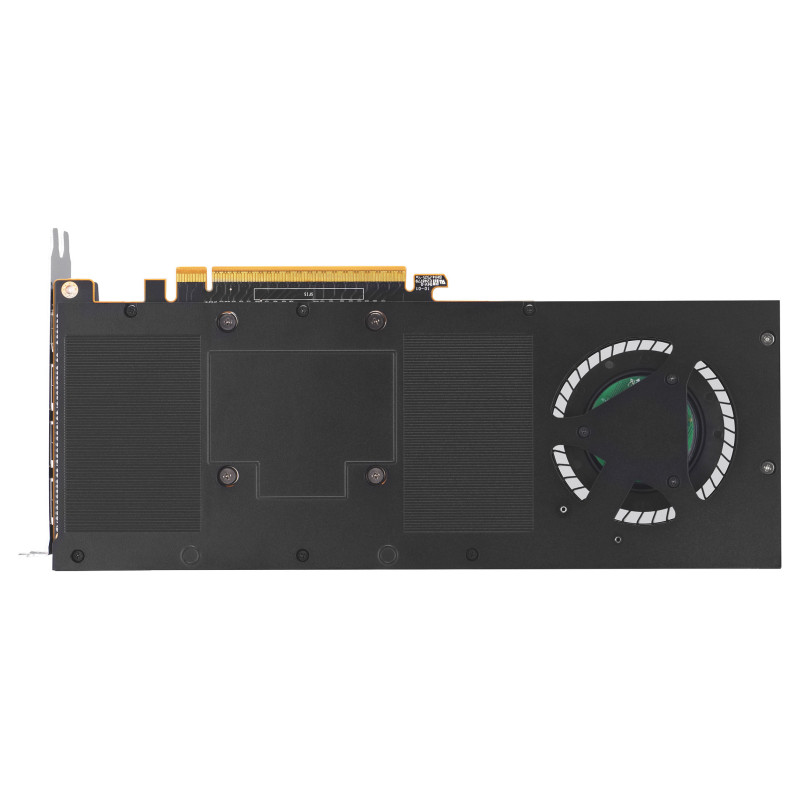

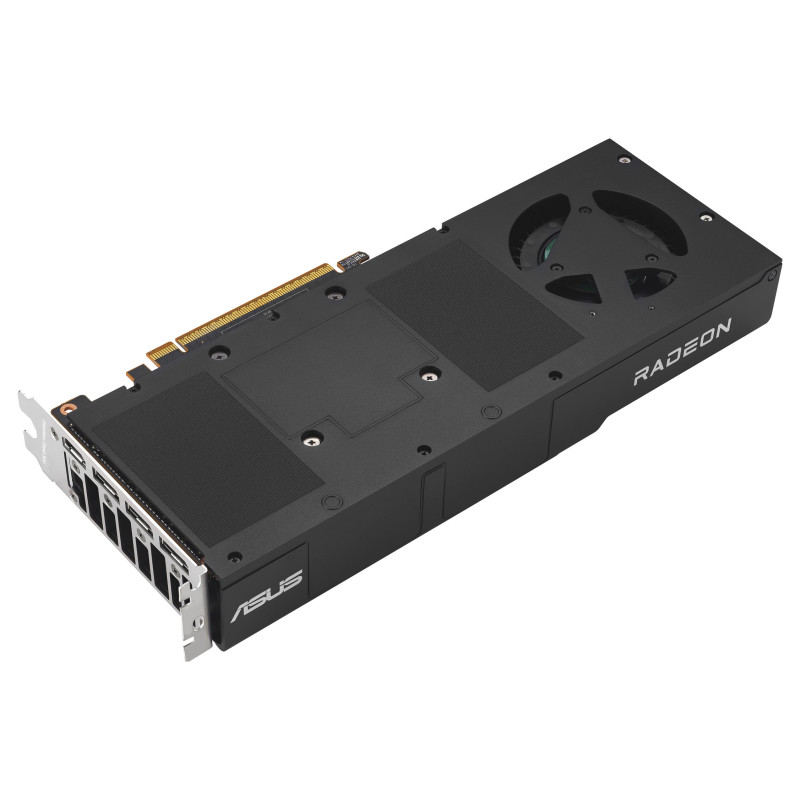

Diecast Shroud and Backplate
Engineered to boost heat dissipation and strengthen the card's structure. Its special wave design maximizes the thermal surface, reducing memory temps by up to 16%.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Processor

Compute units: 64
Render Output Units (ROPs): 128
Graphics processor family: AMD
Graphics processor: Radeon AI PRO R9700
Processor boost clock speed: 2920 MHz
Processor boost clock speed (OC mode): 2940 MHz
Processor boost clock speed (Gaming mode): 2350 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Stream processors: 4096
Maximum displays per videocard: 4
Ray accelerators: 64
AI accelerators: 128

Memory

Discrete graphics card memory: 32 GB
Graphics card memory type: GDDR6
Memory bus: 256 bit
Data transfer rate: 20 Gbit/s

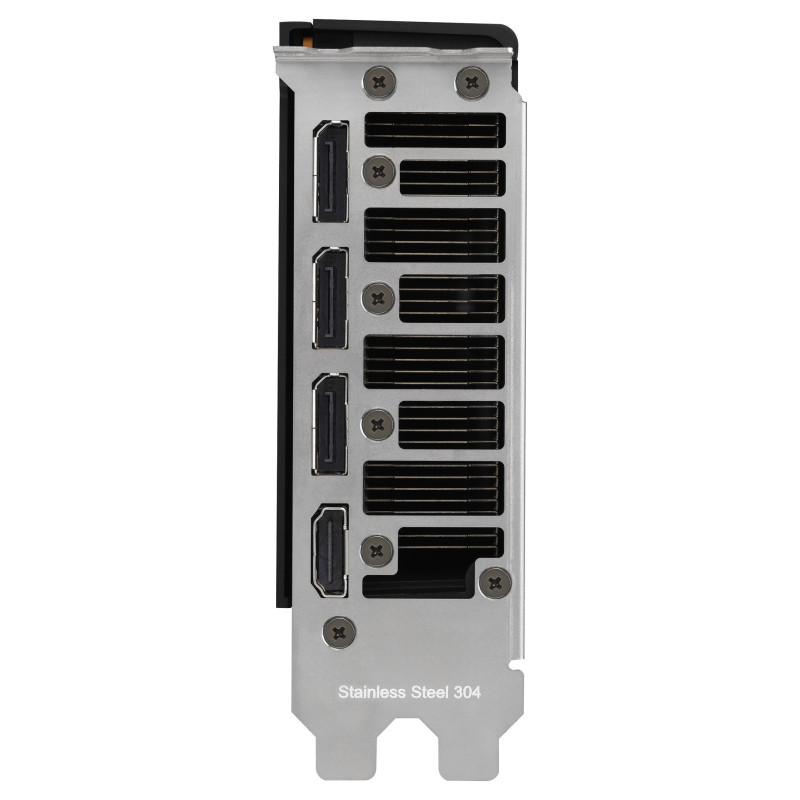

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1a

Performance

Peak Single Precision Matrix (FP32) performance: 47.8 TFLOPS
Peak Half Precision (FP16) performance: 95.7 TFLOPS
Peak INT4 performance: 1531 TOPs
Peak INT8 Performance: 766 TOPs
OpenGL version: 4.6
Feature: HDCP
HDCP version: 2.3

Design

Cooling type: Active
Number of fans: 1 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Number of slots: 2
Product colour: Grey

Power

Minimum system power supply: 750 W
Supplementary power connectors: 1x 16-pin

Weight & dimensions

Length: 266.7 mm
Depth: 40 mm
Height: 111.1 mm

Packaging content

Feature: Manual
