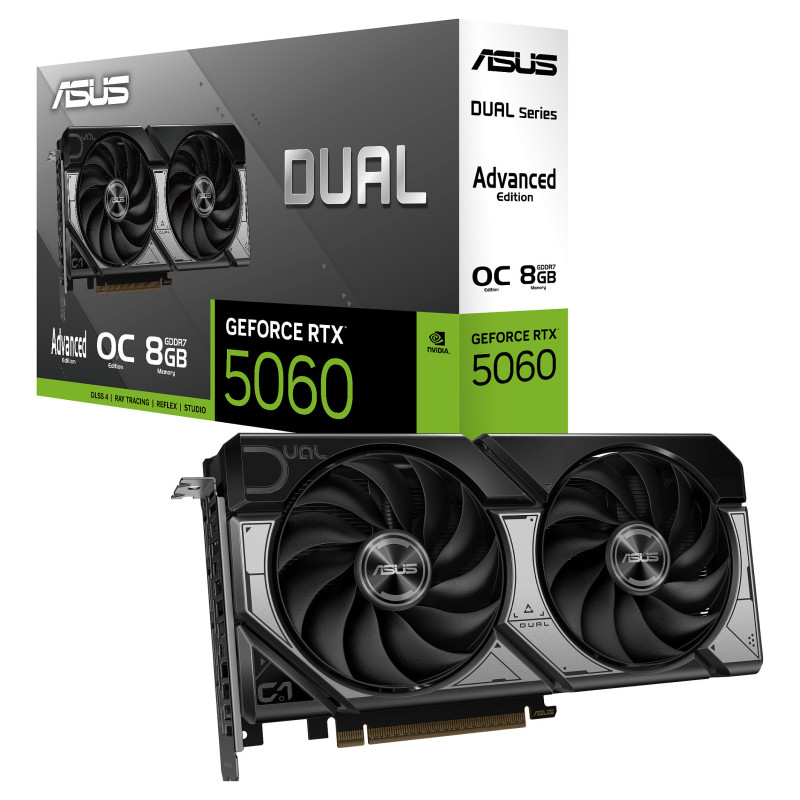

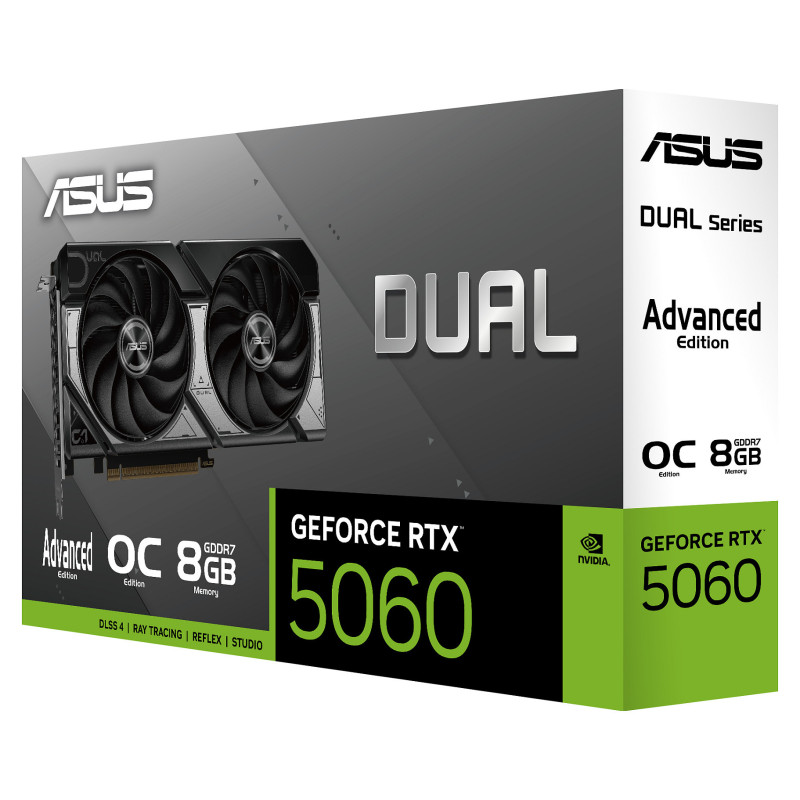

ASUS Dual -RTX5060-O8G-A

ASUS Dual -RTX5060-O8G-A. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)

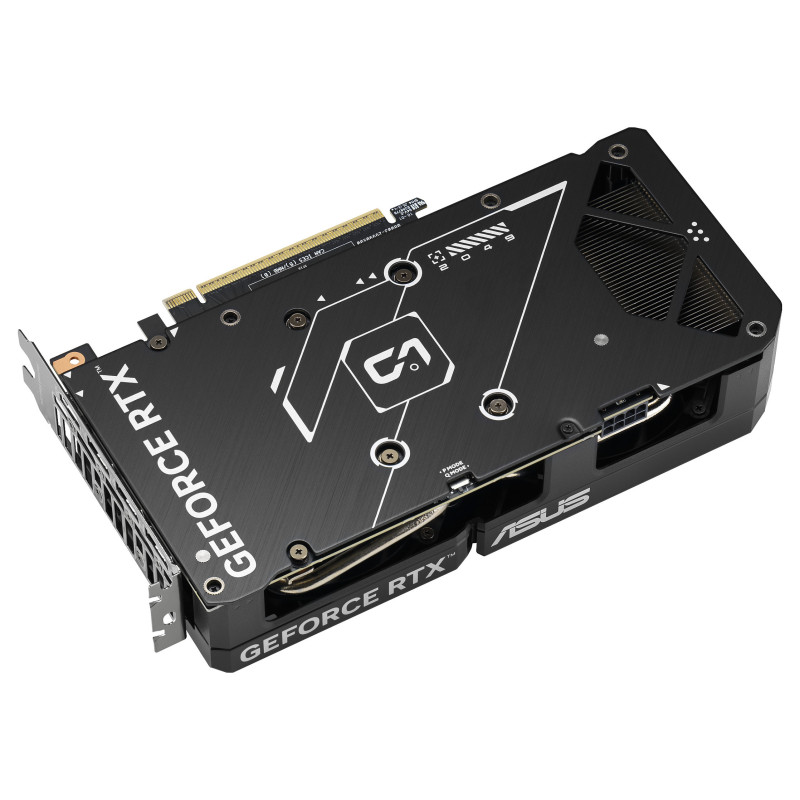

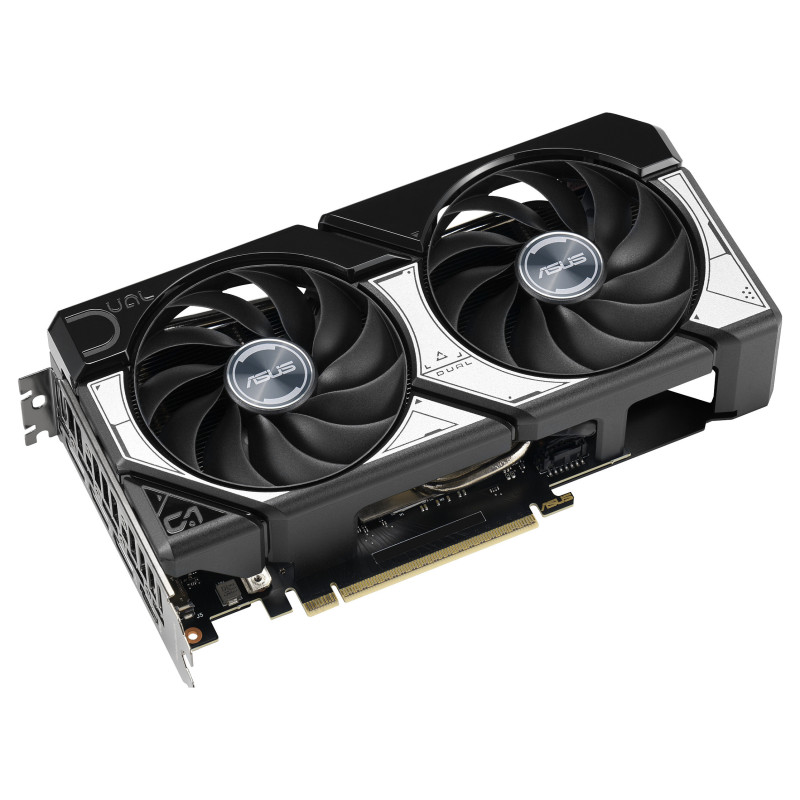

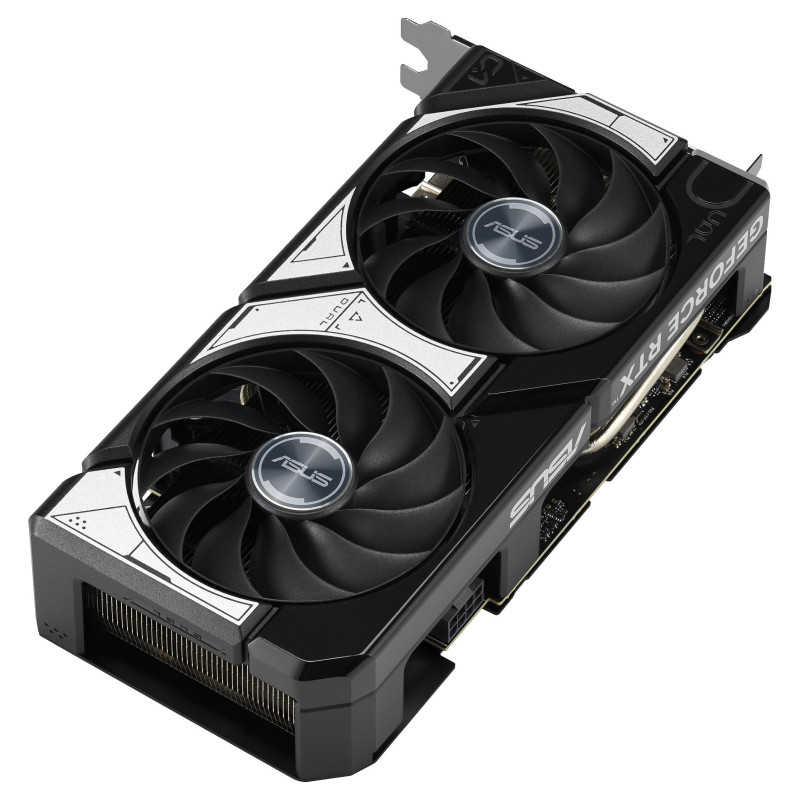

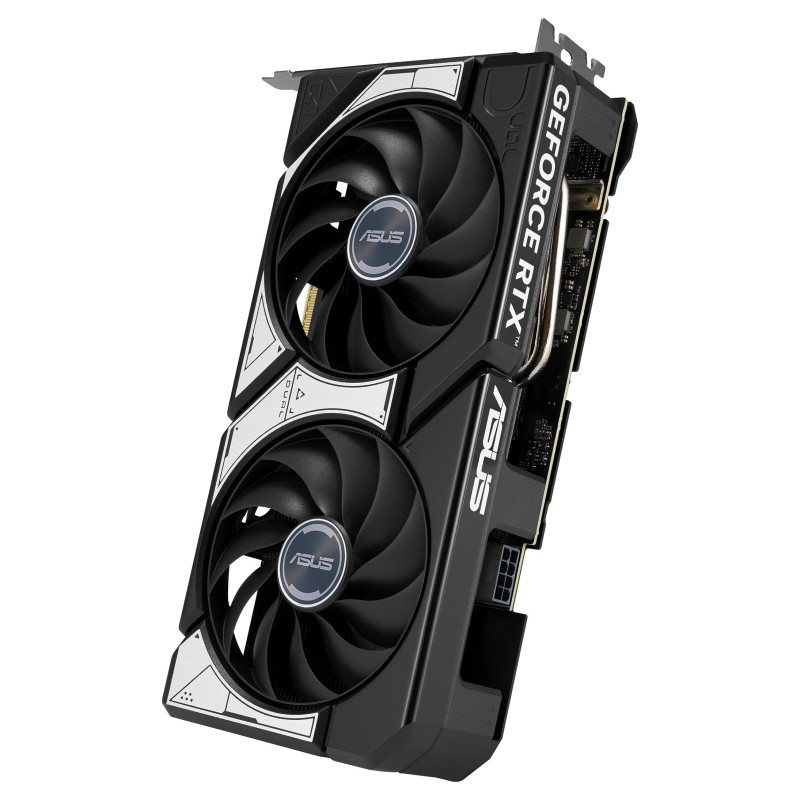

Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 OC Edition Advanced combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans —optimize airflow to the heatsink, helping the card deliver enhanced performance. Designed in a compact 2.5-slot form factor, it is delivering higher engine clocks in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Processor

CUDA: Yes
CUDA cores: 3840
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5060
Processor boost clock speed: 2550 MHz
Processor frequency (OC mode): 2587 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR7
Memory bus: 128 bit
Data transfer rate: 28 Gbit/s

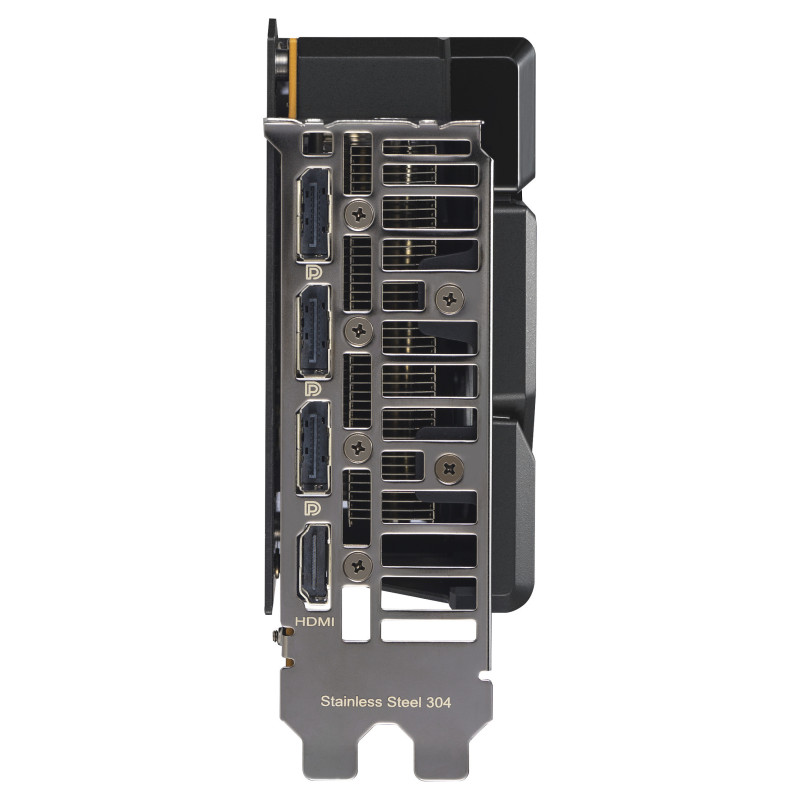

Ports interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b

Performance

TV tuner integrated: No
DirectX version: 12 Ultimate
OpenGL version: 4.6
HDCP: Yes
HDCP version: 2.3
Dual Link DVI: No
NVIDIA G-SYNC: Yes
NVIDIA Ansel: Yes
NPU performance up to: 614 TOPs
Overclocked (OC) edition: Yes

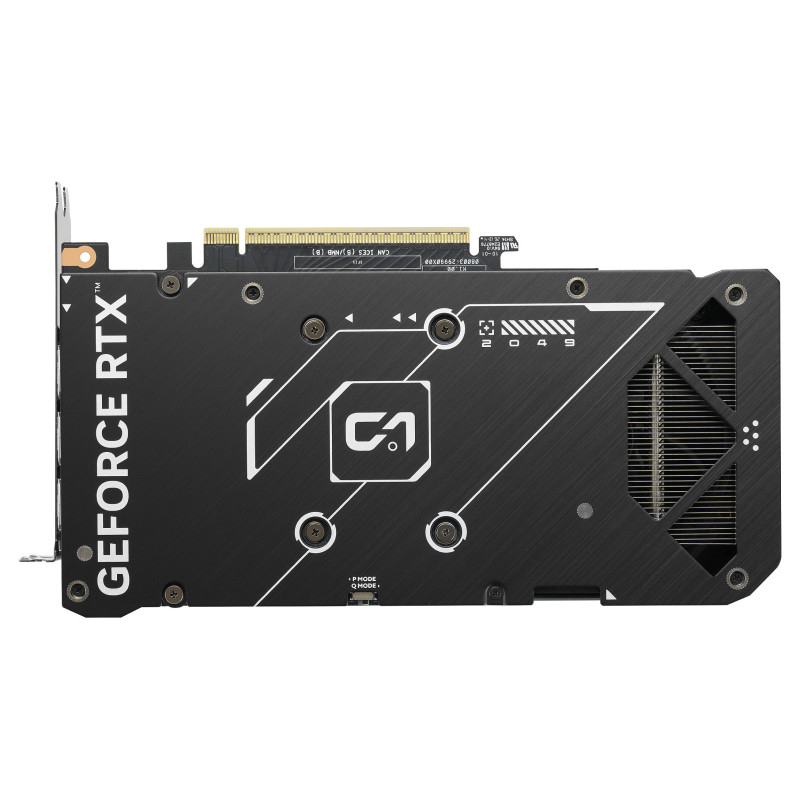

Design

Cooling type: Active
Cooling technology: ASUS Axial-tech
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Number of slots: 2.5
Product colour: Black, White

Power

Minimum system power supply: 550 W

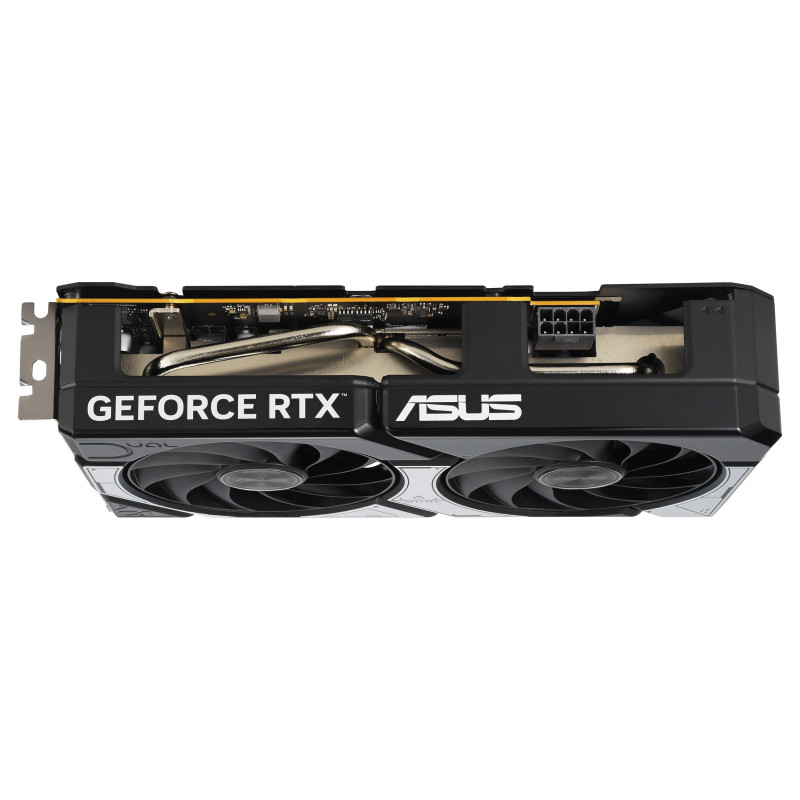

Supplementary power connectors: 1x 8-pin

Weight dimensions

Weight: 661 g
Length: 228 mm
Depth: 50 mm
Height: 123 mm

Packaging data

Package width: 368 mm
Package depth: 220.5 mm
Package height: 68 mm
Package weight: 1.12 kg
Package type: Box
