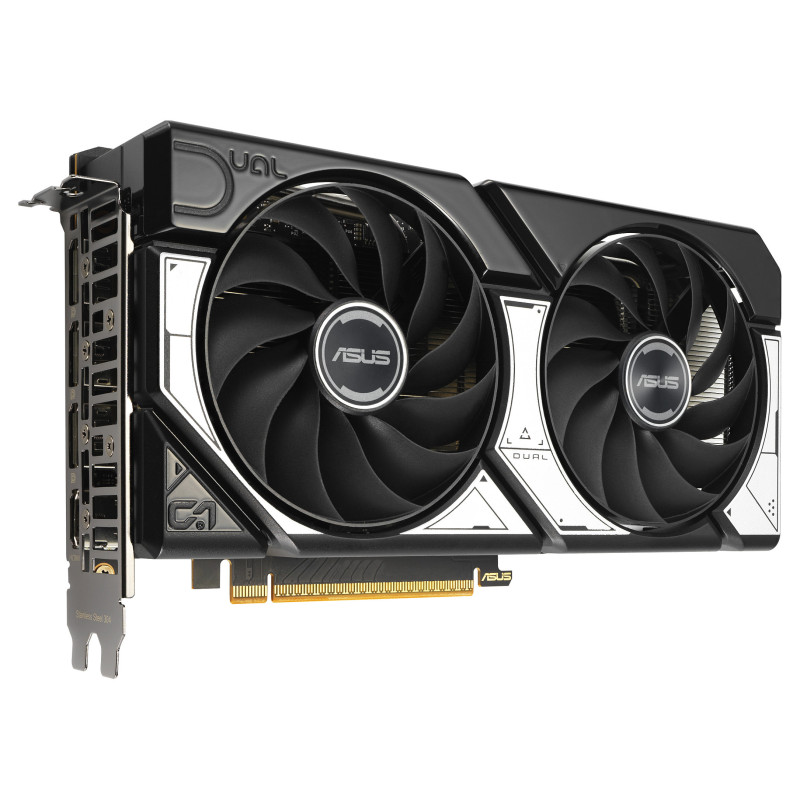

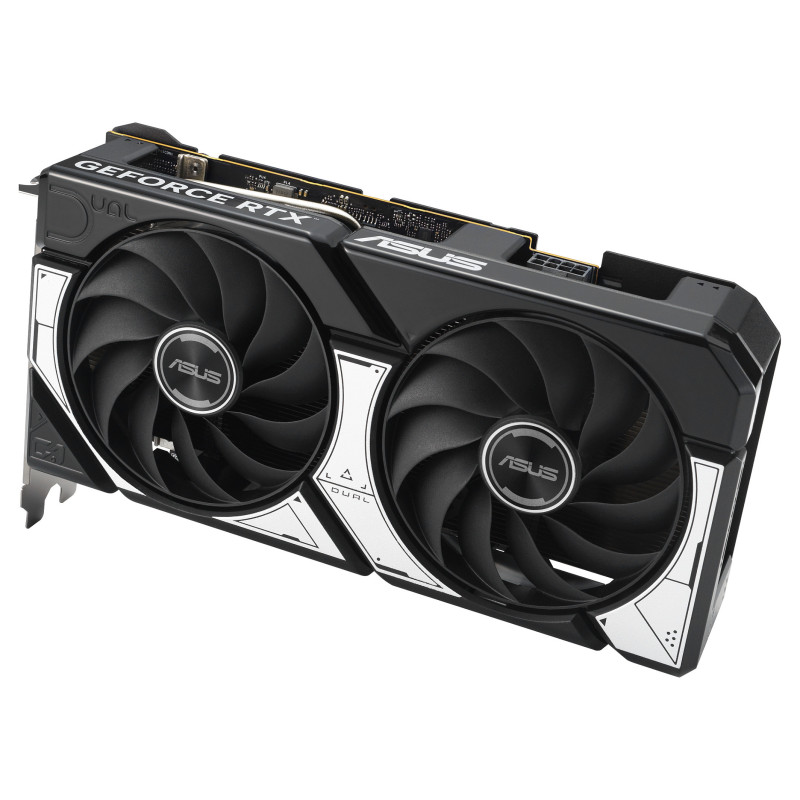

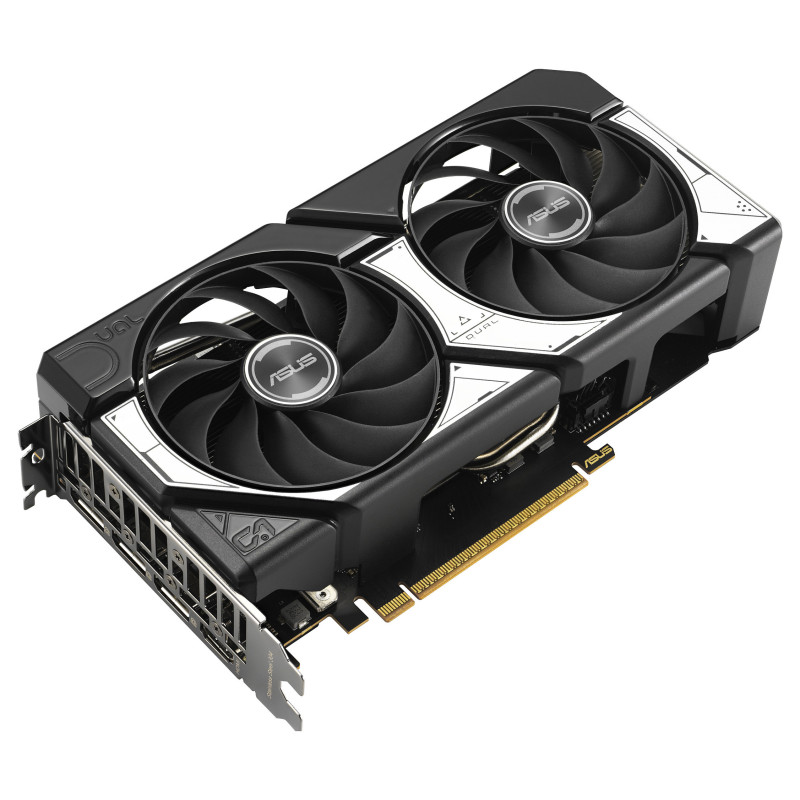

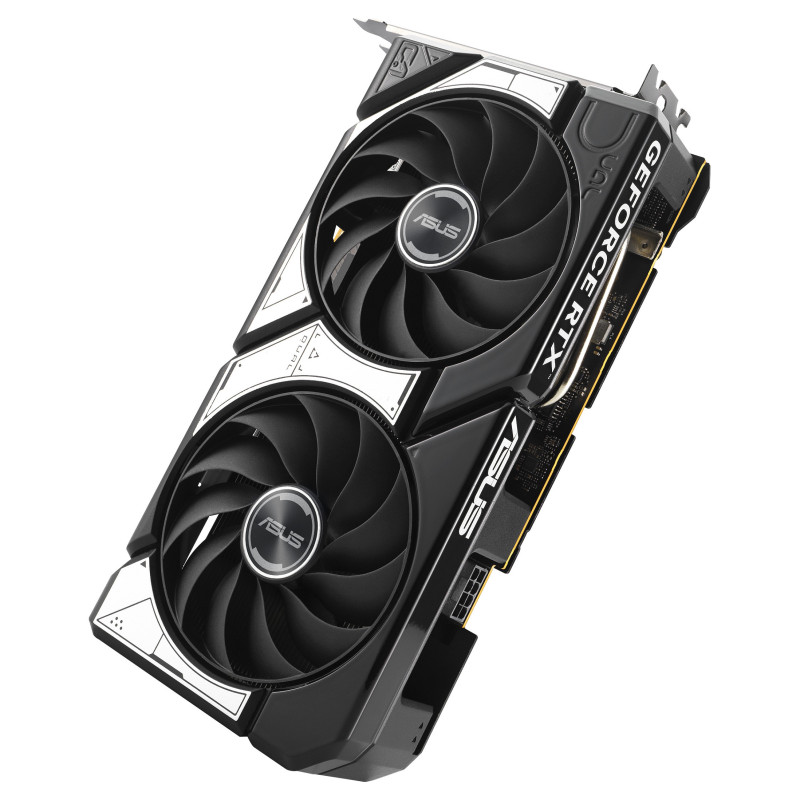

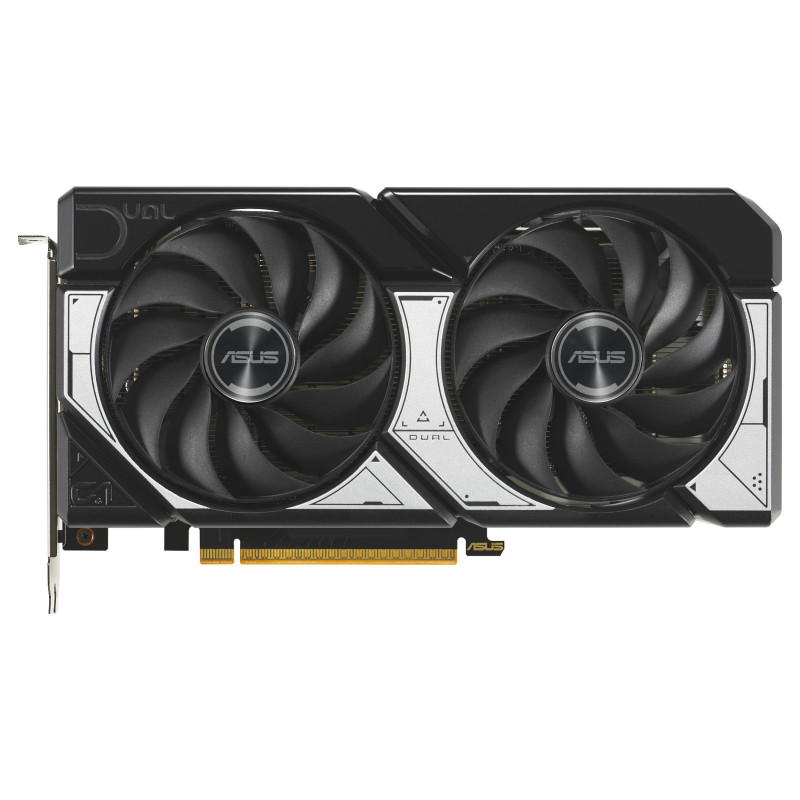

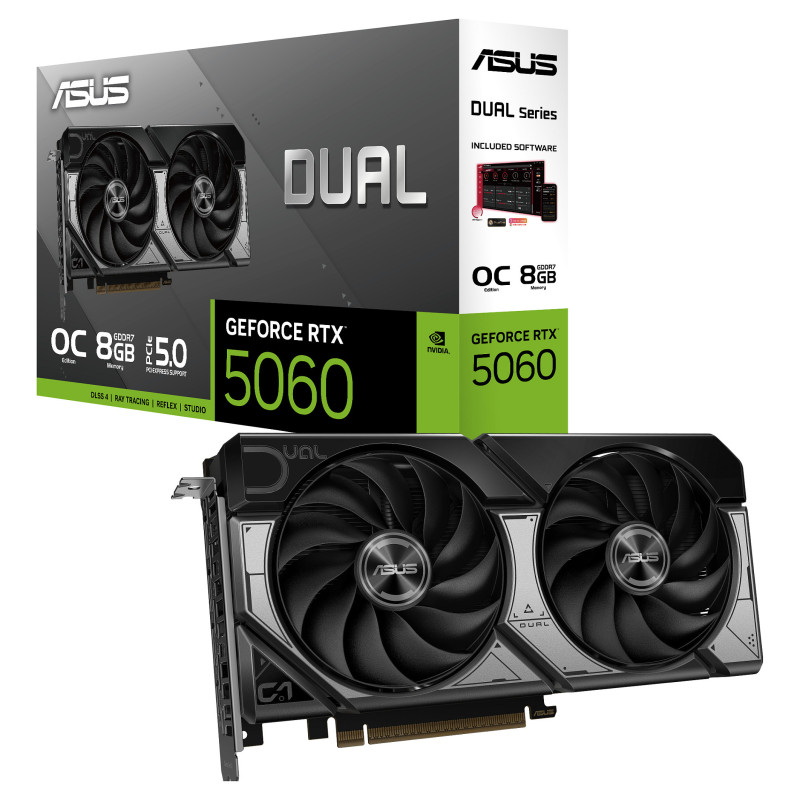

ASUS Dual -RTX5060-O8G

ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)

DUAL GEFORCE RTX™ 5060
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Cooling
2.5-slot Design

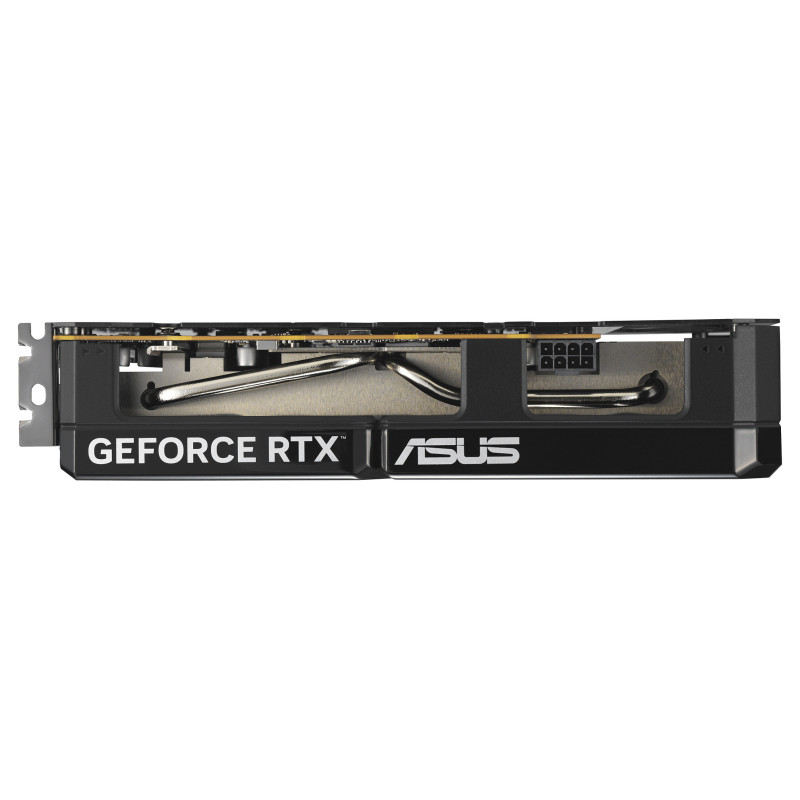

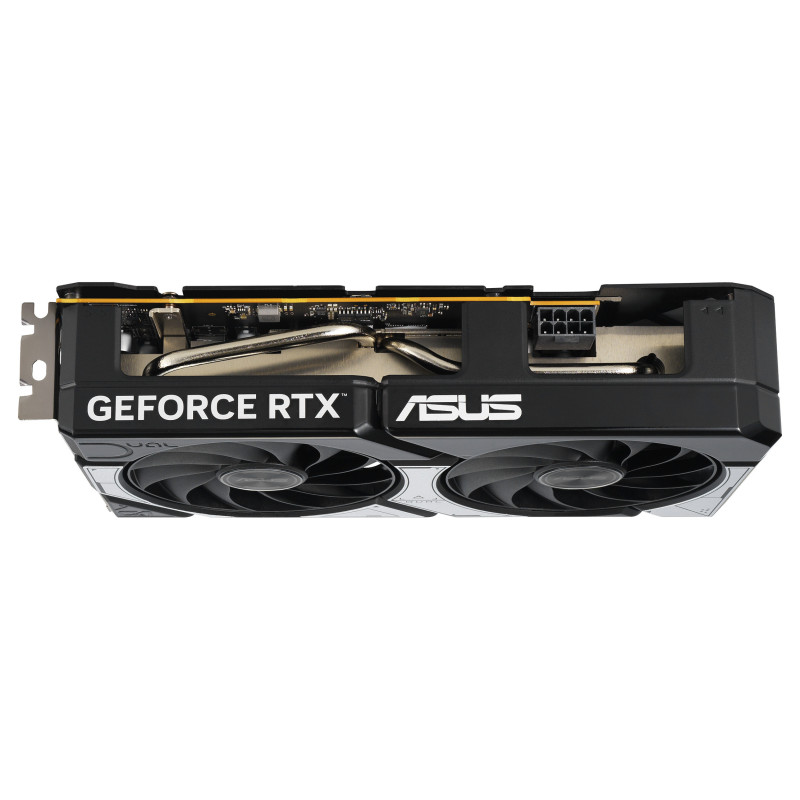

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

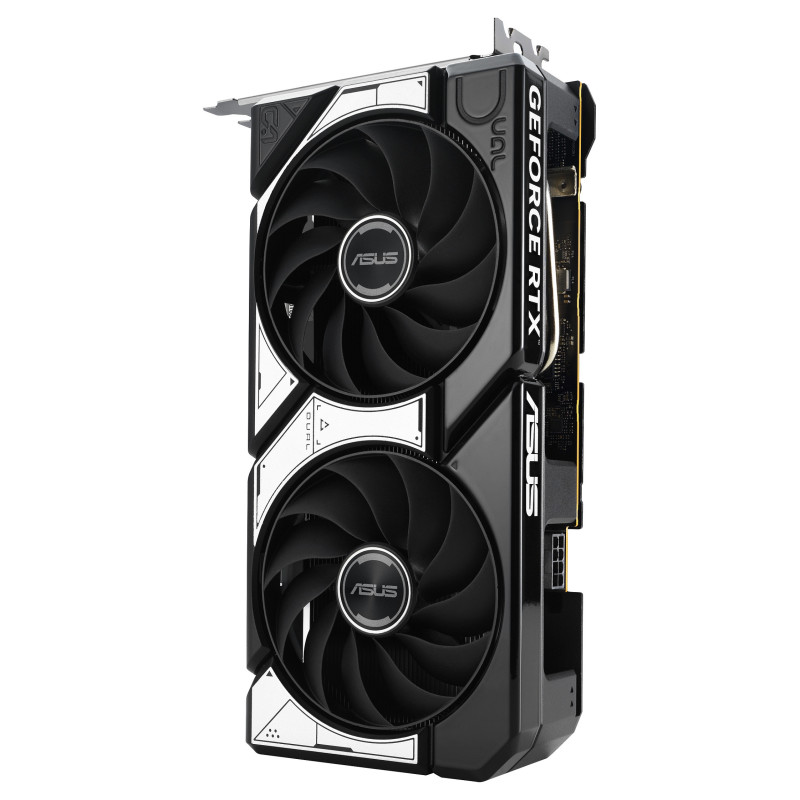

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

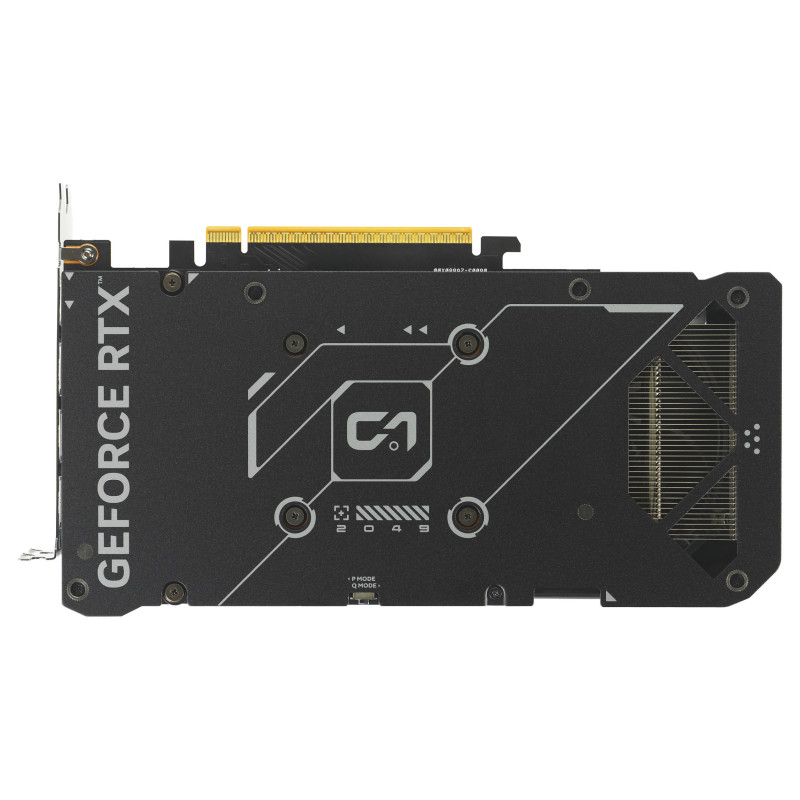

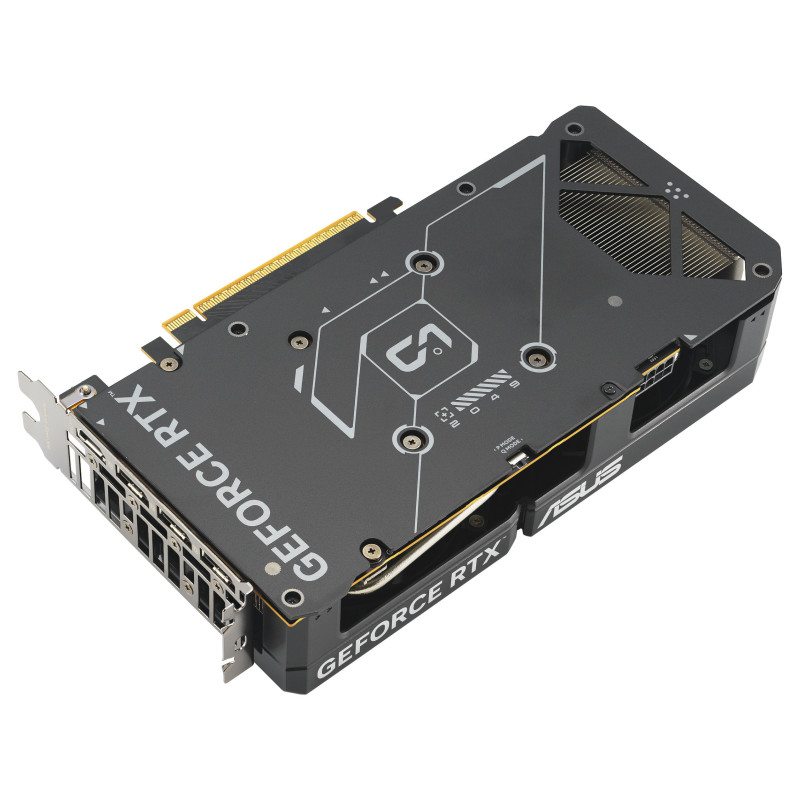

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Processor

Feature: CUDA
CUDA cores: 3840
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5060
Processor boost clock speed: 2535 MHz
Processor frequency (OC mode): 2565 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR7
Memory bus: 128 bit
Data transfer rate: 28 Gbit/s

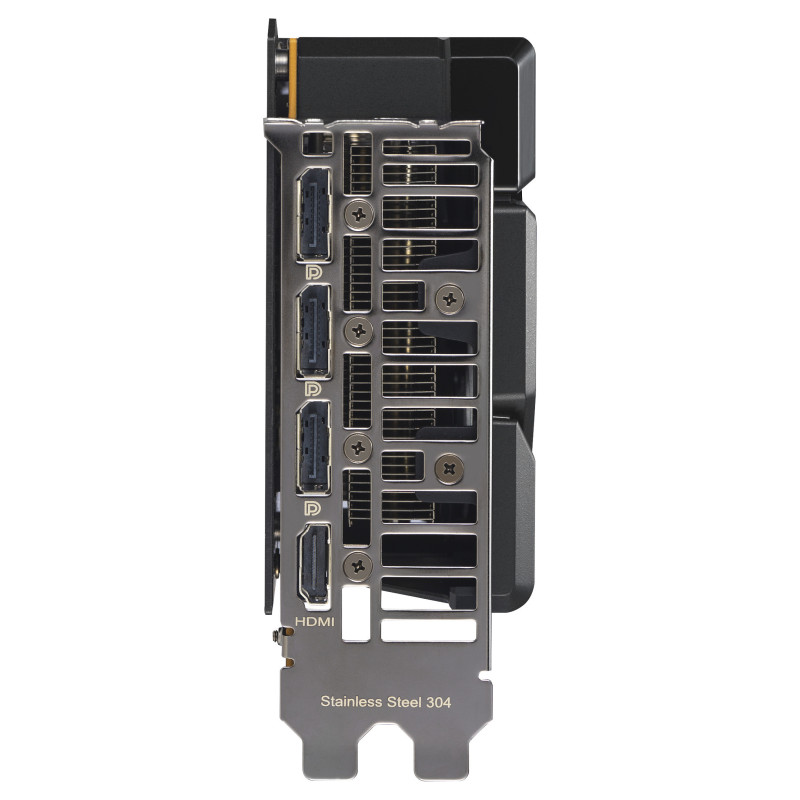

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b

Performance

OpenGL version: 4.6
Feature: Virtual Reality (VR) ready
Feature: HDCP
HDCP version: 2.3
Feature: NVIDIA G-SYNC
NPU performance up to: 614 TOPs
Feature: Overclocked (OC) edition

Design

Cooling type: Active
Cooling technology: ASUS Axial-tech
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Bracket height: Full-Height (FH)
Number of slots: 2.5
Feature: SFF ready
Product colour: Black, Grey

Power

Minimum system power supply: 550 W
Supplementary power connectors: 1x 8-pin

Weight & dimensions

Weight: 647 g
Length: 228 mm
Depth: 50 mm
Height: 123 mm

Packaging data

Package width: 368 mm
Package depth: 220 mm
Package height: 68 mm
Package weight: 1.11 kg
Package type: Box

Packaging content

Feature: Manual
