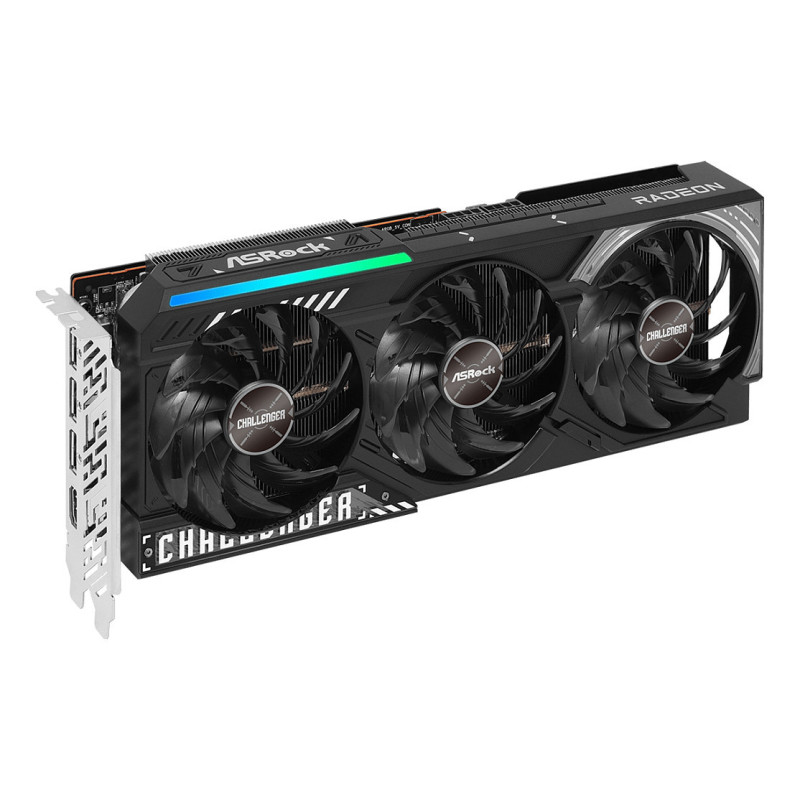

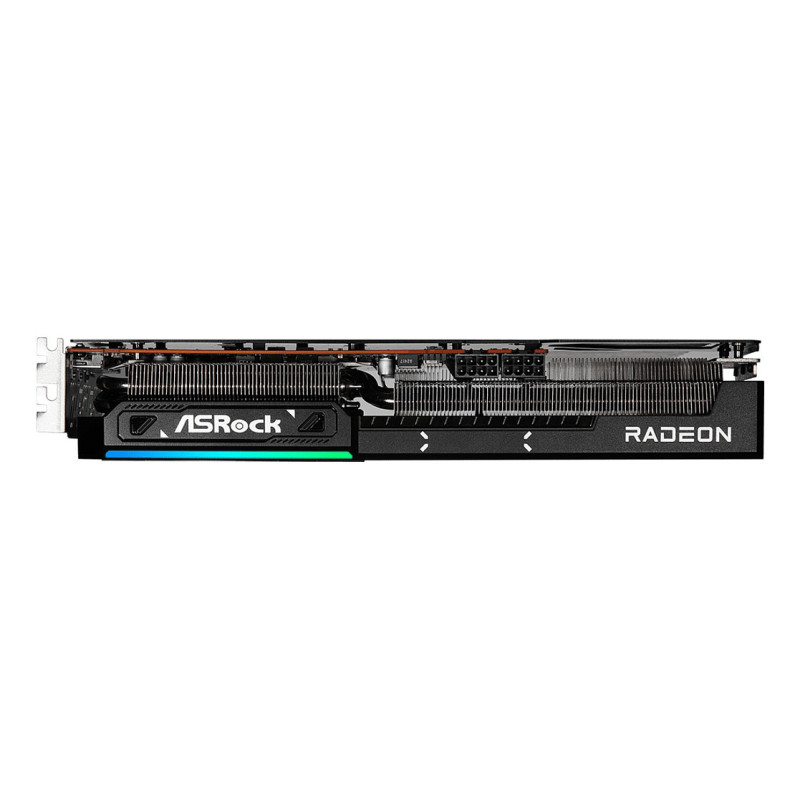

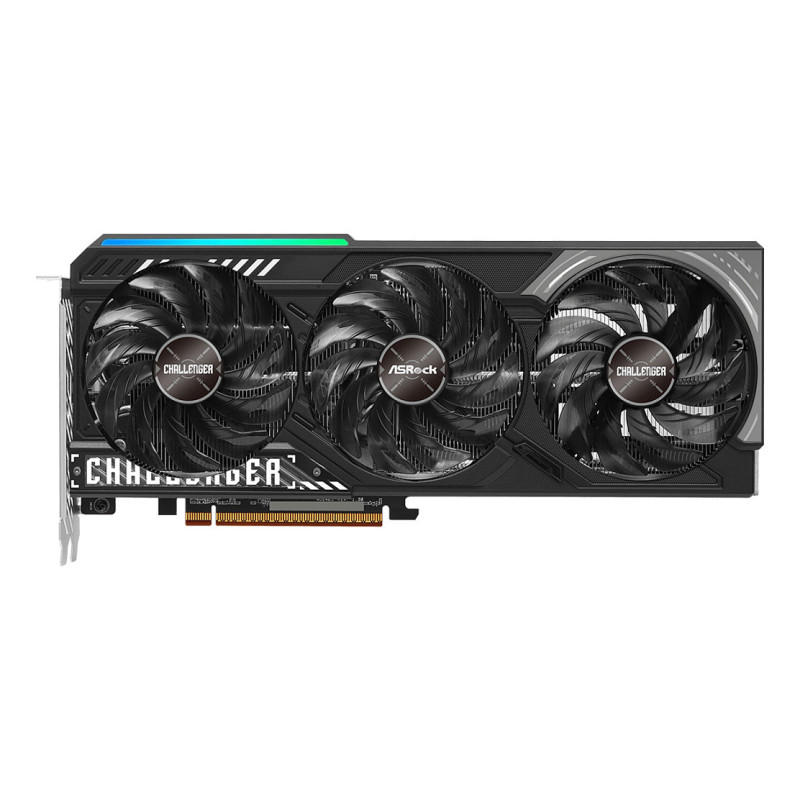

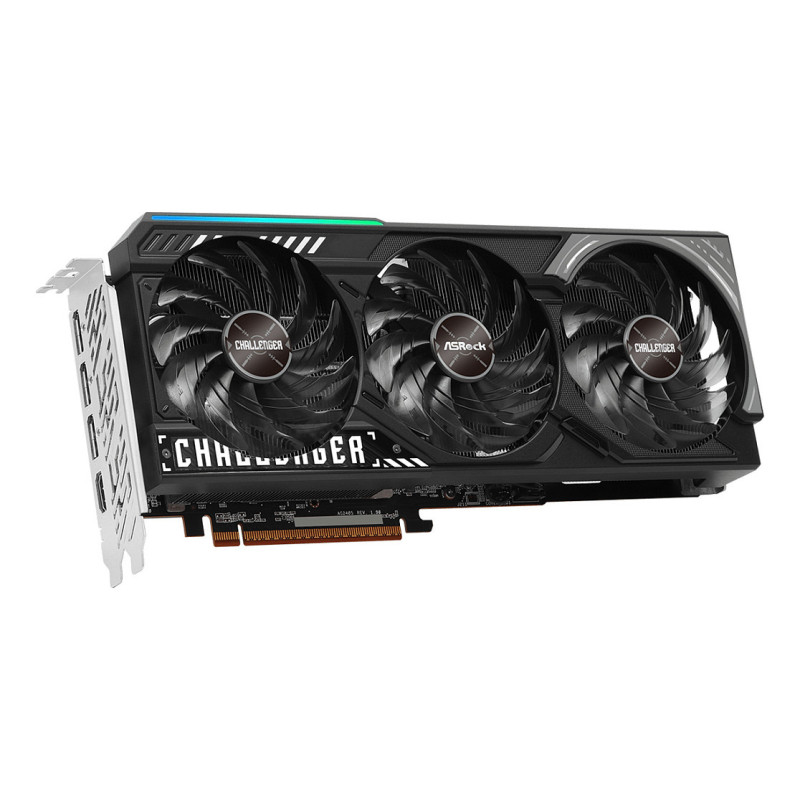

Asrock Radeon RX 9070 XT Challenger 16GB

Asrock Radeon RX 9070 XT Challenger 16GB. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s)

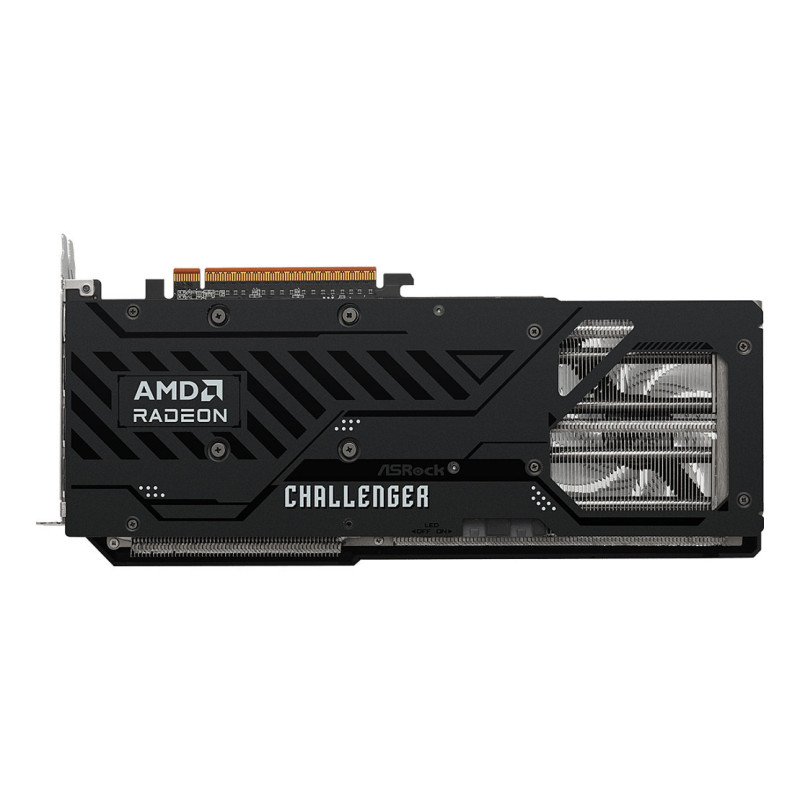

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.

Honeywell PTM7950
Phase-change Thermal Pad
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Processor

Compute units: 64
Graphics processor family: AMD
Graphics processor: Radeon RX 9070 XT
Processor boost clock speed: 2970 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 4096
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 256 bit
Data transfer rate: 20 Gbit/s

Ports & interfaces

Interface type: PCI Express x16 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1a

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: HDCP

Design

Cooling type: Active
Number of fans: 3 fan(s)
Feature: Illumination
Product colour: Black

Power

Minimum system power supply: 750 W
Supplementary power connectors: 2x 8-pin

Weight & dimensions

Weight: 918 g
Length: 290 mm
Depth: 56 mm
Height: 1038 mm

Packaging data

Package type: Box

Packaging content

Feature: Quick installation guide
