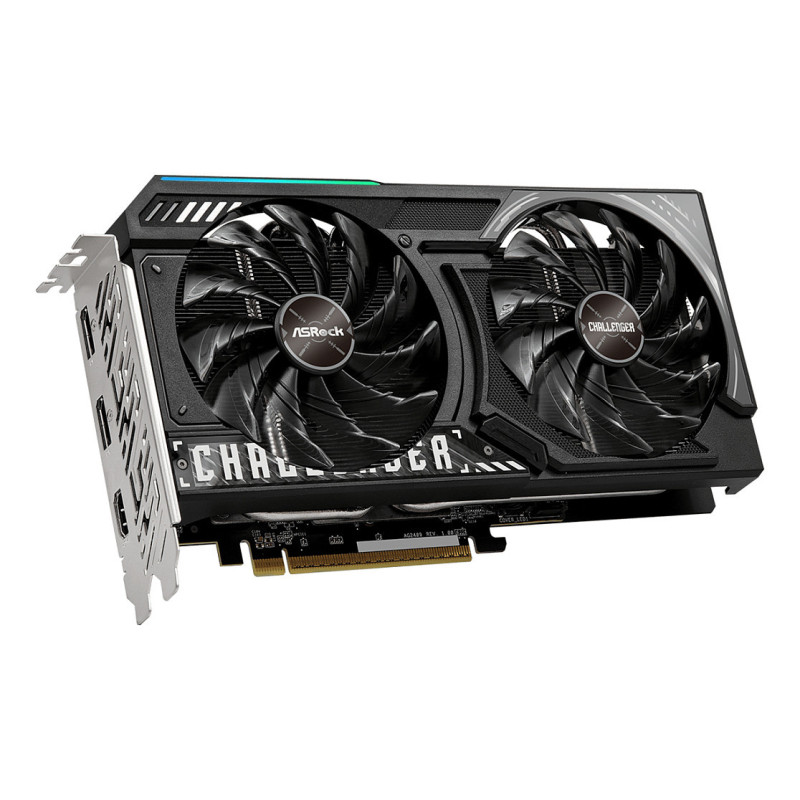

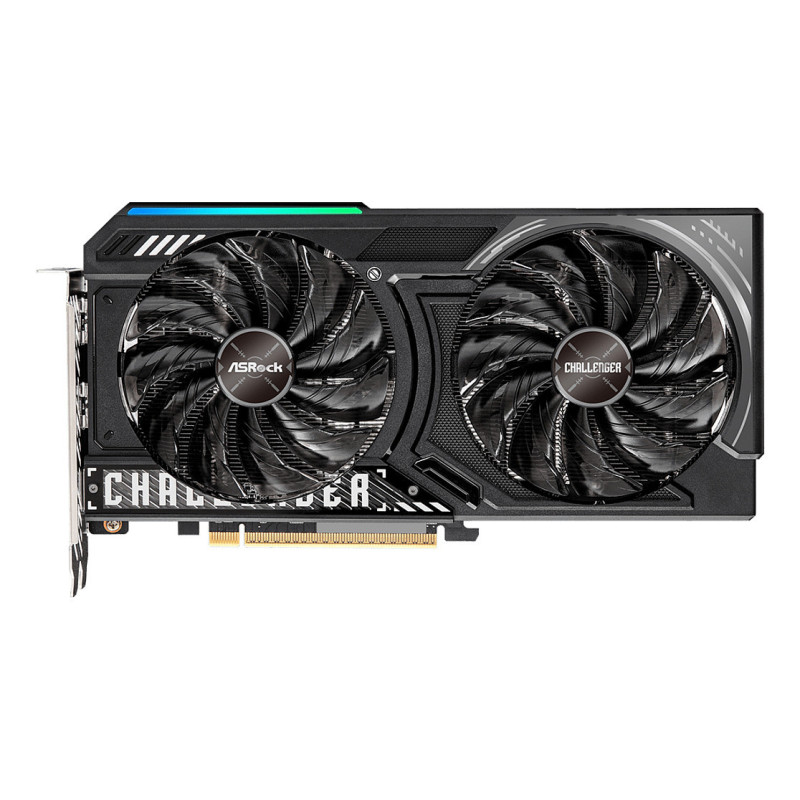

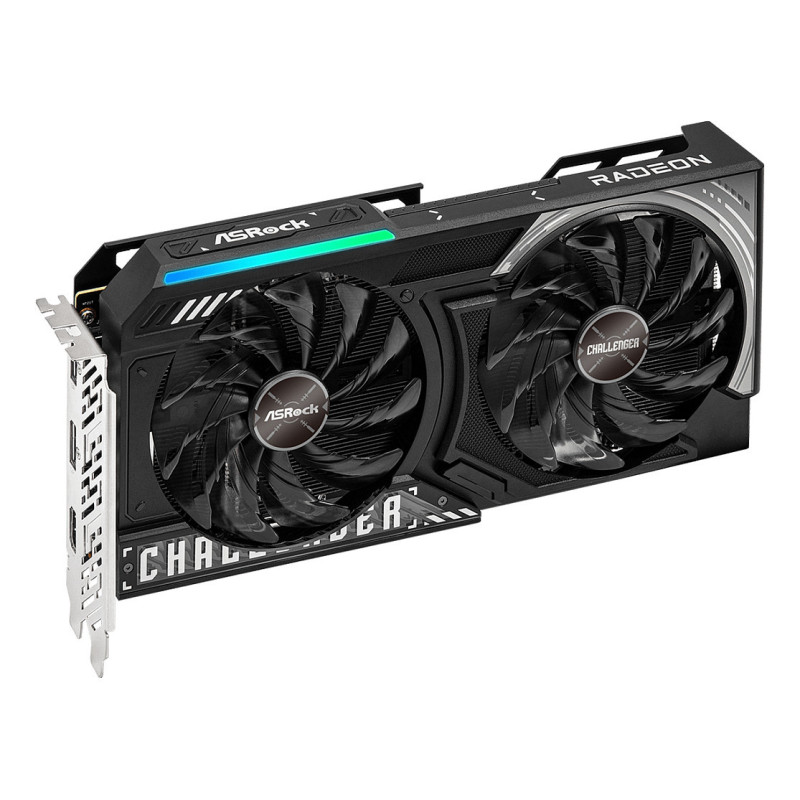

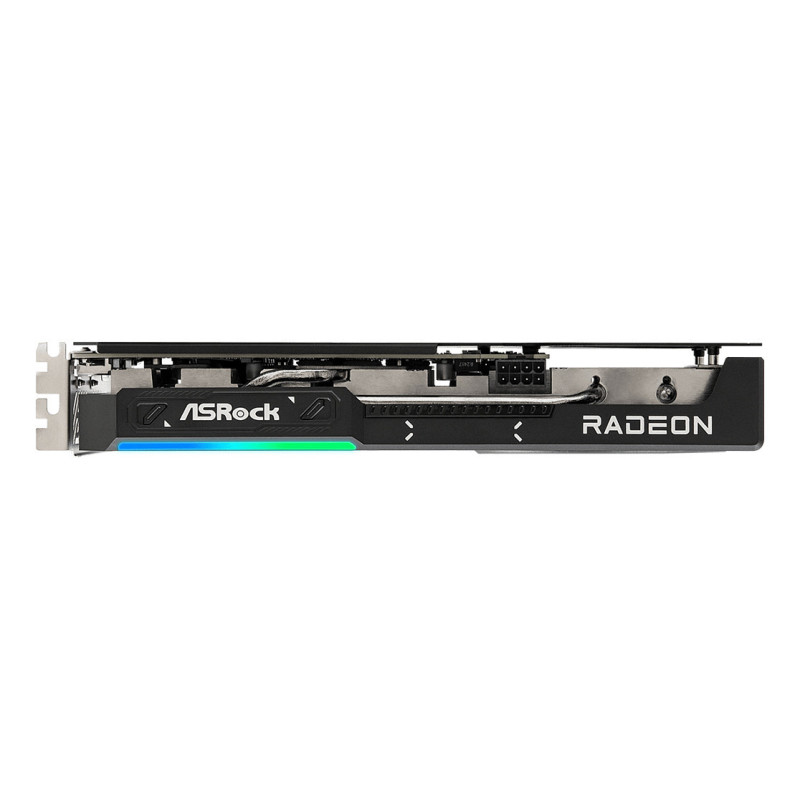

Asrock AMD Radeon RX 9060 XT Challenger 16GB OC

Asrock AMD Radeon RX 9060 XT Challenger 16GB OC. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 2 fan(s)

Dual Fan Design
Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

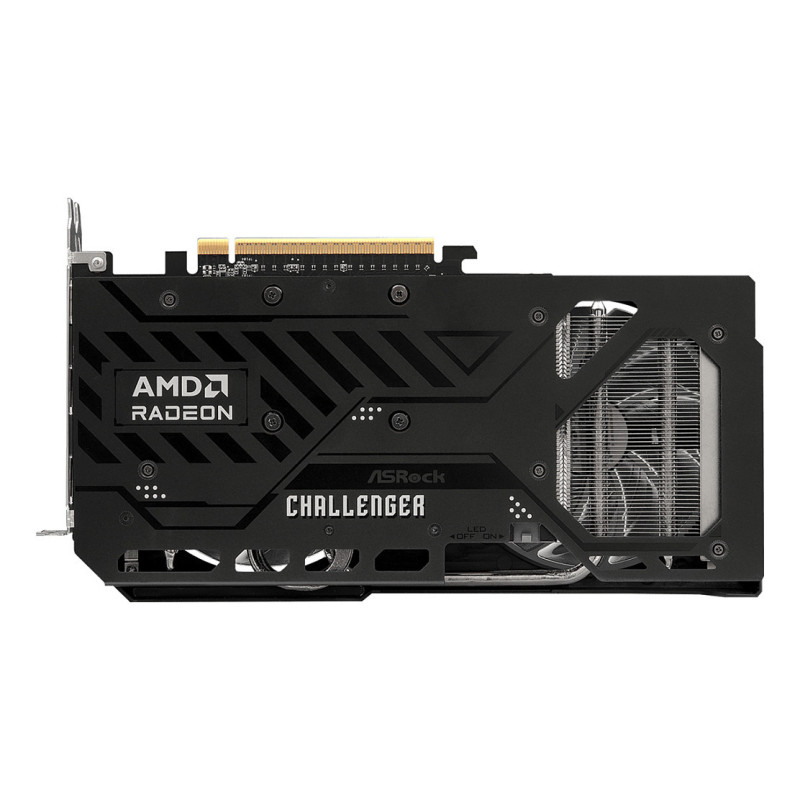

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

LED Indicators
More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.

LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Designed For Lightning-fast Gaming, Powered By AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD HYPR-RX2 for ultra-smooth, ultra-responsive gameplay that makes every play count.

Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 41 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.

Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX2. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.

Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology3, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.

Processor

Graphics processor family: AMD
Graphics processor: Radeon RX 9060 XT
Processor boost clock speed: 3290 MHz
Maximum resolution: 7680 x 4320 pixels
Stream processors: 2048
Maximum displays per videocard: 3

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 20 Gbit/s

Ports & interfaces

Interface type: PCI Express x16 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 2
DisplayPort version: 2.1a

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: HDCP

Design

Cooling type: Active
Number of fans: 2 fan(s)
Feature: Illumination
Product colour: Black

Power

Minimum system power supply: 550 W
Supplementary power connectors: 1x 8-pin

Weight & dimensions

Weight: 645 g
Length: 249 mm
Depth: 132 mm
Height: 41 mm
