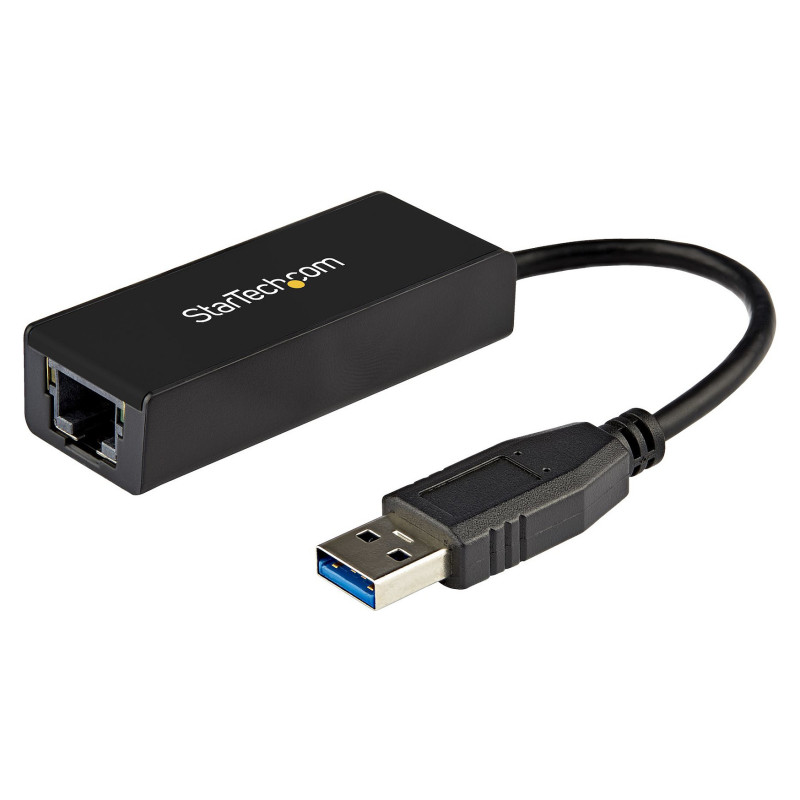

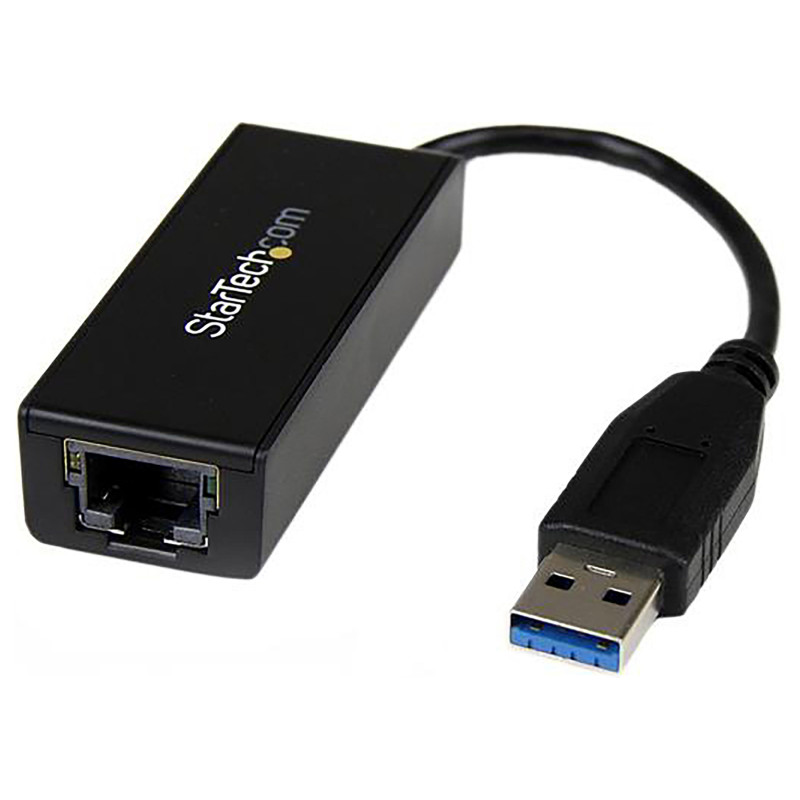

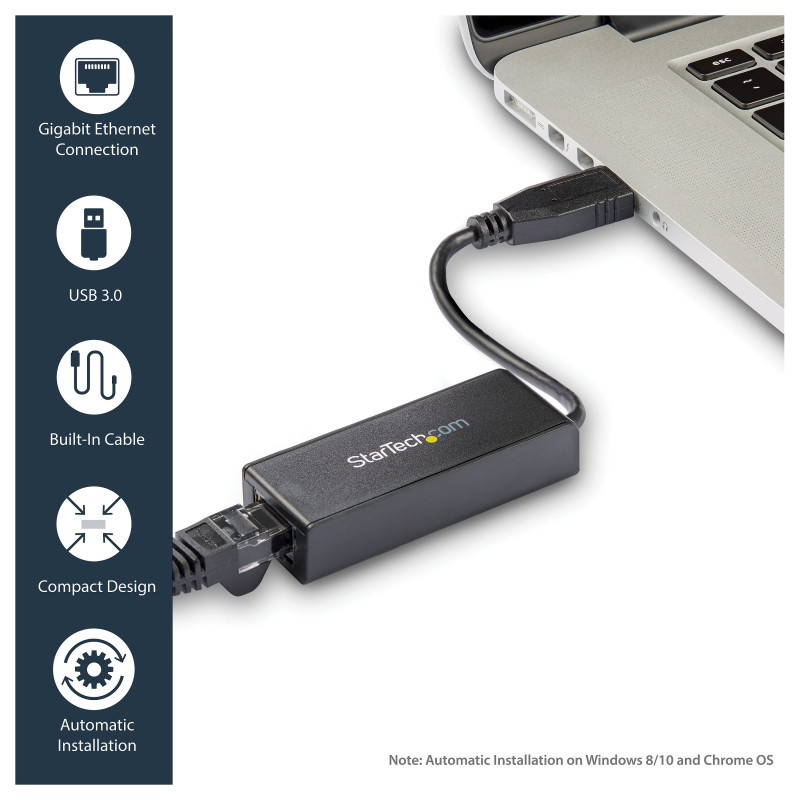

StarTech.com USB31000S network card

StarTech.com USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter, USB 3.0 Ethernet Adapter (GbE), TAA Compliant. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port

The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Feature: Ethernet LAN
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 4000
Feature: VLAN tagging
Maximum operating distance: 100 m

Design

Chipset: ASIX - AX88179
LED indicators: Activity, Link
Country of origin: Taiwan

System requirements

Linux operating systems supported: Yes
Other operating systems supported: ChromeOS
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Sustainability

Feature: Sustainability compliance

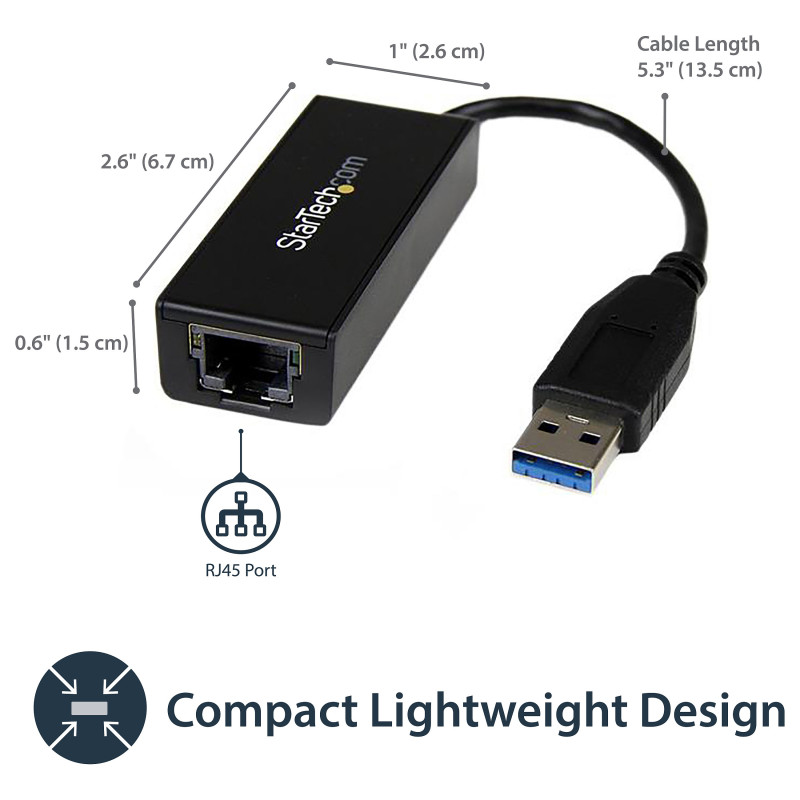

Weight & dimensions

Width: 26 mm
Depth: 67 mm
Height: 16 mm
Weight: 28 g

Packaging data

Feature: Drivers included
Package width: 126 mm
Package depth: 176 mm
Package height: 18 mm
Package weight: 138 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 441 mm
Master (outer) case length: 351 mm
Master (outer) case height: 172 mm
Products per master (outer) case: 100 pc(s)

Other features

Housing material: Plastic
Cable length: 0.135 m
