StarTech.com PEXUSB314A2V2 interface cards / adapter

StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Black, Metallic, Mean time between failures (MTBF): 40000 h. Chipset: ASMedia - ASM3142, ASMedia - ASM1812, Data transfer rate (max): 10 Gbit/s. Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A

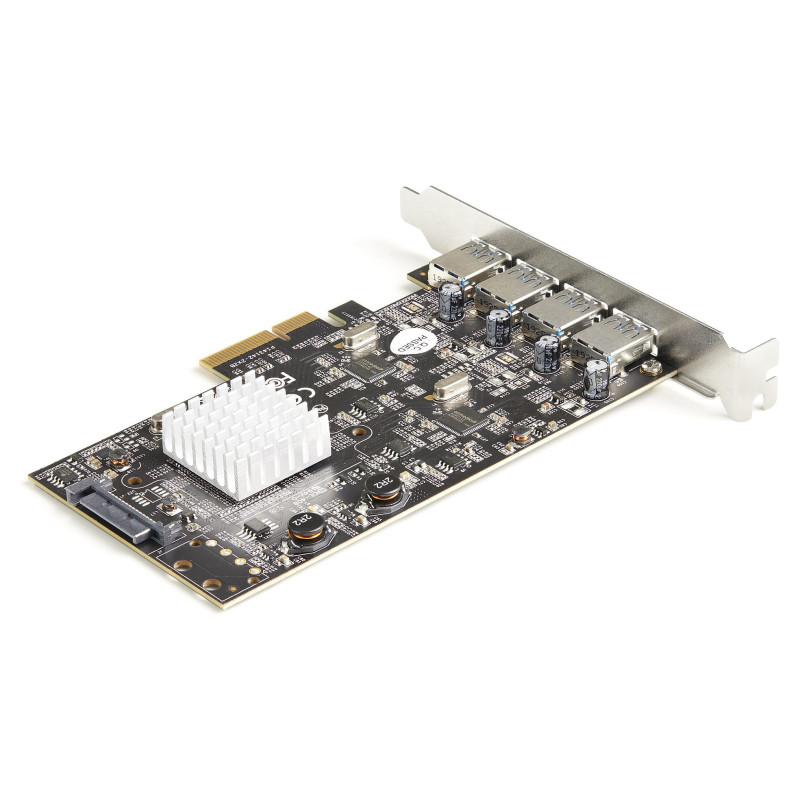

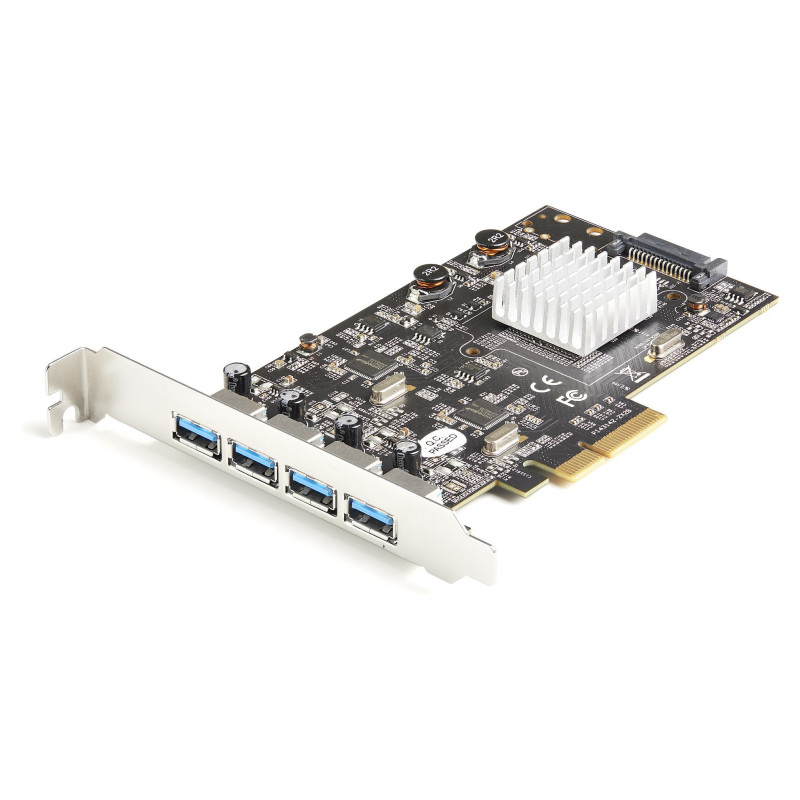

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.

Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

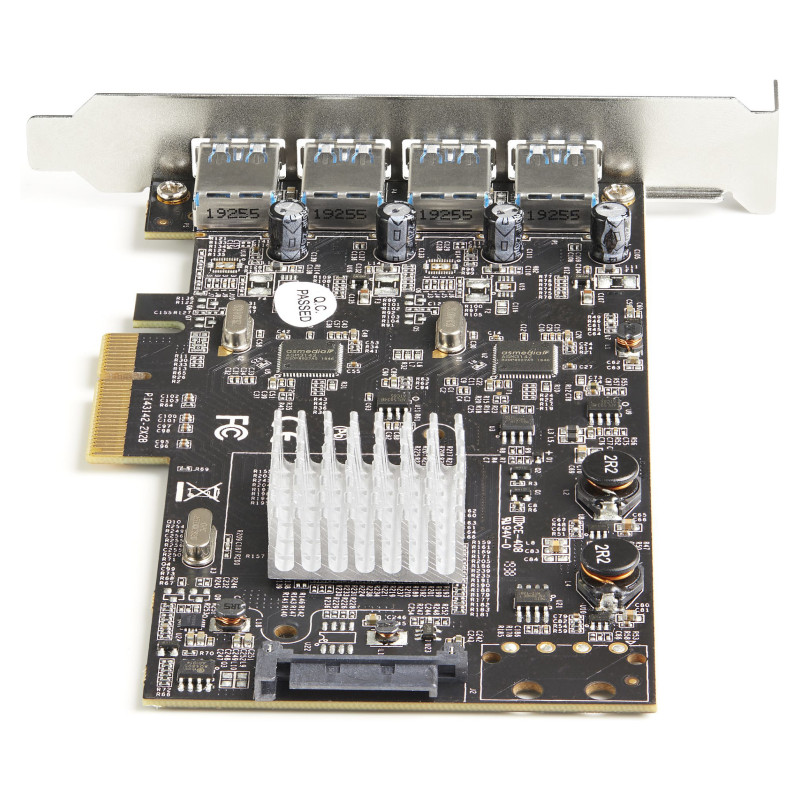

The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

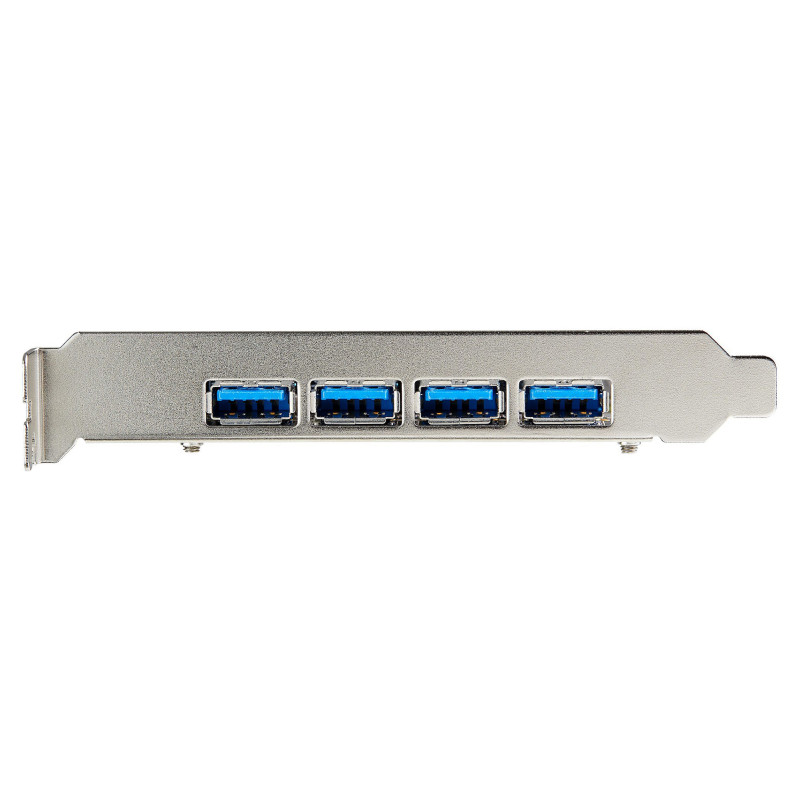

This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices

PEXUSB314A2V2 is backed by a StarTech.com lifetime warranty and free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCIe 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Internal SATA ports quantity: 1
SATA power connector type: SATA 15-pin

Design

Feature: Internal
Product colour: Black, Metallic
Mean time between failures (MTBF): 40000 h

Features

Chipset: ASMedia - ASM3142, ASMedia - ASM1812
Data transfer rate (max): 10 Gbit/s
Feature: UASP support

Power

Output voltage: 5 V

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Weight & dimensions

Width: 150 mm
Depth: 120 mm
Height: 19 mm
Weight: 125 g

Packaging data

Feature: Mounting brackets included
Feature: Quick installation guide
Package width: 217 mm
Package depth: 151 mm
Package height: 36 mm
Package weight: 180 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 40 pc(s)
Master (outer) case width: 454 mm
Master (outer) case length: 379 mm
Master (outer) case height: 325 mm
