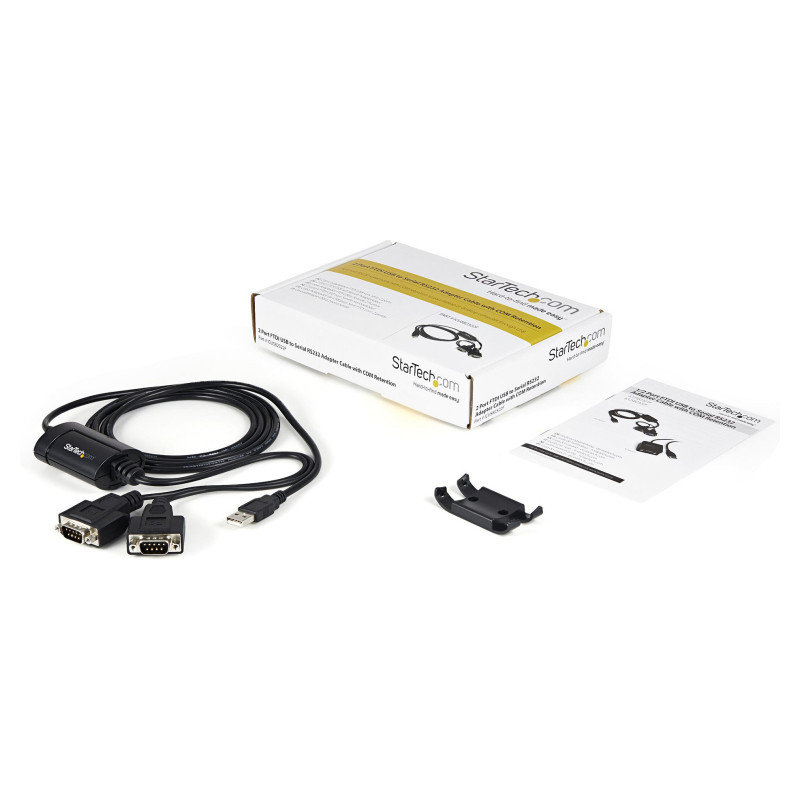

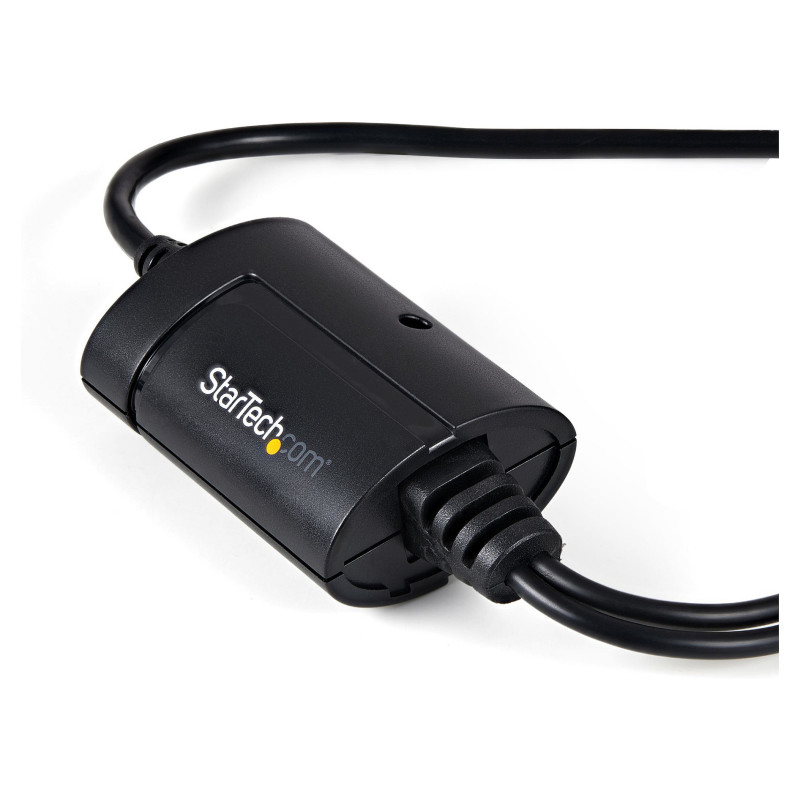

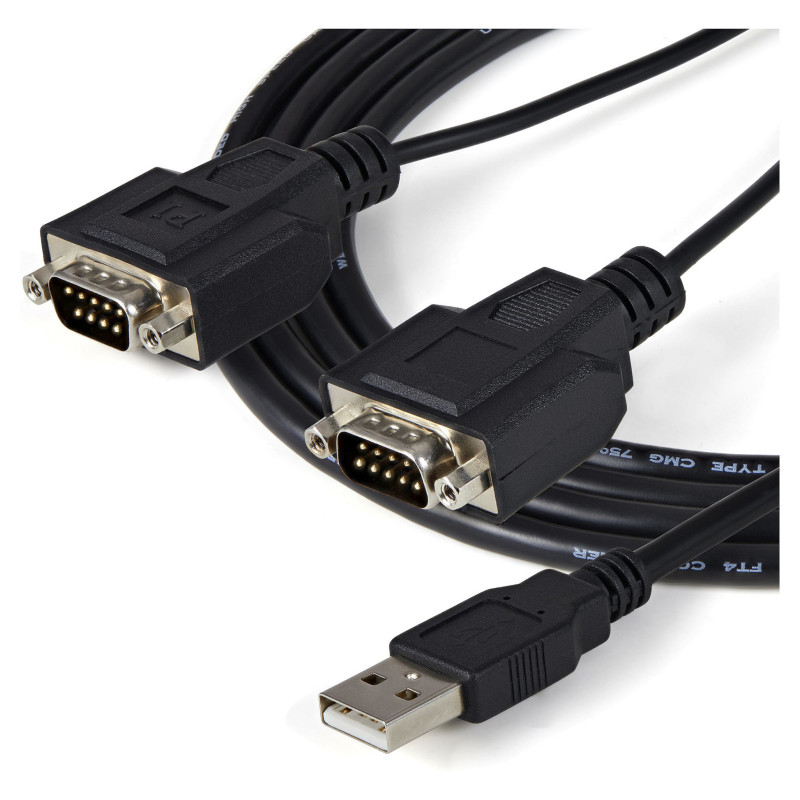

StarTech.com ICUSB2322F serial cable

StarTech.com 6ft (1.8m) 2-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA. Product colour: Black, Cable length: 2.1 m, Connector 1: USB 2.0 A. Quantity per pack: 1 pc(s), Package width: 146 mm, Package depth: 211 mm. Compliance certificates: CE, RoHS. Width: 45 mm, Height: 20 mm, Weight: 156 g. Master (outer) case width: 523 mm, Master (outer) case length: 403 mm, Master (outer) case height: 325 mm

Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features

Product colour: Black
Cable length: 2.1 m

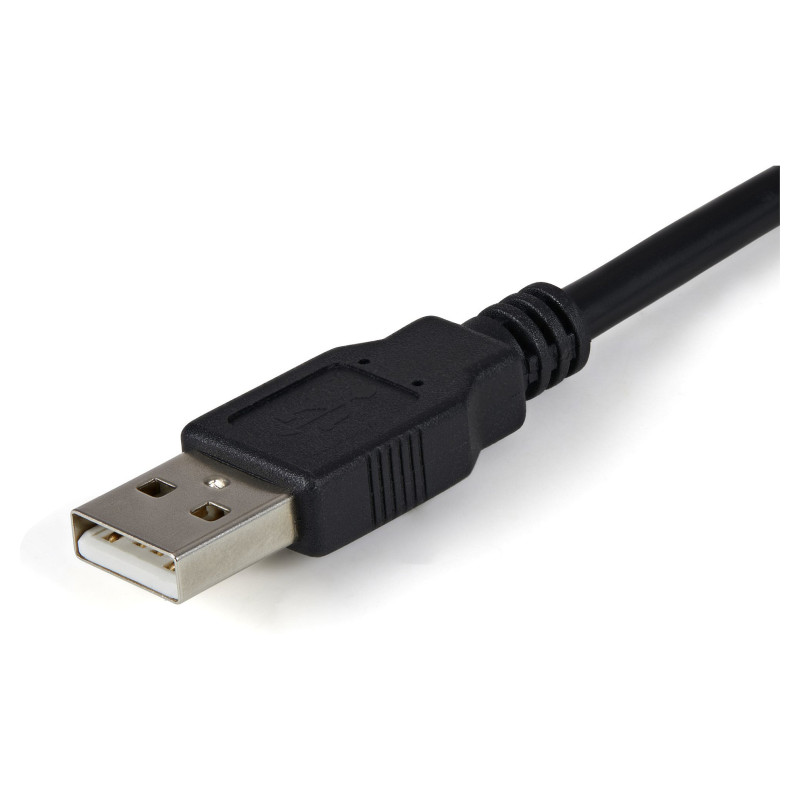

Connector 1: USB 2.0 A

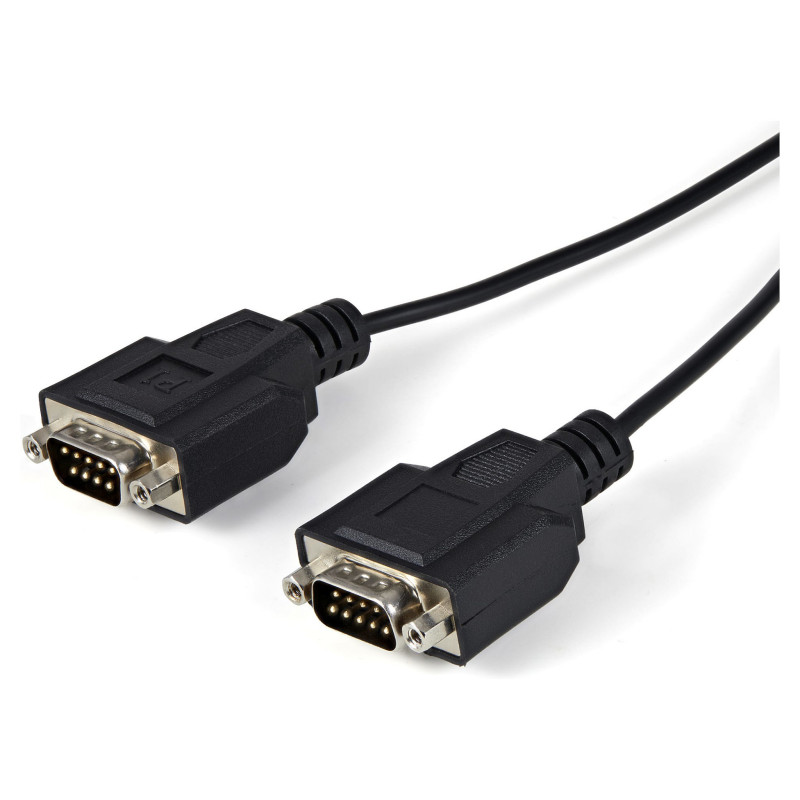

Connector 2: 2 x DB-9
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector housing material: Plastic
Bandwidth: 480 MB/s
Chipset: FTDI - FT2232D
Baud rate: 921.6 Kbit/s
Data bits: 7, 8
FIFO (First In, First Out): 128 B
Parity bit: Even, Mark, No, Odd, Space
Stop bits: 1, 2
Linux operating systems supported: Yes

Packaging data

Quantity per pack: 1 pc(s)
Package width: 146 mm
Package depth: 211 mm
Package height: 42 mm
Package weight: 274 g

Certificates

Compliance certificates: CE, RoHS

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 45 mm
Height: 20 mm
Weight: 156 g

Sustainability

Feature: Sustainability compliance

Packaging content

Feature: Manual
Feature: Drivers included

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 523 mm
Master (outer) case length: 403 mm
Master (outer) case height: 325 mm
Products per master (outer) case: 40 pc(s)
