StarTech.com 1P3FFCB-USB-SERIAL serial cable

StarTech.com 3.3ft (1m) USB to Serial Adapter Cable, COM Retention, Interchangeable Screws/Nuts, USB-A to DB9 RS232, FTDI IC, ESD Protection, Windows/macOS/Linux. Product colour: Black, Cable length: 1 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package width: 200 mm, Package depth: 150 mm. Master (outer) case width: 575 mm, Master (outer) case length: 365 mm, Master (outer) case height: 303 mm

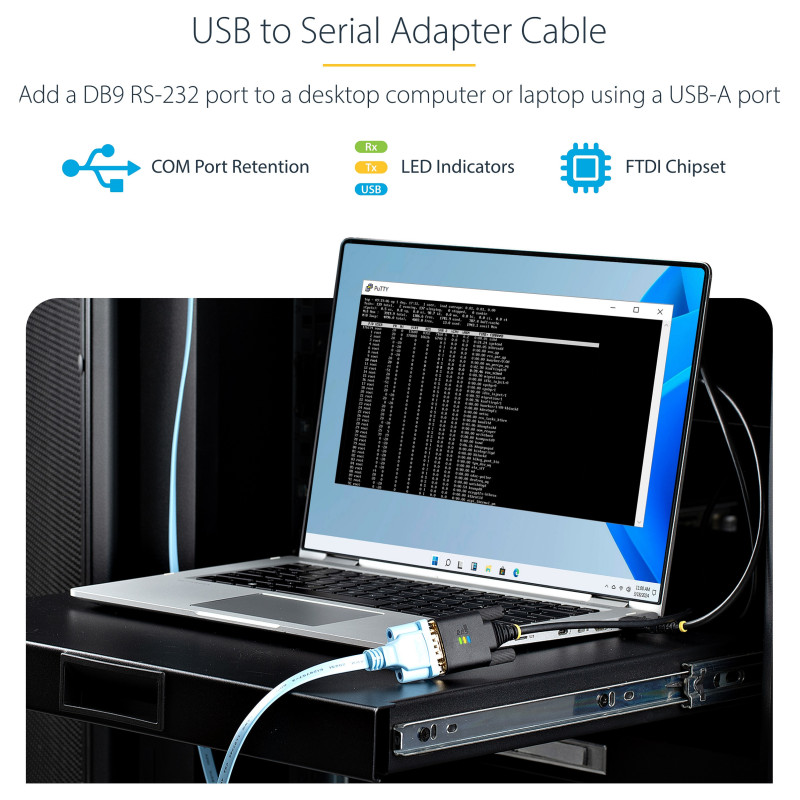

Add an RS232 serial port to a laptop or desktop, using an available USB-A port

Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 3.3ft (1m) straight through USB to Serial Adapter Cable.

Serial Port Expansion

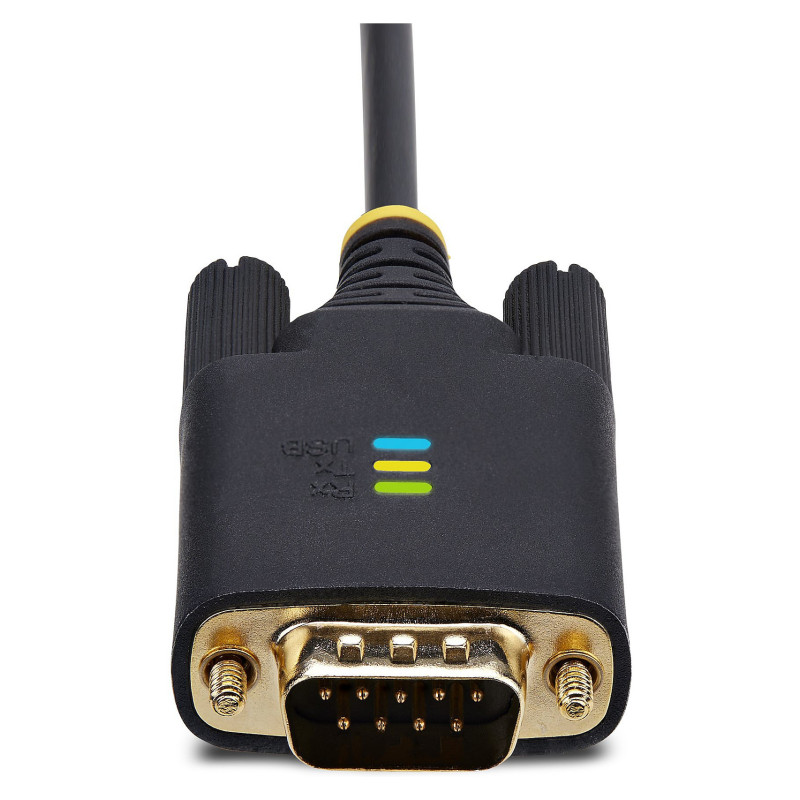

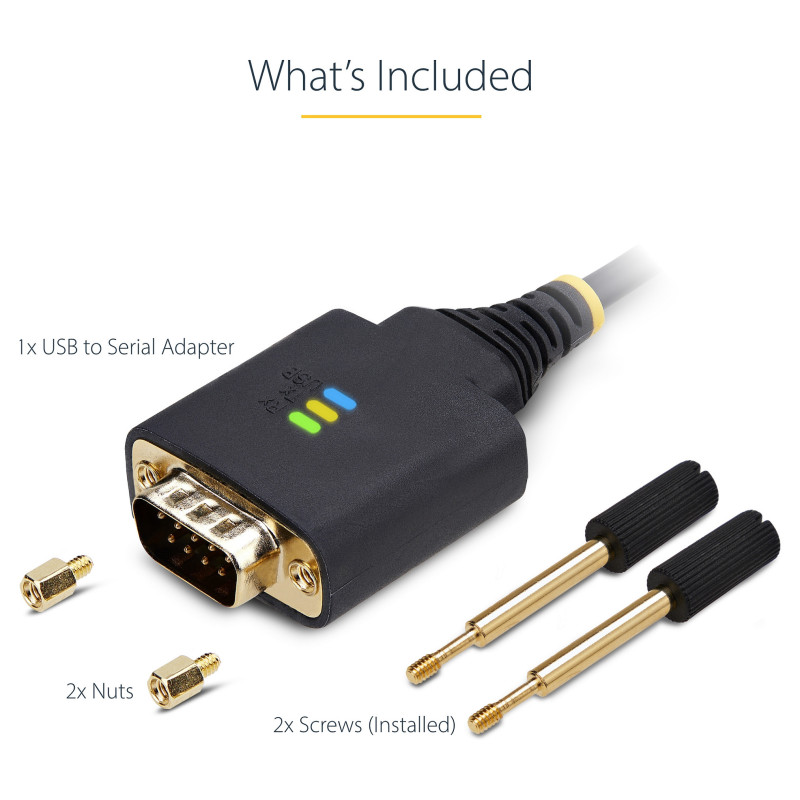

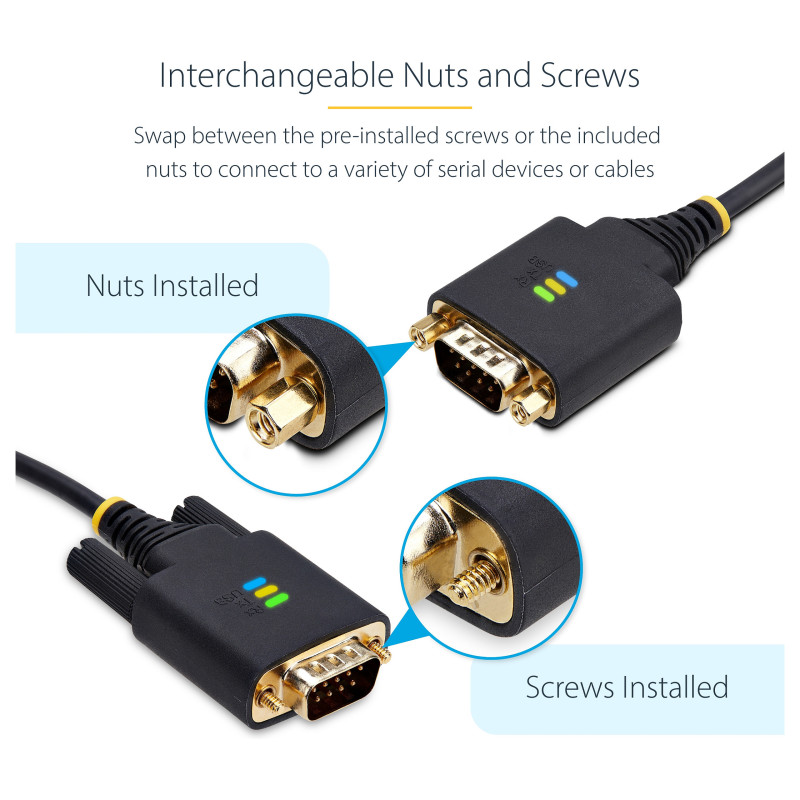

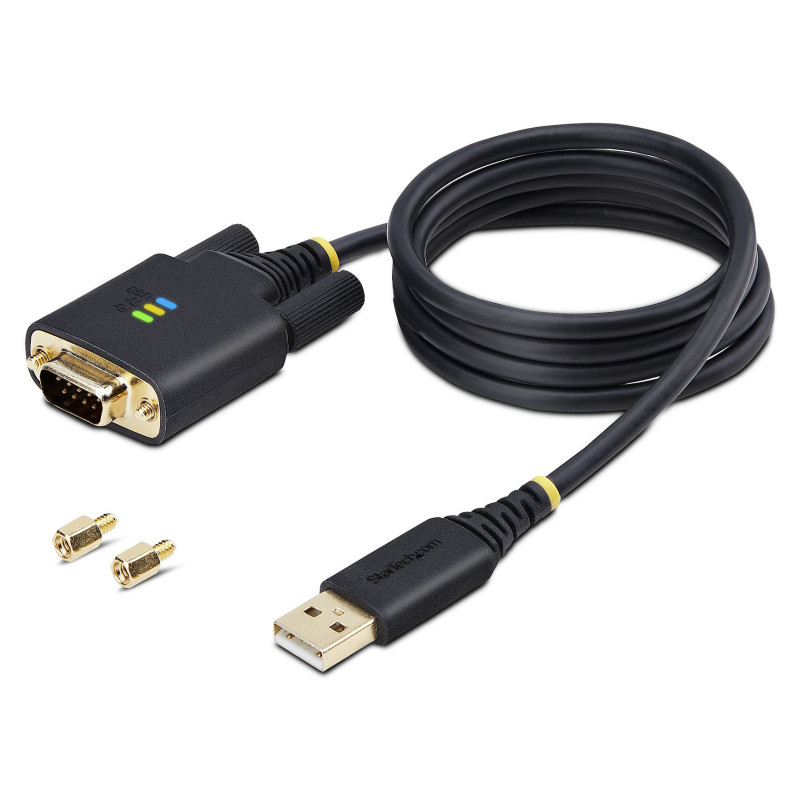

The USB Serial Adapter adds an RS-232 serial DB/DE-9 (male) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

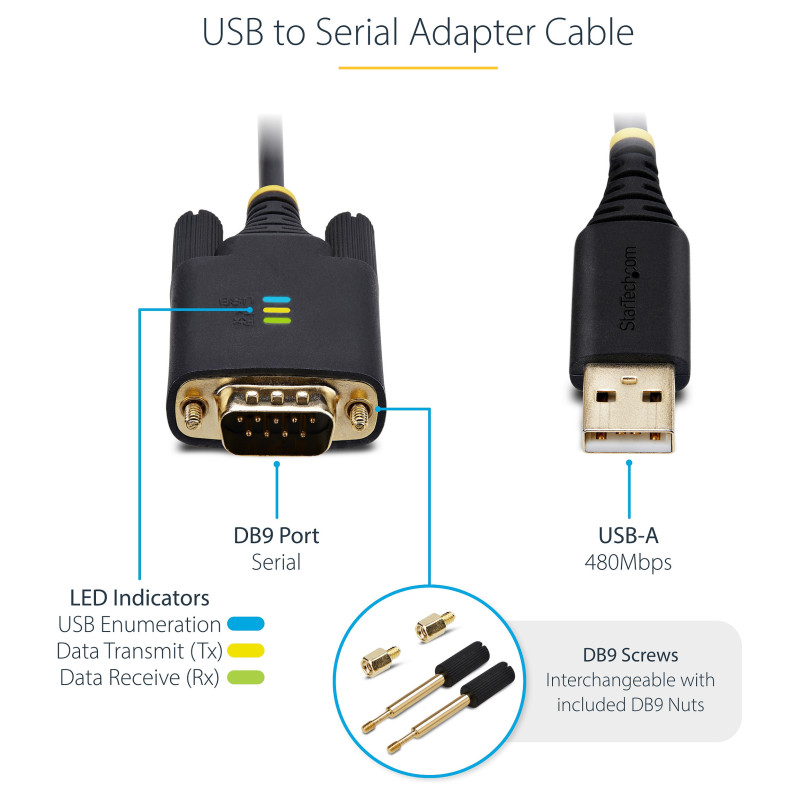

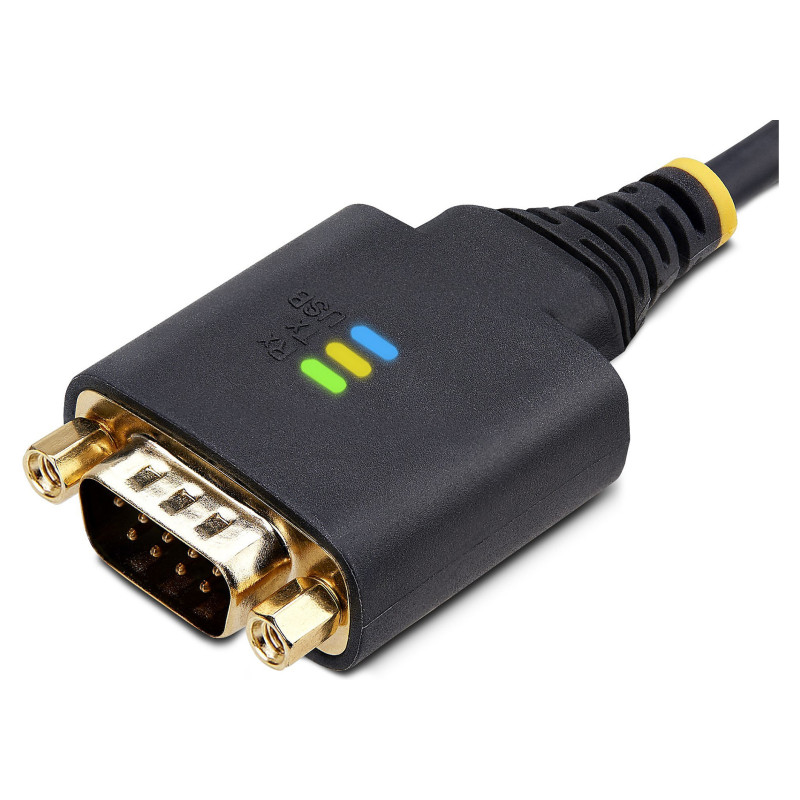

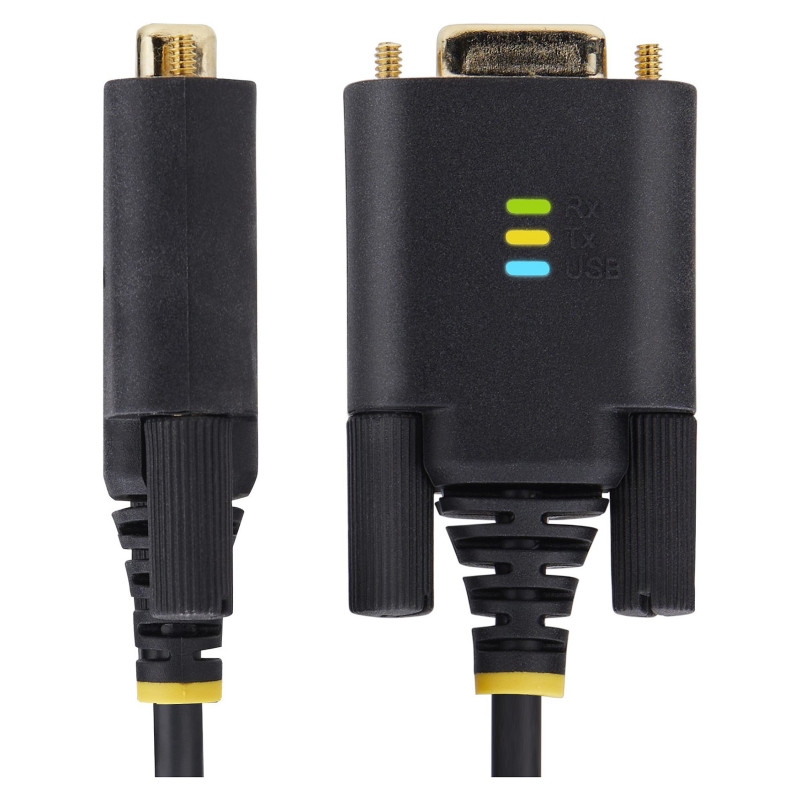

LED Indicators

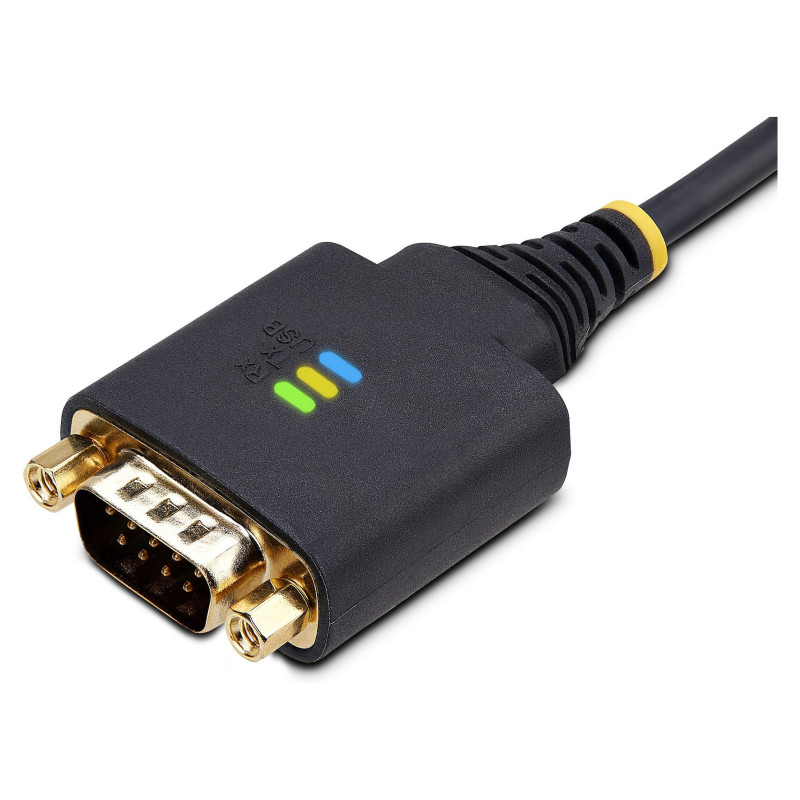

Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

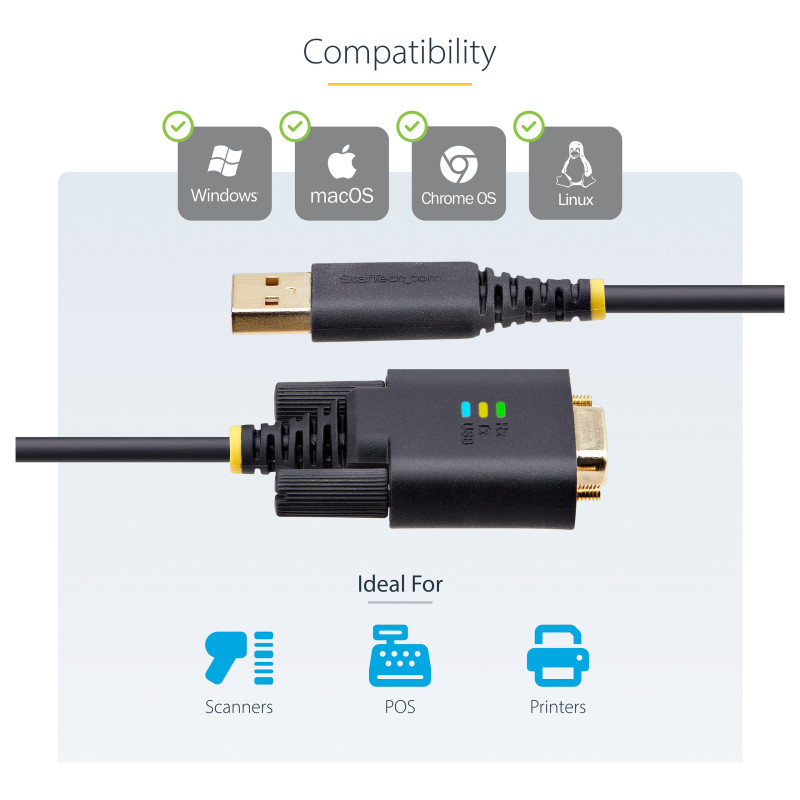

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

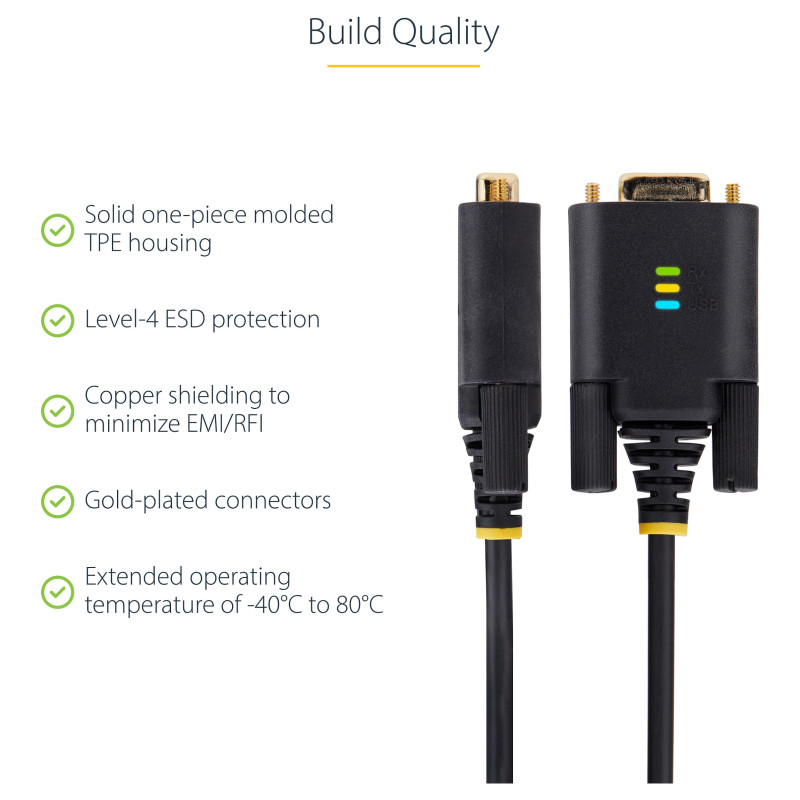

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.

Features

Product colour: Black

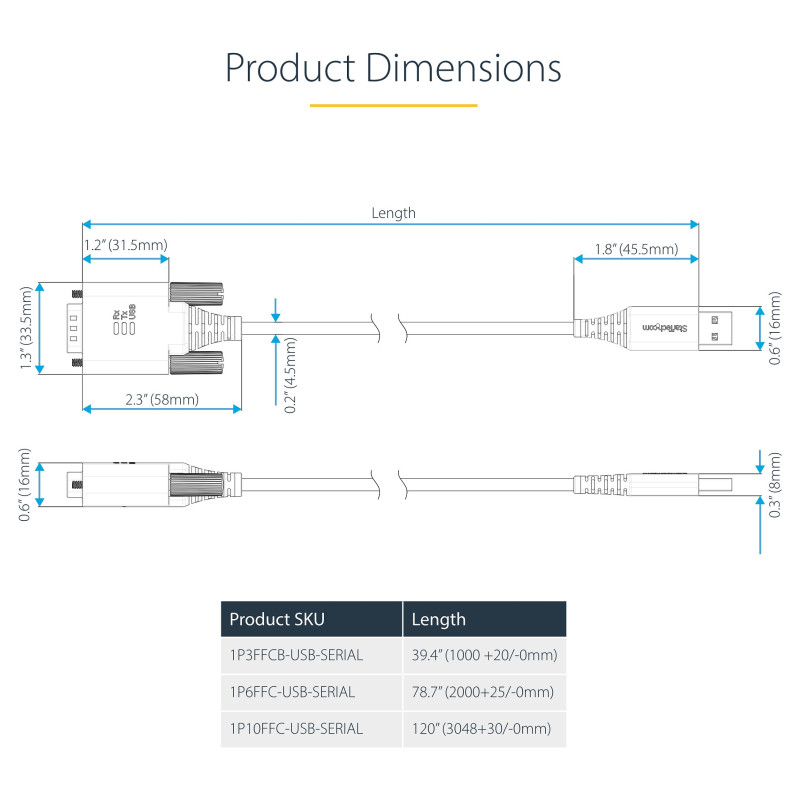

Cable length: 1 m

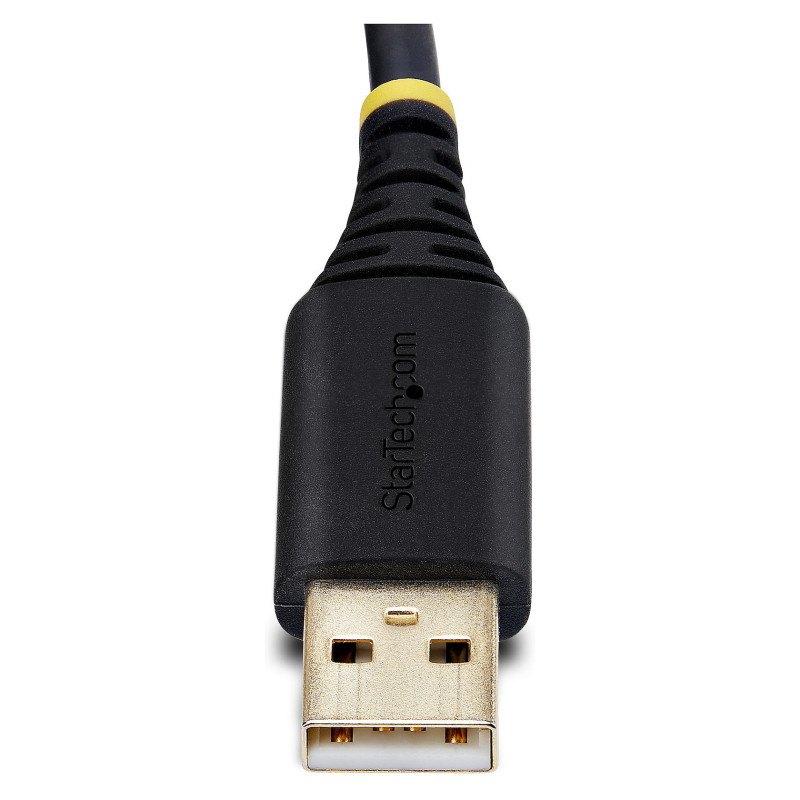

Connector 1: USB Type-A
Connector 2: RS-232
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Chipset: FTDI - FT232R
Baud rate: 921.6 Kbit/s
Data bits: 7, 8
FIFO (First In, First Out): 256 B
Parity bit: Even, Mark, No, Odd, Space
Stop bits: 1, 2
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Packaging data

Quantity per pack: 1 pc(s)
Package width: 200 mm
Package depth: 150 mm
Package height: 24 mm
Package weight: 60 g

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 0 - 95%

Packaging content

Feature: Manual

Logistics data

Master (outer) case width: 575 mm
Master (outer) case length: 365 mm
Master (outer) case height: 303 mm
Products per master (outer) case: 60 pc(s)
