LogiLink WL0247 network card

LogiLink WL0247. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1300 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

Product information "Wireless LAN 802.11ac USB 3.0 adapter, 2T2R, with USB base" from LogiLink

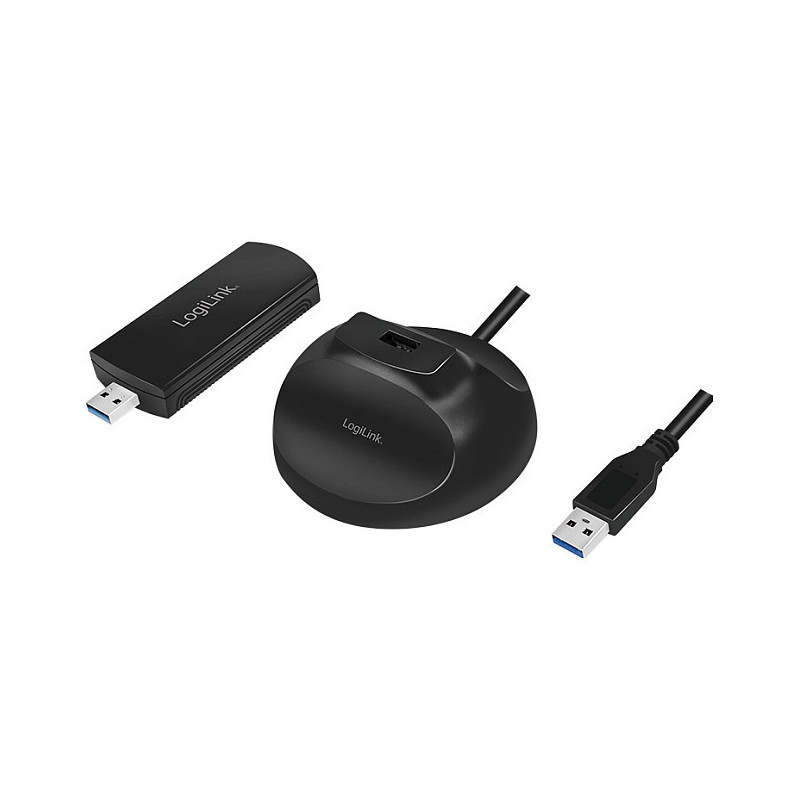

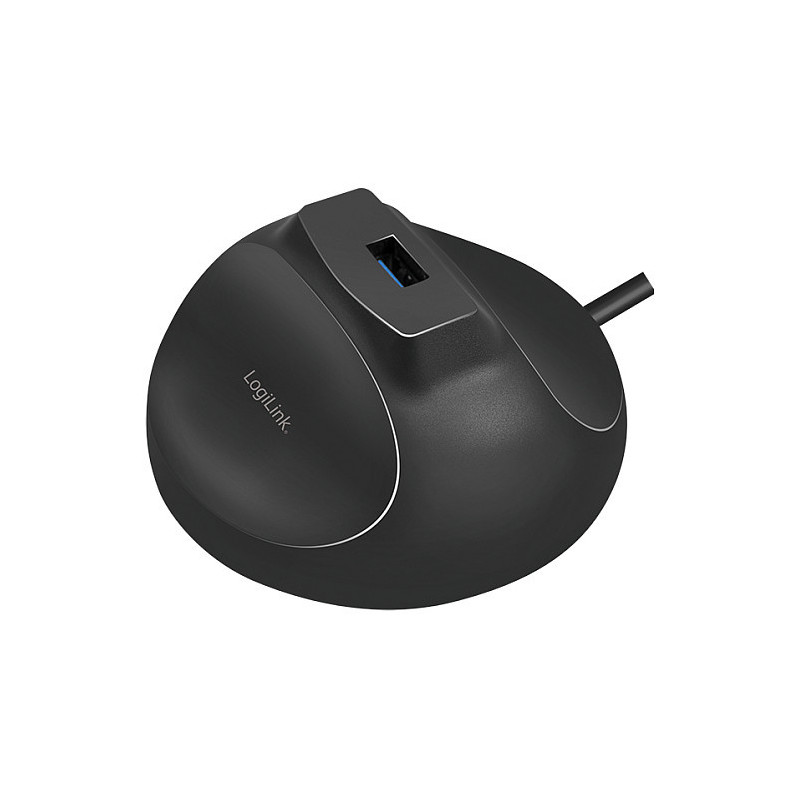

Mobile Wireless LAN USB 3.0 adapter from LogiLink. Fast data transfer rates of up to 600 MBit/s at 2.4 GHz and 1300 MBit/s at 5 GHz, supports IEEE 802.11ac/a/b/g/n. 64/128 Bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES) encryption provides optimal security. The WL0247 also supports beamforming function and includes an extension cable with USB base.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 1300 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 11,54,600,1300 Mbit/s
Security algorithms: 64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS

Design

Component for: PC/Laptop
Product colour: Black
Antenna: Yes
Antenna design: External

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 85176990
