Lindy 43401 interface hub

Lindy 5m USB 3.0 Active Extension Slim. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Power supply type: DC. Weight: 260 g, Connector 1 dimensions (WxDxH): 41.1 x 16.5 x 9.5 mm, Connector 2 dimensions (WxDxH): 67.5 x 22 x 13.5 mm. Quantity per pack: 1 pc(s), Package width: 236 mm, Package depth: 255 mm

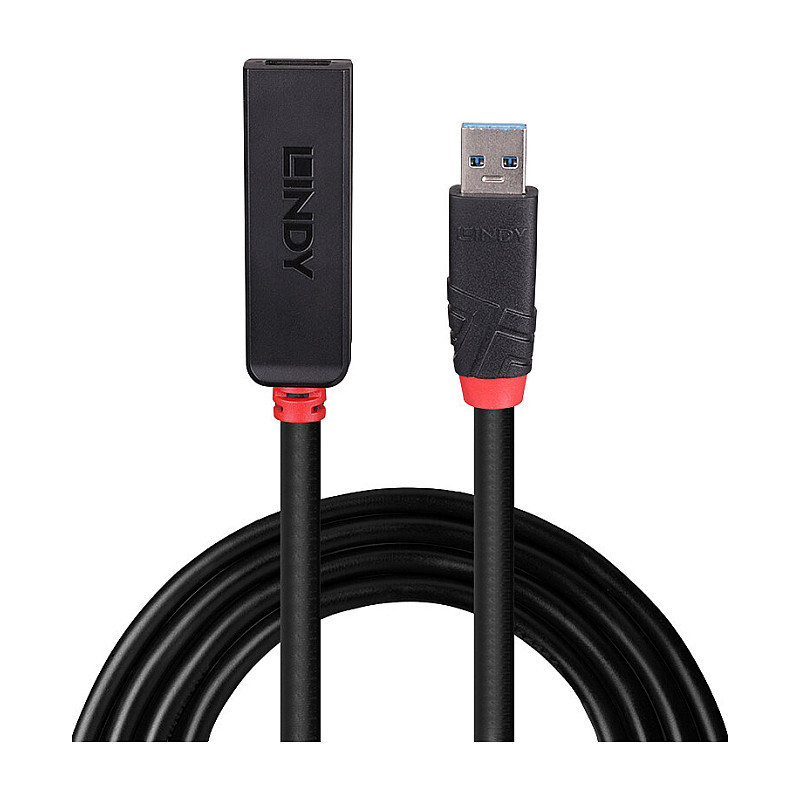

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

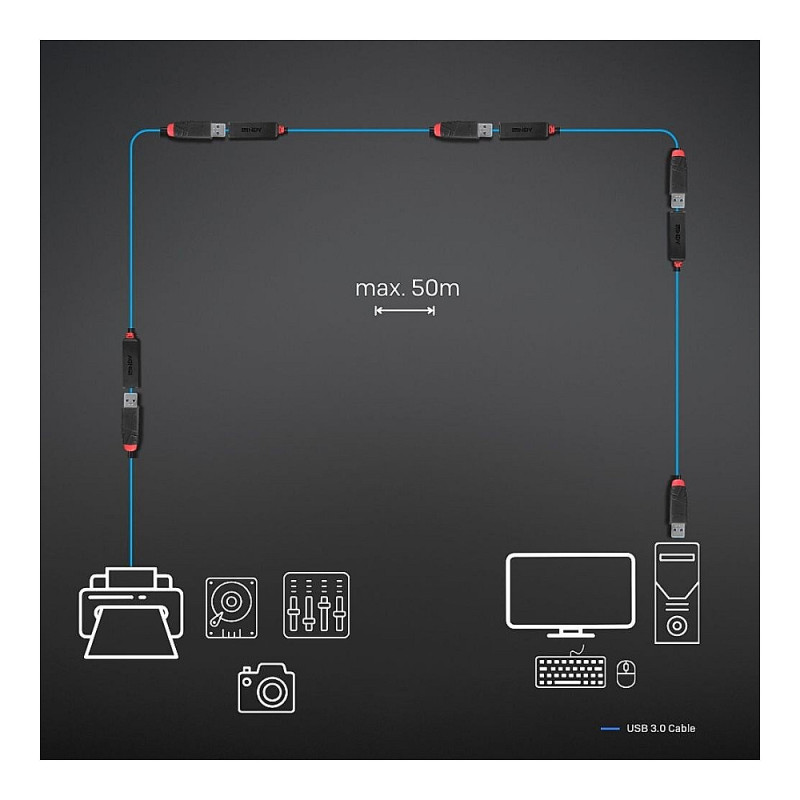

Up to 5 of these USB 3.0 Active Extensions Slim can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.

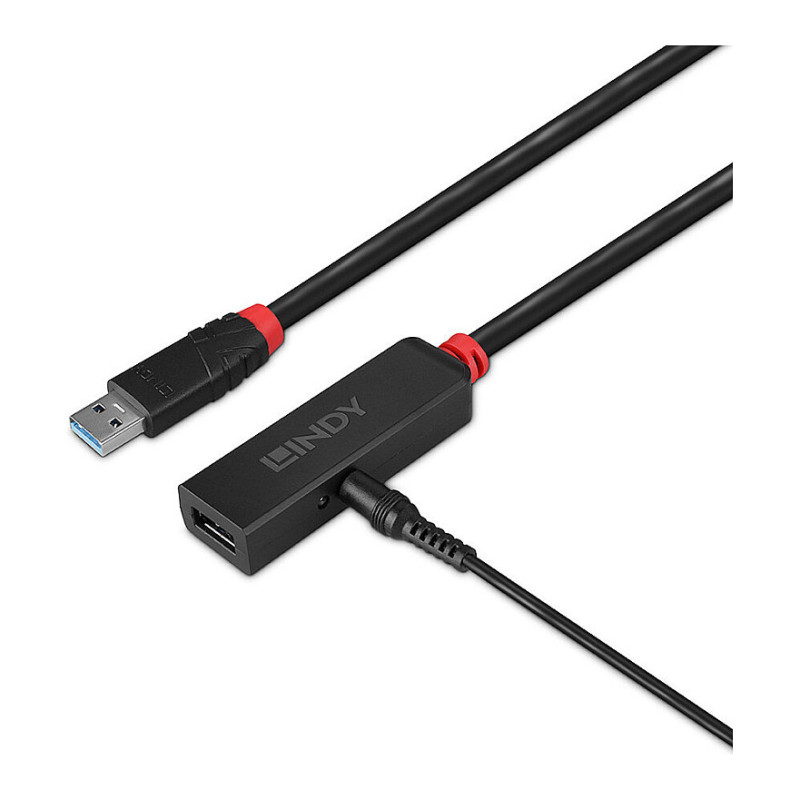

The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ports quantity: 2
Feature: DC-in jack

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
LED indicators: Yes
Cable type: Round cable
AWG wire size: 26
Cable jacket material: Polyvinyl chloride (PVC)
Cable length: 5 m
Cable diameter: 6.5 mm
Conductor material: Tinned copper
Connector contacts plating: Nickel
Feature: Plug and Play
Transmission medium: Twisted pair
Certification: CE, FCC, RoHS & REACH, CP65

Power

Power supply type: DC

Weight & dimensions

Weight: 260 g
Connector 1 dimensions (WxDxH): 41.1 x 16.5 x 9.5 mm
Connector 2 dimensions (WxDxH): 67.5 x 22 x 13.5 mm

Packaging data

Quantity per pack: 1 pc(s)
Package width: 236 mm
Package depth: 255 mm
Package weight: 300 g
Package type: Polybag

Packaging content

Feature: Manual
Feature: Quick start guide

Operational conditions

Minimum operating temperature: 0 °C
Maximum operating temperature: 40 °C
Operating temperature (T-T): 0 - 40 °C
Operating temperature (T-T): 32 - 104 °F
Storage temperature (T-T): -10 - 60 °C

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
