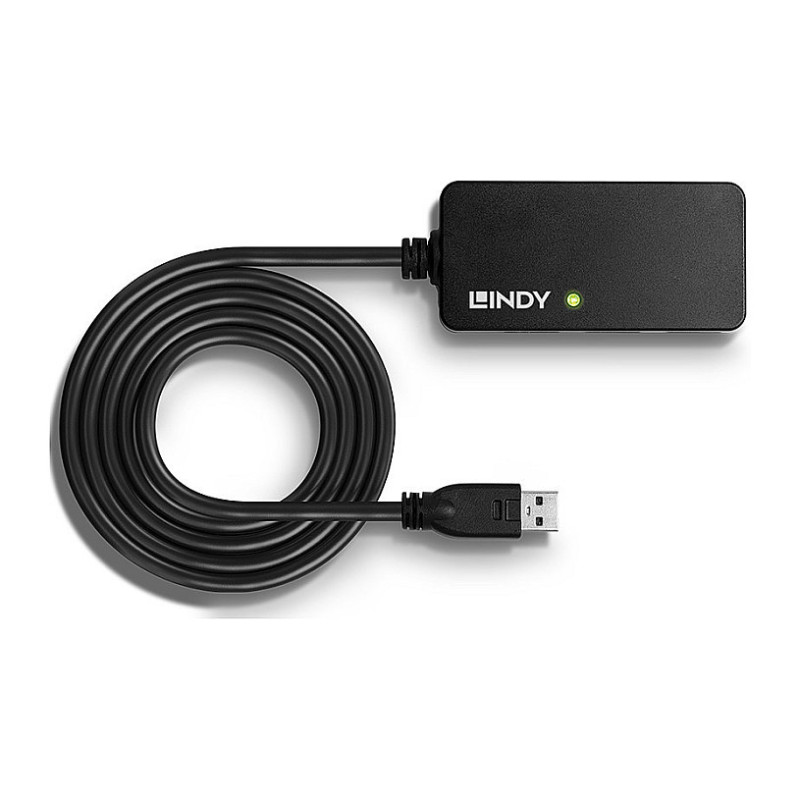

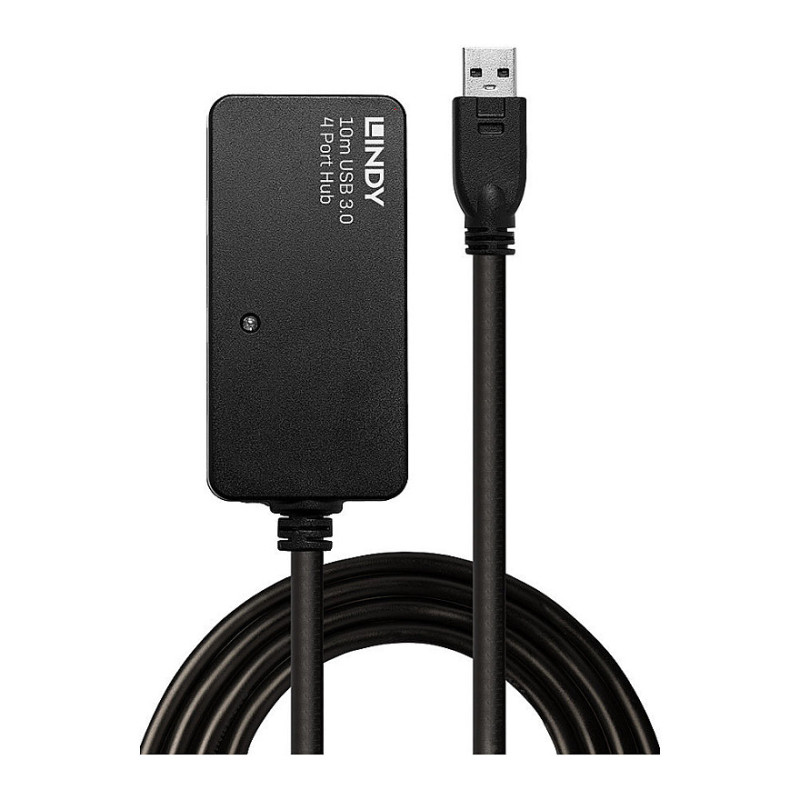

Lindy 43159 interface hub

Lindy 10m USB 3.0 Active Extension Pro Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power note: 3.5/1.35mm DC. Width: 80 mm, Depth: 38 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 240 mm, Package depth: 200 mm

The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.

This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

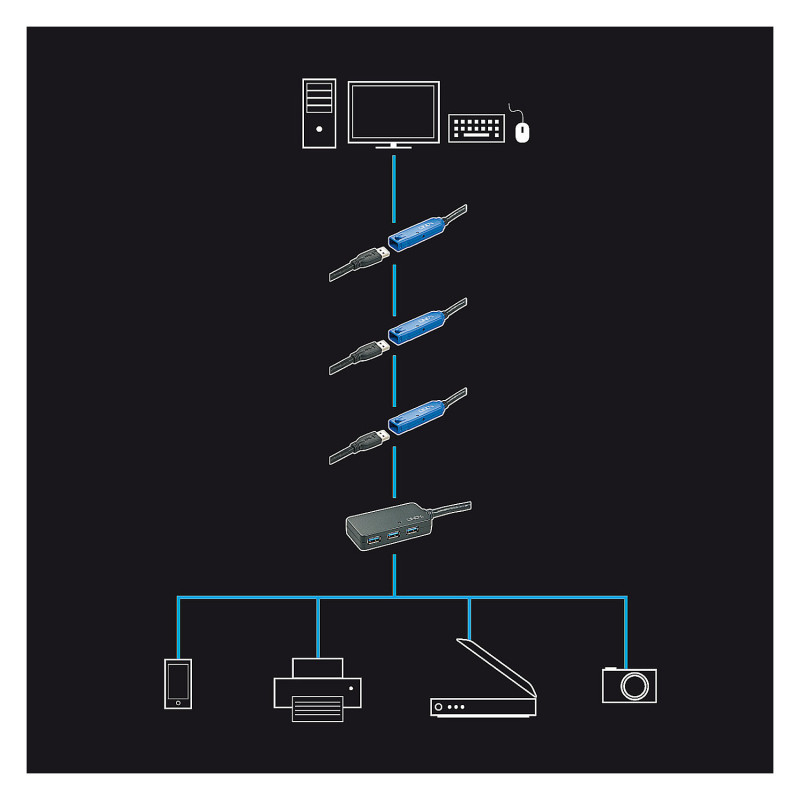

This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this hub as part of the USB 3.0 Active Extension System Pro

If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

This Active Extension Hub Pro must be installed as the final part of the extension system.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ports quantity: 4
Feature: DC-in jack

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Plastic
LED indicators: Yes
Cable type: Round cable
Plating material: Nickel
AWG wire size: 24/24/20
Cable jacket material: Polyvinyl chloride (PVC)
Cable length: 10 m
Cable diameter: 7 mm
Conductor material: Tinned copper
Contact material: Brass
Connector contacts plating: Gold
Feature: Plug and Play
Bend radius (min): 3.6 cm
Transmission medium: Twisted pair
Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Power

Power note: 3.5/1.35mm DC

Weight & dimensions

Width: 80 mm
Depth: 38 mm
Height: 15 mm
Weight: 790 g
Connector 1 dimensions (WxDxH): 15 x 42 x 8 mm

Packaging data

Quantity per pack: 1 pc(s)
Package width: 240 mm
Package depth: 200 mm
Package height: 70 mm
Package weight: 900 g
Package type: Box

Packaging content

Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating temperature (T-T): -20 - 60 °F

Design

Cable shielding: Aluminum mylar foil

Logistics data

Harmonized System (HS) code: 84719000
