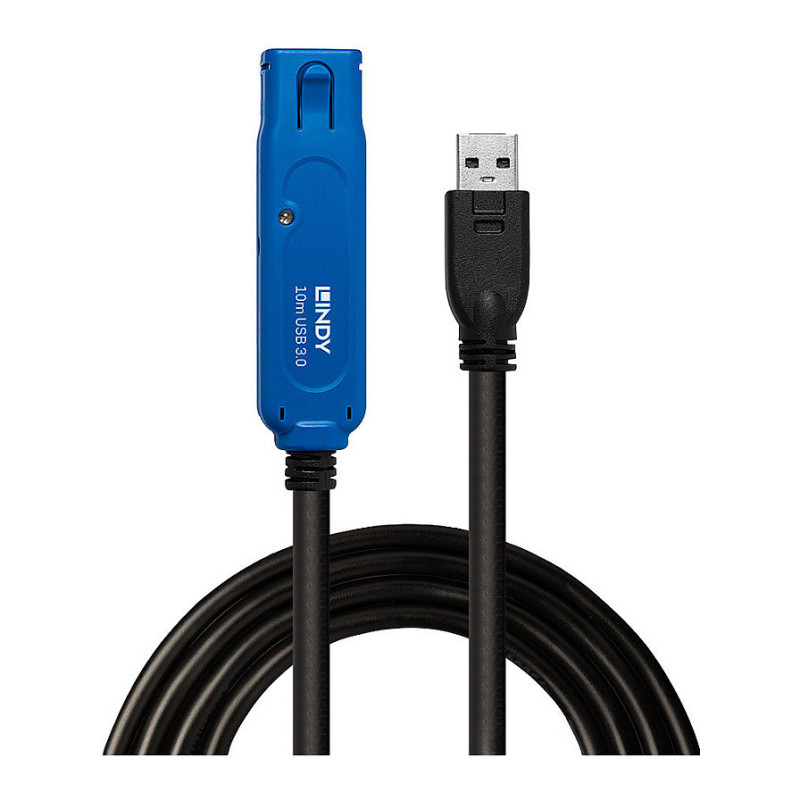

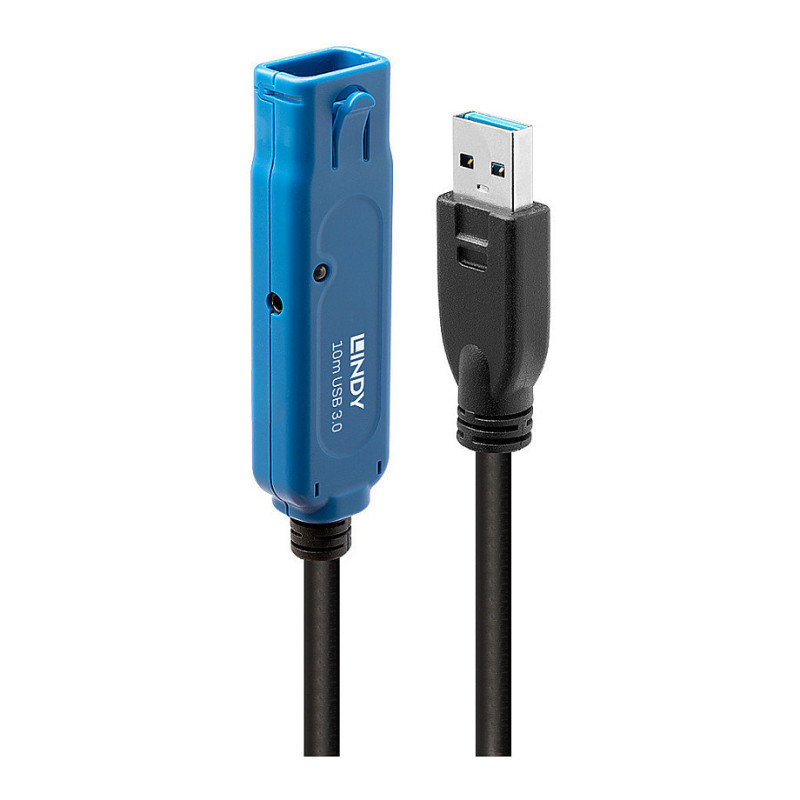

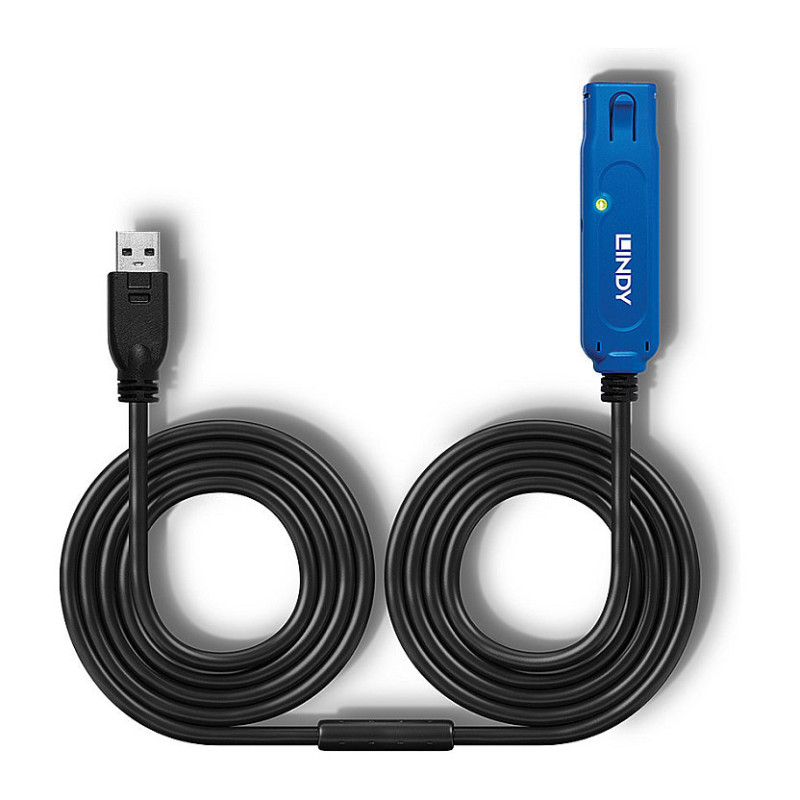

Lindy 43157 USB cable

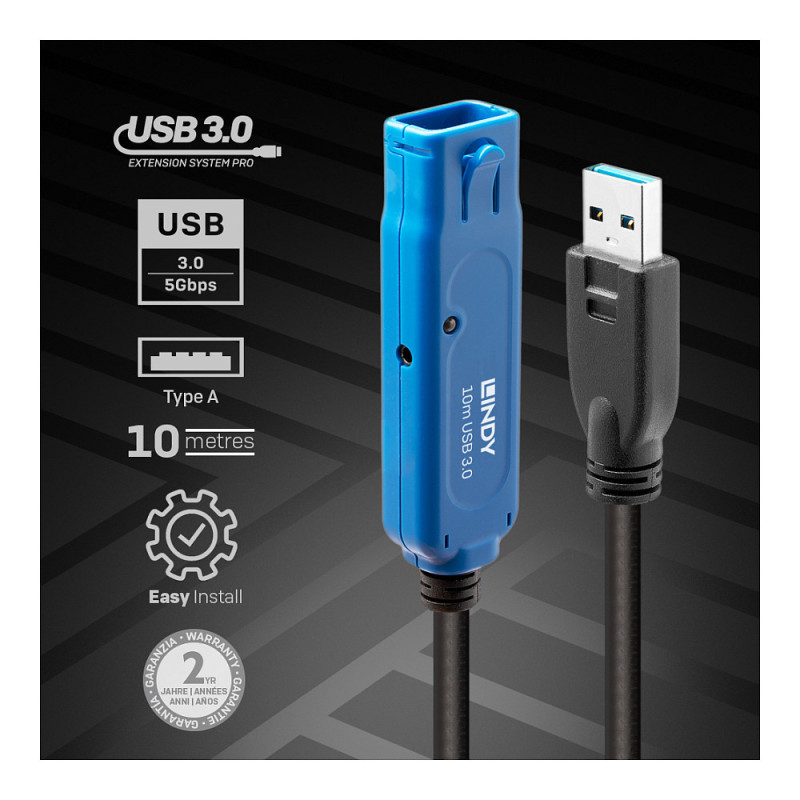

Lindy 10m USB 3.0 Active Extension Pro. Cable length: 10 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black

The Lindy 10m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.

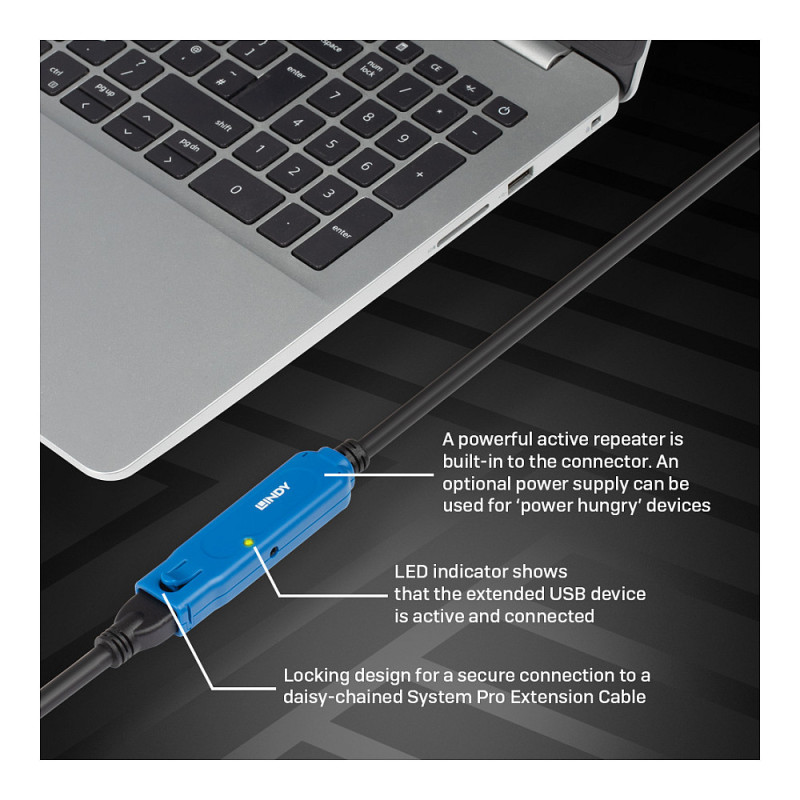

The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.

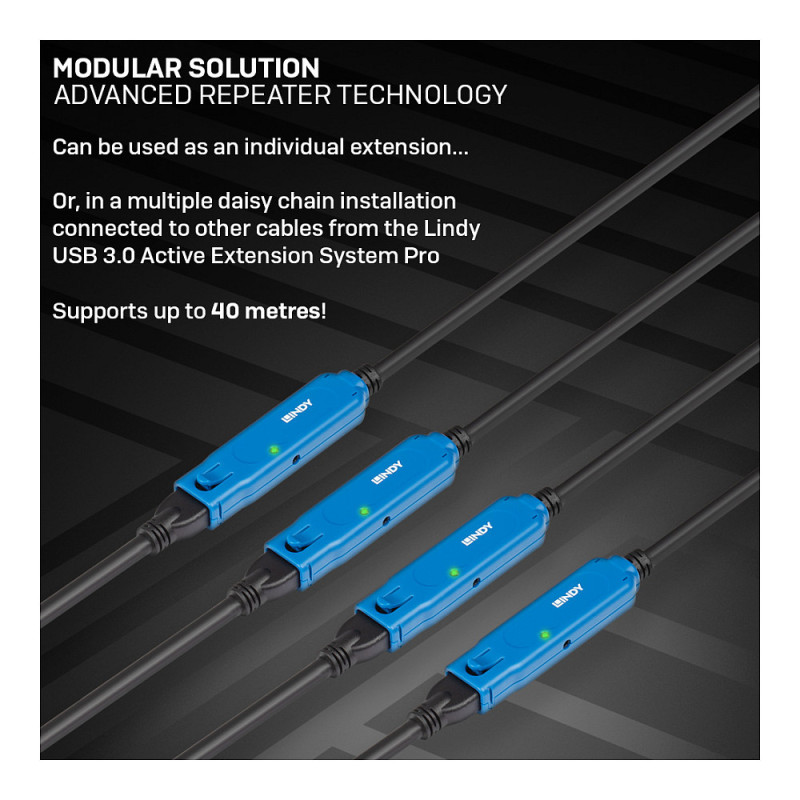

This 10m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this cable as part of the USB 3.0 Active Extension System Pro

If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Features

USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 24/24/20
Connector material: Nickel
Contact material: Brass
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 5000 Mbit/s
Maximum data transfer rate: 5 Gbit/s
Product colour: Black
Cable type: Round cable
Transmission medium: Twisted pair

Power

Power note: 2.5/0.7mm DC

Weight & dimensions

Cable length: 10 m
Cable diameter: 7 mm
Weight: 750 g
Bend radius (min): 3.6 cm
Connector 1 dimensions (WxDxH): 15 x 49 x 8 mm
Connector 2 dimensions (WxDxH): 20 x 80 x 13 mm

Packaging data

Package type: Box
Package width: 240 mm
Package depth: 70 mm
Package height: 200 mm
Package weight: 900 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Logistics data

Harmonized System (HS) code: 84733080
