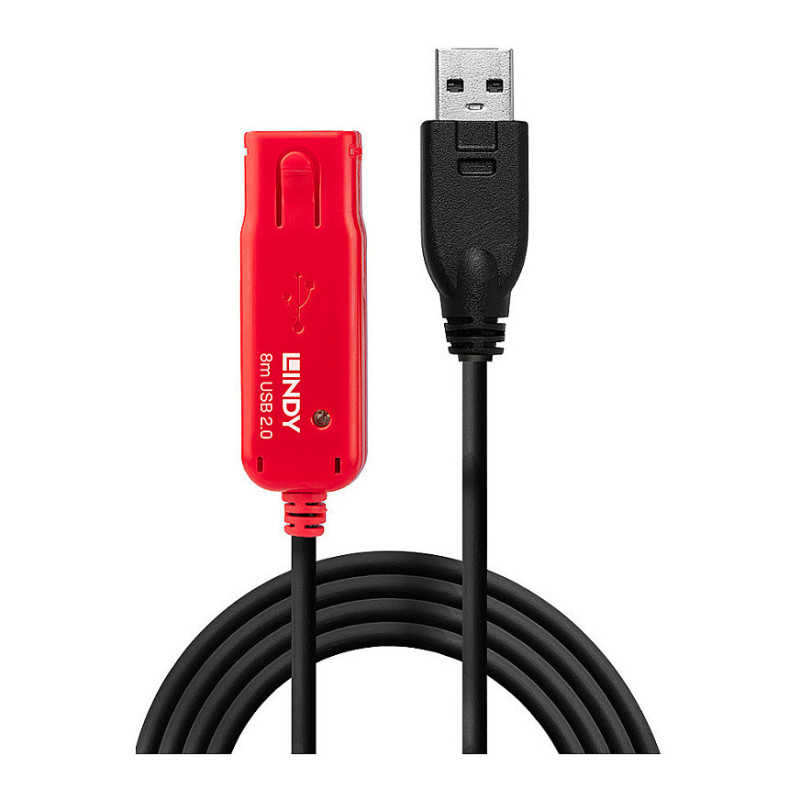

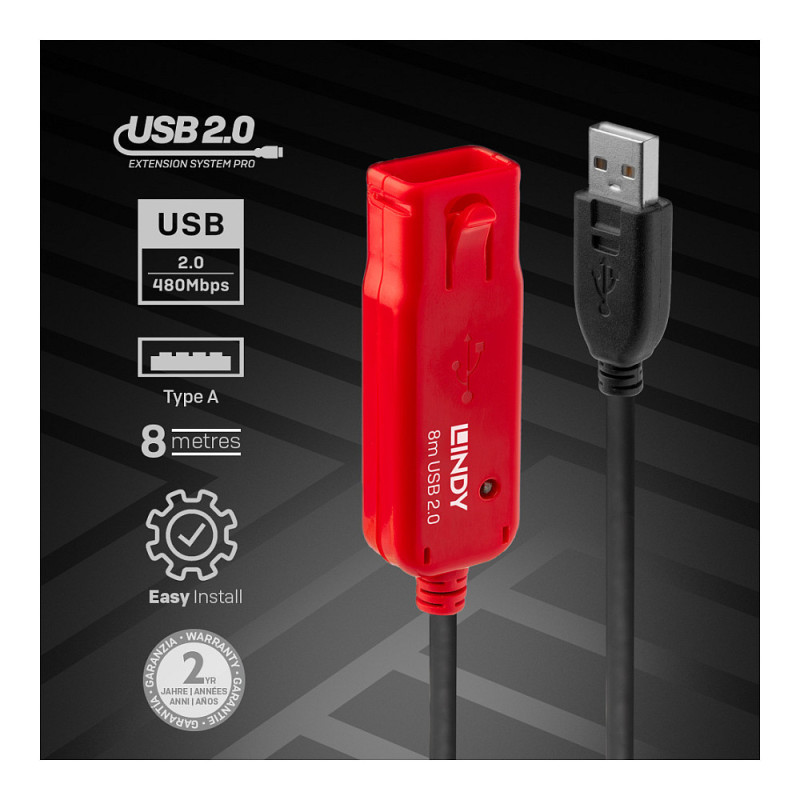

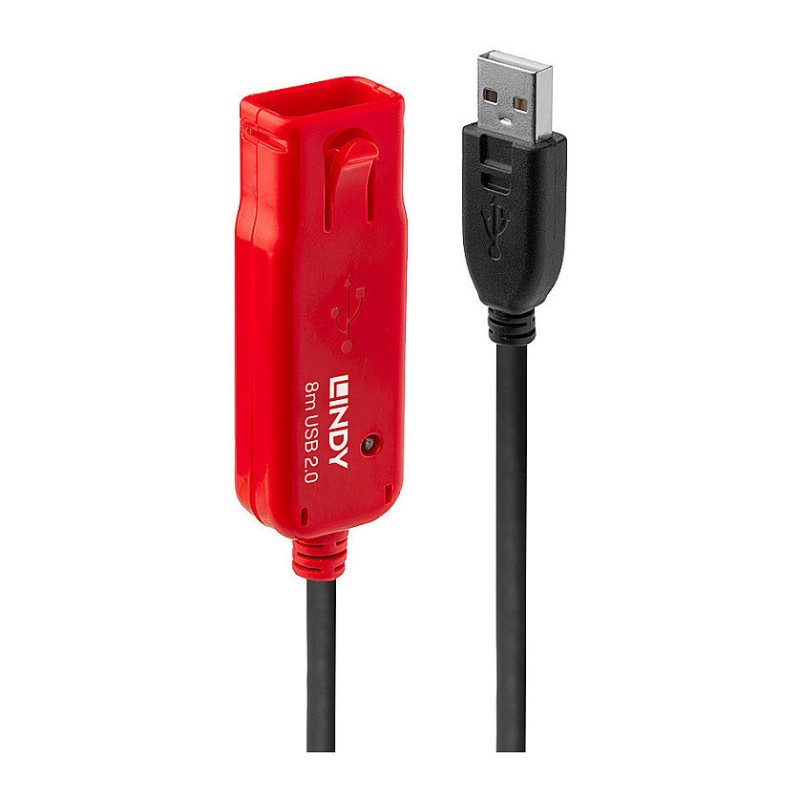

Lindy 42780 USB cable

Lindy 8m USB 2.0 Active Extension Pro. Cable length: 8 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Connector contacts plating: Gold, Product colour: Black

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

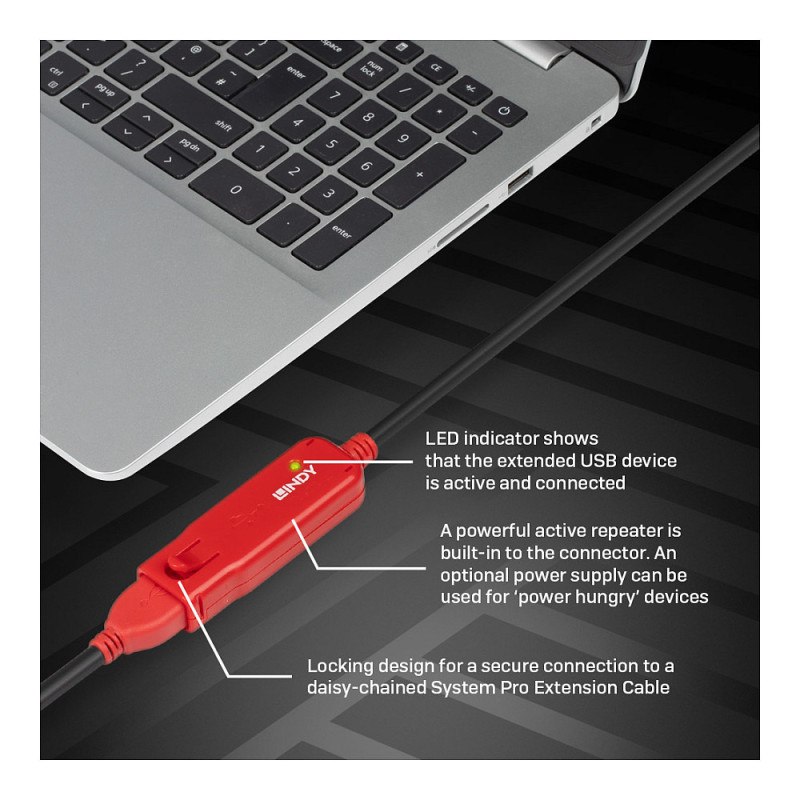

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Features

USB version: USB 2.0
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 26/20
Connector material: Gold/Nickel
Contact material: Brass
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 480 Mbit/s
Cable type: Round cable
Product colour: Black
Transmission medium: Twisted pair

Weight & dimensions

Cable length: 8 m
Cable diameter: 5 mm
Weight: 280 g
Bend radius (min): 2.6 cm
Connector 1 dimensions (WxDxH): 15 x 43 x 8 mm
Connector 2 dimensions (WxDxH): 20 x 64 x 13 mm

Packaging data

Package type: Box
Package width: 238 mm
Package depth: 66 mm
Package height: 202 mm
Package weight: 440 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Logistics data

Harmonized System (HS) code: 85044095
