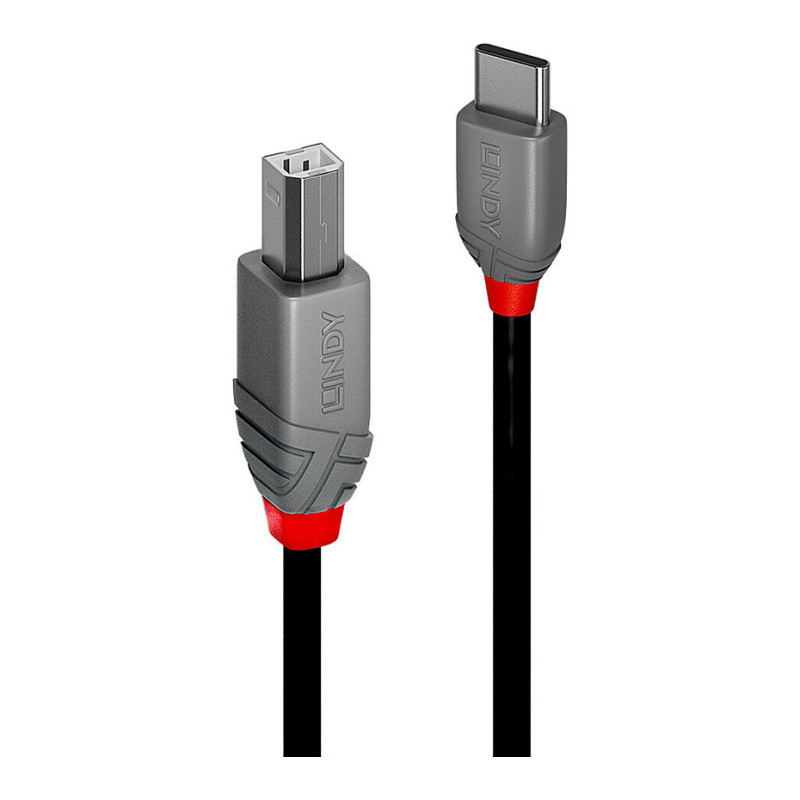

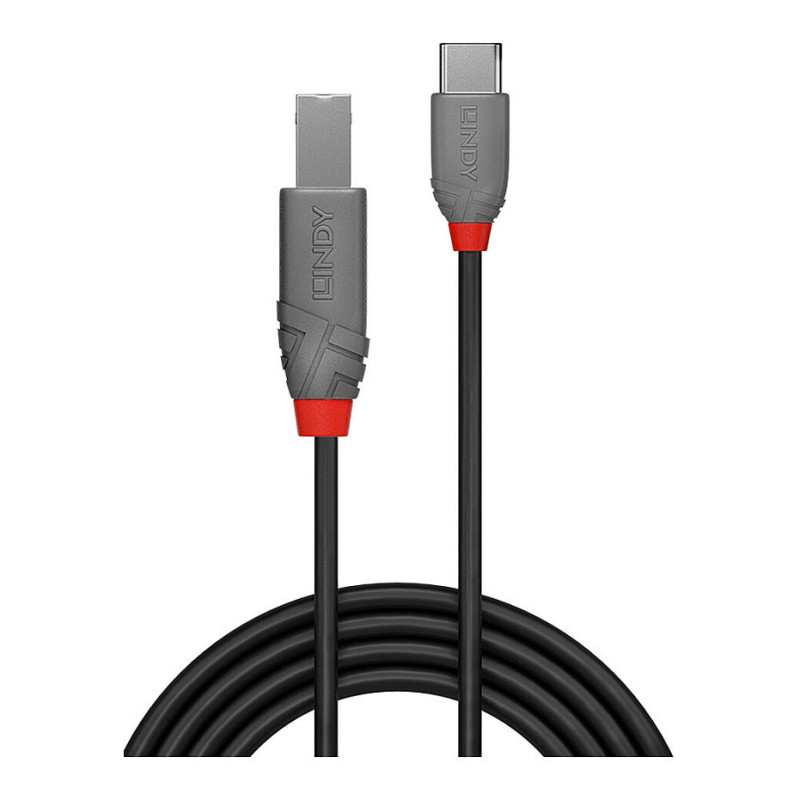

Lindy 36940 USB cable

Lindy 0.5m USB 2.0 Type C to B Cable, Anthra Line. Cable length: 0.5 m. Connector 1: USB C, Connector 2: USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Nickel, Product colour: Black

The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

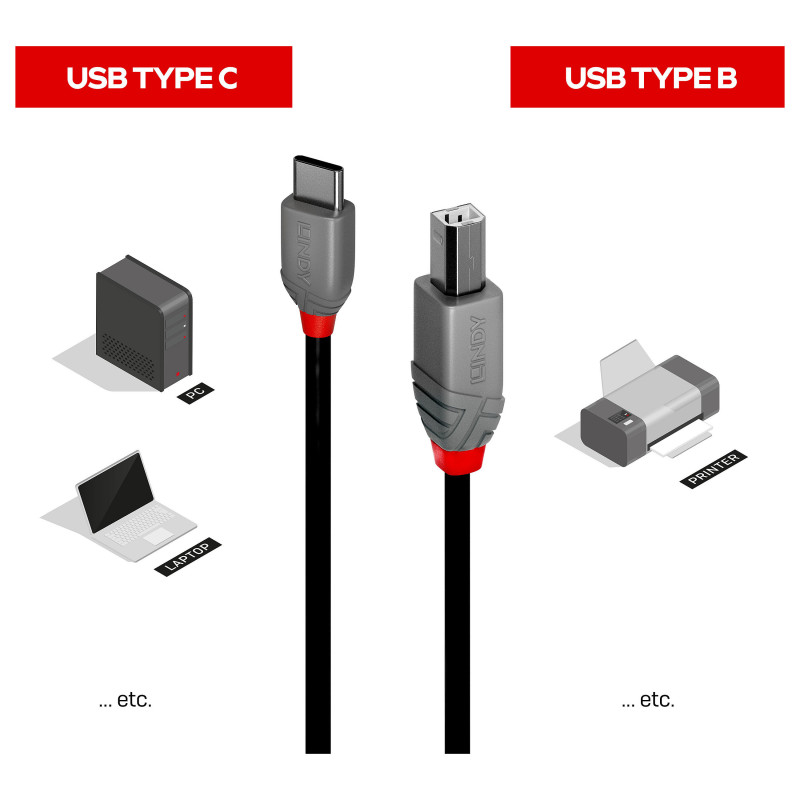

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 Type C to B cables are available in the following length: 0.5m, 1m, 2m and 3m.

Features

USB version: USB 2.0
Connector 1: USB C
Connector 2: USB B
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 26/28
Connector contacts plating: Nickel
Cable jacket material: Nylon/Polyvinyl Chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black
Cable type: Round cable
Nominal attenuation: 1 - 400MHz < 5.8dB

Weight & dimensions

Cable length: 0.5 m
Cable diameter: 4.4 mm
Bend radius (min): 2.5 cm
Connector 1 dimensions (WxDxH): 10.9 x 28.3 x 7.2 mm
Connector 2 dimensions (WxDxH): 11.8 x 47 x 10.2 mm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 70 °C

Certificates

Certification: RoHS, REACH, California Proposition, UL

Logistics data

Harmonized System (HS) code: 84733080
