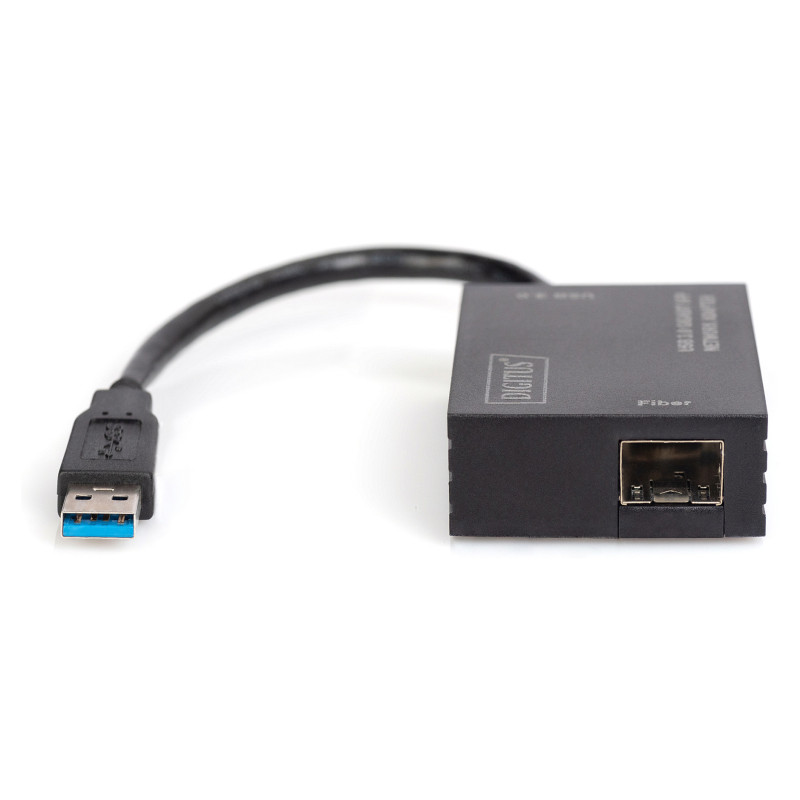

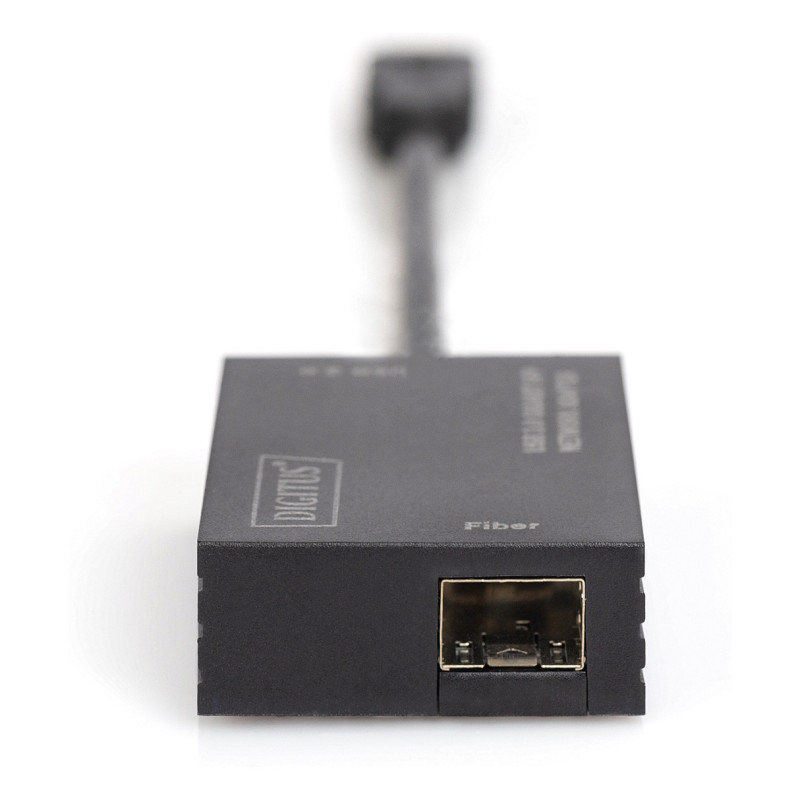

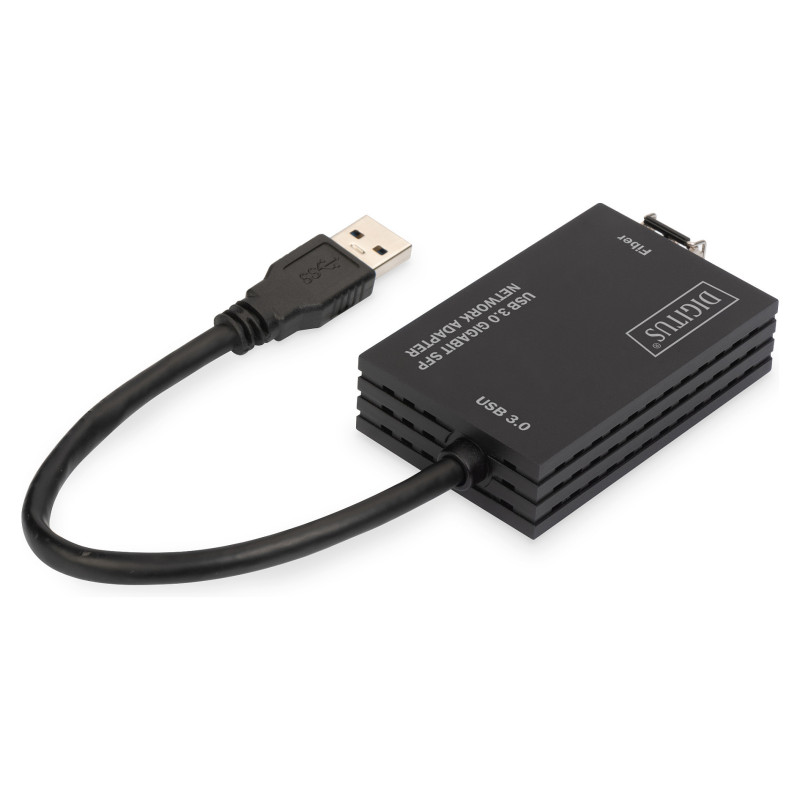

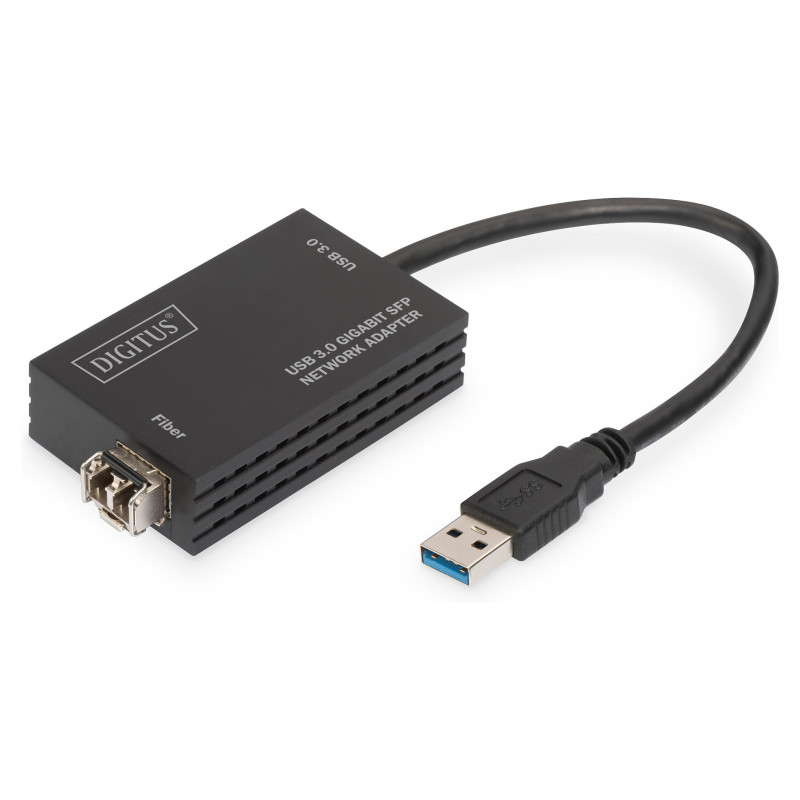

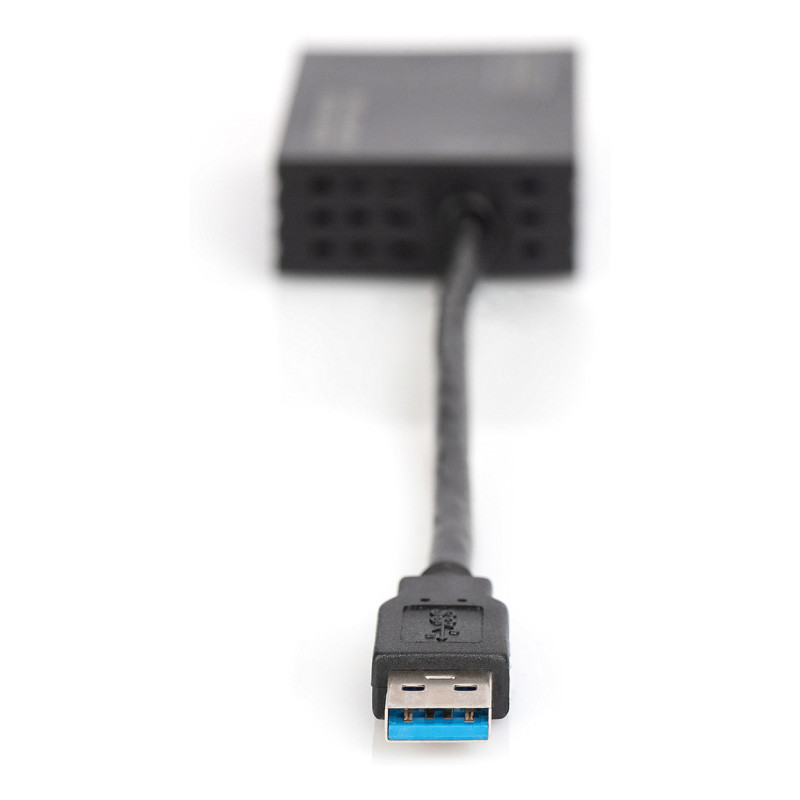

Digitus DN-3026 interface cards / adapter

Digitus USB 3.0 Gigabit SFP Network Adapter. Host interface: USB Type-A, Output interface: SFP. Product colour: Black, Country of origin: China. Chipset: RTL8153. Width: 45 mm, Depth: 71 mm, Height: 18 mm. Quantity per pack: 1 pc(s), Package width: 175 mm, Package depth: 126 mm

Extend your laptop with USB 3.0 port to a complete Gigabit SFP network connection.

- Up to 1000 Mbps data transfer rate
- Easy to install thanks to plug and play - driver on virtual CD drive in the adapter is included
- No power supply required - power is supplied via the USB 3.0 interface
- Ideal also for mobile and stationary use
- Supports Layer 2 features like VLAN and IEEE802 priority encoding
- Compatible with Windows, macOS, Google Chrome and all other USB 3.0 compatible systems.
- Compact dimensions, elegant design

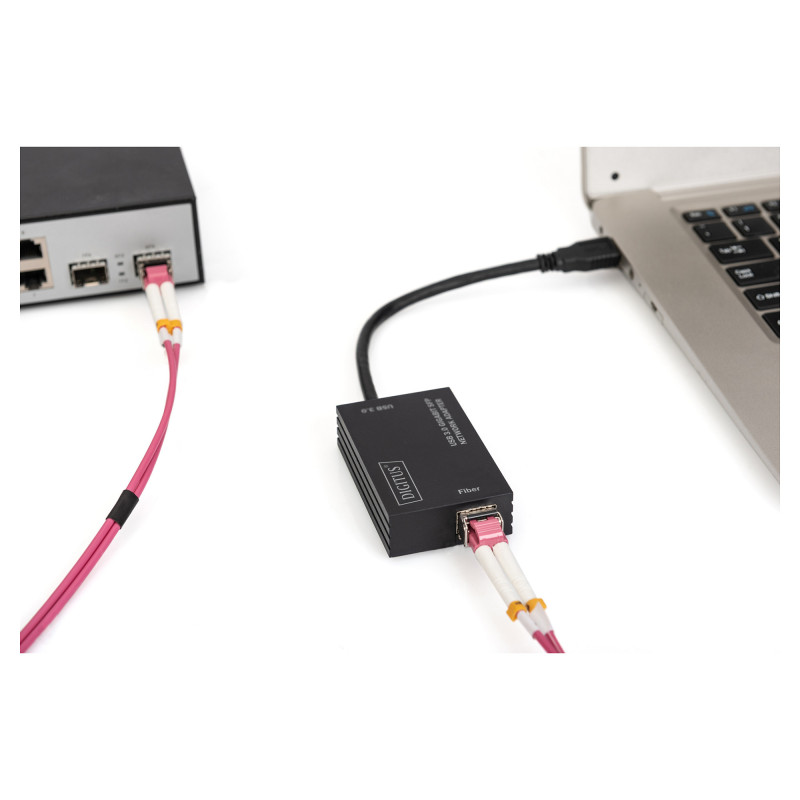

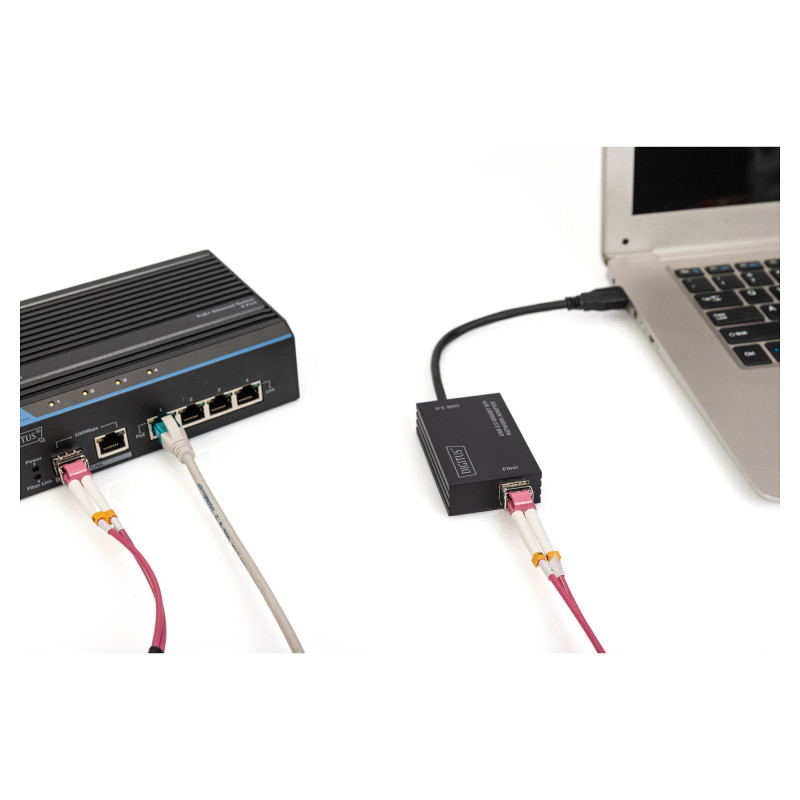

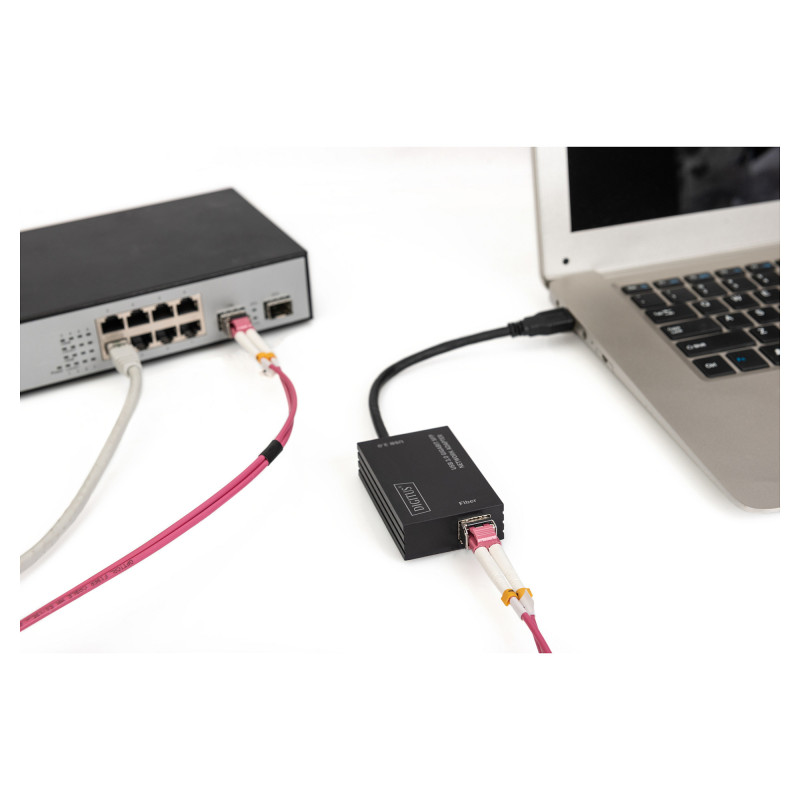

The USB 3.0 Gigabit SFP adapter allows you to extend your laptop to an SFP connection and to connect directly to a fiber optic network via a suitable fiber optic transceiver. This fiber optic interface is the right choice both for mobile use in connection with laptops and for stationary use in desktop systems. In addition, this SFP adapter in data and server centers serves its purpose in monitoring and troubleshooting applications, allowing you to intervene into the fiber optic infrastructure directly and with full bandwidth. It is easy to use, offers a wealth of options and is the perfect complement for most computers that do not have an SFP connection as a standard feature. Thanks to the virtual drive, no driver installation from CD is necessary - plug in and get started. The power supply is also ensured via the USB 3.0 interface. If Wi-Fi connections pose a security risk and copper connections are too slow, fiber optic connectivity provides the right solution for your network. The adapter is compatible with Windows, macOS, Google Chrome and all other systems that are compatible with USB 3.0.

Ports & interfaces

Host interface: USB Type-A
Output interface: SFP

Design

Product colour: Black
Country of origin: China

Features

Chipset: RTL8153
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 0 - 70 °C

Weight & dimensions

Width: 45 mm
Depth: 71 mm
Height: 18 mm
Weight: 60 g

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
Package width: 175 mm
Package depth: 126 mm
Package height: 32 mm
Package weight: 120 g
Package volume: 705.6 cm³

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 90 pc(s)
Master (outer) case width: 410 mm
Master (outer) case length: 410 mm
Master (outer) case height: 390 mm
Master (outer) case gross weight: 11 kg

Other features

Cable length: 0.17 m
Relative humidity: 10 - 90%
