Digitus DA-71545-1 storage drive docking station

Digitus NVMe cloning station USB3.1 Gen2 Type-C NVMe M.2 SSD enclosure. Storage media type: SSD, Storage drive interface: M.2, Storage drive sizes supported: M.2. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product colour: Black, Maximum data transfer rate: 10 Gbit/s. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Input voltage: 5 V. Width: 79 mm, Depth: 77 mm, Height: 18 mm

Manage M.2 NVMe and M.2 SATA SSDs via a USB-CTM connection

- Dual NVMe storage - support for two M.2 SSDs with up to 4 TB each for maximum storage capacity.
- Offline cloning function - data cloning without a PC connection, simply by pressing a button.
- Lightning-fast transfer - USB 3.2 Gen2 connection with a speed of up to 10 Gbps.
- Wide compatibility - Supports M-Key and B+M-Key NVMe SSDs in 2242, 2260, 2280 & 22110 formats.
- Universal usability - ideal for PCs, notebooks, NAS, smart TVs, gaming consoles and routers with USB-C
- Simple operation - plug & play without driver installation for immediate use
- Hot-swap support: inserting and removing SSDs during operation
- LED indicators: Progress of the cloning process (25%, 50%, 75%, 100%)

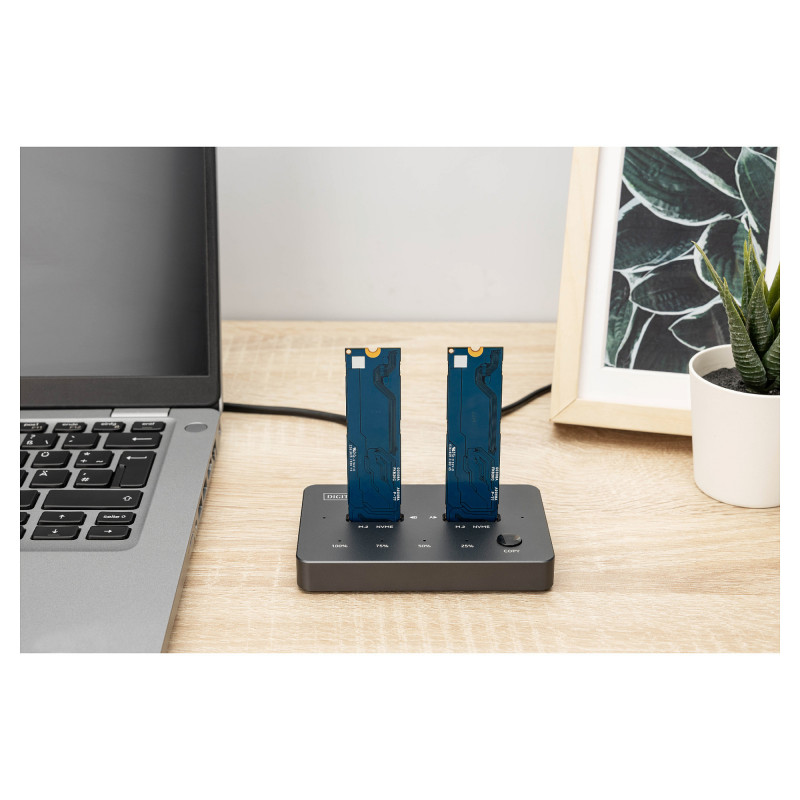

The DIGITUS® Dual NVMe Docking Station DA-71545-1 offers a powerful storage solution for IT professionals and enthusiasts. With space for two M.2 NVMe SSDs (up to 4 TB per slot), it enables high-speed data transfers and an integrated offline cloning function that allows easy duplication of data carriers at the touch of a button.

Hard drive

Storage media type: SSD
Storage drive interface: M.2
Storage drive sizes supported: M.2
Number of storage drives supported: 2
Maximum storage capacity: 4 TB

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Feature: DC-in jack

Features

Product colour: Black
Maximum data transfer rate: 10 Gbit/s

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input voltage: 5 V
Input current: 3 A

Software

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 79 mm
Depth: 77 mm
Height: 18 mm
Weight: 152 g

Packaging content

Feature: AC adapter included
Cables included: USB Type-C, USB Type-C to USB Type-A
