DeLOCK 12064 webcam

DeLOCK 12064. Megapixel (approx.): 2.1 MP, Maximum video resolution: 1920 x 1080 pixels, Camera HD type: Full HD. Interface: USB 2.0, Product colour: Black, Sensor type: CMOS. Windows operating systems supported: Windows 10, Windows 11, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel.... Sustainability certificates: CE. Width: 38 mm, Depth: 38 mm, Height: 16.5 mm

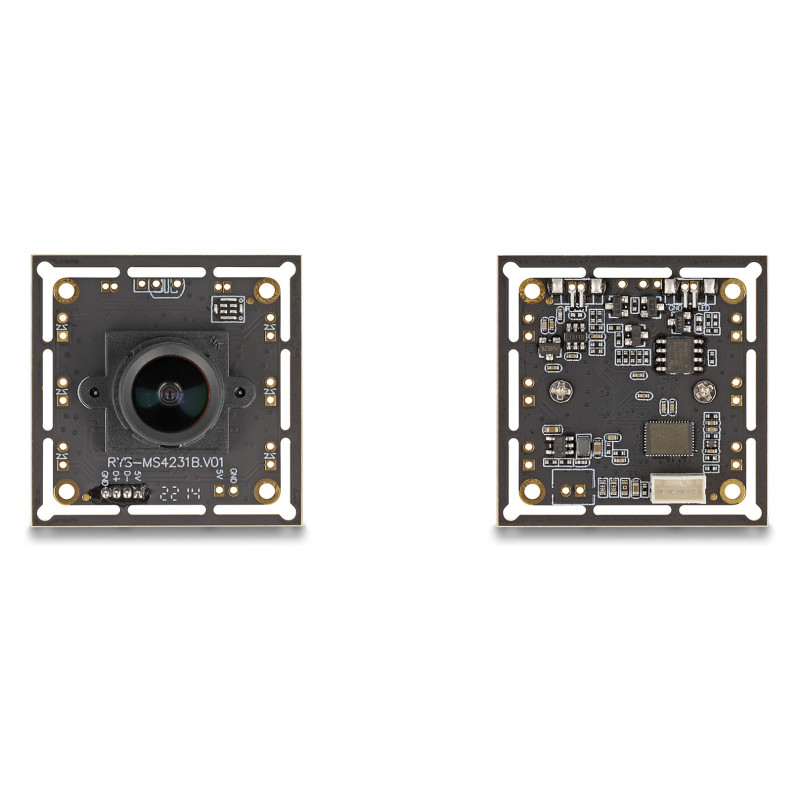

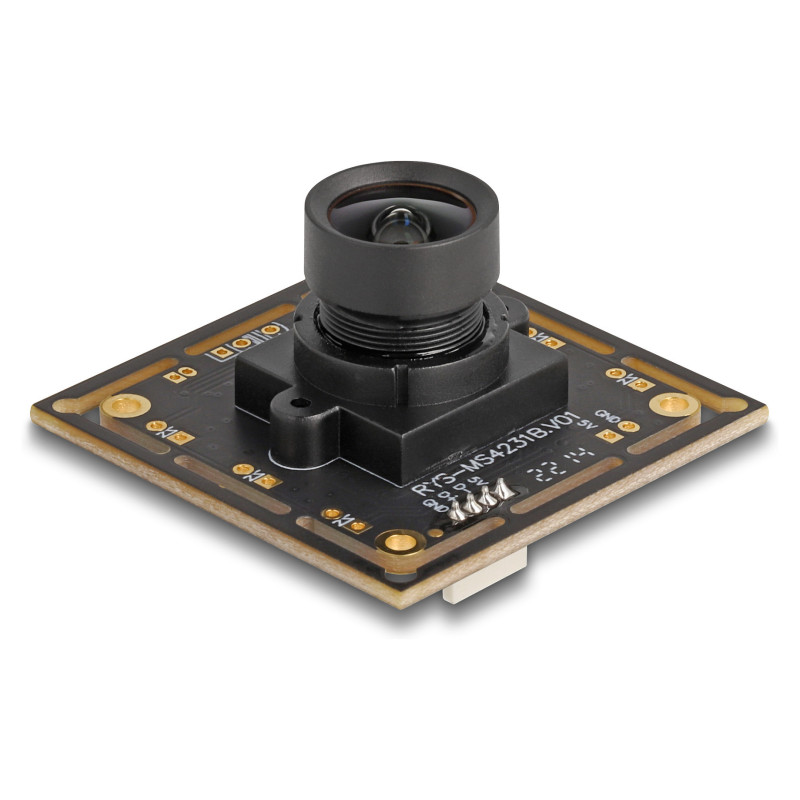

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

HDR - High Dynamic Range
Allows to increase the overall dynamic range to ensure more detailed images in scenes with bright and dark areas.

Performance

Megapixel (approx.): 2.1 MP
Maximum video resolution: 1920 x 1080 pixels
Maximum frame rate: 30 fps
Camera HD type: Full HD
Supported video modes: 1080p
Video formats supported: MJPG
Feature: Fixed focus
Focusing distance range: 0.3 - infinite
Signal-to-Noise Ratio (SNR): 41 dB
Operating voltage: 5 V

Design

Interface: USB 2.0
Product colour: Black
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Software

Windows operating systems supported: Windows 10, Windows 11

Operational conditions

Operating relative humidity (H-H): 0 - 80%
Operating temperature (T-T): -10 - 70 °C

Sustainability

Feature: Sustainability compliance
Sustainability certificates: CE

Weight & dimensions

Width: 38 mm
Depth: 38 mm
Height: 16.5 mm

Packaging data

Quantity: 1
Package type: Box

Logistics data

Country of origin: China

Technical details

Compliance certificates: CE
