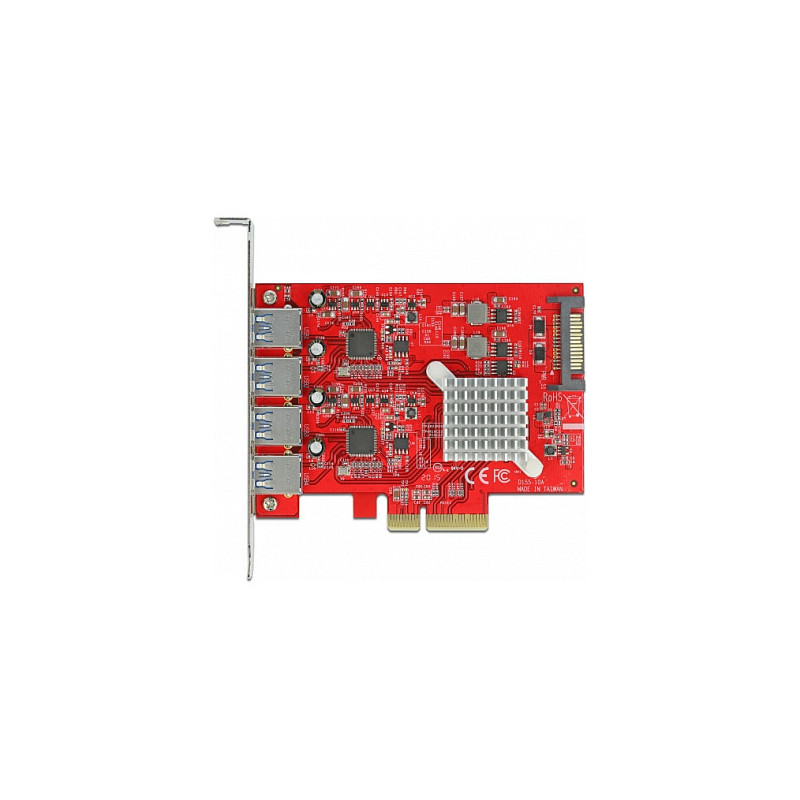

DeLOCK 90481 interface cards / adapter

DeLOCK PCI Express x4 Card to 4 x external SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-A female. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Data transfer rate (max): 10 Gbit/s. Output voltage: 5 V, Output current: 2 A. Package type: Box

The PCI Express card by Delock expands a PC by four external USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on all ports when used simultaneously.

Power supply
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a SATA power connector. At each USB port the maximum output is 2 A, all ports together have an output of maximum 8 A.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
SATA power connector type: SATA 15-pin

Design

Feature: Internal

Features

Data transfer rate (max): 10 Gbit/s

Power

Output voltage: 5 V
Output current: 2 A

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Packaging data

Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
