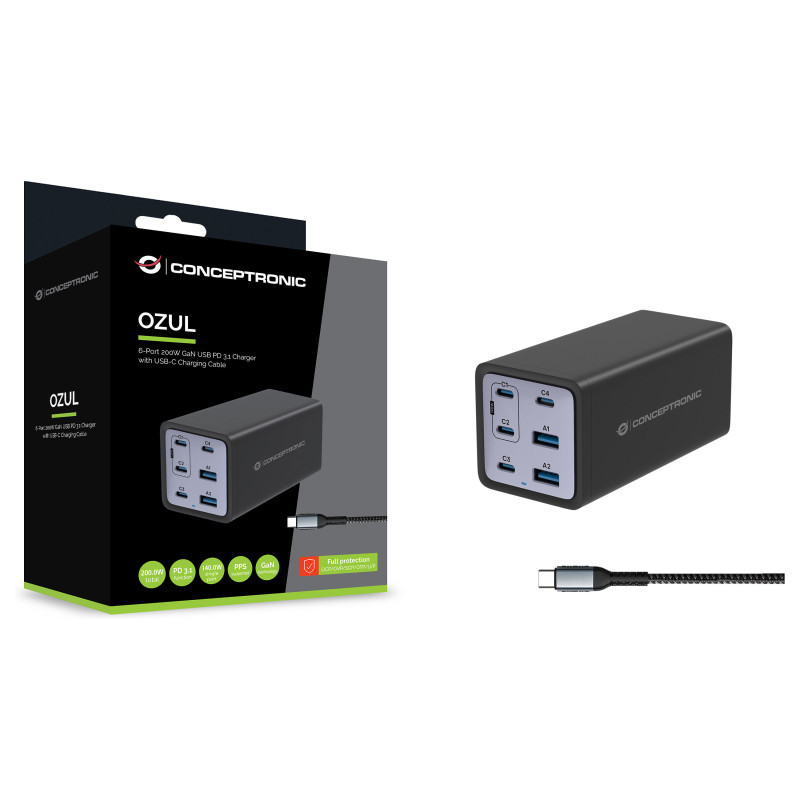

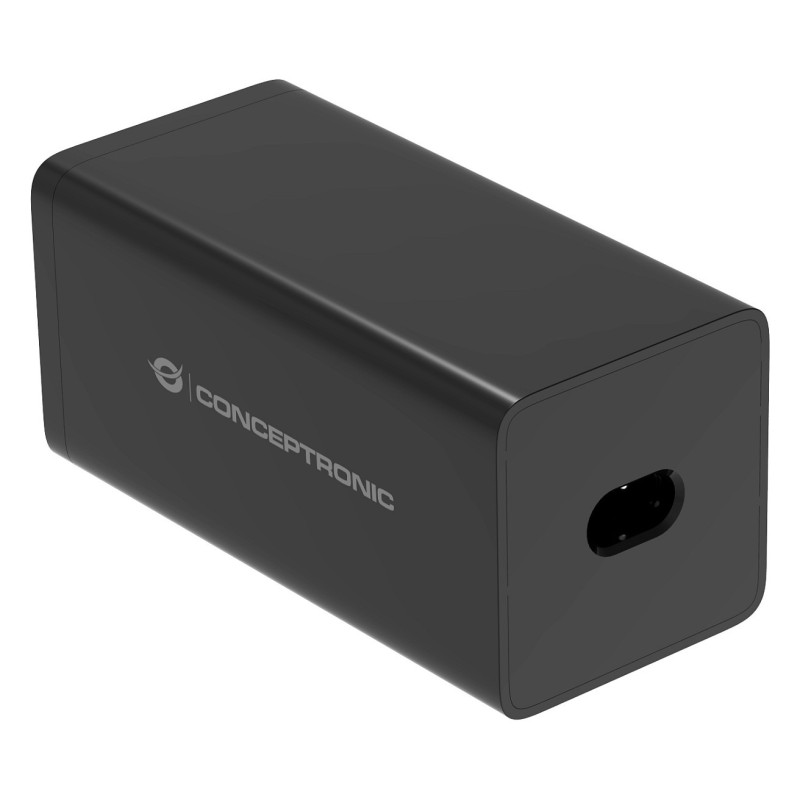

Conceptronic OZUL06BE mobile device charger

Conceptronic 6-Port 200W GaN USB PD Charger with USB-C Charging Cable, USB-C x 4, USB-A x 2, QC 3.0, PD 3.1, PPS. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 55 V. USB Type-C ports quantity: 4, Fast charging, Power protection features: Overheating, Overload, Short circuit. Product colour: Black

The PD 3.1 USB Charger offers efficient and ultra-fast charging with Power Delivery (PD) 3.1 technology. It features a single USB-C port capable of delivering up to 140W of power, perfect for charging devices such as MacBook Pro 16", MacBook Air, Dell laptops, Nintendo Switch, and more. This 6-in-1 charger includes 4 USB-C ports and 2 USB-A ports, providing a total output of up to 200W to accommodate various charging power needs.
Moreover, this GaN 2 charger utilizes gallium nitride (GaN) technology, offering a smaller and more streamlined alternative to traditional silicon chargers. Compared to GaN 1 chargers, it generates less heat, resulting in greater efficiency and more power directed to the device rather than being lost.
For safety, the charger is protected against overload, short-circuiting, and overheating. It's an ideal all-in-one charging solution for daily use, providing efficient and reliable power delivery for all your devices.

Performance

Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

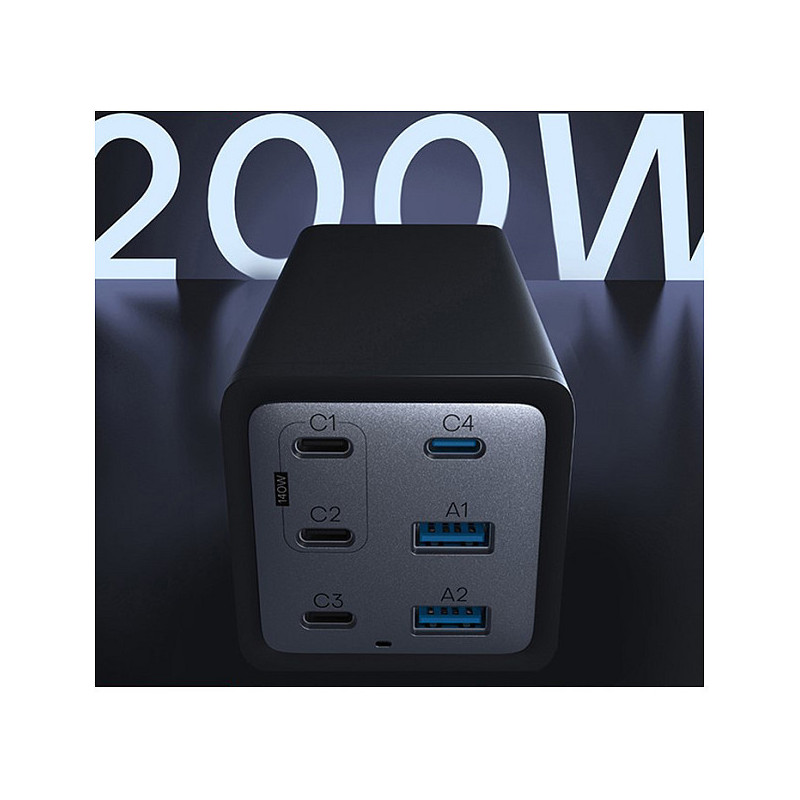

USB Type-C ports quantity: 4
Feature: Fast charging
Fast charging technology: Power Delivery, Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 6
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 140 W
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: Black
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 2.5 A
Maximum power: 200 W
Maximum output voltage: 55 V
Minimum output voltage: 3.3 V

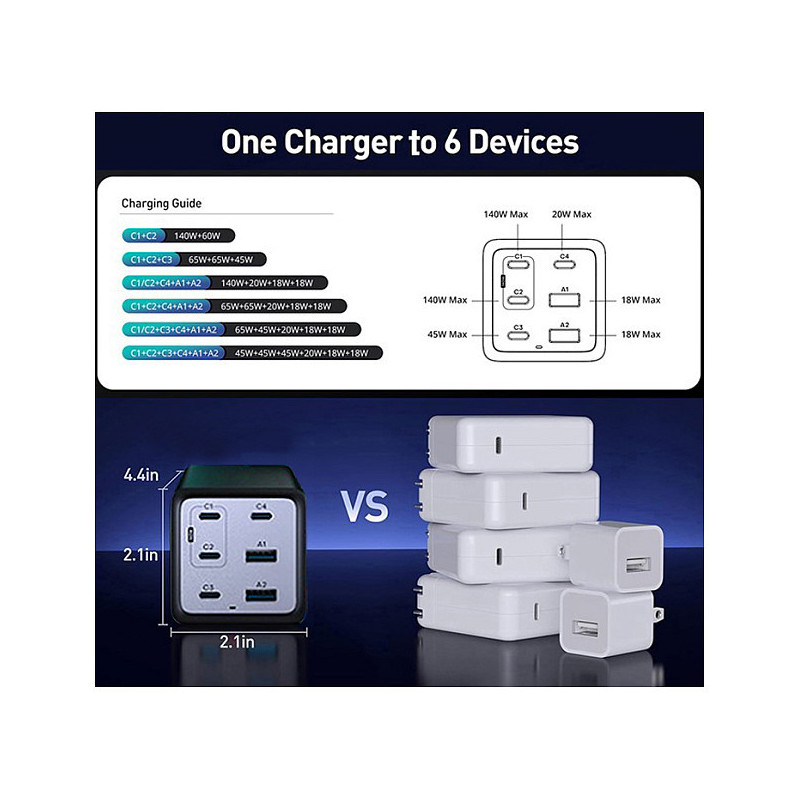

Port 1 output power: 140 W
Port 2 output power: 140 W
Port 3 output power: 45 W
Port 4 output power: 20 W
Port 5 output power: 18 W
Port 6 output power: 18 W
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 3 A
Output current (15V): 3 A
Output current (20V): 5 A
Port 1 output current: 5 A
Port 2 output current: 5 A
Port 3 output current: 4.05 A
Port 4 output current: 3 A
Port 5 output current: 3 A
Port 6 output current: 3 A

Weight & dimensions

Width: 53.5 mm
Depth: 112.5 mm
Height: 53.5 mm
Weight: 450 g

Packaging data

Package width: 160 mm
Package depth: 57 mm
Package height: 150 mm
Package weight: 735 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Packaging content

Cables included: AC, USB Type-C to USB Type-C

Sustainability

Feature: Sustainability compliance

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 152 cm
Master (outer) case width: 335 mm
Master (outer) case length: 320 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 15.2 kg
Products per master (outer) case: 20 pc(s)
Country of origin: China

Other features

Number of products included: 1 pc(s)
Feature: User guide
