CLUB3D CSV-1460 laptop dock / port replicator

CLUB3D USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station DisplayLink® Certified. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels, Maximum refresh rate: 60 Hz. Power source type: DC, Output voltage: 5 V, USB cable length: 1 m. Windows operating systems supported: Windows 10, Windows 7, Windows 8

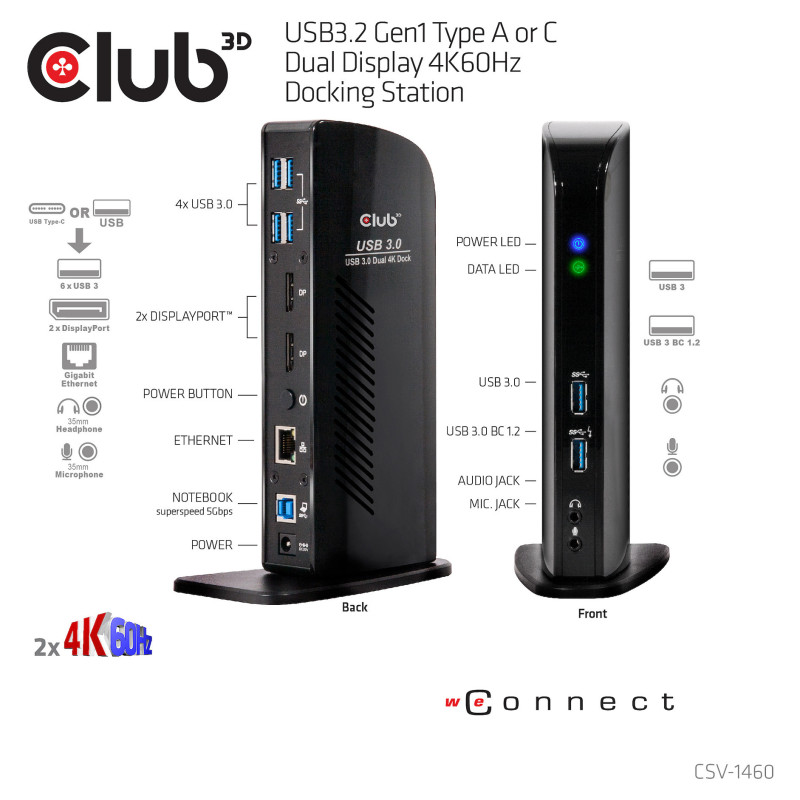

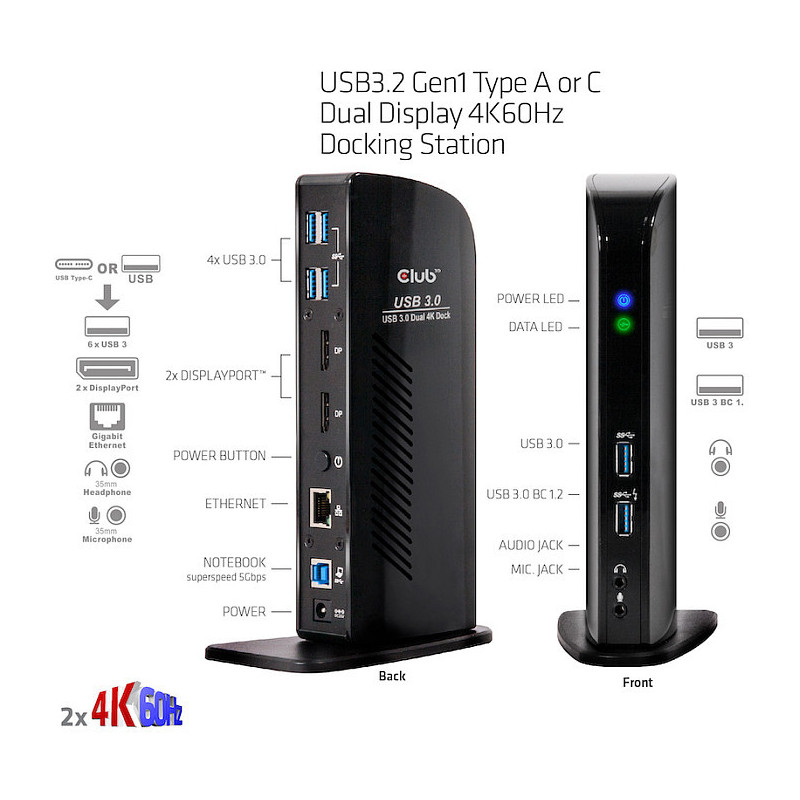

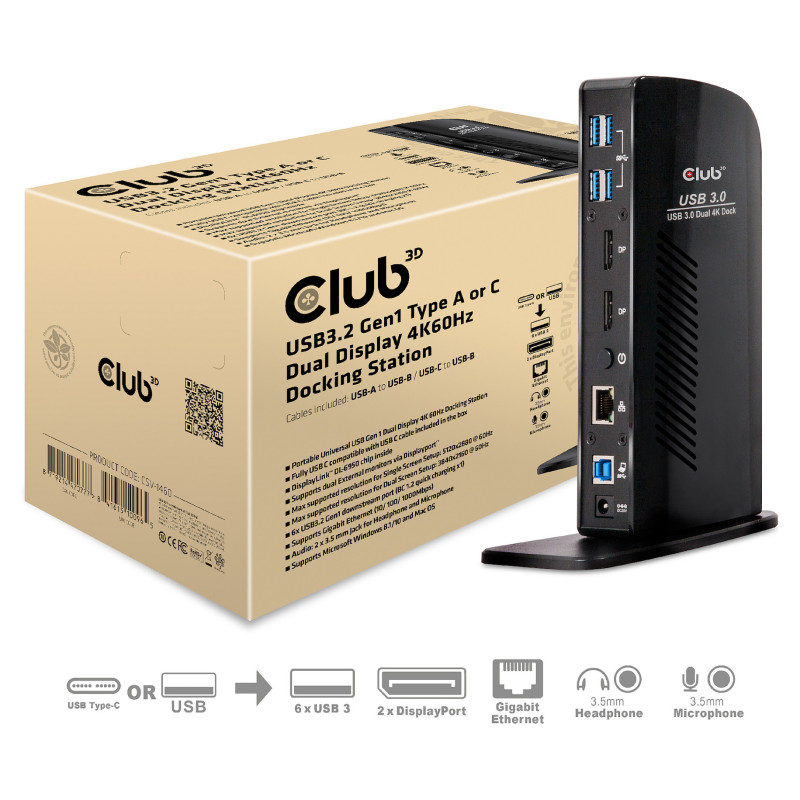

CSV-1460 - The SenseVision USB 3.0 Dual Display 4K 60Hz Docking Station is designed to satisfy all your connectivity demands. It provides no less than 6 USB 3.0 Ports, Headphone connection, Microphone connection, Gigabit Ethernet port and 2 x Displayport outputs.

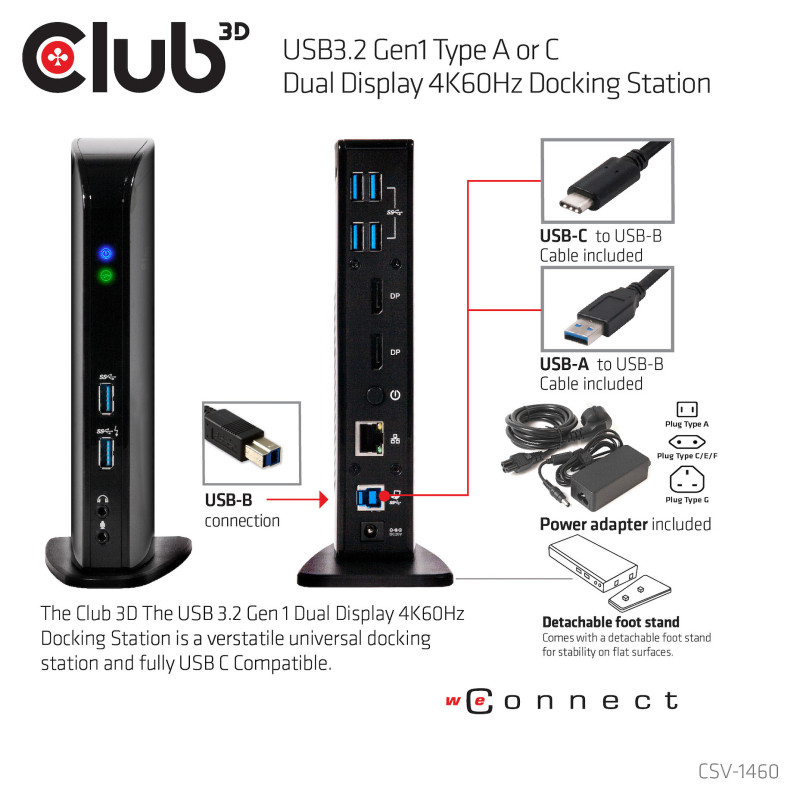

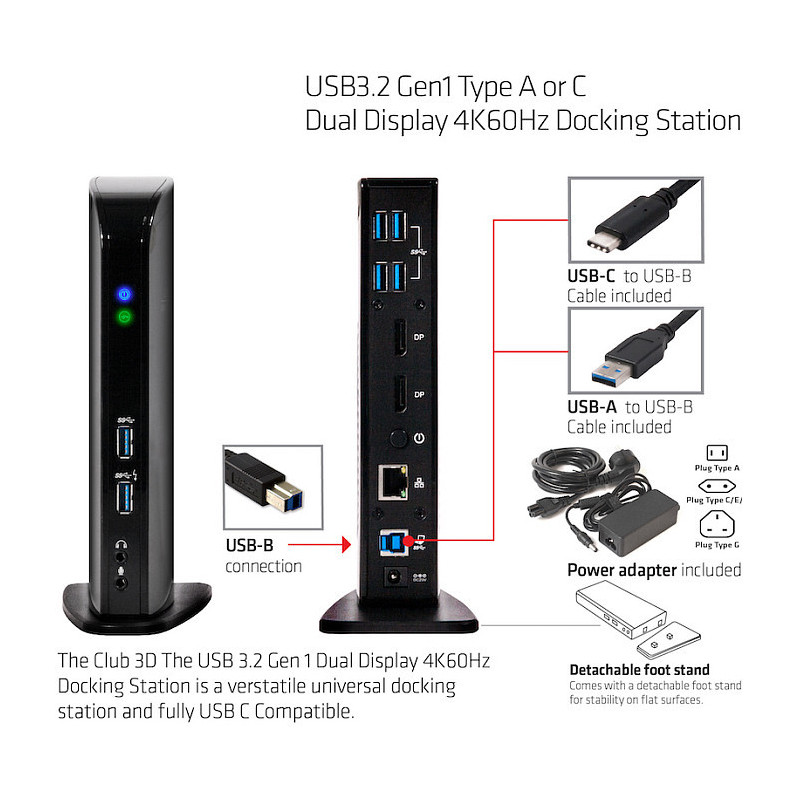

It is fully USB C compatible and a USB C cable is included in the box.

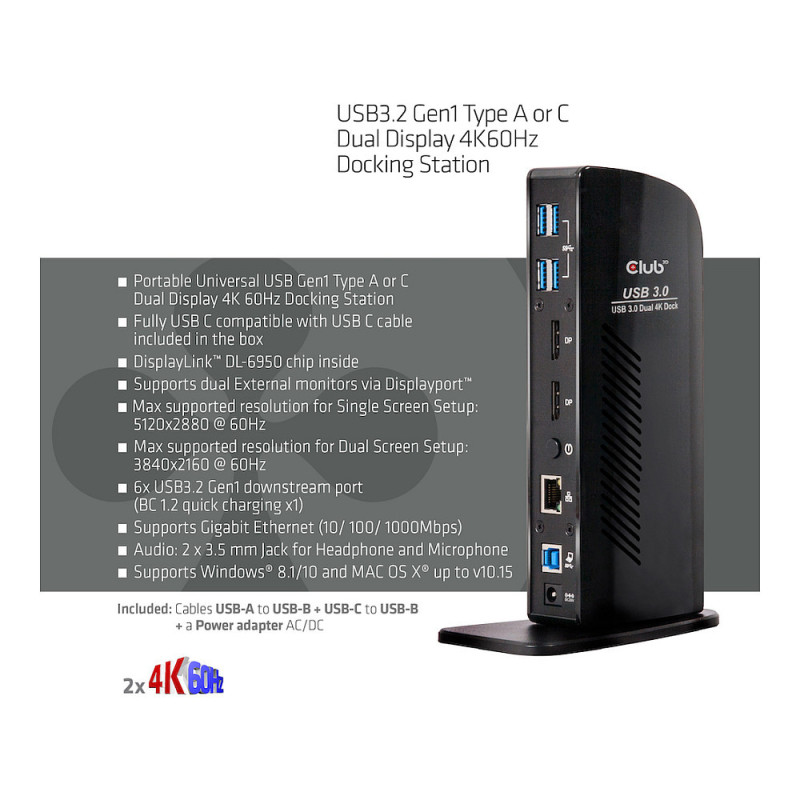

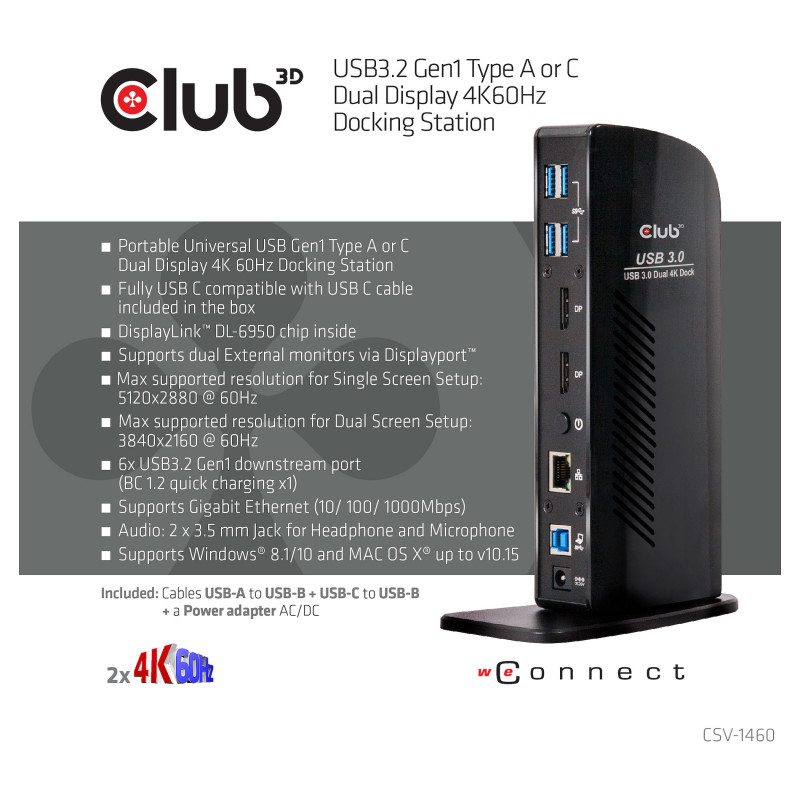

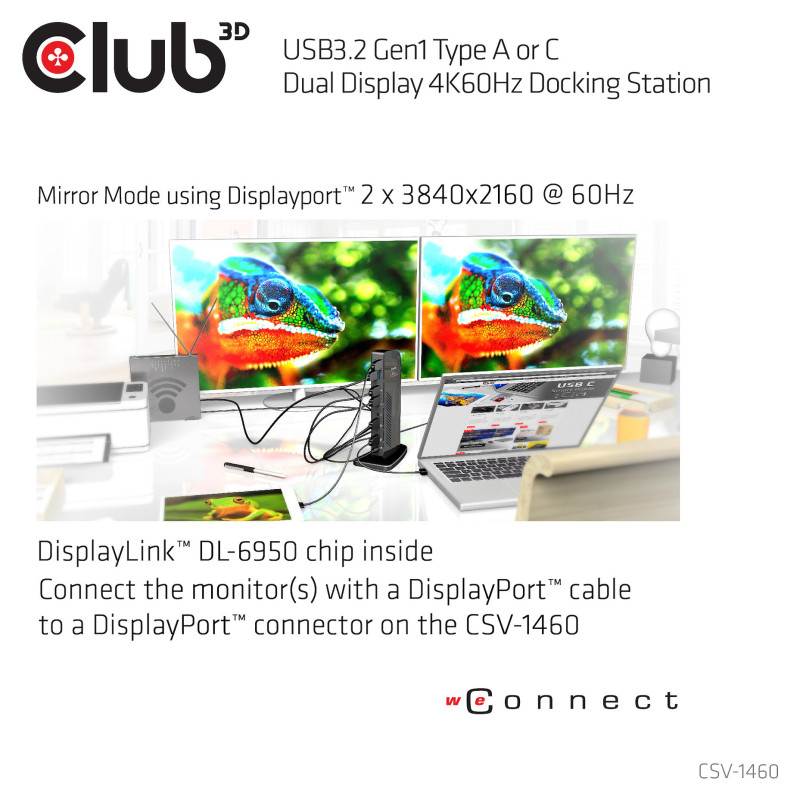

With this CSV-1460 you can now connect two Screens at 3840x2160 UHD at 60Hz resolution to almost all existing Notebooks or Tablets just by using a single USB 3.0 port! Featuring the advanced DisplayLink™ DL-6950 chip, you can even connect one screen at a resolution of 5K at 60Hz!
The SenseVision USB 3.0 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal- or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.
Dual Mode DisplayPort™:
The SenseVision USB 3.0 Dual Display 4K 60Hz Docking Station has 2 Displayport™++ outputs or in other words, Displayport™ 1.2 Dual Mode. This means that for the conversion of the video signal to DVI or HDMI™ "passive" cables or adapters must be used.

Ports interfaces

Connectivity technology: Docking
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
DisplayPorts quantity: 2
Feature: Microphone in
Headphone outputs: 1
Headphone connectivity: 3.5 mm
USB connector type: USB Type-A
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready

Performance

Maximum digital resolution: 5120 x 2880 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Black
Feature: On/off switch
Feature: Charging function
Country of origin: China
Compatibility: LenovoDellAcerAsus.MSI. ToshibaAppleHPRazer
Certification: FCC, CE, ROHS, WEEE

Power

Power source type: DC
Output voltage: 5 V
USB cable length: 1 m

Software

Windows operating systems supported: Windows 10, Windows 7, Windows 8
Mac operating systems supported: Yes

Weight dimensions

Width: 80 mm
Depth: 35 mm
Height: 195 mm
Weight: 395 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 130 mm
Package depth: 212 mm
Package height: 130 mm
Package weight: 1.03 kg

Packaging content

Cables included: AC, USB, USB Type-C
Feature: AC adapter included
Feature: Manual
Feature: Drivers included
Feature: Stand included

Packaging composition

Plastic packaging weight: 5 g
Paper/cardboard packaging weight: 362 g
Total plastic packaging weight: 0 g
Total paper/cardboard packaging weight: 0 g

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84733020
