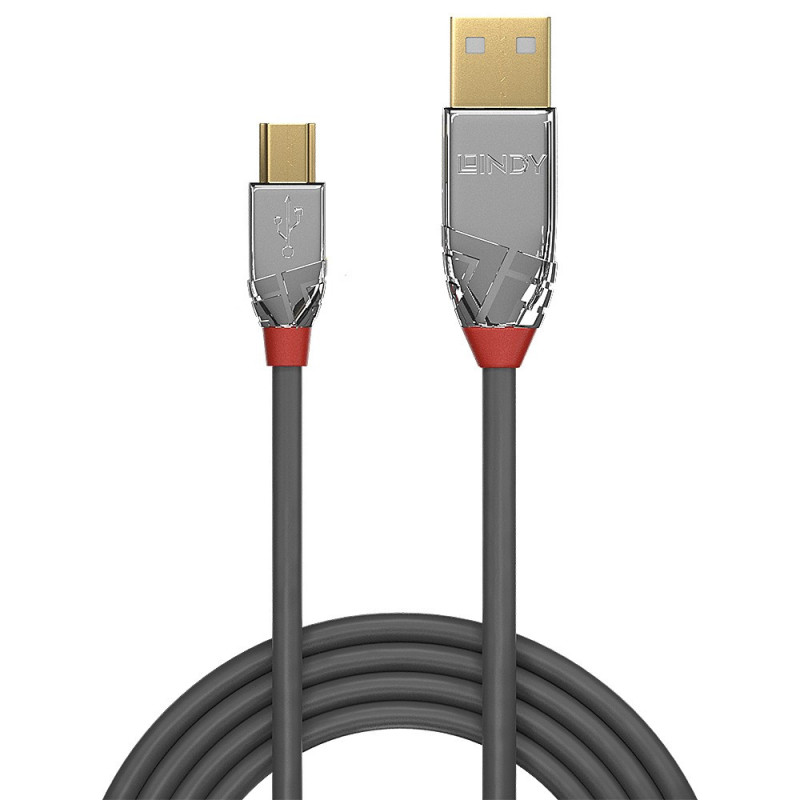

The 3m USB 2.0 Type A to Mini-B cable has gold-plated connectors and a PVC jacket. It supports 480 Mbps bandwidth and operates in a temperature range of -20°C to 80°C.
The 3m USB 2.0 Type A to Mini-B cable has gold-plated connectors and a PVC jacket. It supports 480 Mbps bandwidth and operates in a temperature range of -20°C to 80°C.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
The 3m USB 2.0 Type A to Mini-B cable features gold-plated connectors and a PVC jacket. It supports 480Mbps bandwidth and operates in a temperature range of -20°C to 80°C.
Features | |
|---|---|
| Product type | USB Cable |
| Model | 3m USB 2.0 Type A to Mini-B Cable |
Specifications | |
| Connectors | USB 2.0 Type A Male, USB 2.0 Type Mini-B Male |
| Housing | Chromed, ABS |
| Connector coating | Gold 1µm |
| Pin construction | Brass |
| Pin coating | Gold 3µm |
| Dimensions (Connector A) | 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in) |
| Dimensions (Mini-B) | 10 x 24 x 7.5 mm (0.39 x 0.95 x 0.30 in) |
| Cable length | 3m (9.84ft) |
| Shell material | PVC |
| Cable material | Tinned copper |
| Wire thickness (Power) | 24AWG |
| Wire thickness (Data) | 28AWG |
| Armor | Copper braids 70% |
| Supported bandwidth | 480Mbps |
| Operating temperature | -20°C to 80°C (-4°F to 176°F) |
| Storage temperature | -25°C to 85°C (-13°F to 185°F) |
Additional information | |
| Color | Gray |
| Shell diameter | 4.0mm (0.16in) |
| Packaging type | Polyethylene bag |
