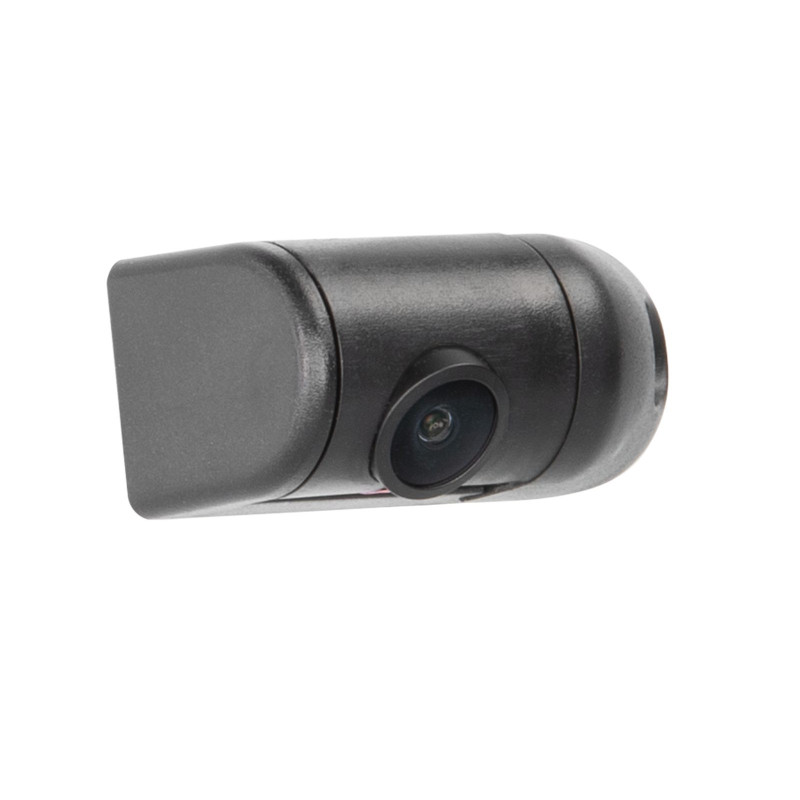

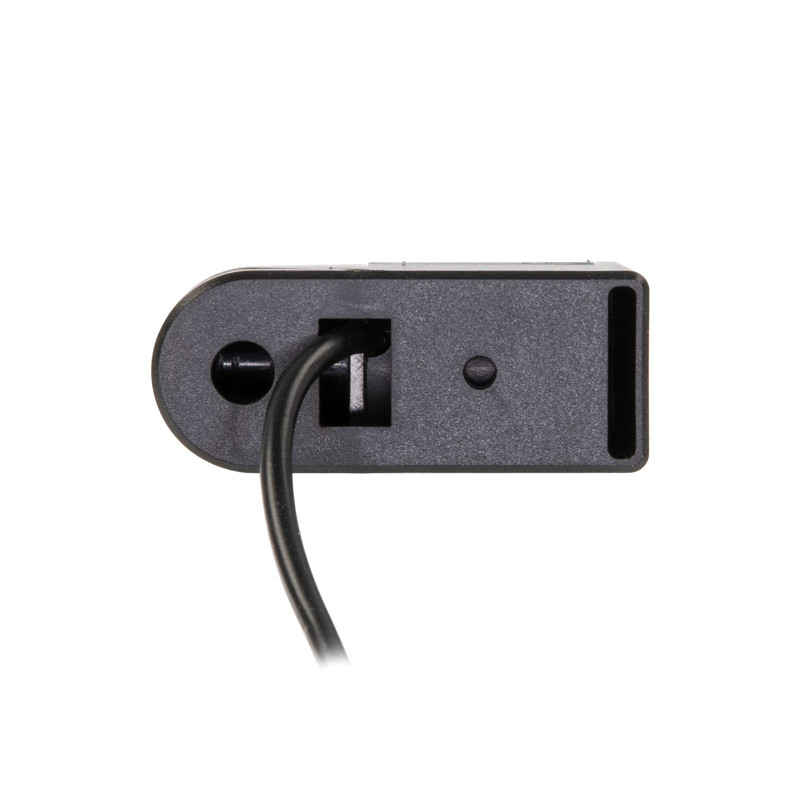

Uniwersalna kamera cofania z linami, owalna, pod podbudowe

Universal reversing camera

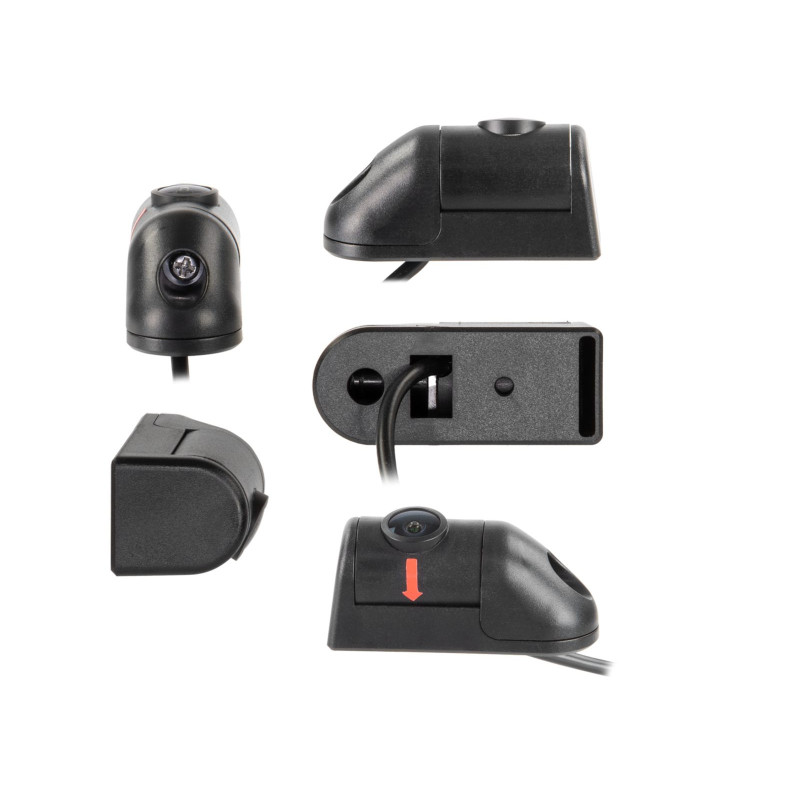

Design: oval Installation: substructure / built-in structure with guide lines / mirror function / adjustable viewing angle.

Attention:

• ACV cameras are suitable for continuous operation
• before installation > check the viewing angle and camera position at the installation site using a test monitor
• camera operating voltage: +3V
• camera power supply: +12V/+24V
• connecting without the +3V voltage converter included in the scope of delivery damages the camera

connection:

• red: +12V/+24V switchable stable load fuse
• black: body direct ground/GND
• RCA(m) yellow: video

jumper:

• green: guide lines activate/deactivate
• white: mirror function activate/deactivate

Product characteristics camera:

• Construction: plastic/metal
• Color: black
• Extras: Guide lines via jumper/Mirror function via jumper
• Image sensor: 1/4" CMOS
• TV system: NTSC
• Effective pixels: 720 x 576
• Lens: 1.9mm / F2.0
• Lux: 0.5
• Resolution: 480 TV lines
• Lens angle: 180° diagonal
• Viewing angle: horizontal 155° vertical 95° +5°
• IP protection class: IP 68
• Terminal: 4-pin ACV system connector (m) Ø5.2 mm
• Operating voltage: +3 V DC
• Power supply: +12 V / +24 V DC > with voltage converter
• Current consumption: 60 mA
• Operating temperature: -30°C - 75°C
• Storage temperature: -40°C - 80°C
• Dimensions: L / W / H - 48mm / 23mm / 25mm

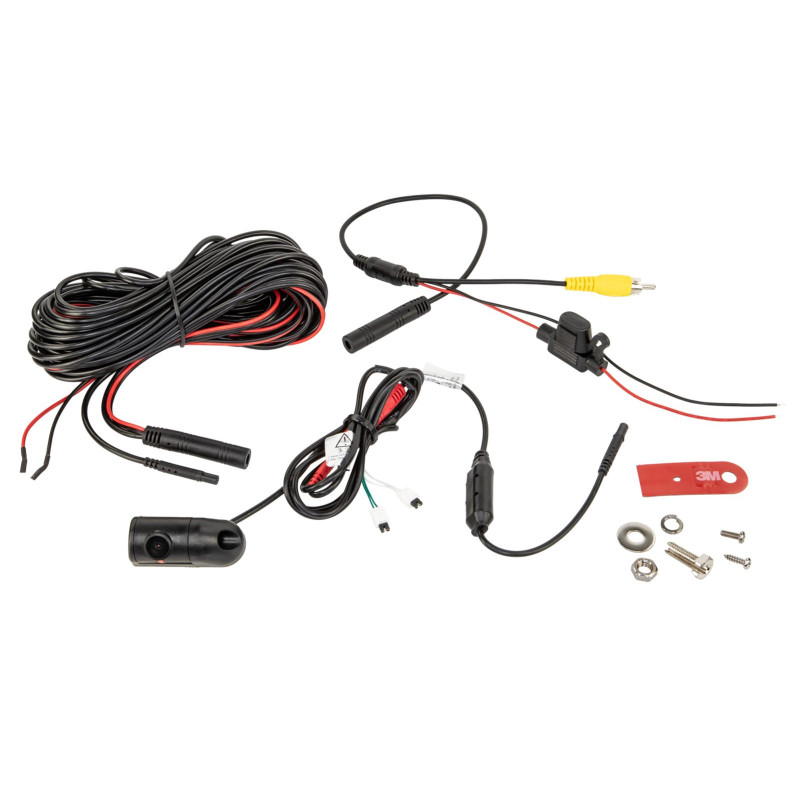

Pigtail in camera +/-:

• 4-pin ACV system connector (m) Ø5.2mm
• 2 jumpers

+3V voltage converter:

• 4-pin ACV-system(f) connector Ø10mm / 4-pin ACV-system(m) connector Ø5.2mm

Extension cable 6.5m +/-:

• 4-pin ACV-system(f) connector Ø10mm / 4-pin ACV-system(m) connector Ø5.2mm
• red power cable 3m +/- insert cable: connection to the camera / connection of the reversing light to the monitor
• ground wire/GND black 3m +/- insert cable: connect body directly/GND to camera / body directly/GND to monitor

Connection cable 20cm +/-:

• 4-pin ACV-system(f) connector Ø10mm
• red: power
• black: GND
• RCA(m) yellow: video

Installation accessories:

• connecting the camera to the interfaces:
• solid state relay closed 2V-12V/1.5A max. > position: 40-AD-REMOTE
• connecting the camera to the reversing light: Reversing camera voltage regulator reversing switch signal > item: 771000-6100

Optional accessory:

• Camera extension cable for acv camera 5m > item: 771000-6305
• Camera extension cable for acv camera 10m > item: 771000-6310
• Camera extension cable for acv camera 15m > item: 771000-6315
