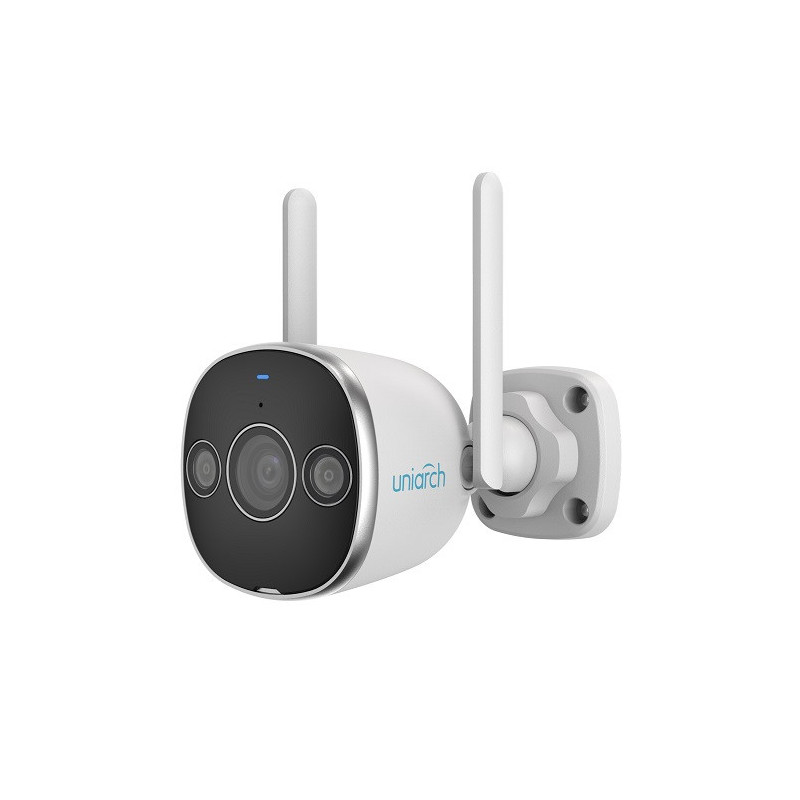

UNIARCH outdoor camera, 5MP, Wi-Fi

IP67 outdoor webcam, cylindrical, designed to ensure the security and peace of mind of your home, office or small shop. It features 5MP (2880x1620) resolution, 4.0mm fixed lens, 3-axis mechanism for camera adjustment, two-way talk, LED illumination up to 10 meters and reliable night vision up to 20 meters. Remote access via Wi-Fi, data recording to an SD card up to 128GB.
Features:
The camera, operating in Dual Light mode, can use infrared (IR) light or warm (visible) white light. Warm light allows you to see a color image even in the dark, helping you see faces or other important details more clearly. The camera automatically switches between IR and warm light when motion detection, sound detection, or other events are triggered.
Smart infrared illumination allows you to see clearly at night up to 20 meters away.
Uses 2.4GHz Wi-Fi connection. Easy installation.
Compression speed 5MP(2880x1620)@25fps; 4MP(2560x1440)@25fps; 3MP(2304x1296)@25fps; 1080p(1920x1080)@25fps; 720p(1280x720)@25fps.
Motion detection, high-sensitivity motion detection, sound detection, and camera intrusion or tampering alert are supported.
The built-in speaker and microphone allow you to communicate remotely with visitors.
Data storage: supports micro SD(TF) card up to 128GB (card not included).
The kit includes: power adapter, mounting bracket and set of mounting screws.
Note: SD card is purchased separately.
Technical characteristics:
CMOS sensor: 1/3" 5MP.
Scanning system: progressive.
Lens: 4.0mm F1.6.
Aperture: fixed.
Viewing angle: 79°(H).
Max resolution: 2880x1620 pixels.
LED (warm light) illumination: up to 10m.
Smart IR illumination: up to 20m.
IR wavelength: 850 nm.
IR on/off: automatic/manual.
Electronic shutter: automatic/manual, 1 ~ 1/100000s.
3-axis mechanism for camera adjustment (Pan: 0°~360° Tilt: 0°~90° Rotation: 0°~360°).
Image rotation (Flip): Normal/ Vertical/ Horizontal/ 180°.
Day/night: ICR, IR-cut filter.
Min. illumination: 0.003 lux (Colour, F1.6, AGC On); 0 lux (IR on).
Video compression: Ultra 265, H.265, H.264, MJPEG.
Compression rate: main stream: 5MP(2880x1620)@25fps; 4MP(2560x1440)@25fps; 3MP(2304x1296)@25fps; 2MP(1920x1080)@25fps; 720p(1280x720)@25fps; sub-stream: 720P(1280x720)@25fps; D1(720x576)@25fps; (640x360)@25fps.
Bit rate: 128 Kbps ~ 6144 Kbps.
WDR (Wide Dynamic Range): DWDR.
S/N (signal-to-noise) ratio > 52dB.
ROI (Reference Area of ​​Interest): up to 8 zones.
Privacy masking: supported.
Noise suppression in DNA: 2D/3D DNA.
White balance: auto/outdoor/fine tuning/sodium lamp/locked/auto 2.
Image processing technology: Digital Defog.
Functions: motion detection, highly sensitive motion detection, sound detection, camera intrusion or tampering alert.
Audio compression: G.711U, G.711A.
Audio data rate 64 Kbps.
Built-in microphone and speaker.
Two-way talk: supported.
Sound suppression: supported.
Micro SD card slot (supports cards up to 128GB).
Wireless network: 2.4GHz Wi-Fi (IEEE802.11b/g/n), integrated antenna.
Network protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP.
Supported standards: API, SDK.
Max. number of users: 6.
Supported browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network socket: 1 x RJ45 10M/100M Base-TX Ethernet.
Charging interface: Ø5.5 mm coaxial power plug.
Power supply voltage: DC 12V.
Consumption: max. 5.7W.
Dimensions: 148mm x 78mm x 78mm (5.8" x 3.1" x 3.1").
Reboot button.
LED status indicator: 1, red/blue.
Operating temperature: -30°C ~ +60°C.
Operating humidity: <95%RH (non-condensing).
Weight: 0.31kg (0.68lb).
Material: metal, plastic.
Color: white, black.
Protection class: IP67.
Surge protection: 4 KV.
Certifications: EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035); FCC (FCC 47 CFR15 Part B). RF: FCC ID (FCC CFR 47 C Part 15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311). Safety: (EN 62368-1). Environmental: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU).
Warranty: 24 months.
