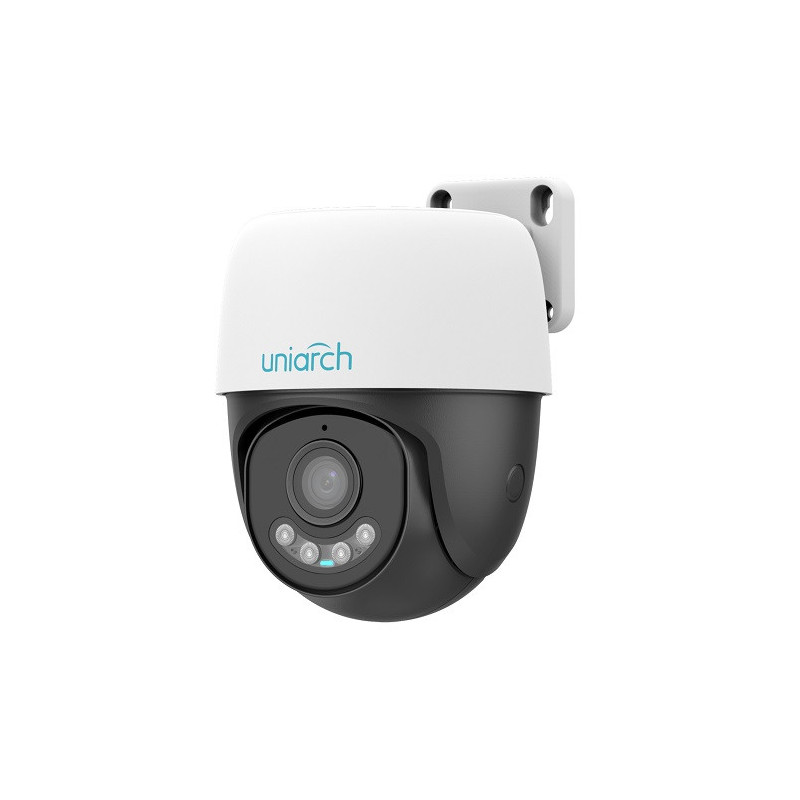

UNIARCH outdoor camera, 3MP, Wi-Fi

IP66 outdoor IP camera, dome, designed to ensure the security and peace of mind of your home, office or small shop. It features 3MP resolution, two-way talk, LED illumination up to 10 meters and reliable night vision up to 30 meters. Remote access via Wi-Fi, data recording to an SD card up to 512GB.
Features:
The PT (Paving and Tilting) camera can pan horizontally up to 345° and tilt vertically up to 90° to cover all corners and leave no blind spots.
An infrared filter with automatic switch (ICR) allows you to see clearly at night up to 30 meters away.
Sound and light warning is supported, making warning and alarm signals more noticeable.
2.4GHz Wi-Fi connection is used.
Motion detection, sound detection and human detection are supported. Auto tracking is supported.
The built-in speaker and microphone allow you to communicate remotely with visitors.
Data storage: supports micro SD(TF) card up to 512GB (card not included).
The front of the camera is made of graphene, which has better heat dissipation and is more environmentally friendly.
The kit includes: power adapter, mounting bracket and set of mounting screws.
Note: SD card is purchased separately.
Technical characteristics:
CMOS sensor: 1/3" 3MP.
Scanning system: progressive.
Lens: 4mm F1.6.
Aperture: fixed.
Viewing angle: 90.5°(H).
Max resolution: 2304x1296 pixels.
LED (warm light) illumination: up to 10m.
IR illumination: up to 30m.
IR wavelength: 850 nm.
IR on/off: automatic/manual.
Electronic shutter: automatic/manual, 1 ~ 1/100000s.
Day/night: ICR, IR-cut filter.
Min. illumination: 0.005 lux (Colour, F1.6, AGC On); 0 lux (IR on).
Horizontal coverage (Pan): 0-345°.
Vertical range (Tilt): 0-90°.
Pan/Tilt Speed: (Pan) 1°/s ~ 40°/s; (Tilt) 1°/s ~ 30°/s.
Preset (label, camera settings): 20.
Video compression: Ultra 265, H.265, H.264.
Compression rate: main stream: 3MP(2304x1296)@20fps; sub stream: (640x360)@20fps.
Bit rate: 128 Kbps~2048 Kbps.
WDR (Wide Dynamic Range): DWDR.
Digital zoom: 4X.
S/N (signal-to-noise) ratio > 52dB.
ROI (Reference Area of ​​Interest): up to 8 zones.
Privacy Masking: Only supported on NVR.
Noise suppression in DNA: 2D/3D DNA.
White balance: auto/outdoor/fine tuning/sodium lamp/locked/auto 2.
Image processing technology: Digital Defog.
Functions: motion detection, human detection, sound detection.
Auto tracking: supported.
Audio compression: G.711U, G.711A.
Audio data rate 64 Kbps.
Built-in microphone and speaker.
Two-way talk: supported.
Sound suppression: supported.
Micro SD card slot (supports cards up to 512GB).
Wireless network: 2.4GHz (up to 2.4835 GHz) Wi-Fi (IEEE802.11b/g/n), integrated antenna.
Network protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP.
Transmission rate: 802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps.
Encryption: 64/128-bit WEP, WPA-PSK/ WPA2-PSK.
Supported browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network socket: 1 x RJ45 10M/100M Base-TX Ethernet.
Charging interface: Ø5.5 mm coaxial power plug.
Power supply: DC 12V/ 1A.
Dimensions: Ø110 x 110mm x 151mm (Ø 4.3"x 4.3"x 6.0").
Reboot button.
LED status indicator: 1, red/blue.
Operating temperature: -30°C ~ +60°C.
Operating humidity: <95%RH (non-condensing).
Weight: 0.38kg (0.84lb).
Color: white, black.
Safety class: IP66.
Surge protection: 4 KV.
Certifications: EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130); FCC (FCC 47 CFR15 Part B). RF: FCC ID (FCC CFR 47 C Part 15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311). Safety: (EN 62368-1). Environmental: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU).
Warranty: 24 months.
Download specification (pdf)
