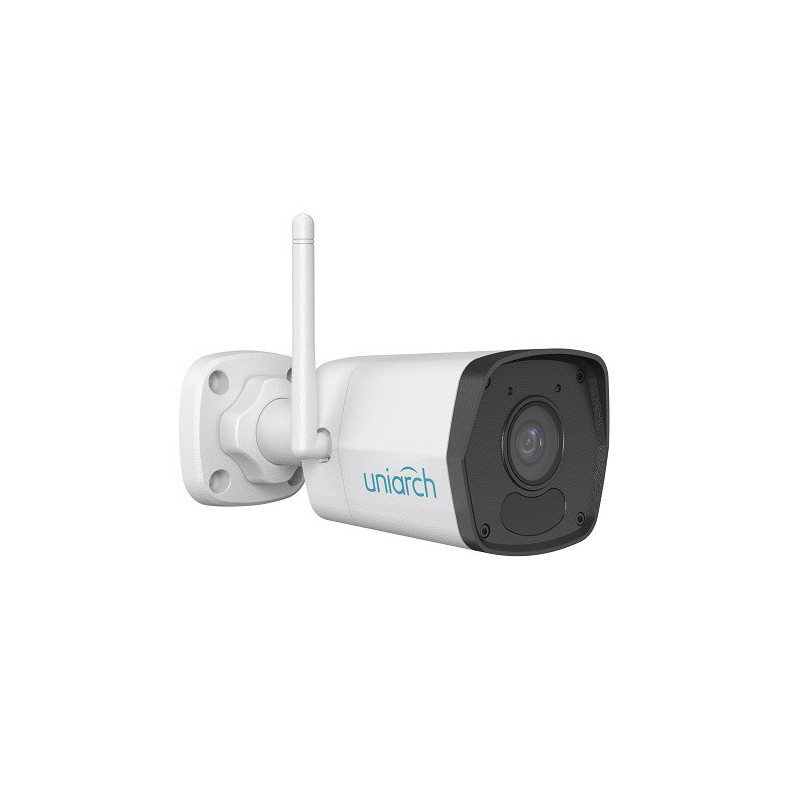

UNIARCH outdoor camera, 2MP, Wi-Fi

IP67 outdoor web camera, cylindrical, designed to ensure the security and peace of mind of your home, office or small shop. It features 2MP resolution, 4.0mm fixed lens, 3-axis mechanism for camera adjustment and reliable night vision up to 30 meters. Remote access via Wi-Fi, data recording to an SD card up to 128GB.
Features:
Smart infrared illumination allows you to see clearly at night up to 30 meters away.
Uses 2.4GHz Wi-Fi connection. Easy installation.
Compression rate 1080p(1920x1080)@25fps; 720p(1280x720)@25fps.
Motion detection, sound detection and human detection are supported. As well as camera intrusion or tampering alerts.
Built-in microphone, no speaker.
Data storage: supports micro SD(TF) card up to 128GB (card not included).
The kit includes: power adapter, mounting bracket and set of mounting screws.
Note: SD card is purchased separately.
Technical characteristics:
CMOS sensor: 1/2.9" 2MP.
Scanning system: progressive.
Lens: 4.0mm F2.1.
Aperture: fixed.
Viewing angle: 83.7°(H).
Max resolution: 1920x1080 pixels.
Smart IR illumination: up to 30m.
IR wavelength: 850 nm.
IR on/off: automatic/manual.
Electronic shutter: automatic/manual, 1 ~ 1/100000s.
3-axis mechanism for camera adjustment (Pan: 0°~360° Tilt: 0°~90° Rotation: 0°~360°).
Image rotation (Flip): Normal/ Vertical/ Horizontal/ 180°.
Day/night: ICR, IR-cut filter.
Min. illumination: 0.01 lux (Colour, F2.1, AGC On); 0 lux (IR on).
Video compression: Ultra 265, H.265, H.264, MJPEG.
Compression rate: main stream: 1080p(1920x1080)@25fps; 720p(1280x720)@25fps; sub stream: 720P(1280x720)@25fps; D1(720x576)@25fps; (640x360)@25fps; 2CIF(704x288)@25fps; CIF(352x288)@25fps.
Bit rate: 128 Kbps~6 Mbps.
WDR (Wide Dynamic Range): DWDR.
S/N (signal-to-noise) ratio > 52dB.
ROI (Reference Area of ​​Interest): up to 8 zones.
Privacy masking: up to 4 zones.
Noise suppression in DNA: 2D/3D DNA.
White balance: auto/outdoor/fine tuning/sodium lamp/locked/auto 2.
Image processing technology: Digital Defog.
Image processing functions: BLC, HLC.
Functions: motion detection, human detection, sound detection, camera intrusion or tampering alert.
Audio compression: G.711U, G.711A.
Audio data rate 64 Kbps.
Built-in microphone: yes.
Speaker: no.
Two-way talk: N/A.
Sound suppression: supported.
Micro SD card slot (supports cards up to 128GB).
Wireless network: 2.4GHz Wi-Fi (IEEE802.11b/g/n), integrated antenna.
Transmission rate: 802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps.
Encryption: 64/128-bit WEP, WPA-PSK/ WPA2-PSK.
Network protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP.
Supported standards: API, SDK, ANR, NAS(NFS).
Max. number of users: 6.
Supported browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network socket: 1 x RJ45 10M/100M Base-TX Ethernet.
Charging interface: Ø5.5 mm coaxial power plug.
Power supply voltage: DC 12V.
Consumption: max. 3.6W.
Dimensions: 168mm x 88mm x 72mm (6.6" x 3.5" x 2.8").
Reboot button.
LED status indicator: 1, red/green.
Operating temperature: -30°C ~ +60°C.
Operating humidity: <95%RH (non-condensing).
Weight: 0.28kg (0.62lb).
Material: metal, plastic.
Color: white, black.
Protection class: IP67.
Surge protection: 4 KV.
Certifications: EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035); FCC (FCC 47 CFR15 Part B). RF: FCC ID (FCC CFR 47 C Part 15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311). Safety: (EN 62368-1). Environmental: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU).
Warranty: 24 months.
