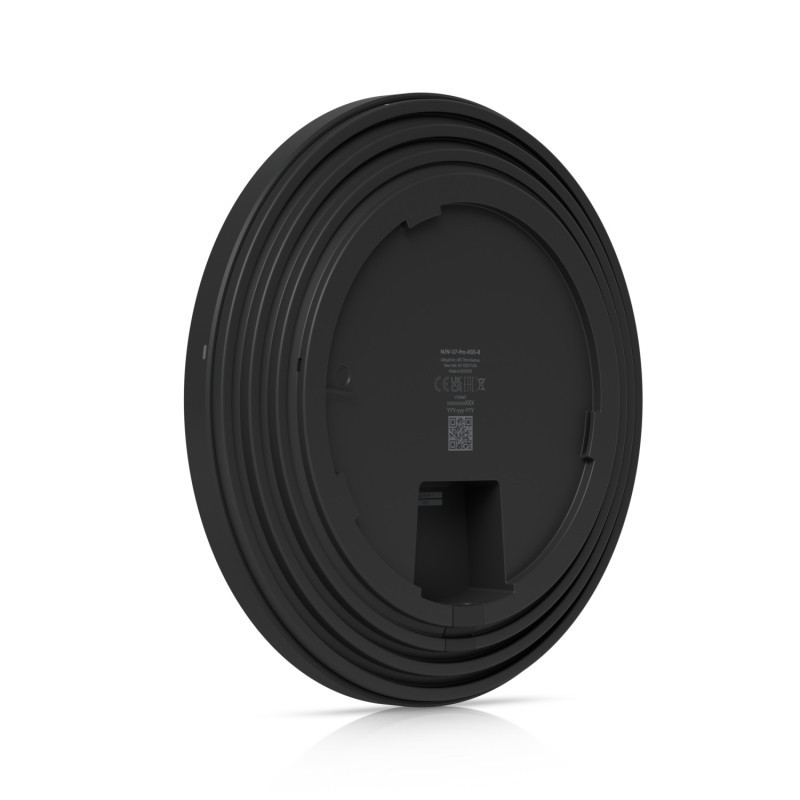

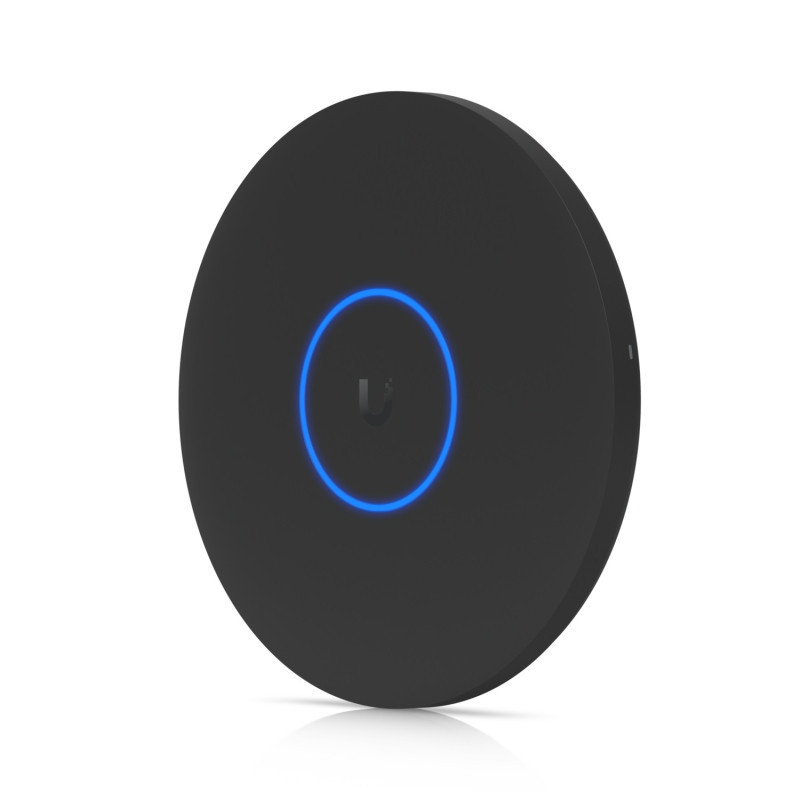

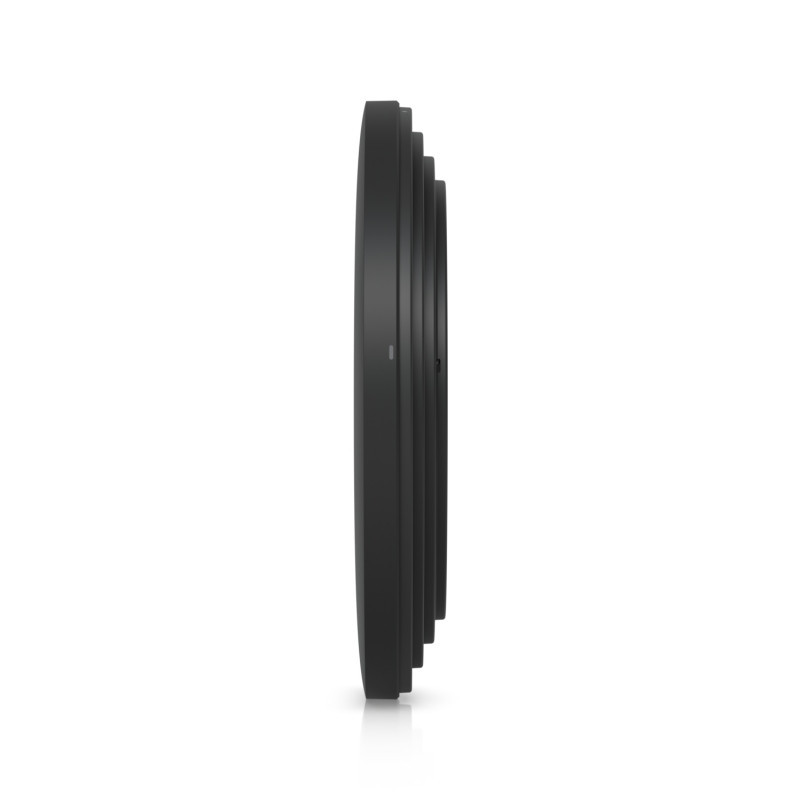

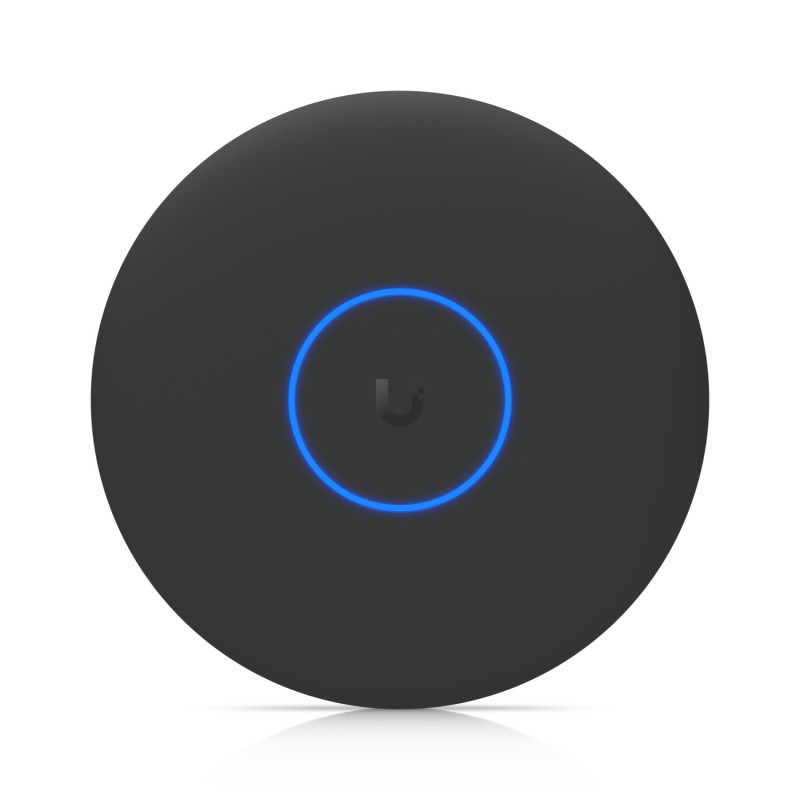

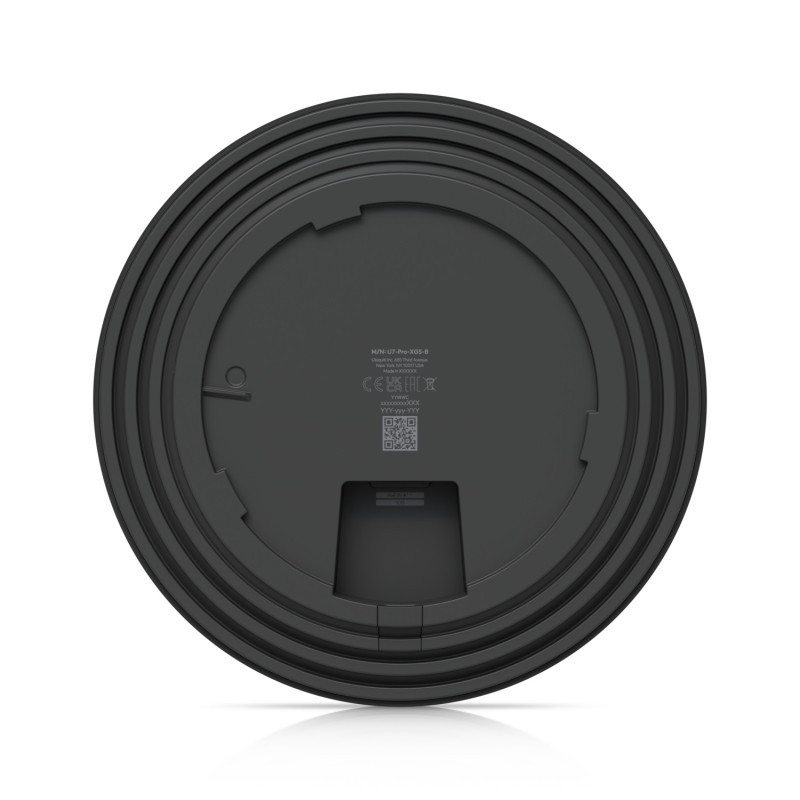

UBIQUITI UniFi WiFi 7 Access Point U7 Pro XGS, Black

Cutting-Edge Wi-Fi 7 CapabilitiesThe Ubiquiti UniFi U7 Pro XGS access point leverages Wi-Fi 7 (802.11be) technology to deliver exceptional wireless performance across diverse environments. It operates on the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, employing a 2x2 (DL/UL MU-MIMO) configuration for 2.4 GHz and 6 GHz, and an enhanced 4x4 (DL/UL MU-MIMO) setup for the 5 GHz band. This design facilitates maximum data rates of 688 Mbps on 2.4 GHz, 8.6 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz, ensuring high-throughput connectivity for bandwidth-intensive applications. The device supports channel bandwidths up to 320 MHz, optimizing spectrum utilization and minimizing latency. With the capacity to manage over 500 concurrent clients and a coverage area of ​​approximately 160 m², the U7 Pro XGS is well-suited for high-density deployments requiring robust and reliable wireless access.

Intelligent ManagementThe U7 Pro XGS is equipped with a 10 GbE RJ45 port, providing high-speed wired connectivity that aligns with its advanced wireless capabilities. It supports Power over Ethernet (PoE++) with a maximum power consumption of 29W, simplifying installation by transmitting power and data through a single Ethernet cable. The access point integrates seamlessly with Ubiquiti's UniFi Network platform, offering centralized management and monitoring. Advanced features include wireless meshing, band steering, 802.11r fast roaming, and guest network isolation, enhancing network efficiency and security. The device also supports up to 8 BSSIDs per radio and offers advanced Quality of Service (QoS) settings, allowing for granular control over network traffic to ensure optimal performance for critical applications.

Optimized DesignConstructed with durability and efficiency in mind, the U7 Pro XGS features a compact design measuring Ø215 x 32.5 mm and weighing 800 grams. Its enclosure is composed of UV-stabilized polycarbonate and aluminum alloy, ensuring resilience in various environmental conditions. The access point is equipped with internal antennas offering gains of 4 dBi for 2.4 GHz and 6 dBi for both 5 GHz and 6 GHz bands. It supports maximum transmit power levels of 23 dBm for 2.4 GHz, 29 dBm for 5 GHz, and 24 dBm for 6 GHz, ensuring extensive coverage. The device operates efficiently within an ambient temperature range of -30 to 40°C and humidity levels between 5% to 95% non-condensing, making it suitable for various deployment scenarios.

Dimensions: Ø215 x 32.5 mm (Ø8.5 x 1.3') WiFi Standard: WiFi 7 Spatial Streams: 8 Coverage Area: 160 m² (1,750 ft²) Max. Client Count: 500+ Uplink: 10 GbE Mounting: Ceiling, Wall (Lite Mount Included) Power Method: PoE++

Performance

MIMO: 6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) Max. Data Rate: 6 GHz: 5.8 Gbps (BW320) 5 GHz: 8.6 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) Antenna Gain: 6 GHz: 6 dBi 5 GHz: 6 dBi 2.4 GHz: 4 dBi Max. TX Power: 6 GHz: 24 dBm 5 GHz: 29 dBm 2.4 GHz: 23 dBm Max. BSSIDs: 8 per Radio Supported Data Rates: 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing: Yes Band Steering: Yes 802.11v BSS Transition Management: Yes 802.11r Fast Roaming: Yes 802.11k Radio Resource Management (RRM): Yes Zero-Wait DFS: Yes Advanced Radio Management: Yes Real-Time Spectral Analysis: Yes Passpoint (Hotspot 2.0): Yes Captive Hotspot Portal: Custom Branding Landing Page: Yes Voucher Authentication: Yes Payment-Based Authentication: Yes External Portal Server Support: Yes Password Authentication: Yes Guest Network Isolation: Yes Private Pre-Shared Key (PPSK): Yes WiFi Speed ​​Limiting: Yes Client Device Isolation: Yes WiFi Schedules: Yes RADIUS over TLS (RadSec): Yes Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 29W Supported Voltage Range: 42.5—57V DC Networking Interface: (1) 10 GbE RJ45 port Weight: 800 g (1.8 lb) Management: Ethernet Enclosure Material: UV-stabilized polycarbonate, aluminum alloy Mount Material: Stainless steel (SUS304), galvanized steel (SGCC) LEDs: System: White/Blue Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant: Yes Certifications: CE, FCC, IC Ambient Operating Temperature: -30 to 40° C (-22 to 104° F) Ambient Operating Humidity: 5 to 95% noncondensing

Software

Application Requirements: UniFi Network: Version 9.0.114 and later
