UBIQUITI Reader Flex, White

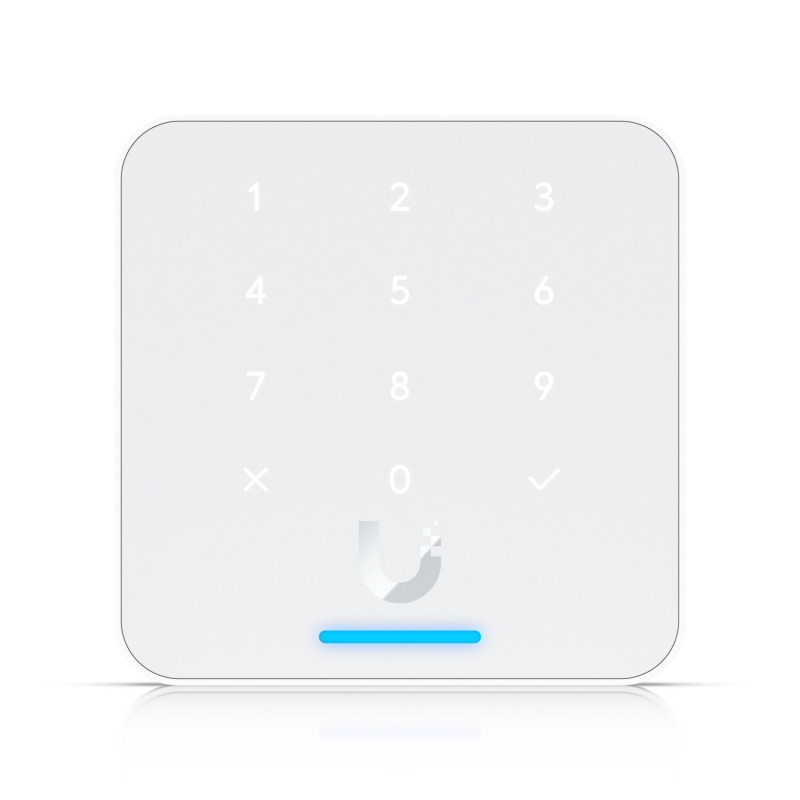

Advanced Access ControlThe Ubiquiti UniFi Access Reader G3 Flex White is a third-generation NFC card reader equipped with a keypad and supports Apple Touch Pass, providing multiple authentication methods for secure entry. Users can unlock doors using the keypad, NFC cards, the UniFi Identity mobile app, or Touch Pass, offering flexibility and convenience. The device also provides entry and exit greeting messages, enhancing the user experience during access events. The UA-G3-Flex-W combines advanced access control features, robust construction, seamless integration, and a user-friendly interface to provide a comprehensive solution for secure and efficient entry management. The UA-G3-Flex-W is designed with user interaction in mind, featuring capacitive buttons that provide responsive input, even when used with moisture or most gloves. The device includes an 8-ohm, 1W speaker that delivers clear audio feedback during access events, and multi-color LEDs (Red, Green, Blue, White) to visually indicate access status, providing immediate feedback to users. These features enhance the overall user experience by offering intuitive and immediate responses to access attempts, ensuring smooth and efficient entry management.

Seamless Integration and ConnectivityDesigned for easy integration into existing access control systems, the UA-G3-Flex-W connects to the UniFi Access Hub via Power over Ethernet (PoE), simplifying installation by reducing the need for additional power sources. The card reader features a 10/100 Mbps RJ45 networking interface, ensuring stable wired communication within the network. Additionally, it supports Bluetooth Low Energy (BLE) 4.1 and NFC technology, allowing for flexible authentication options and compatibility with a wide range of access control devices. The UA-G3-Flex-W is fully compatible with the UniFi Access application, starting from Version 3.0.15 and later, offering centralized management for configuring devices, monitoring access events, and customizing access settings. The card reader features an IP55-rated enclosure, ensuring protection against dust and water ingress. It operates efficiently in temperatures ranging from -30 to 60°C, making it suitable for both indoor and outdoor installations. The enclosure is constructed from durable materials, including polycarbonate, glass, and aluminum alloy, providing a sturdy design that ensures longevity and reliability.

Dimensions: 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6') NFC Card Keyfob Access: Yes PIN Access: Yes Touch Pass: Yes Mobile Unlock: Yes Weatherproofing: IP55

Mechanical

Weight: 165 g (5.8 oz) Enclosure Material: Polycarbonate, glass, aluminum alloy Mount Material: Polycarbonate, aluminum alloy Mounting: Wall (Included) Gang-box, junction box (Optional)

Hardware

Indoor and Outdoor Use: Yes Ambient Operating Temperature: -30 to 60° C (-22 to 140° F) Ambient Operating Humidity: 5 to 90% noncondensing Networking Interface: (1) 10/100 MbE RJ45 port Connectivity: BLE 4.1 NFC Power Method: PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU Max. Power Consumption: 5W Supported Voltage Range: 44—57V DC ESD/EMP Protection: Air: ±15kV, contact: ±8kV Sensors: (12) Capacitive buttons Speaker: Yes LEDs: R/G/B/WLearn MoreButton: (1) Factory-reset NFC Frequency: 13.56 MHz NFC Read Range: < 30 mm (1.18'') NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site. The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade: Grade assignment: I Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level: UA-G3-Flex V01 NDAA Compliant: Yes

Software

Management Application: Access Software Information: The software version can be checked athttps://unifi.ui.com
