UBIQUITI GPON Optical Line Terminal (OLT) UFiber OLT

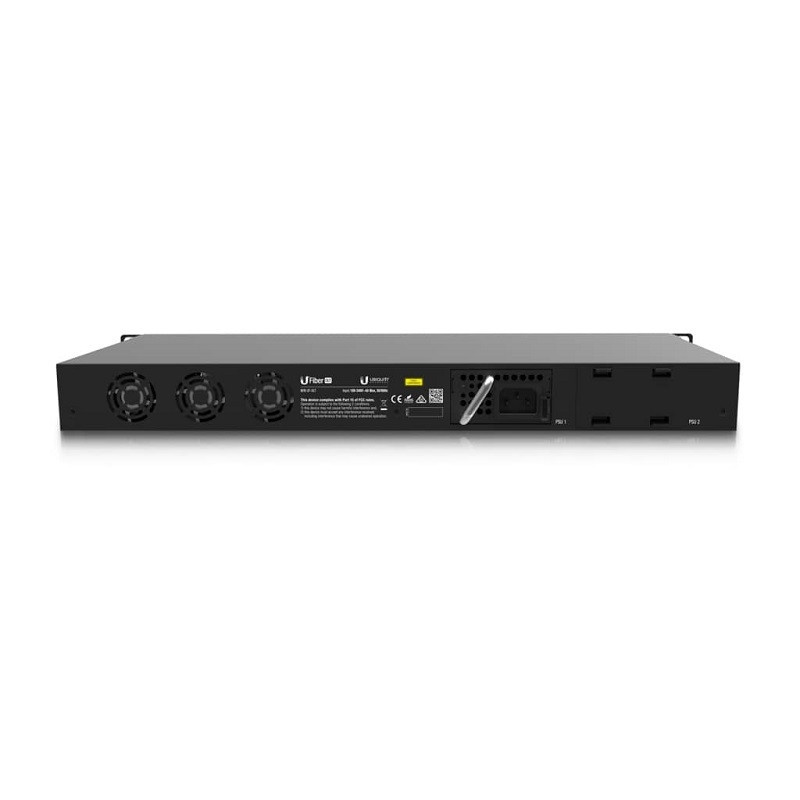

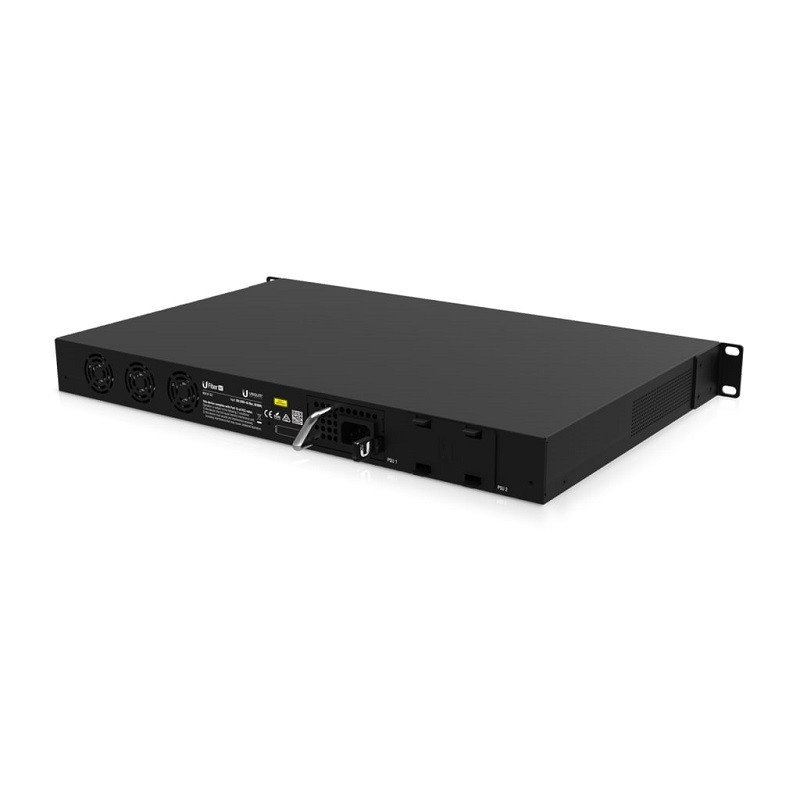

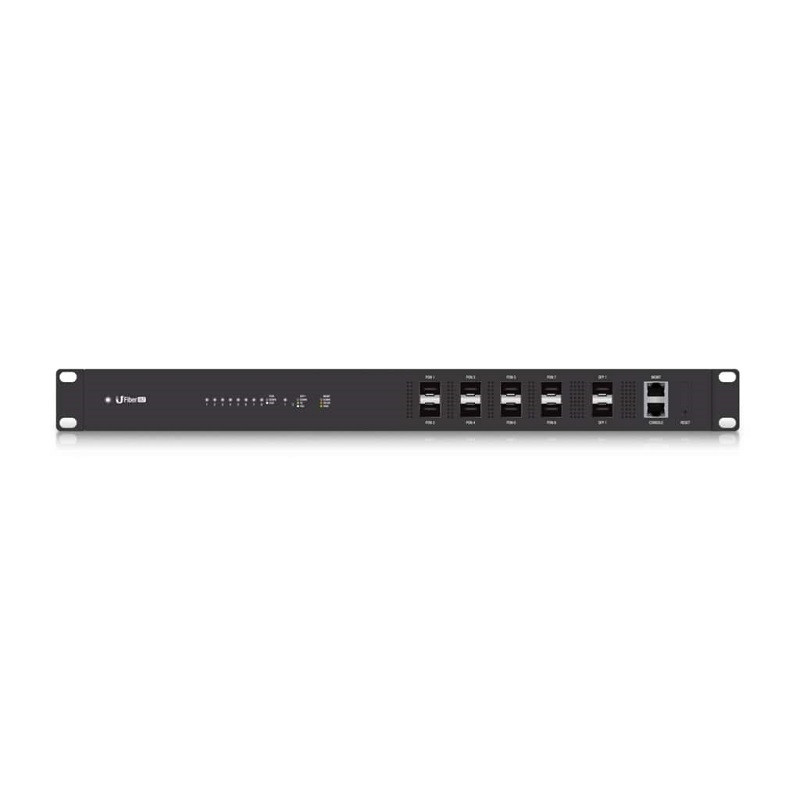

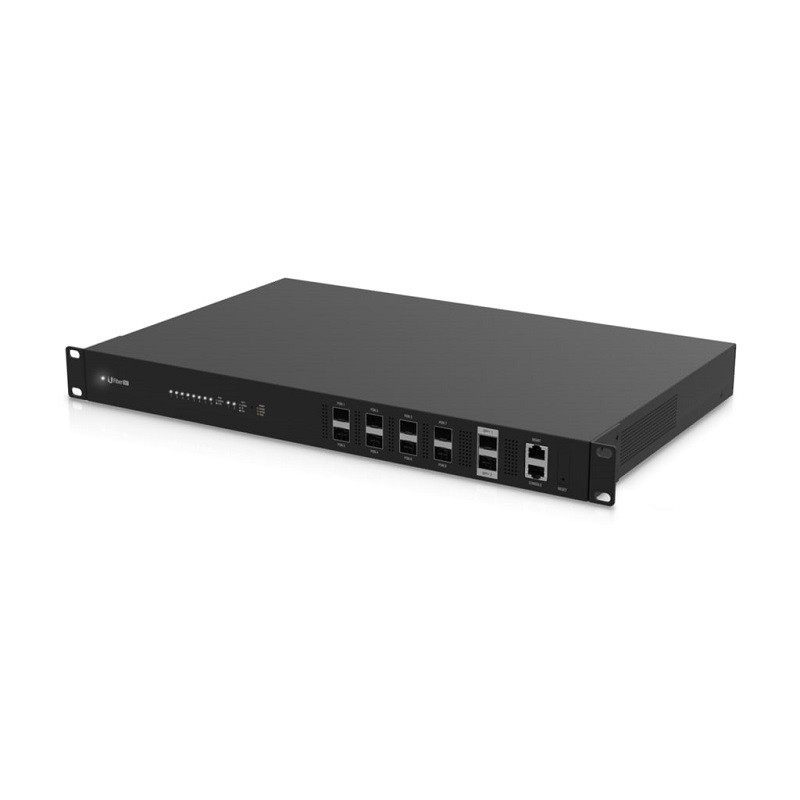

Introducing the U Fiber OLT - a fiber solution that anyone can deploy. U Fiber offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The U Fiber network is intelligently managed using the included UNMS™ (Ubiquiti Network Management System) controller. U Fiber devices consist of the U Fiber OLT (deployed at the provider premises) and the U Fiber Nano™G consumer premises equipment ONUs. GPON Optical Line Terminal The U Fiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity. The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately. • Ports: (8) GPON SFP Ports, (2) SFP+ Ports • Concurrent Clients: 1024 ONUs • GPON Range: Up to 20 km Link • GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX) • Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX) • Max. Power Consumption: 40W • Power Method: • AC/DC Power Module (Included) • DC/DC Power Module (Optional) • Mounting: 1U Rack-Mountable (Optional) Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72') Weight: 4.40 kg (9.7 lb) (4.495 kg (9.91 lb) with Mount Brackets) Networking Interfaces: (8) GPON OLT SFP (2) 1G/10G SFP+ Concurrent Clients: 1024 Registered ONUs/ONTs (128 per GPON Port) Management Interfaces: (1) Ethernet for Out-of-Band Management (1) RJ45 Serial Console Port GPON Speeds: 2.488 Gbps Upstream (TX) 1.244 Gbps Downstream (RX) Operating Wavelengths: 1490 nm TX 1310 nm RX Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm, RX: -8 dBm to -28 dBm Range Physical Reach - 20 km Logical Reach - 60 km Max. Differential Fiber Distance - 20 km (B+) /40 km (C+) Power Method: 100-240VAC, 100W AC/DC Power Module (Included) 38-54VDC, 100W DC/DC Power Module (Optional) Power Supply (1): 25V, 100W AC/DC PSU Module (Included) Max. Power Consumption: 40W (Excluding SFP Modules) Operating Mode: OLT 2/3 Ethernet Switch and GPON Core Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification Processor Specs: MIPS 1004kc, 880 MHz Dual Core Memory Information: 512 MB DDR3, 512 MB NAND Operating Temperature: -10 to 45° C (14 to 113° F) Operating Humidity: 10 of which 90% Noncondensing Certifications: CE, FCC, IC
