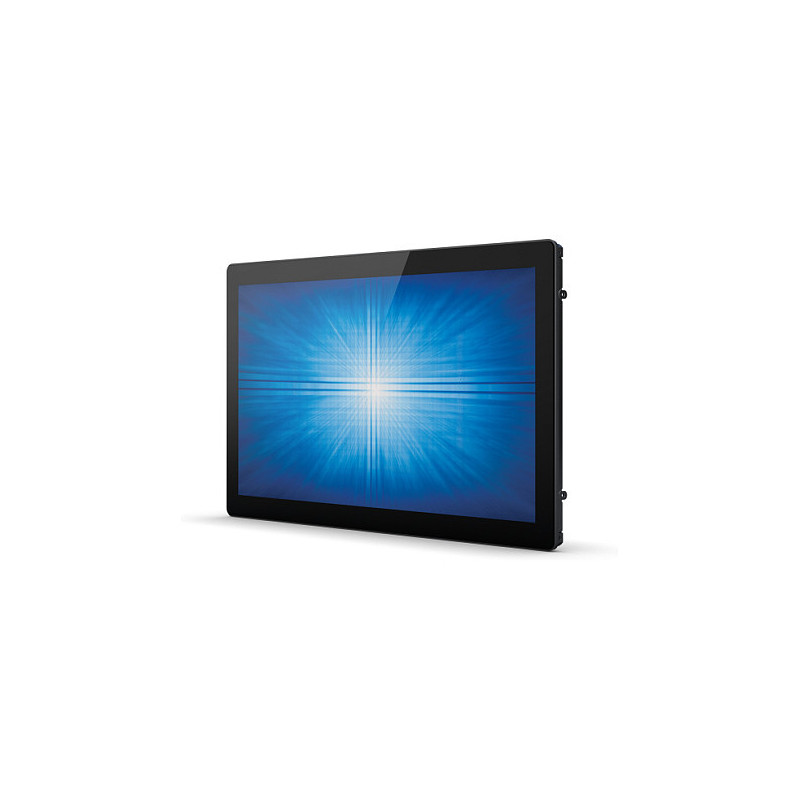

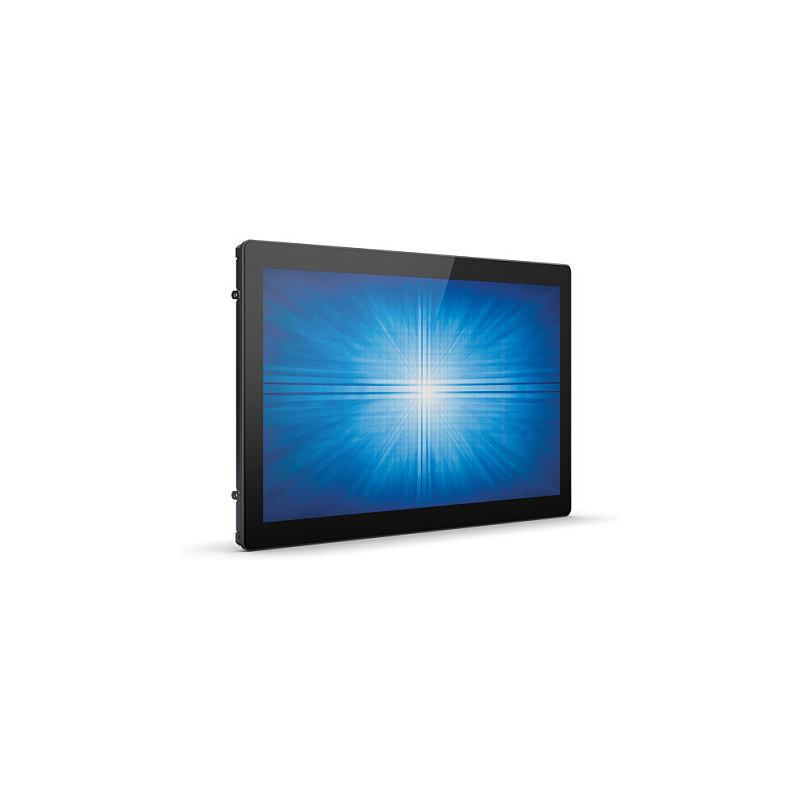

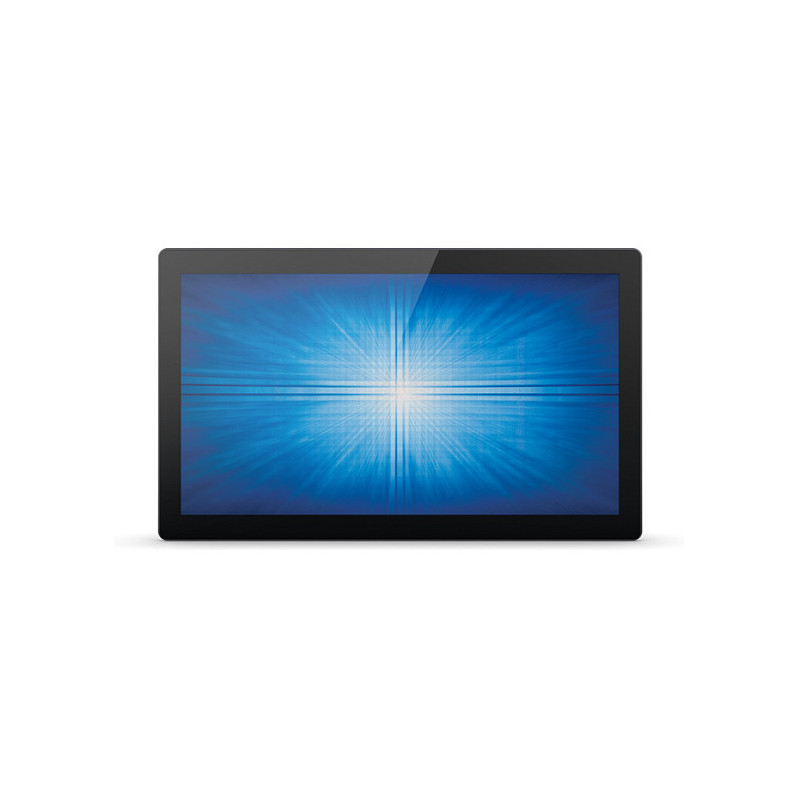

Elo Touch Solutions 2295L

Elo Touch Solutions 2295L. Display diagonal: 54.6 cm (21.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo's brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Built for Industrial Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product, and to maximize your ROI.

Display

Panel type: TFT
Display diagonal: 54.6 cm (21.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 400 cd/m²
HD type: Full HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Horizontal scan range: 30 - 82 kHz
Vertical scan range: 50 - 75 Hz
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Ports interfaces

HDMI ports quantity: 1
HDMI version: 1.3
DisplayPorts quantity: 1

Design

Product colour: Black
Screen shape: Flat

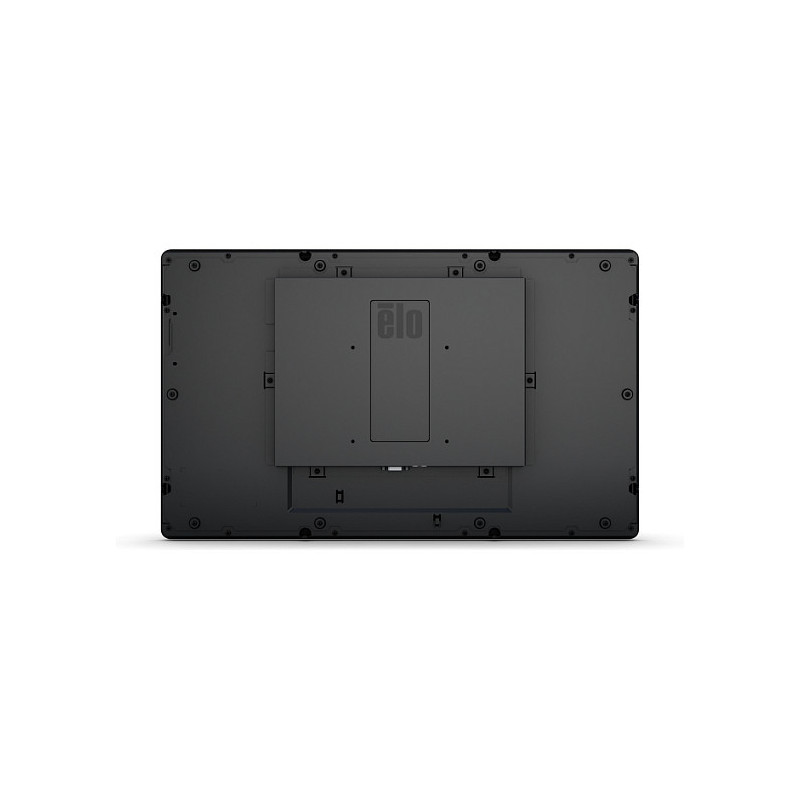

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

Performance

Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 25 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.2 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Packaging data

Package width: 620 mm
Package depth: 190 mm
Package height: 423 mm
Package weight: 8.6 kg

Packaging content

Cables included: HDMI, USB, VGA

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Certificates

Certification: RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE

Logistics data

Harmonized System (HS) code: 85285210

Features

Wall mountable: Yes

Technical details

Full HD: Yes
Compliance certificates: RoHS

Other features

Maximum refresh rate: 60 Hz
Quick start guide: Yes
Built-in microphone: No
Display viewable area (HxV): 476.06 x 267.79 mm
Height (without stand): 311 mm
Weight (without stand): 5.41 kg
Depth (without stand): 46.9 mm
Power supply type: AC
Built-in camera: No
