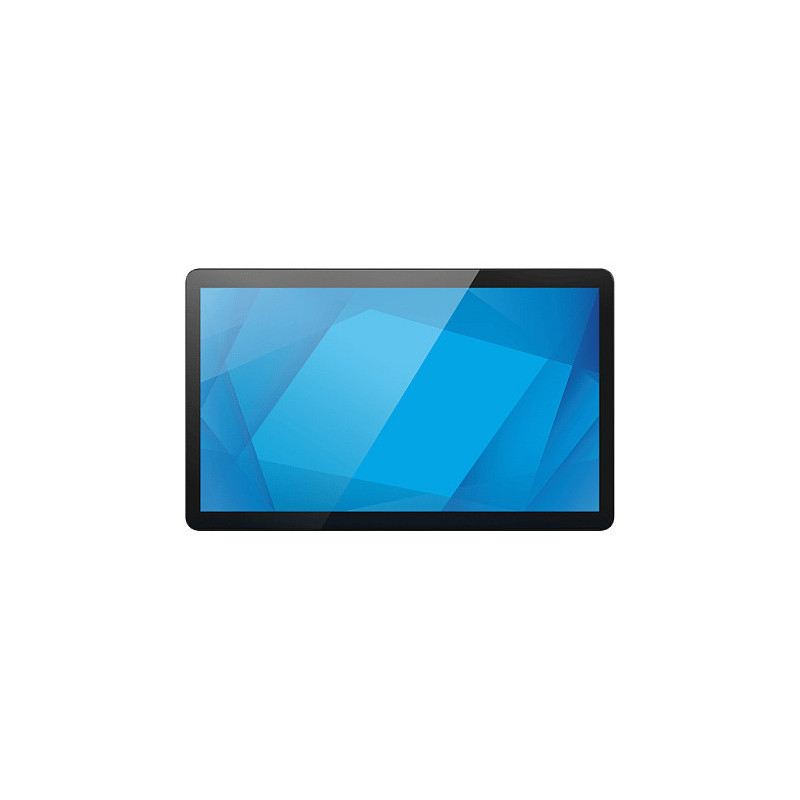

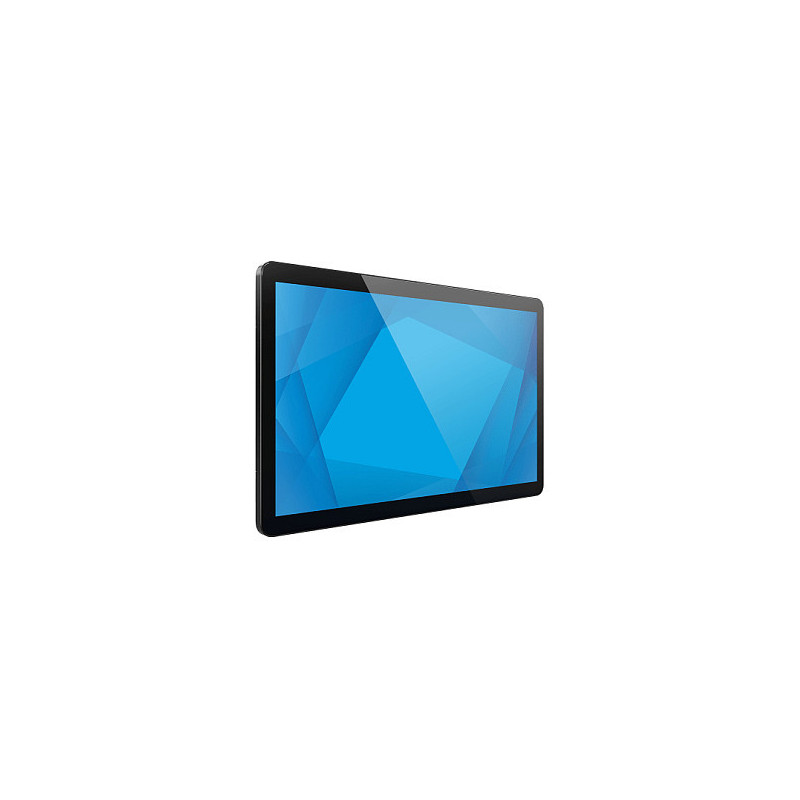

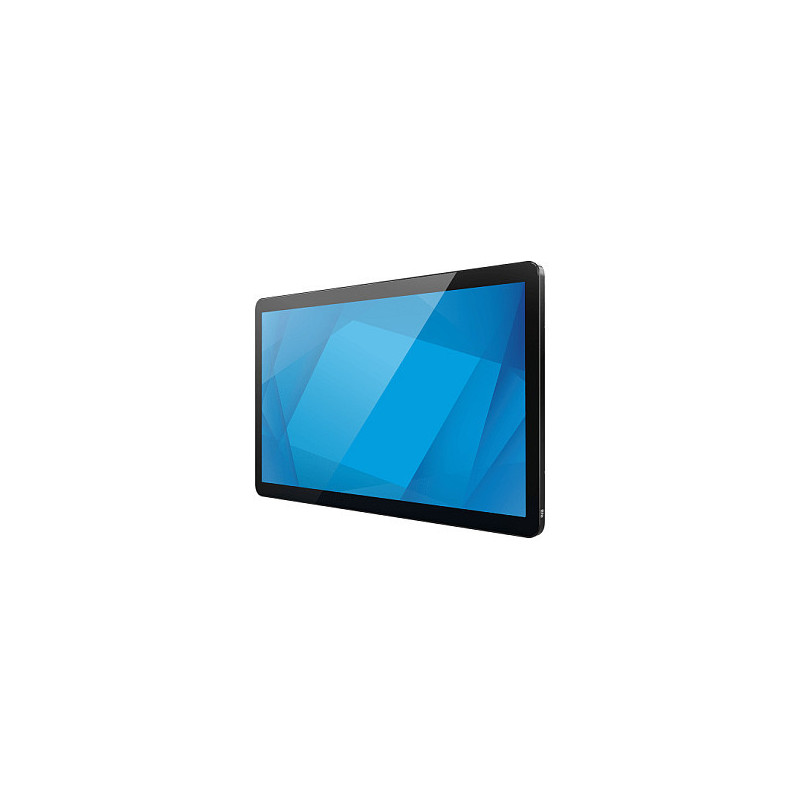

Elo Touch Solutions 1504L

Elo Touch Solutions 1504L. Product design: Digital signage flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², Touchscreen. Product colour: Black
1504L 15-inch
Touchscreen Monitor
The 1504L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15" touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 15" touchscreen.
Easily pair the 15-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1504L 15-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Durable, energy efficient touchscreen.
- Scratch-resistant glass surface
- IP54 sealed design
- IK08 impact resistant
- Energy Star 8.0 certified
Secure your cables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.

Display

Panel type: TFT-LCD
Display diagonal: 39.6 cm (15.6")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 450 cd/m²
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Multi-touch: Yes
Response time: 25 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Active display area (W x H): 344.16 x 193.59 mm
Display diagonal (metric): 419.1 cm
Number of displays: 1
Horizontal scan range: 30 - 82 kHz
Native refresh rate: 60 Hz

Ports interfaces

HDMI ports quantity: 1
DisplayPorts quantity: 1
USB port: Yes
USB ports quantity: 6
USB connector type: Micro-USB, USB Type-A, USB Type-C
DC-in jack: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 4 W

Design

Product design: Digital signage flat panel
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

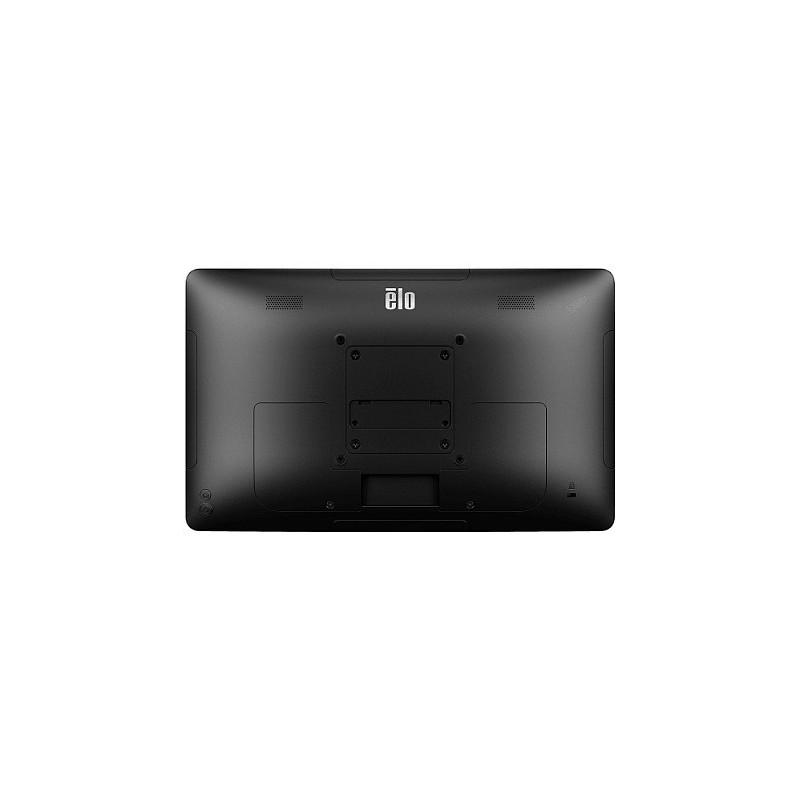

VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Anti-glare screen: Yes

Performance

On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 12.1 W
Power consumption (sleep): 1 W
Power consumption (off): 0.25 W
Energy efficiency class (SDR): E
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Weight dimensions

Display width: 371 mm
Display depth: 26.9 mm
Display height: 227.5 mm
Display weight: 1.7 kg
Weight (with stand): 2.9 kg

Packaging data

Package width: 451 mm
Package depth: 220 mm
Package height: 342 mm
Package weight: 5.6 kg

Packaging content

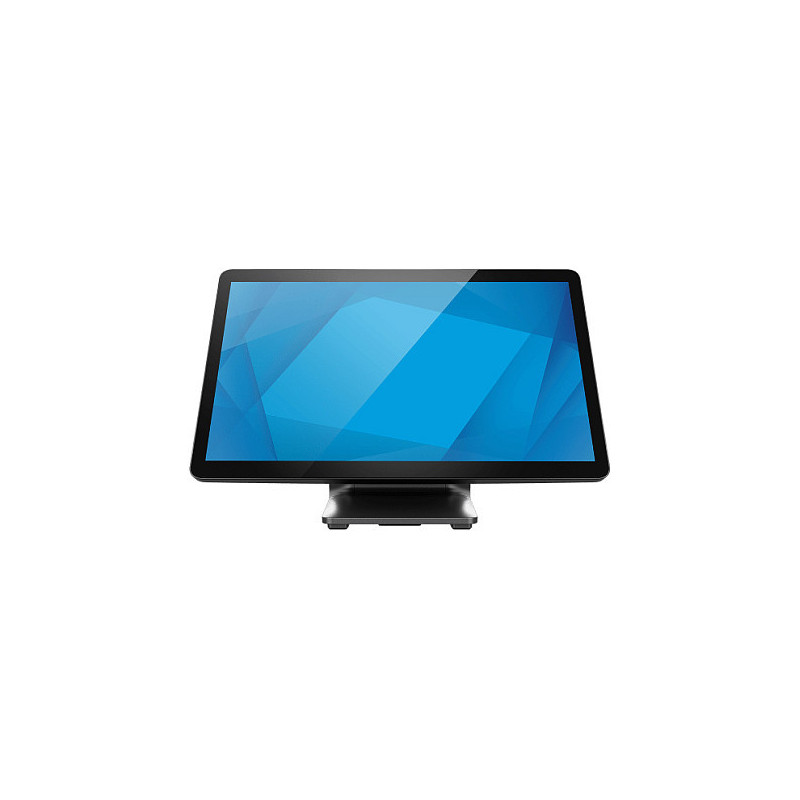

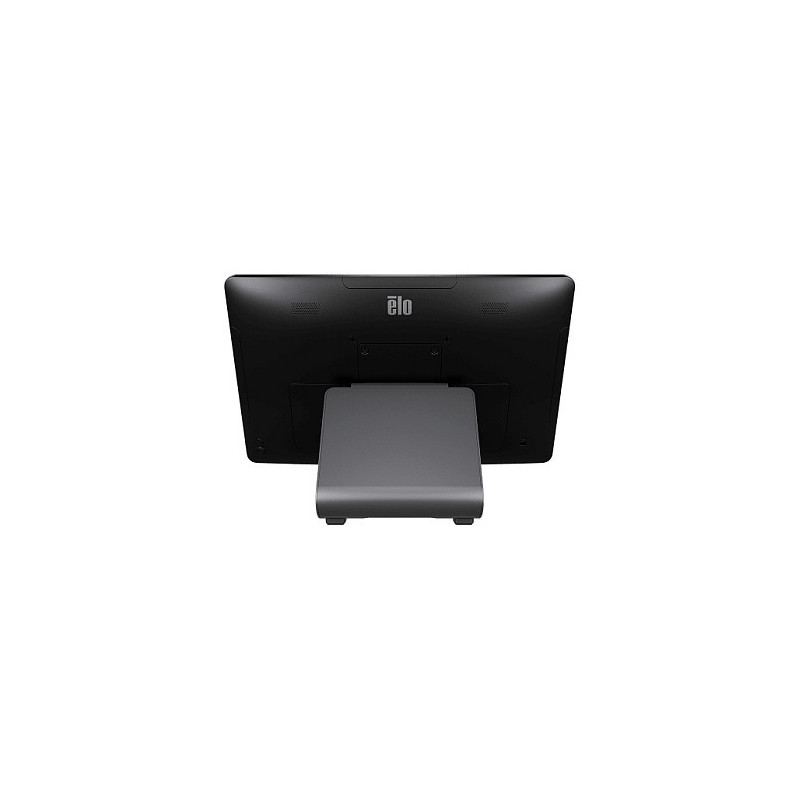

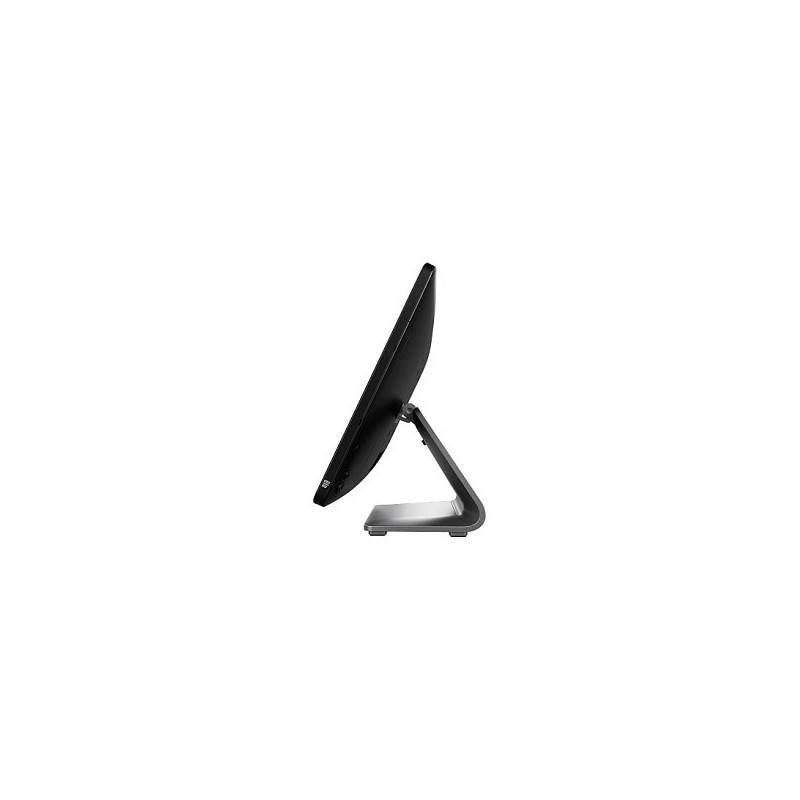

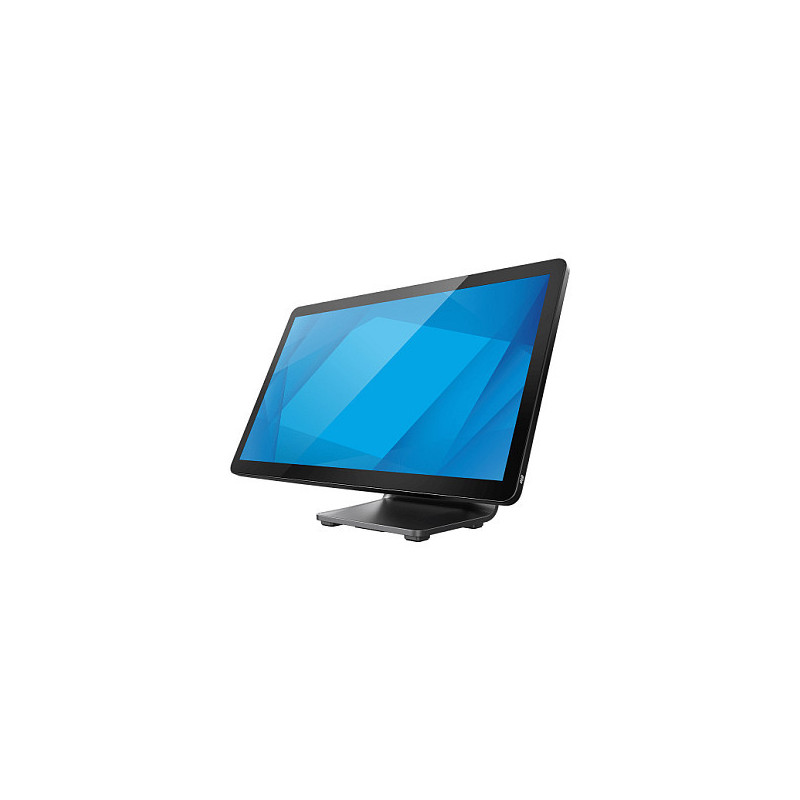

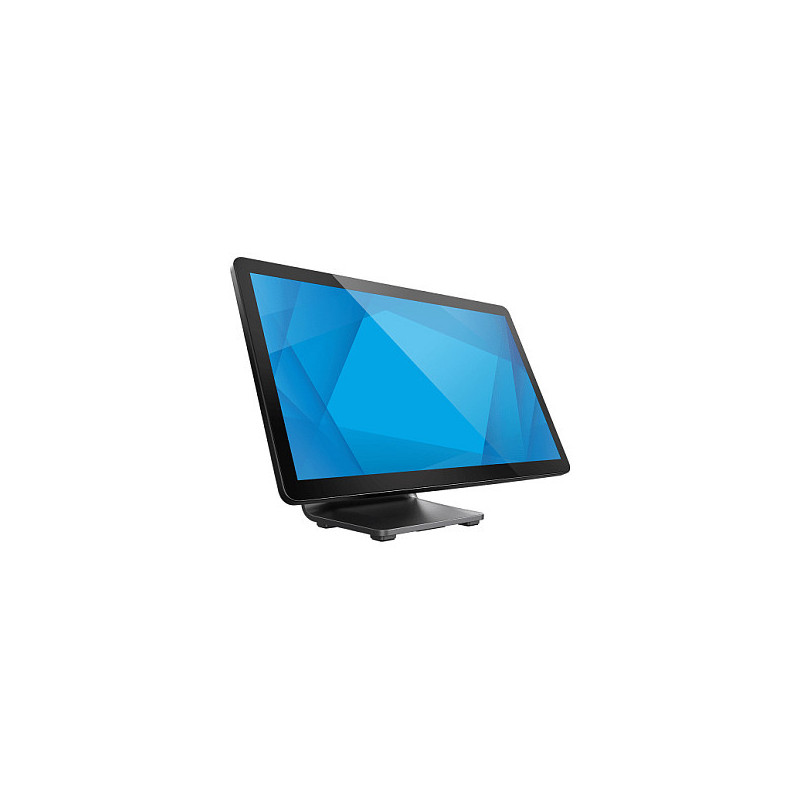

Stand included: Yes
Stand colour: Black
Cables included: HDMI, Power, USB Type-A to USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%

Logistics data

Quantity per pack: 1 pc(s)

Network

Ethernet LAN: No

Other features

Aspect ratio: 16:9
