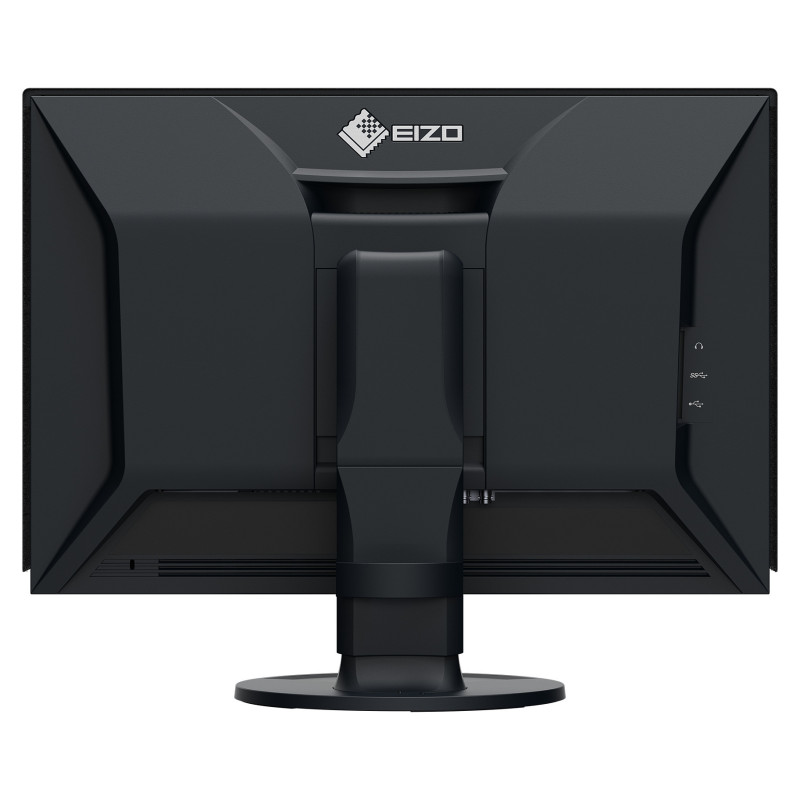

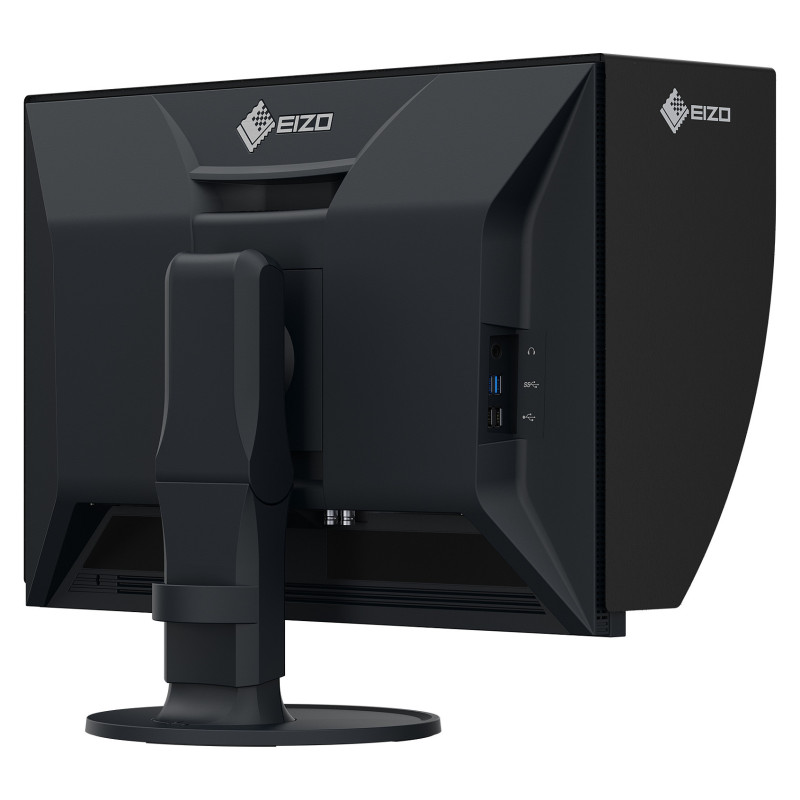

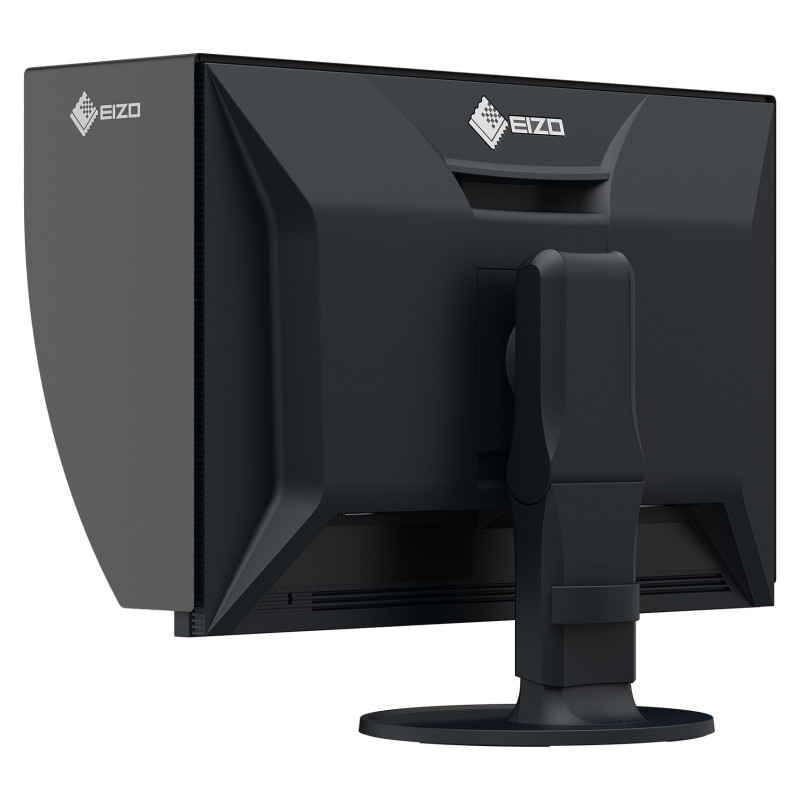

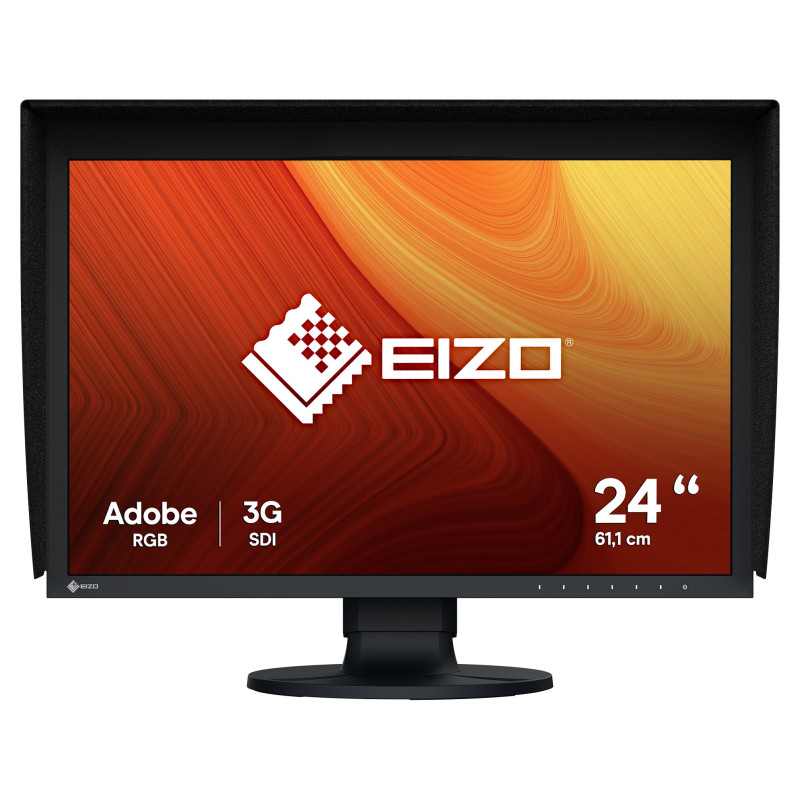

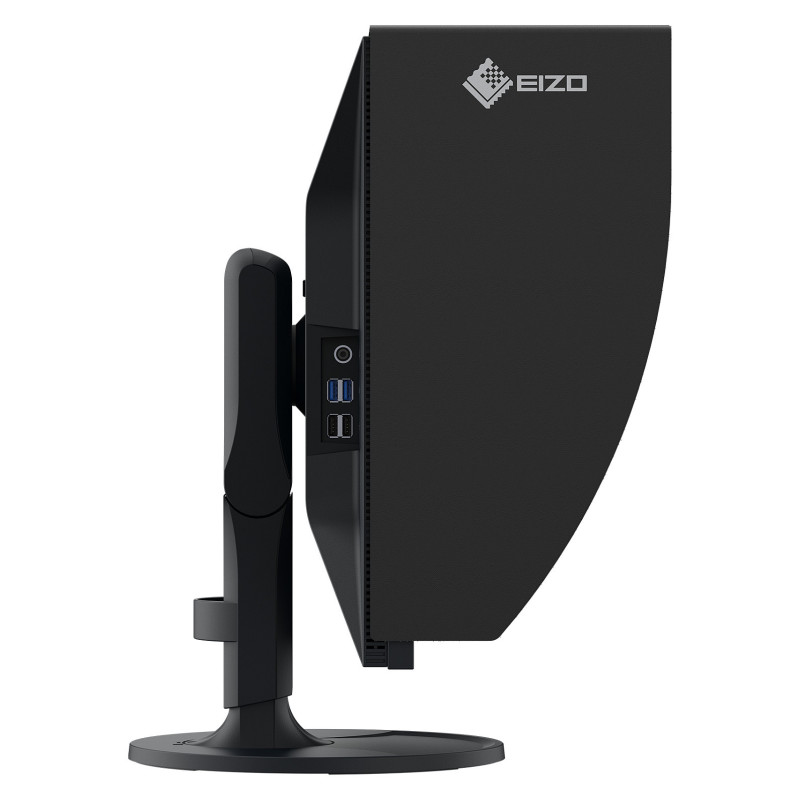

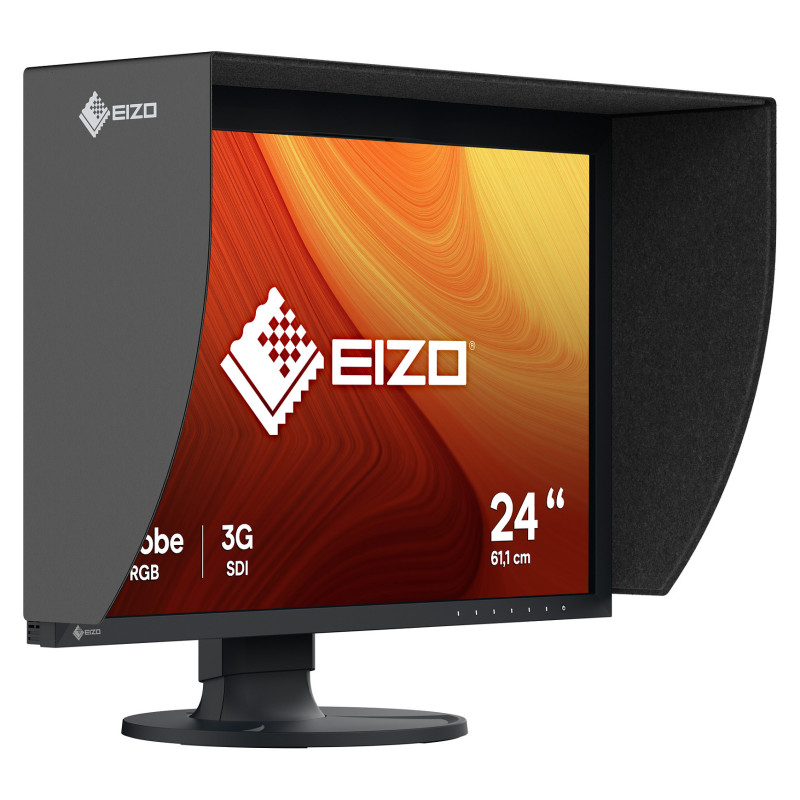

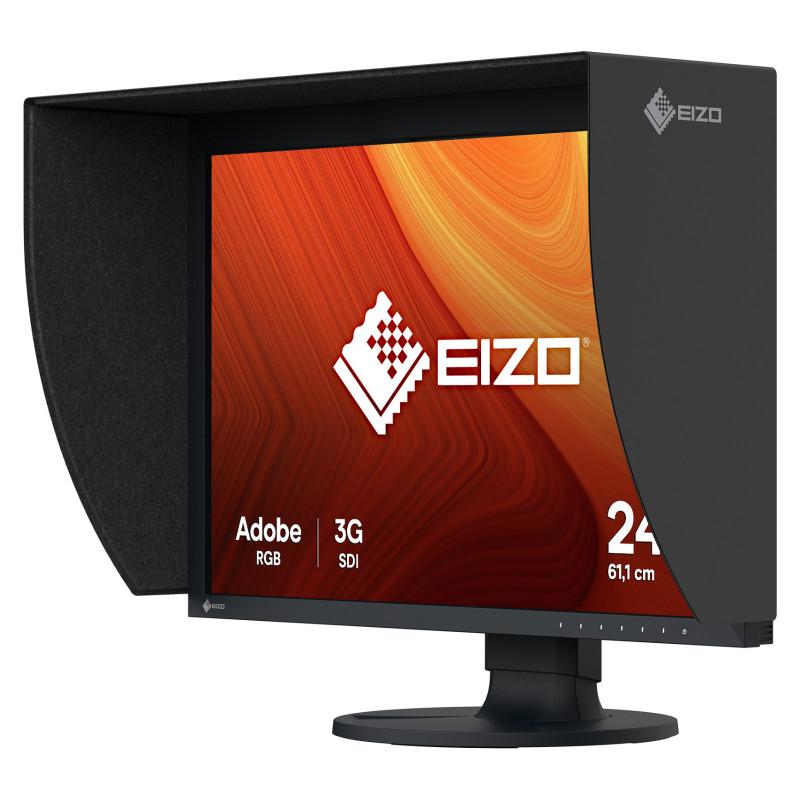

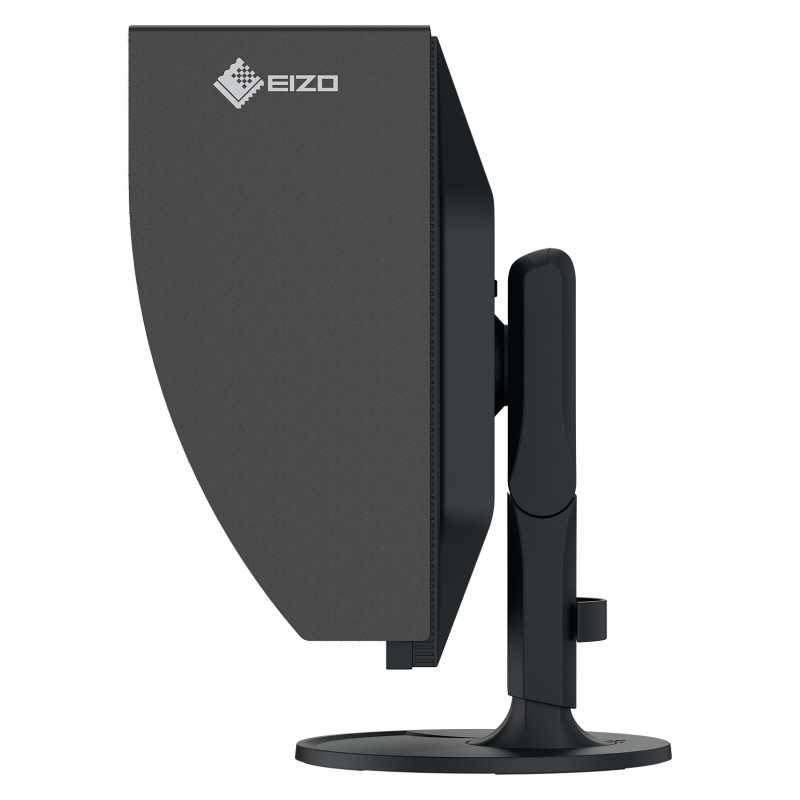

EIZO ColorEdge CG2400SV computer monitor

EIZO ColorEdge CG2400SV. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 11 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
With its compact 24" size, SDI connectivity, and HDR support, the ColorEdge CG2400SV is the ideal monitor for editing suites, studios, and mobile productions in the film and broadcast industry. The SDI input and output (3G-SDI Level A and HD-SDI) enable loss-free transmission of uncompressed video signals ś perfect for use with camera systems and live feeds. HDMI and DisplayPort are also available. With a maximum brightness of 400 cd/m² and a contrast ratio of 1800:1, the CG2400SV meets the requirements of the DCI standard. Support for HLG and PQ gamma curves ensures accurate HDR display ś ideal for postproduction and on-set monitoring. The Wide Gamut IPS panel covers 98% of the DCI-P3 color space and supports the BT.2020 standard. With 10-bit display and a 16-bit 3D LUT, the monitor delivers accurate color reproduction and smooth transitions - essential for color-critical applications. The integrated calibration sensor enables effortless, automatic calibration. With the Pixel Inspection function, users can directly check whether the signal processing is correctly set throughout the entire workflow. The integrated USB hub, headphone jack, and included light shield round out the CG2400SV's extensive features.

Display

Display diagonal: 61.2 cm (24.1")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Native aspect ratio: 16:10
Display technology: LCD
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 400 cd/m²
Response time: 11 ms
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 1920 x 1200 (WUXGA)
Supported video modes: 1080i, 1080p, 720p, 576p, 576i, 480p, 480i, 1200p
Contrast ratio (typical): 1800:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.27 x 0.27 mm
Pixel density: 94 ppi
Viewable size, horizontal: 51.8 cm
Viewable size, vertical: 32.4 cm
Digital horizontal frequency: 26 - 76 kHz
Digital vertical frequency: 23 - 61 Hz
Display diagonal (metric): 61.1 cm
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, Rec. 709, sRGB, EBU
sRGB coverage (typical): 100%
Adobe RGB coverage: 97%
DCI-P3 coverage: 99%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes

Multimedia

Built-in speaker(s): No
Built-in camera: No

Design

Market positioning: Graphics design
Product colour: Black
Feet colour: Black

Ports interfaces

Built-in USB hub: Yes
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 2
USB Type-A downstream ports quantity: 4
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone out: Yes
Headphone connectivity: 3.5 mm
Built-in KVM switch: Yes
HDCP: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Height adjustment: Yes
Adjustable height (max): 15.5 cm
Pivot: Yes
Pivot angle: -90 - 90°
Swivelling: Yes
Swivel angle range: 0 - 344°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish

Power

Energy efficiency class (SDR): Not available
Energy efficiency class (HDR): Not available
Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Power consumption (max): 64 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width (with stand): 554.4 mm
Depth (with stand): 245 mm
Height (with stand): 408.1 mm
Weight (with stand): 8.5 kg
Width (without stand): 554.4 mm
Depth (without stand): 70.2 mm
Height (without stand): 374.1 mm
Weight (without stand): 5.5 kg

Packaging content

Stand included: Yes
Cables included: HDMI, USB Type-A to USB Type-B, AC
Sun hood included: Yes
Quick start guide: Yes

Other features

Hardware calibration: Yes
Built-in calibration sensor: Yes
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 16
Compliance certificates: CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE
Certification: CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (includingISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B),TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC

Logistics data

Harmonized System (HS) code: 85285210
