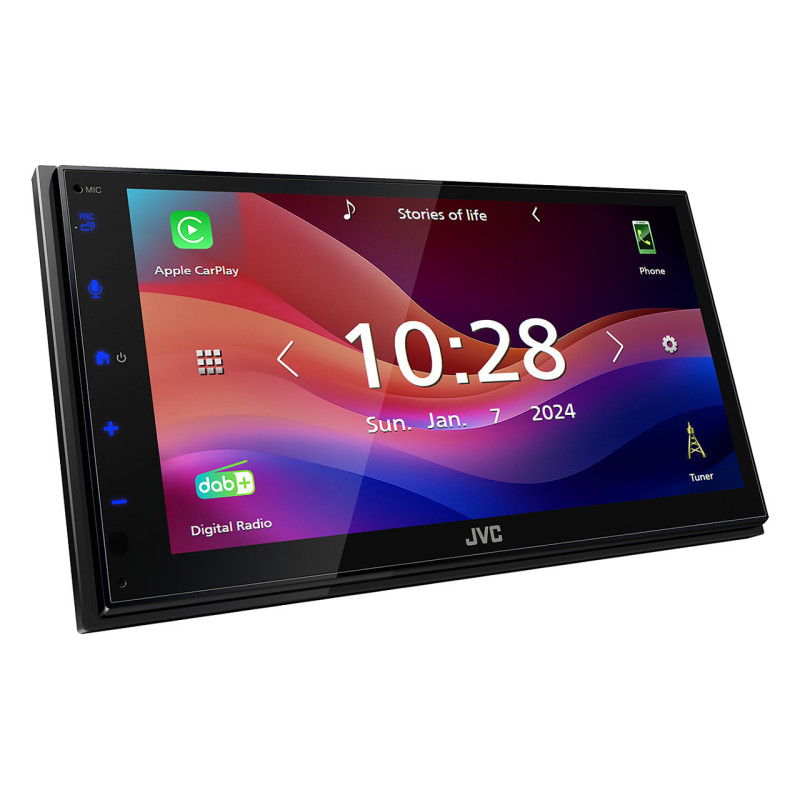

JVC KW-M695DBW car media receiver

JVC KW-M695DBW. Product colour: Black, DIN size: 1 DIN, Output power: 200 W. Audio formats supported: AAC, FLAC, MP3, WAV, WMA, Image formats supported: BMP, PNG, Video formats supported: H.264, MKV, MPEG1, MPEG4, WMV. Display type: LCD, Touchscreen type: Capacitive, Display diagonal: 17.3 cm (6.8"). Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi frequency: 5 GHz, Bluetooth profiles: A2DP, AVRCP, HFP, PBAP, SSP. Supported radio bands: AM, DAB+, FM, FM band range: 87.5 - 108 MHz, AM band range: 531 ~ 1611 kHz

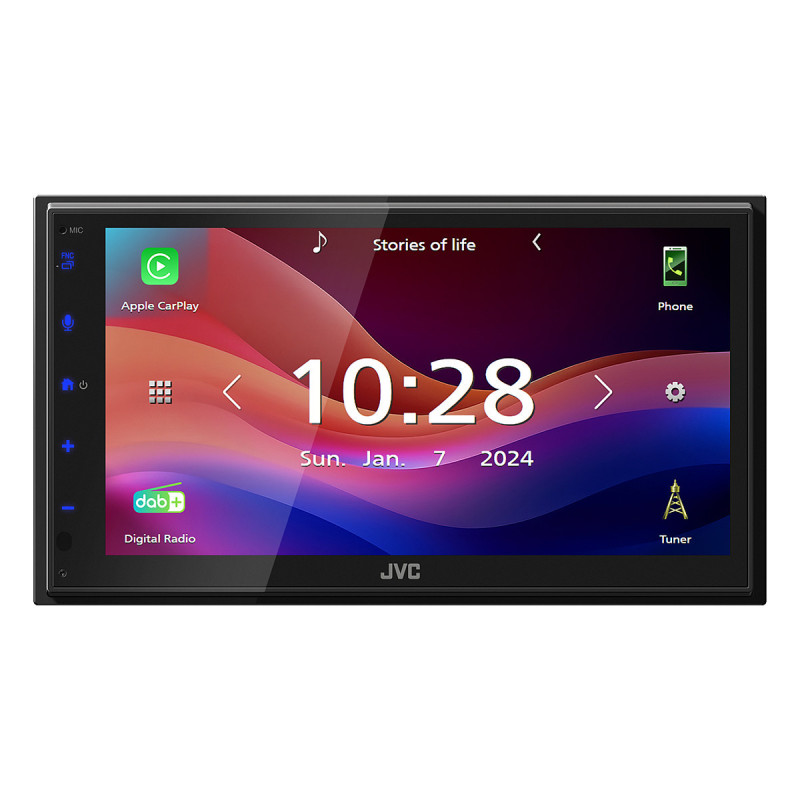

Wide Super VGA LCD Display
The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

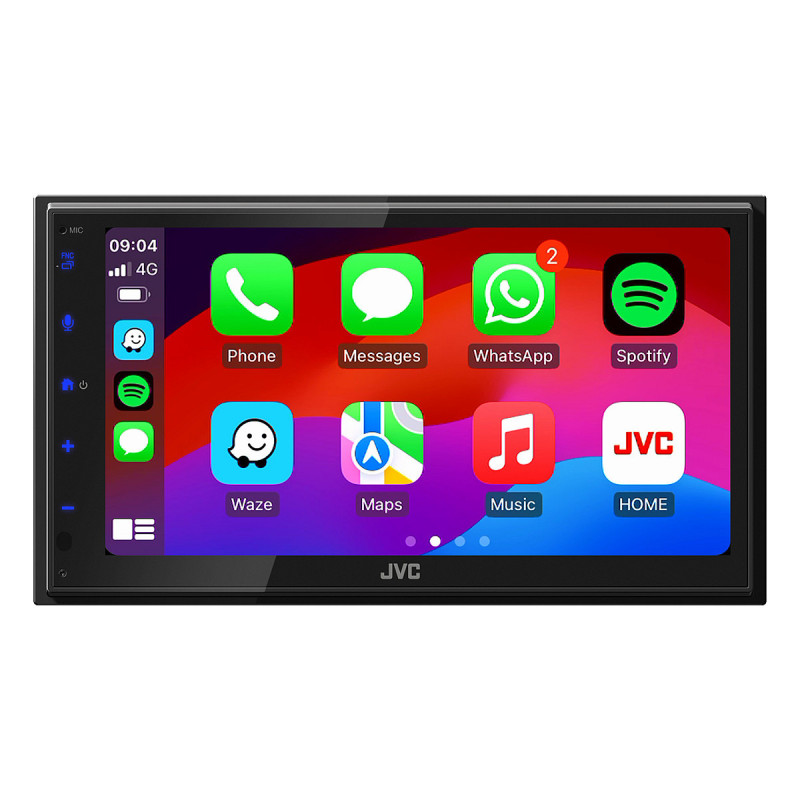

Apple CarPlay - Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

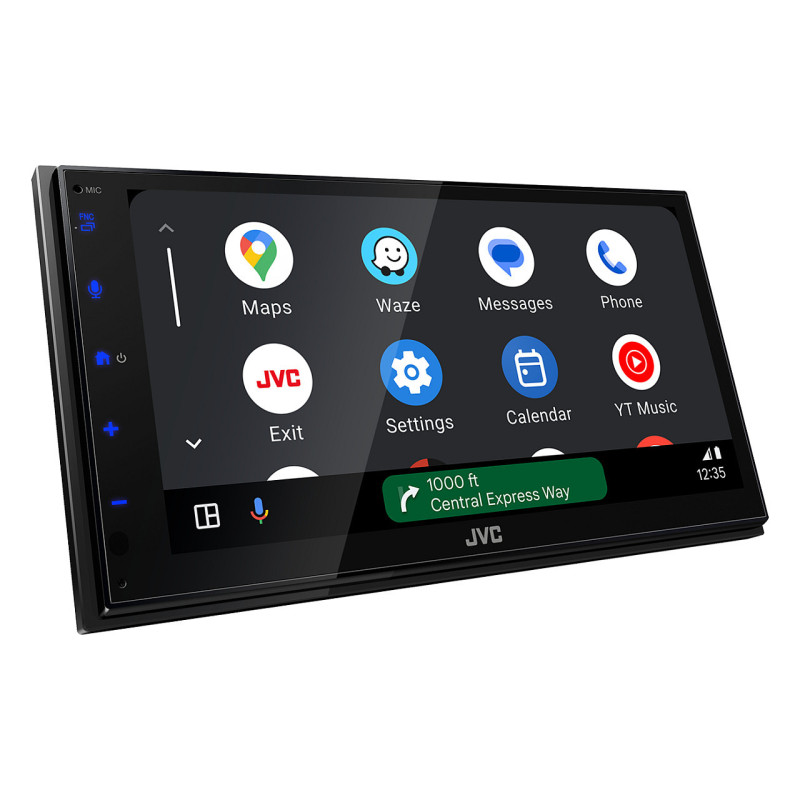

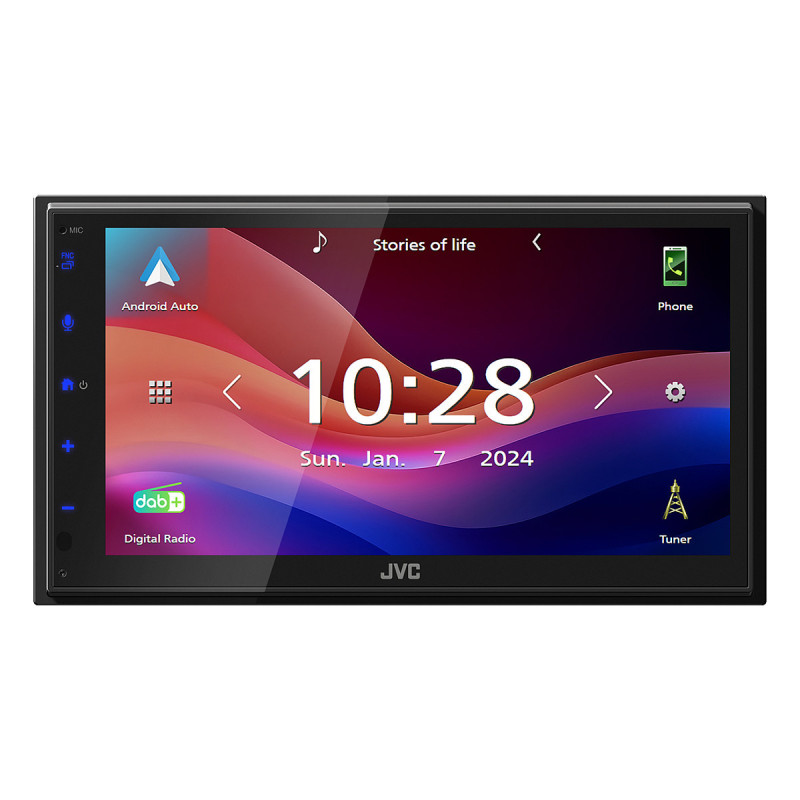

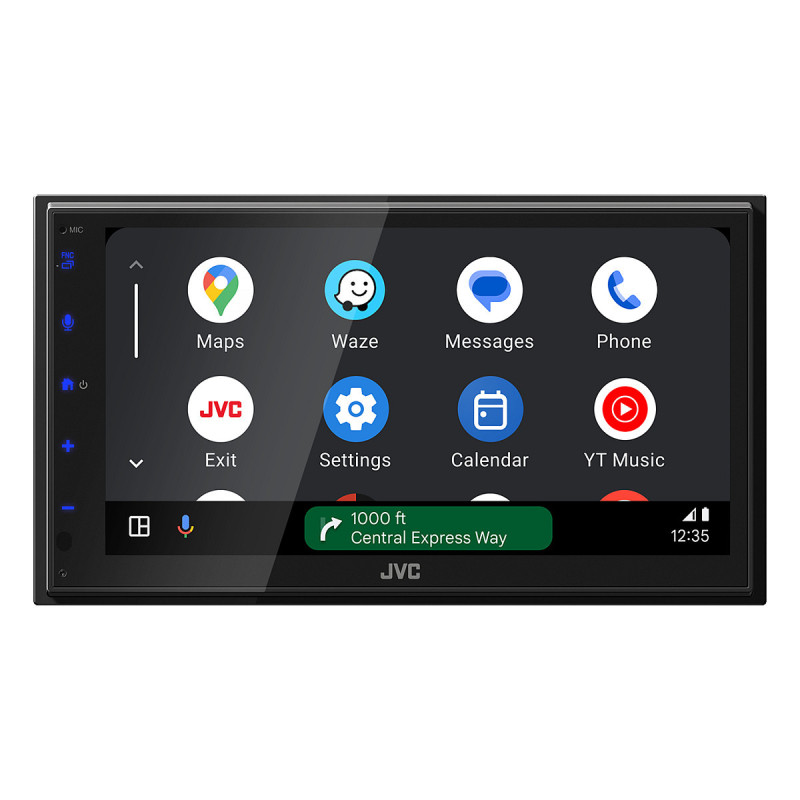

Android Auto™ - Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

USB Mirroring for iPhone & Android Smartphone.
By installing the "MirroringAPP+", your iPhone & Android phone* is seamlessly displayed on the JVC receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Bluetooth Wireless Technology
2 Phone Fill-Time Connection:
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.

Bluetooth Hands-Free Profile
HPF Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

iPhone® / Android™ Bluetooth Automatic Pairing:
Just connect your iPhone or Android device* via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about.

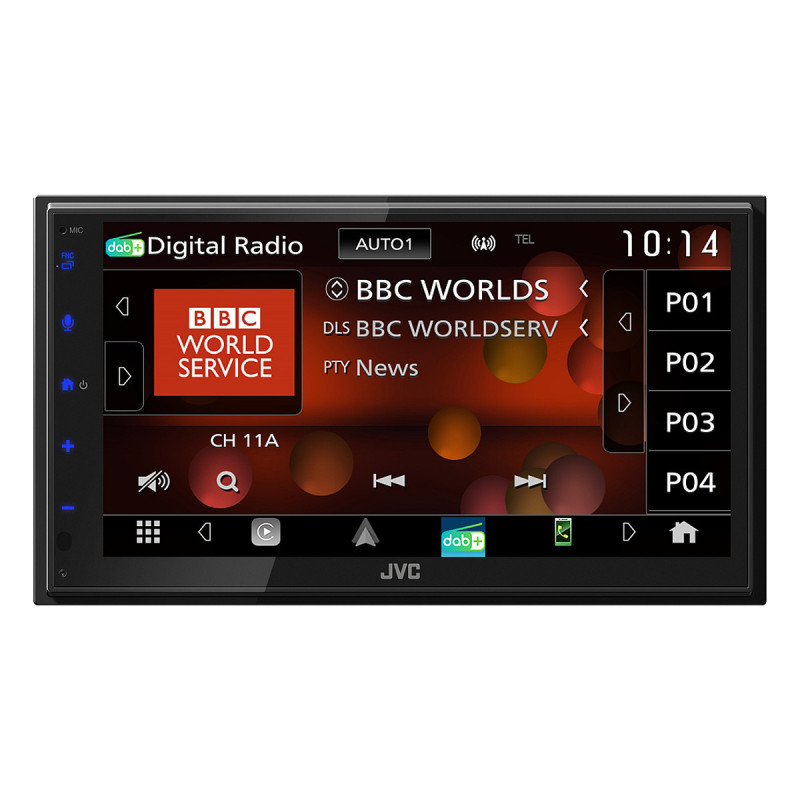

DAB+ Tuner
DAB+ is short for Digital Audio Broadcasting, which means digital sound transmission. DAB+ radios are digital radios that are the successors to classic FM radios. DAB+ delivers CD-quality, crystal-clear reception with little noise and no sound distortion. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears:

Time Alignment :
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer :
Use the 13-Band Equalizer to manually adjust the sound to your taste.

Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Performance

Product colour: Black
DIN size: 1 DIN
Output power: 200 W
Maximum power per channel: 50 W
Frequency range: 20 - 20000 Hz
Signal-to-Noise Ratio (SNR): 75 dB
Impedance: 4 Ω
Disc types supported: No
Analog signal format system: NTSC, PAL
Mobile operating systems supported: Android, iOS
Feature: High pass filter
Feature: Low pass filter
Feature: Equalizer
Equalizer bands quantity: 13
Feature: Equalizer customizable
Feature: Built-in microphone
Feature: Loudness control
Feature: Time alignment
Feature: Bass boost technology
Feature: Backup function

Multimedia

Feature: USB direct playback
Feature: MP3 playback
Feature: Built-in audio D/A Converter (DAC)
Audio formats supported: AAC, FLAC, MP3, WAV, WMA
Image formats supported: BMP, PNG
Video formats supported: H.264, MKV, MPEG1, MPEG4, WMV

Display

Feature: Built-in display
Display type: LCD
Feature: Touchscreen
Feature: Widescreen
Touchscreen type: Capacitive
Display diagonal: 17.3 cm (6.8")
Display resolution: 1024 x 600 pixels
Feature: Rear-view camera ready

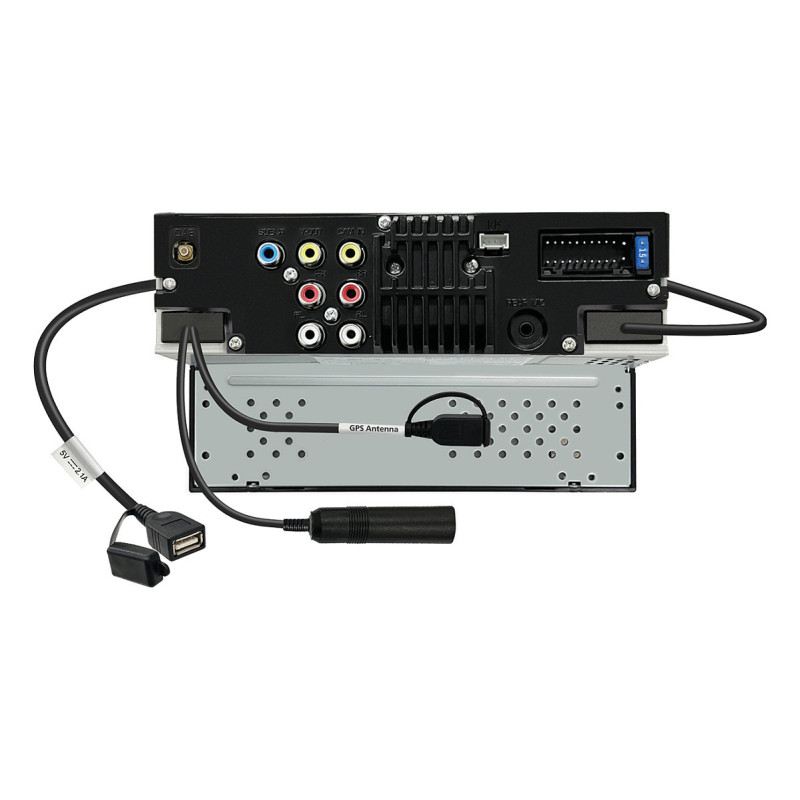

Ports & interfaces

Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Wi-Fi frequency: 5 GHz
Bluetooth version: 5.1
Bluetooth profiles: A2DP, AVRCP, HFP, PBAP, SSP
Feature: ISO connector
Feature: USB port
USB ports quantity: 1
Feature: Bluetooth
Feature: Apple CarPlay support
Feature: Android Auto support
Feature: Pre out port
Line outputs (RCA): 1

Radio

Supported radio bands: AM, DAB+, FM
FM band range: 87.5 - 108 MHz
AM band range: 531 ~ 1611 kHz
Feature: Radio Data System (RDS)
Feature: Automatic presetting
DAB tuner: DAB+

Call management

Feature: Hands-free calling

GPS Performance

Feature: GPS (satellite)

Weight & dimensions

Width: 182 mm
Depth: 86 mm
Height: 112 mm
Weight: 1.27 kg

Processor

Feature: Built-in processor
